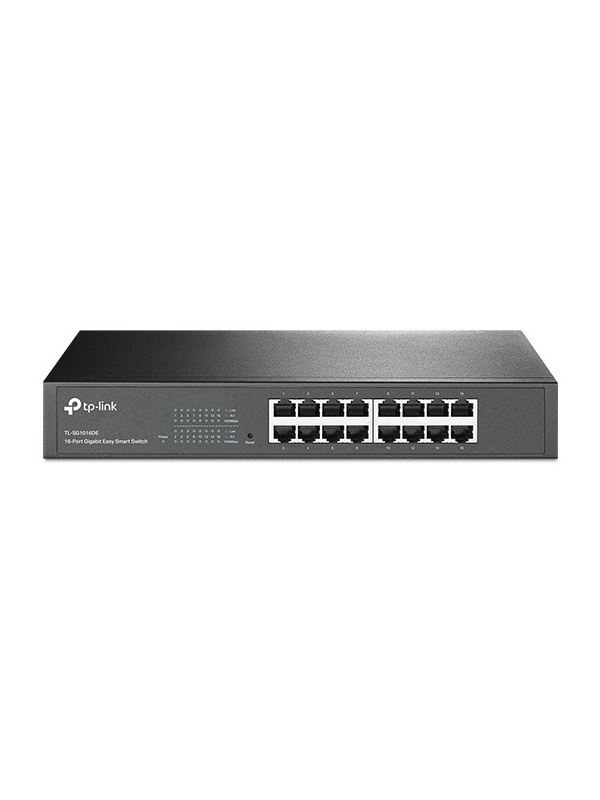

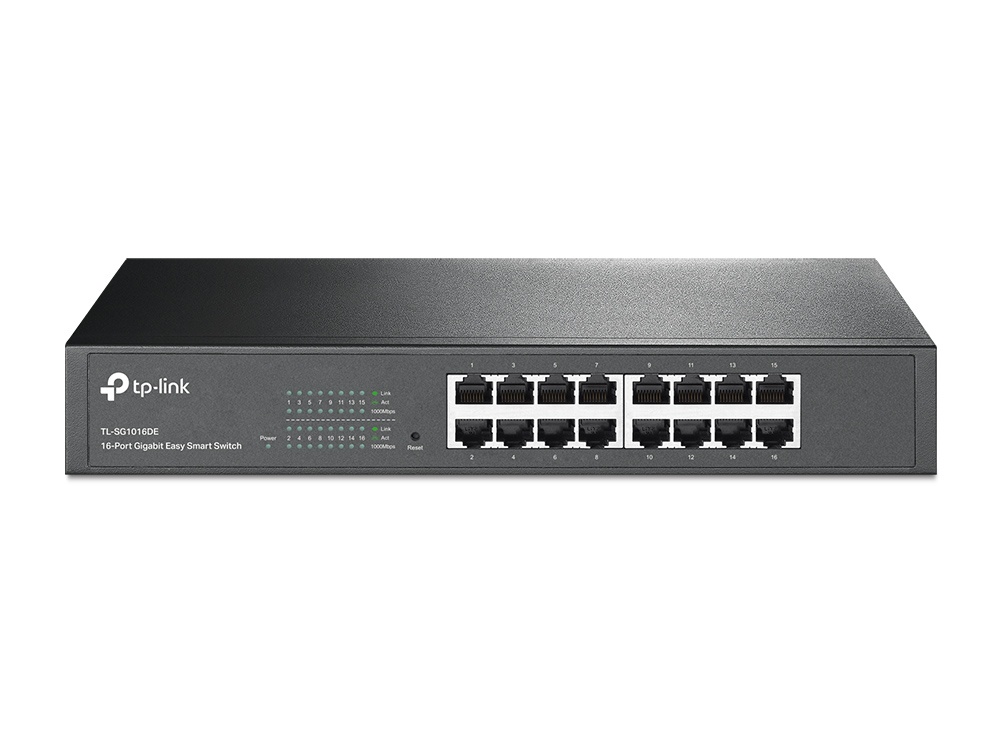

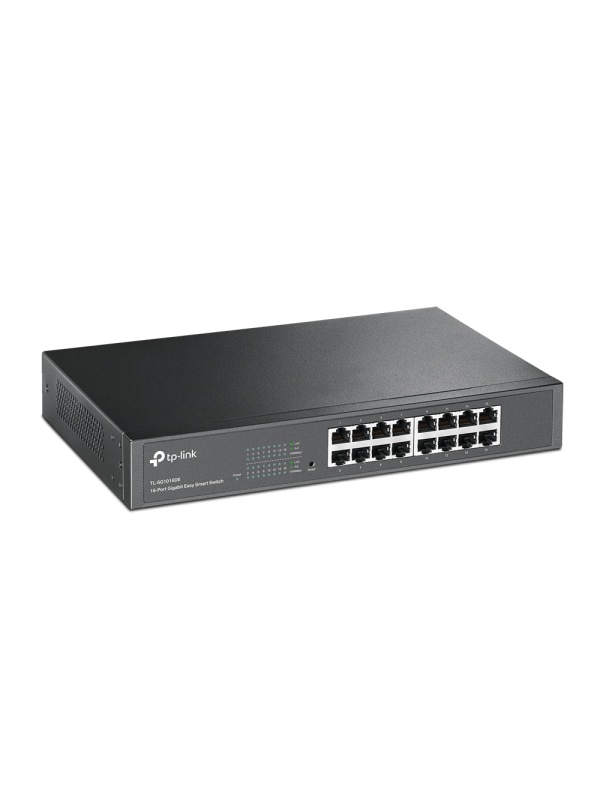

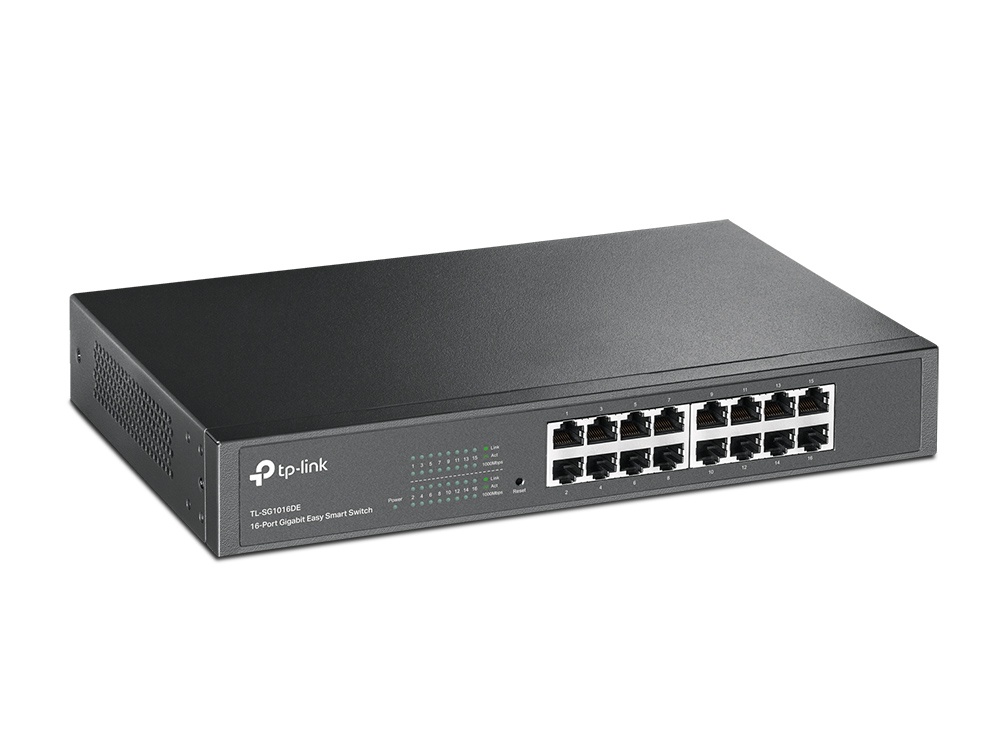

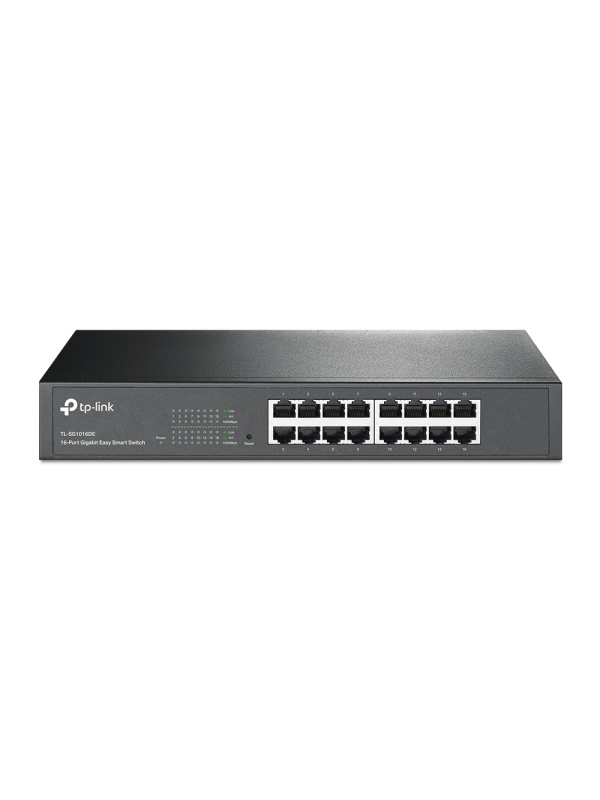

TP-Link TL-SG1016DE – 16-Port Easy Smart Gigabit Switch, Metal Housing, 19" Rack-Mountable, Simplified Management

The TP-Link TL-SG1016DE is a Gigabit switch from the Easy Smart range, designed specifically for small and medium-sized business networks requiring simplified traffic management. Equipped with 16 Gigabit ports, this device offers an ideal transition from an unmanaged switch to a smart switch. It combines ultra-fast data transfer speeds with essential monitoring and security features, such as VLAN, QoS and IGMP Snooping, all housed in a robust metal casing, ready for rack mounting.

Key Benefits

• 16 Full Gigabit Ports: All 16 RJ45 ports support speeds of 10/100/1000 Mbps, offering a switching capacity of 32 Gbps. It is the perfect solution for eliminating traffic bottlenecks in networks handling large volumes of data.

• Easy Smart Management: Provides network monitoring functions that allow users to observe traffic behaviour. Via the web-based interface or the configuration utility, you can manage essential settings without the need for advanced networking knowledge.

• Traffic Optimisation (QoS): Supports Port-based/802.1p/DSCP QoS technology, ensuring smooth traffic flow for latency-sensitive applications such as voice (VoIP) and video, preventing stuttering during calls or monitoring.

• VLAN Security: Helps segment the network using MTU VLAN, Port-based VLAN and 802.1Q-based VLAN functions, improving security and performance by isolating workgroups or departments.

• TP-Link Green Technology: Saves energy intelligently by adjusting power consumption based on connection status and cable length, reducing operational costs and your office’s carbon footprint.

• Metal Housing and Rack Mounting: The professional metal design (1U) ensures optimal heat dissipation. The package includes a 19-inch rack mounting kit, facilitating neat organisation within data cabinets.

Examples of Use

1. Office Network Segmentation: Use the VLAN function to separate visitor traffic from that of the accounts department, enhancing internal security.

2. Surveillance and VoIP Systems: Prioritising video and voice traffic via QoS, ensuring that IP camera recordings and telephone calls remain stable even when large files are being downloaded over the network.

3. SOHO Infrastructure Upgrade: The ideal solution for businesses that need more than just a simple ‘plug-and-play’ switch and want control over network performance and diagnostics (Loop Prevention, Port Mirroring).

Technical Specifications

• Model: TL-SG1016DE

• Interface: 16 × 10/100/1000 Mbps RJ45 ports

• Switching Capacity: 32 Gbps

• Packet Forwarding Rate: 23.8 Mpps

• MAC Address Table: 8K

• Jumbo Frame: 10 KB

• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention

• VLAN: Supports up to 32 VLANs simultaneously

• Housing: Metal, Desktop or Rack-mountable (1U)

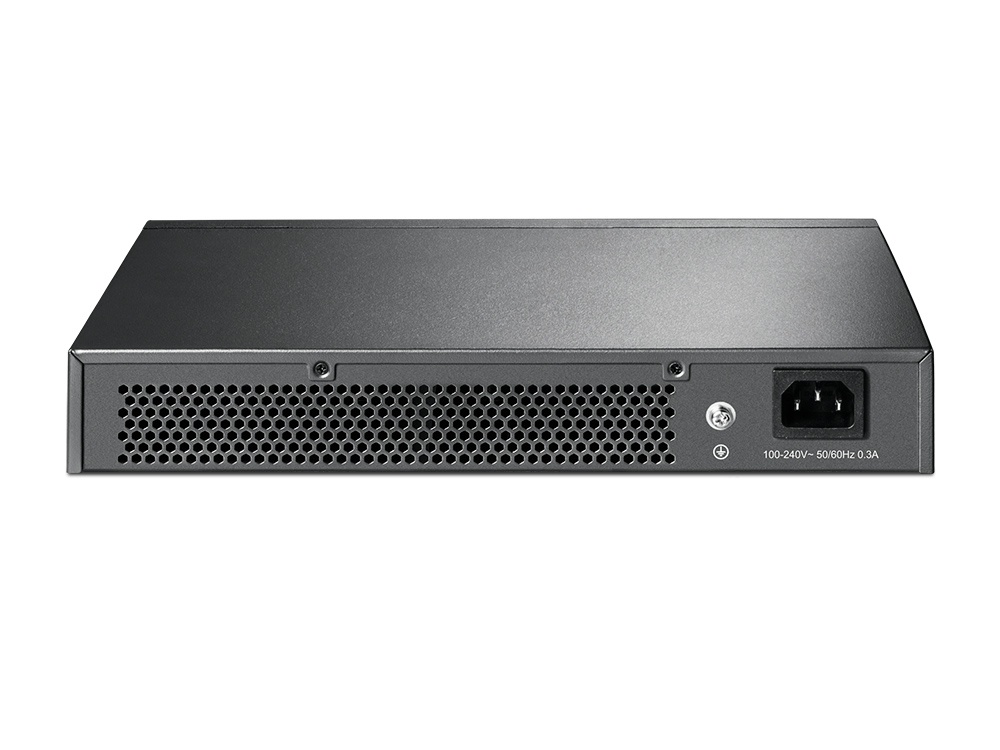

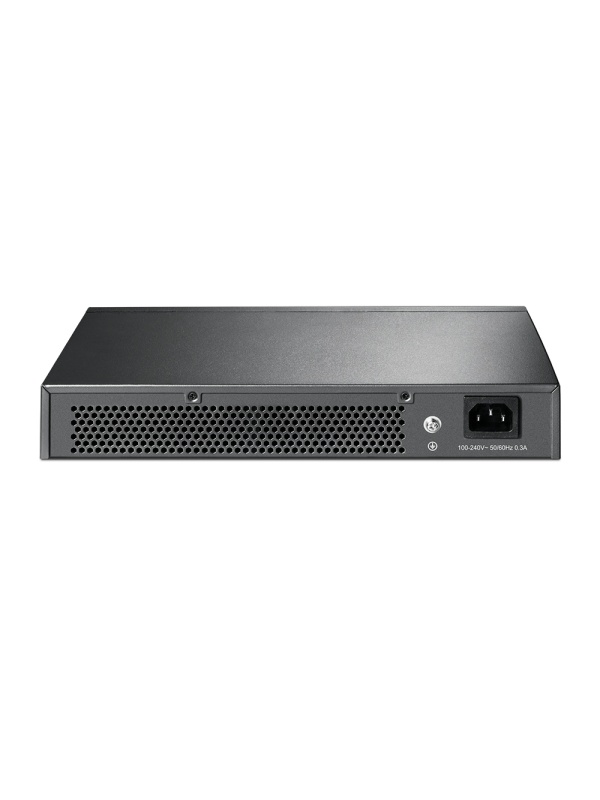

• Power Supply: Internal (100–240V AC, 50/60Hz)

Package contents: 1 x TL-SG1016DE switch, power cable, rack-mounting kit (mounting brackets and screws), rubber feet, quick installation guide.

Why choose the TP-Link TL-SG1016DE?

The TL-SG1016DE is the well-balanced solution for network administrators seeking control and visibility at a competitive price. It is not just a fast switch, but a tool that allows you to optimise your network resources and prevent common incidents (such as network loops). Robust, quiet and energy-efficient, this model forms the foundation of a modern and secure business network.
