Description

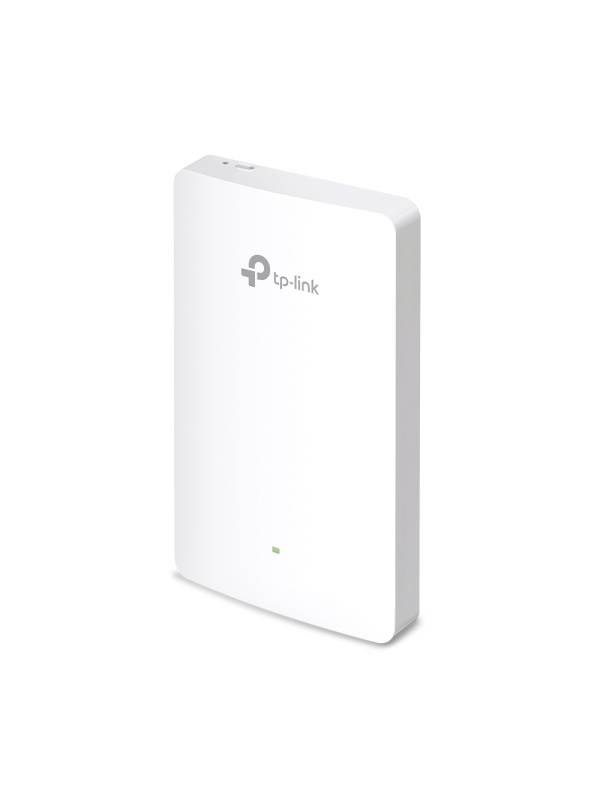

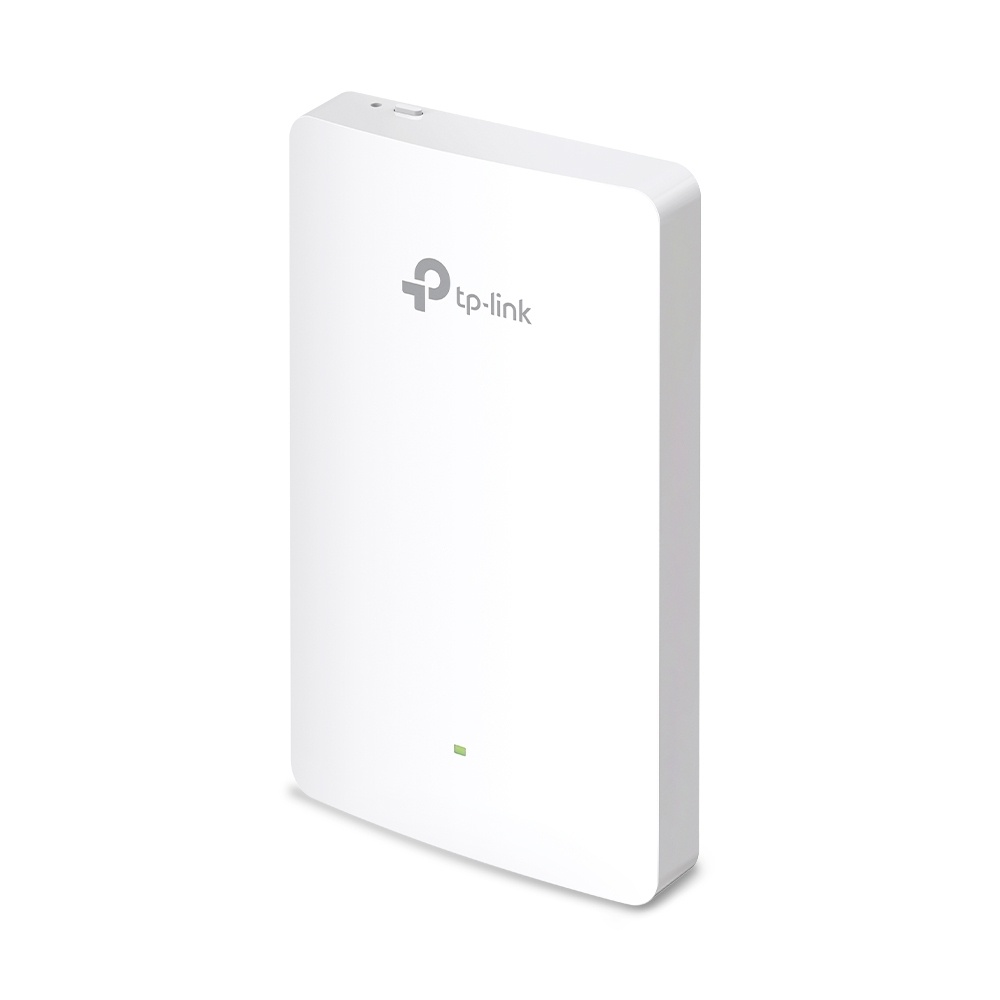

TP-Link EAP615-Wall - Omada Wi-Fi 6 AX1800 Wall-Plate Access Point
The TP-Link EAP615-Wall is an Omada Wi-Fi 6 access point designed for wall mounting, with four Gigabit ports (one uplink and three downlink, one of which offers PoE passthrough to power other equipment). It delivers speeds of up to 574 Mbps on 2.4GHz and 1201 Mbps on 5GHz.
Key features:
- Dual-band Wi-Fi 6 AX1800, up to 120+ simultaneous connections
- 4 Gigabit ports, one with PoE passthrough
- 802.3af/at PoE power supply
- Up to 16 configurable SSIDs, WPA/WPA2/WPA3
- Centralised management, mesh and roaming
Practical use cases:
- Replacing a wall socket with Wi-Fi access and additional Ethernet ports in hotel rooms
- Wi-Fi coverage for offices or apartments, with PoE power to other devices
- Networks with seamless roaming between multiple rooms/floors
Technical specifications:
| Interface | 4x Gigabit ports (1 uplink + 3 downlink, 1 with PoE passthrough) |
| Wi-Fi speed | 574 Mbps (2.4GHz) + 1201 Mbps (5GHz), total 1775 Mbps |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax |
| Dimensions | 143 x 86 x 20 mm |
| Power supply | 802.3af/at PoE |
| SSID | up to 16, WPA/WPA2/WPA3 |
| Management | Omada SDN, mesh, roaming |
The TP-Link EAP615-Wall combines Wi-Fi 6 coverage with additional Ethernet ports, making it ideal for hotels, offices and apartments where mounting space is limited.
Datasheet
EAP615-Wall_Datasheet_TPLink.pdfWhat customers are saying
