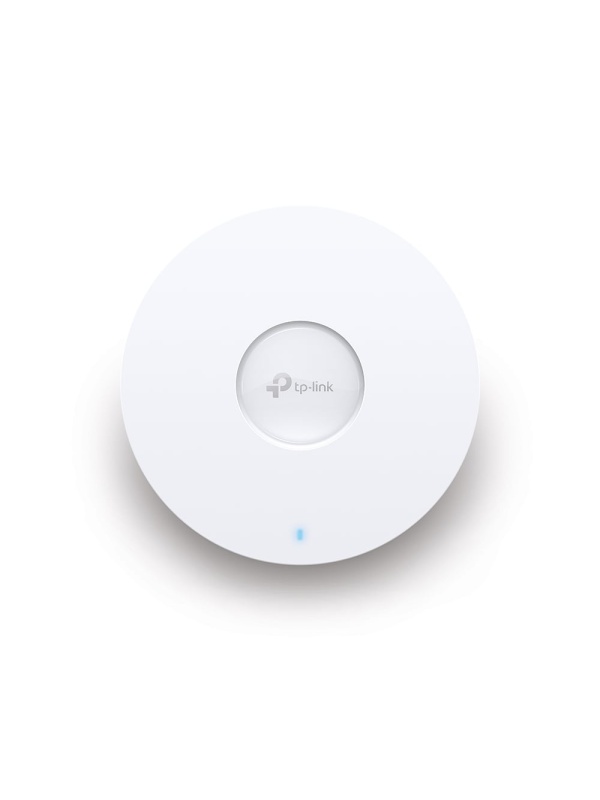

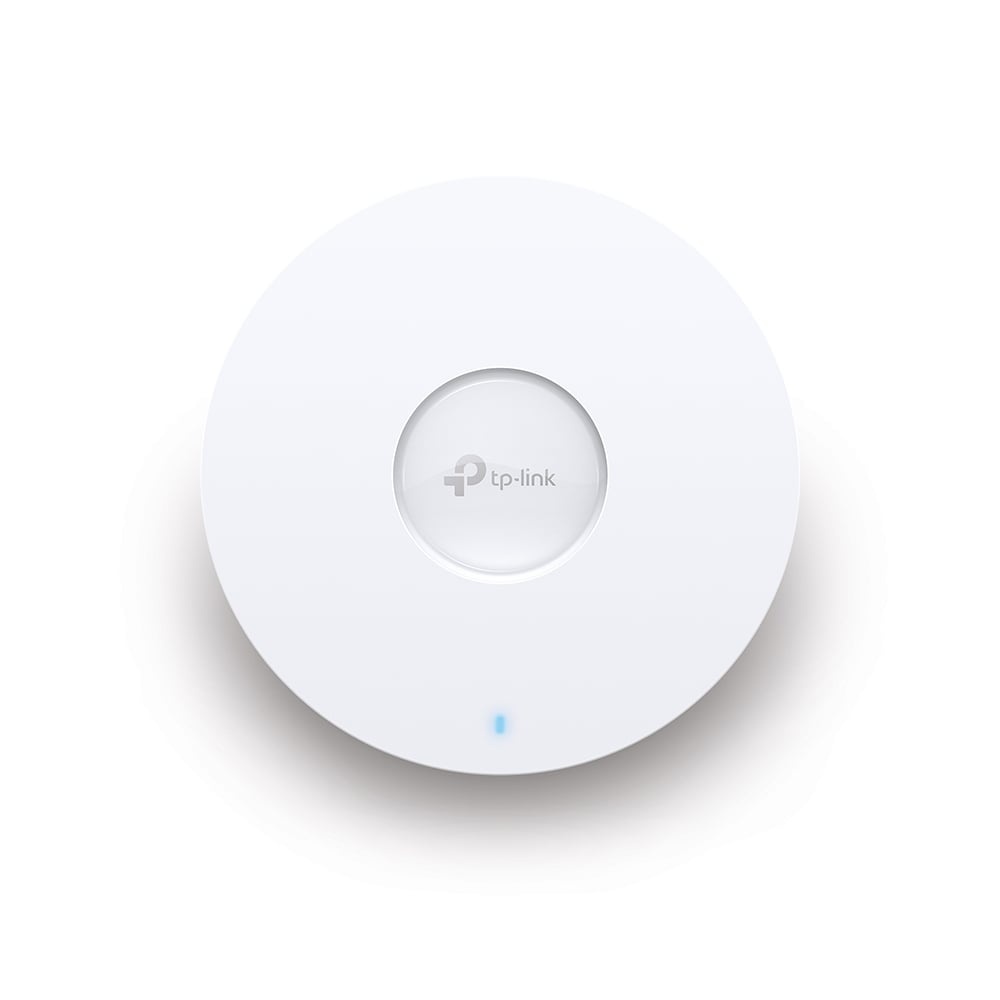

TP-Link EAP653 - Omada Wi-Fi 6 AX3000 Ceiling Mount Access Point
TP-Link EAP653 is a dual-band AX3000 Omada Wi-Fi 6 access point with a compact design for ceiling or wall mounting. It delivers speeds of up to 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz, making it suitable for offices, hotels and commercial spaces with heavy traffic.
Key features:
- Dual-band Wi-Fi 6 AX3000 (574 + 2402 Mbps)
- Internal antennas with gain of up to 5dBi
- PoE power via a single Gigabit port
- Centralised management via the Omada SDN platform
Practical use cases:
- Wi-Fi coverage for medium-sized offices or conference rooms
- Wi-Fi networks for hotels and retail spaces with large numbers of customers
- Expanding an existing Omada network with seamless roaming
Technical specifications:
| Interface | 1x Gigabit RJ45 port, PoE |
| Wi-Fi speed | 574 Mbps (2.4GHz) + 2402 Mbps (5GHz) |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax, MU-MIMO 2x2 |
| Antennas | Internal, gain up to 5dBi |
| Dimensions | 160 x 160 mm |
| Mounting | Ceiling or wall |
| Management | Omada SDN, cloud, ZTP |
TP-Link EAP653 offers a good balance between Wi-Fi 6 performance and cost, suitable for medium-sized Omada networks.
Datasheet
Datasheet_EAP653.pdfWhat customers are saying
