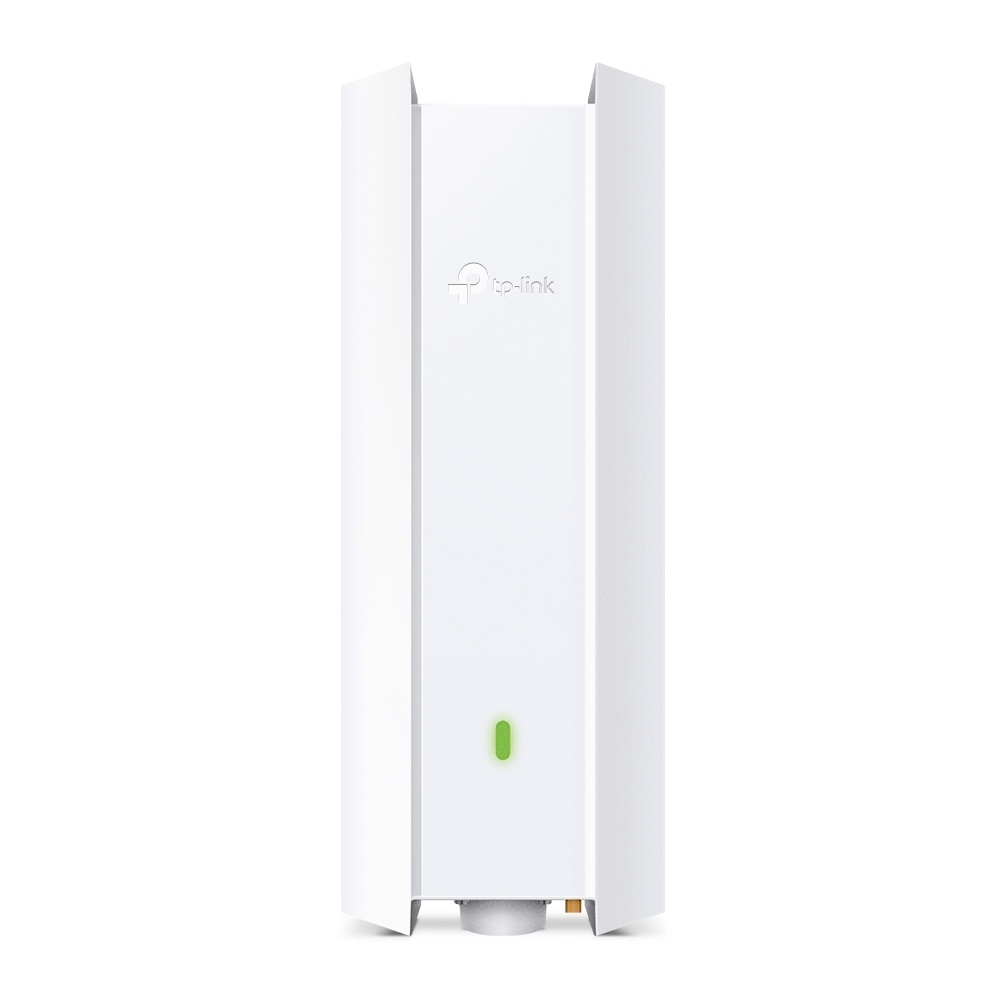

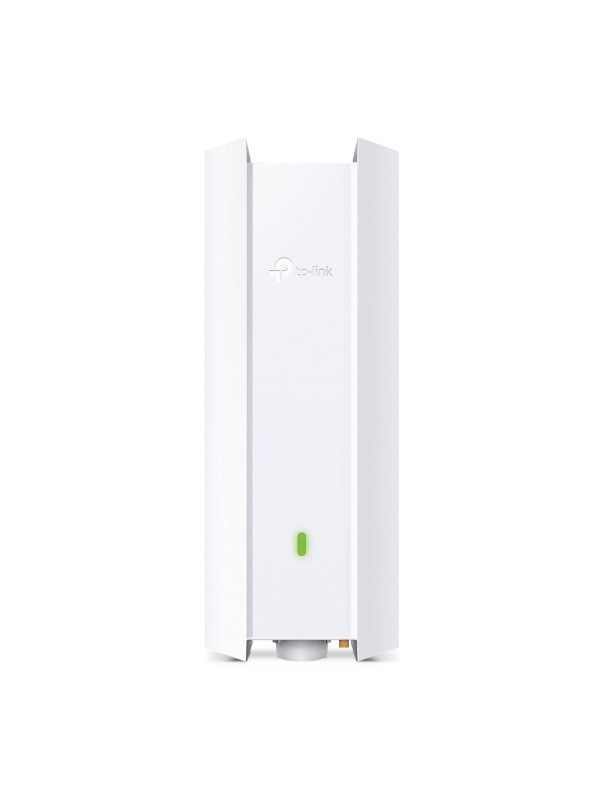

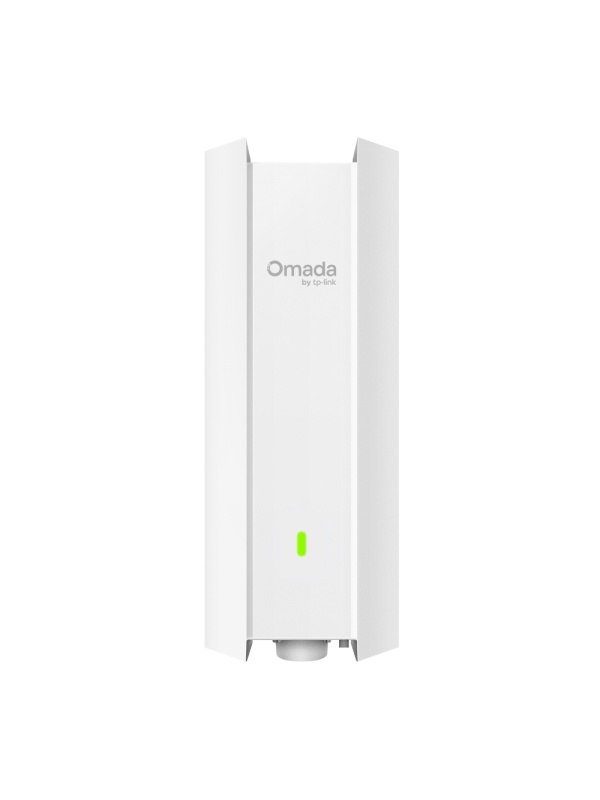

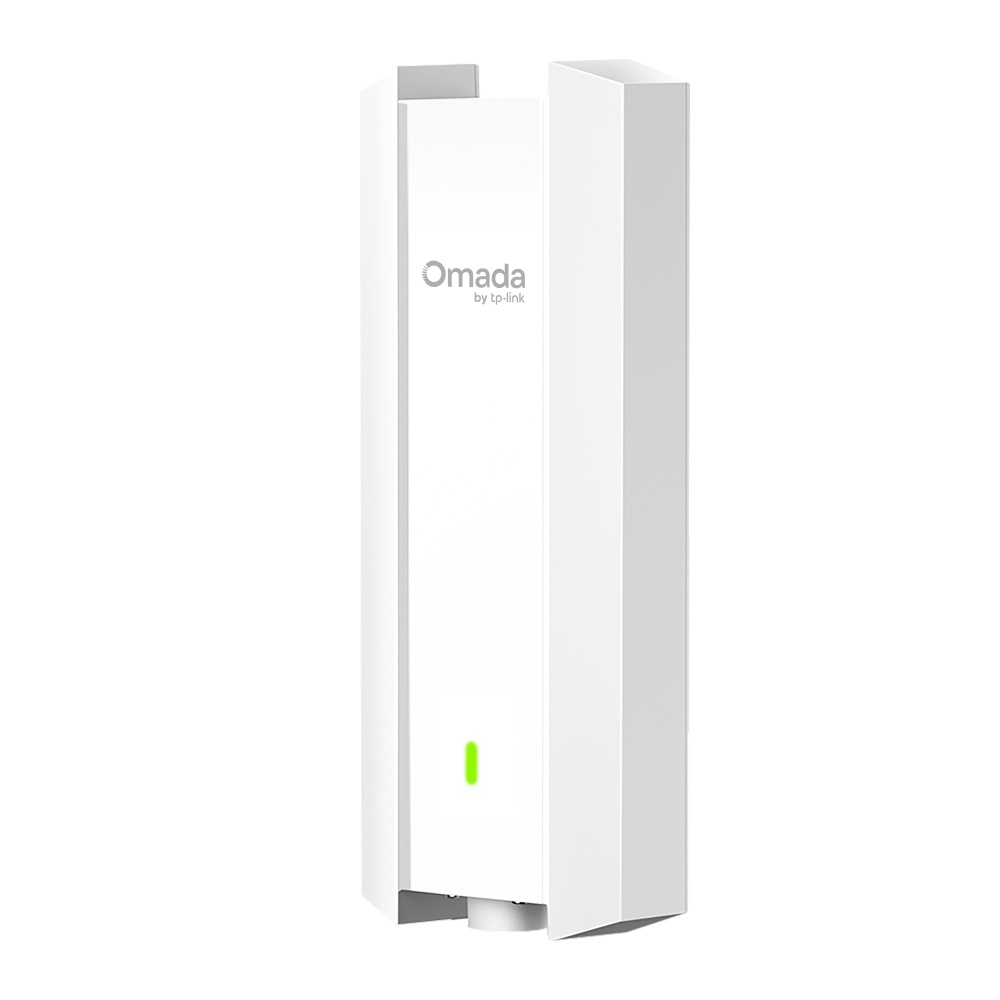

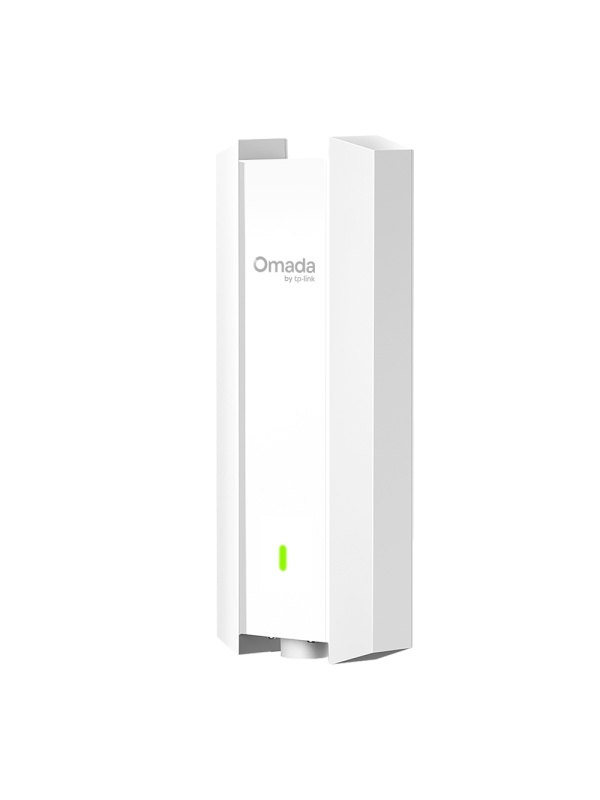

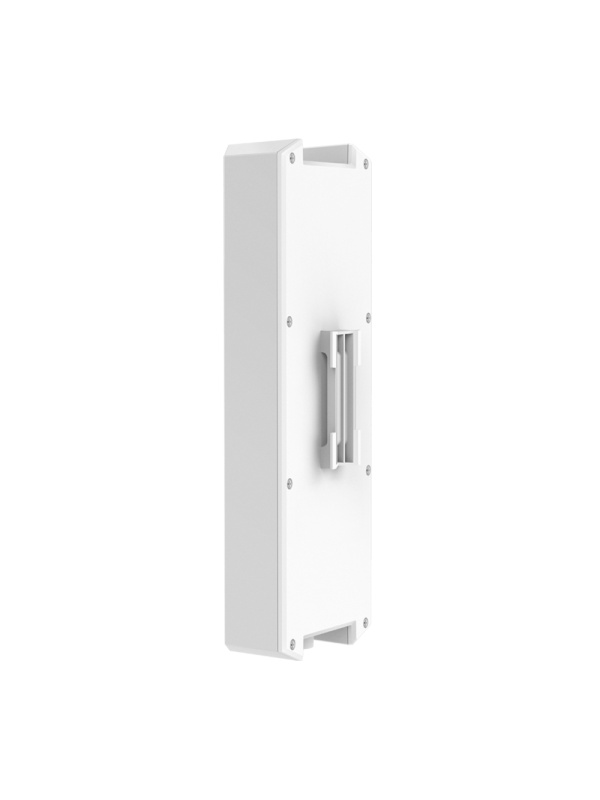

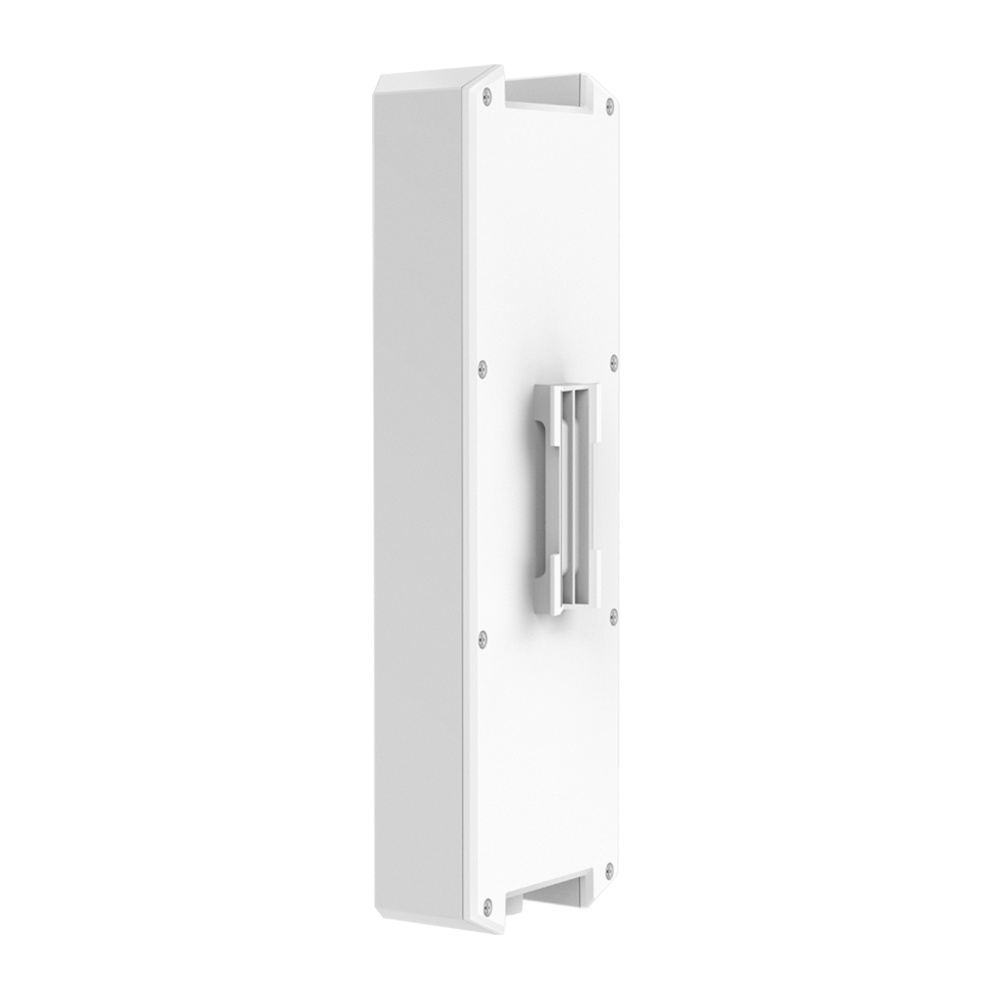

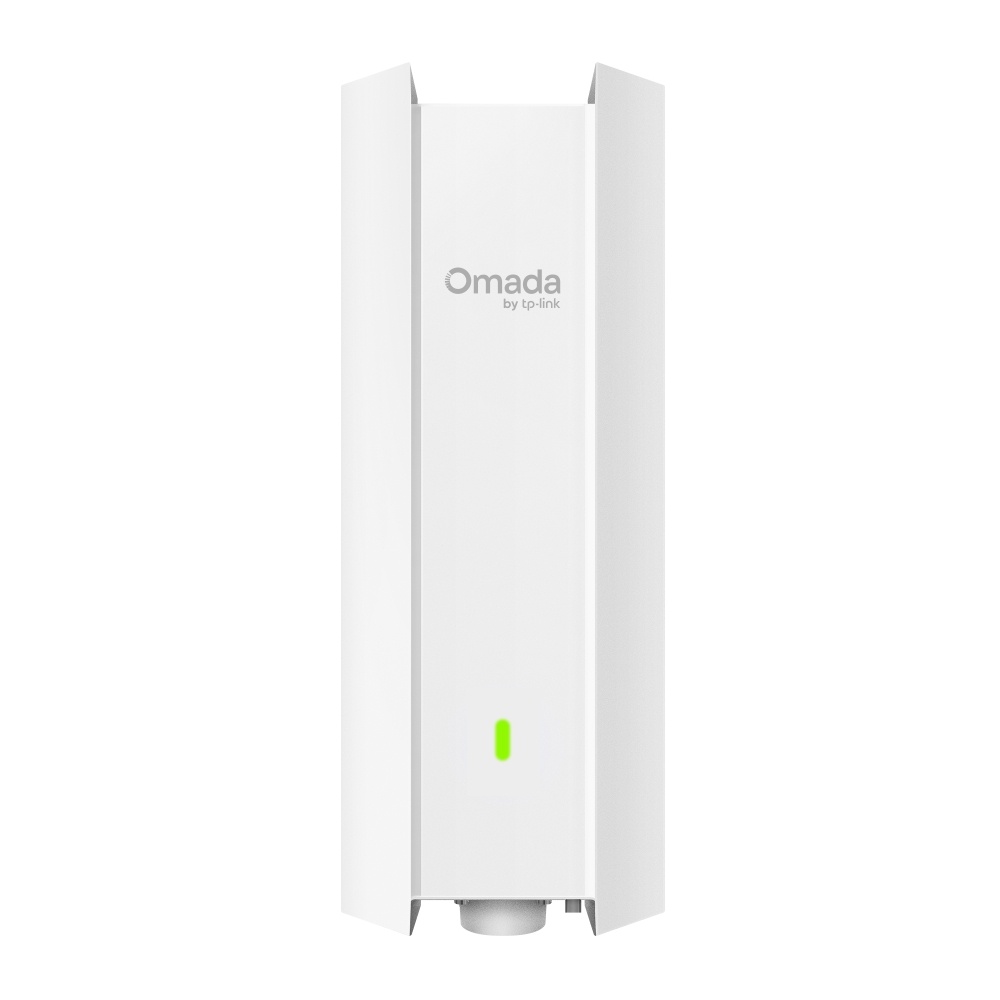

TP-Link EAP610-Outdoor - Omada Wi-Fi 6 AX1800 Indoor/Outdoor Access Point
The TP-Link EAP610-Outdoor is a dual-band AX1800 Omada Wi-Fi 6 access point, designed for indoor or outdoor mounting thanks to its enclosure with IP67 protection. It offers speeds of up to 574 Mbps on 2.4GHz and 1201 Mbps on 5GHz, with 6kV surge protection and 15kV electrostatic discharge protection, making it suitable for areas exposed to the elements.
Key features:
- Dual-band Wi-Fi 6 AX1800 (574 Mbps 2.4GHz + 1201 Mbps 5GHz)
- Enclosure with IP67 protection, dust- and water-resistant
- 6kV surge protection and 15kV ESD
- 802.3at PoE or 48V passive power supply
- Centralised management via the Omada platform
Practical use cases:
- Wi-Fi coverage in yards, terraces or car parks
- Wireless network for warehouses and semi-outdoor spaces
- Extending Wi-Fi 6 coverage into areas exposed to harsh weather conditions
Technical specifications:

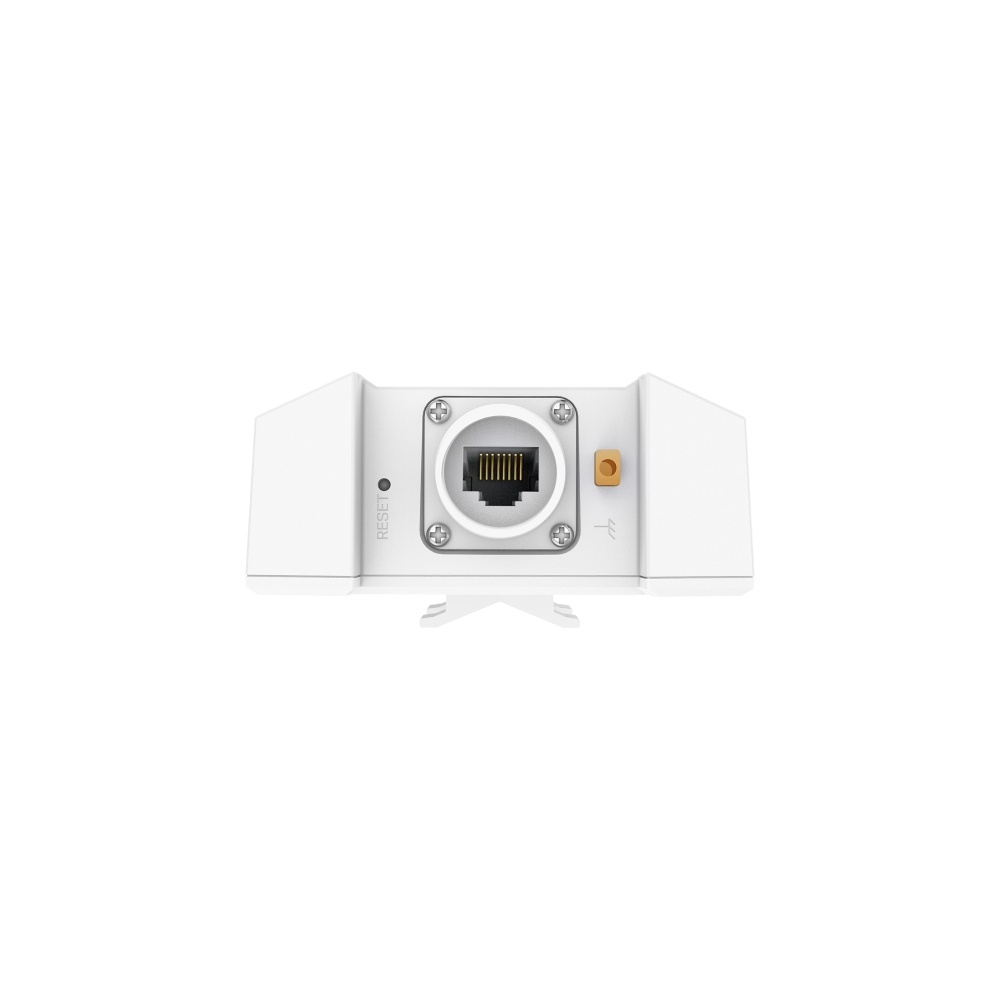

| Interface | 1x Gigabit RJ45 port |
| Wi-Fi speed | 574 Mbps (2.4GHz) + 1201 Mbps (5GHz), 1775 Mbps in total |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax |
| Antennas | 2x internal omni (4dBi 2.4GHz, 5dBi 5GHz) |
| Power supply | 802.3at PoE or 48V DC passive |
| Enclosure protection | IP67 |
| Electrical protection | 6kV surge, 15kV ESD |
| Management | Omada SDN (local, cloud, mobile app) |
The TP-Link EAP610-Outdoor brings Wi-Fi 6 performance to harsh outdoor environments, with a rugged enclosure and full integration into the Omada ecosystem.
