Aqara Display Switch V1 smart switch, 2 channels, Zigbee

Aqara Display Switch V1 EU - Smart Switch with LCD Display and Dual Control

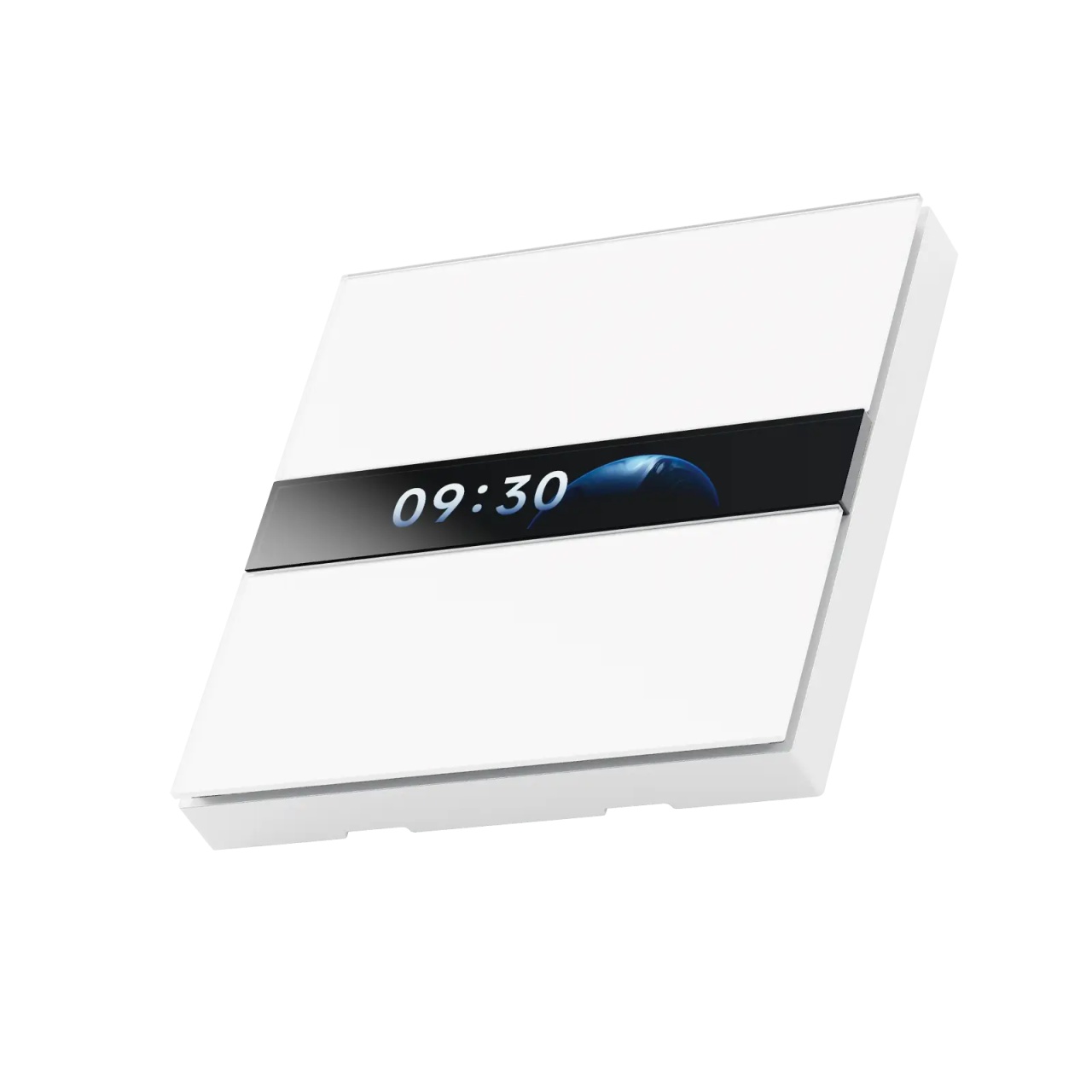

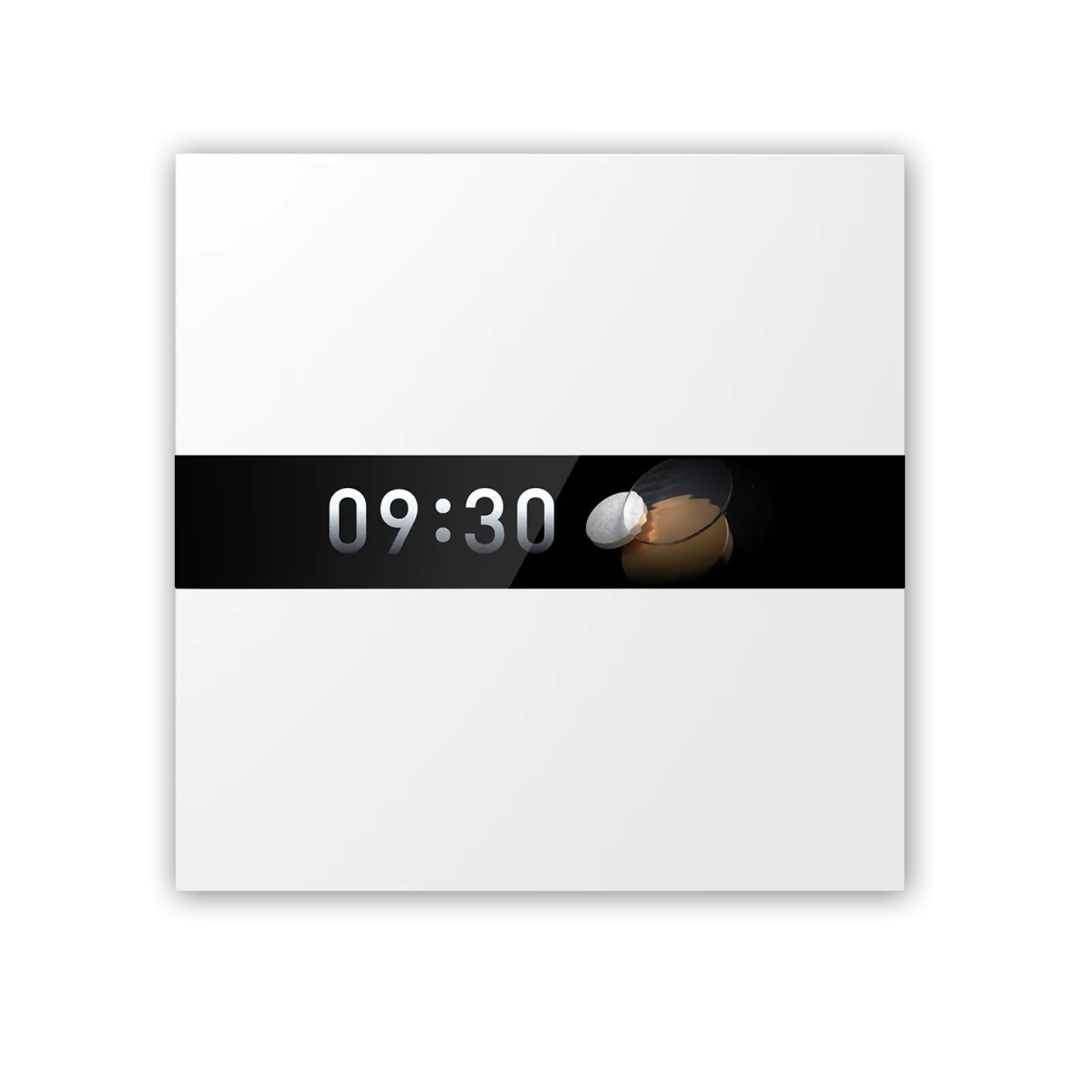

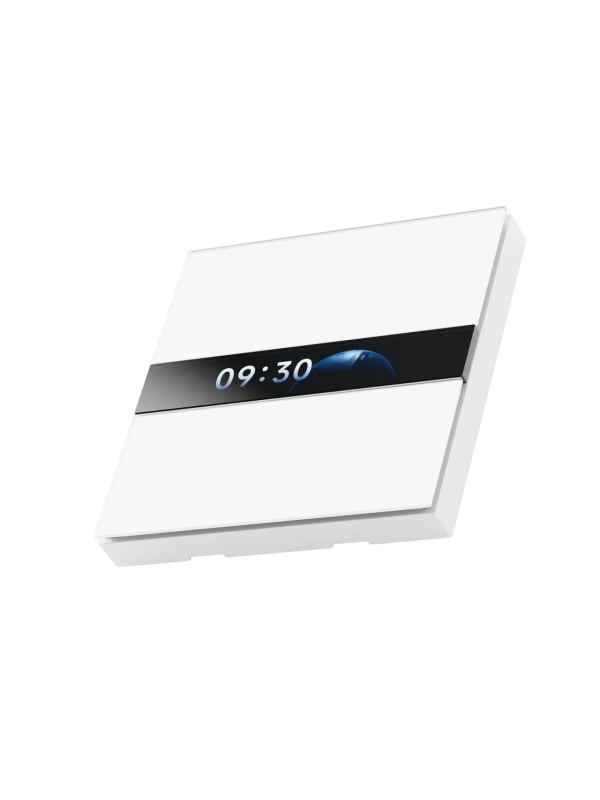

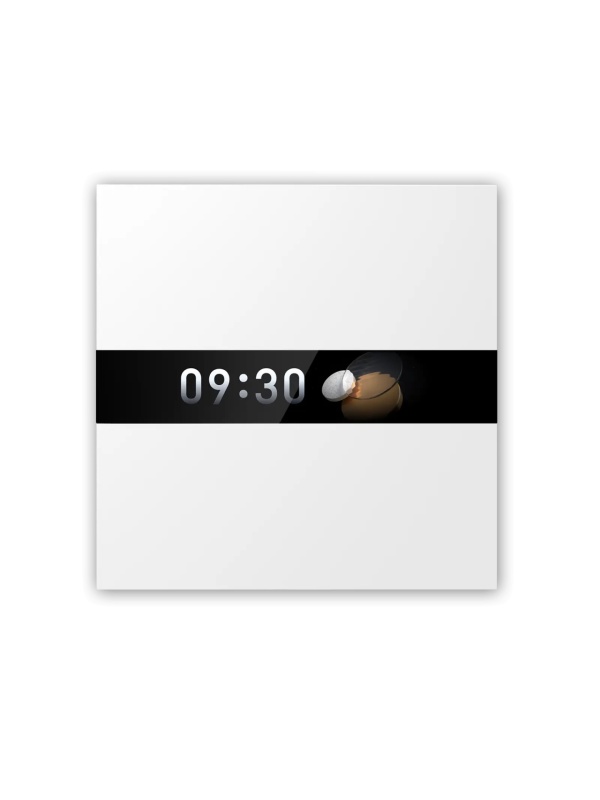

The Aqara Display Switch V1 EU is a dual-channel (requires null wire) intelligent wall switch with 4 physical buttons and a 2.08 inch LCD display. It allows customisation of the displayed text and icons so the user can easily identify what each button controls. It has power consumption monitoring and supports integration with third-party ecosystems via Matter over Bridge.

Key features:

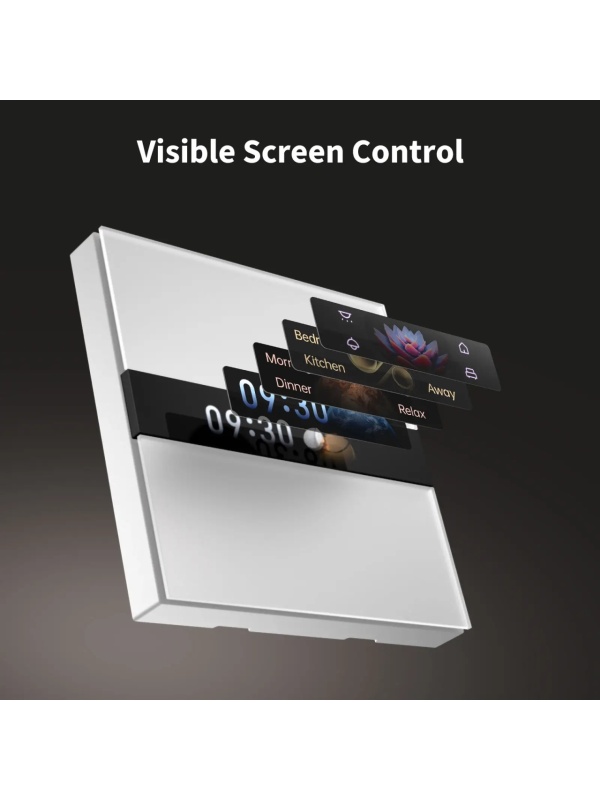

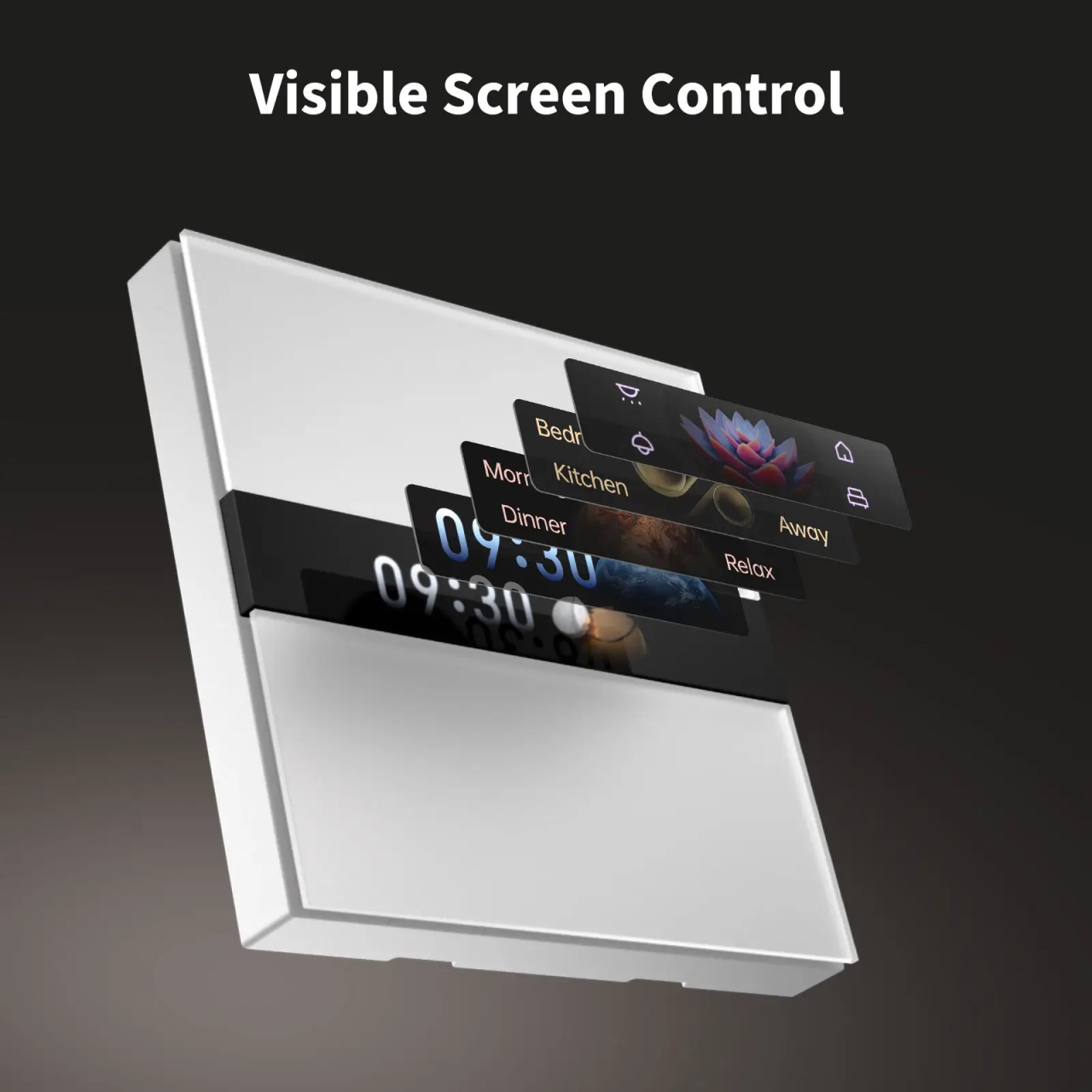

🔹 Visible and Customisable Display
The 4 buttons are displayed on a 2.08" LCD screen with text and icons configurable via the Aqara Home app¹. You can adjust text size², colour and icons for an intuitive and user-friendly experience.

🔹 F lexible Control³

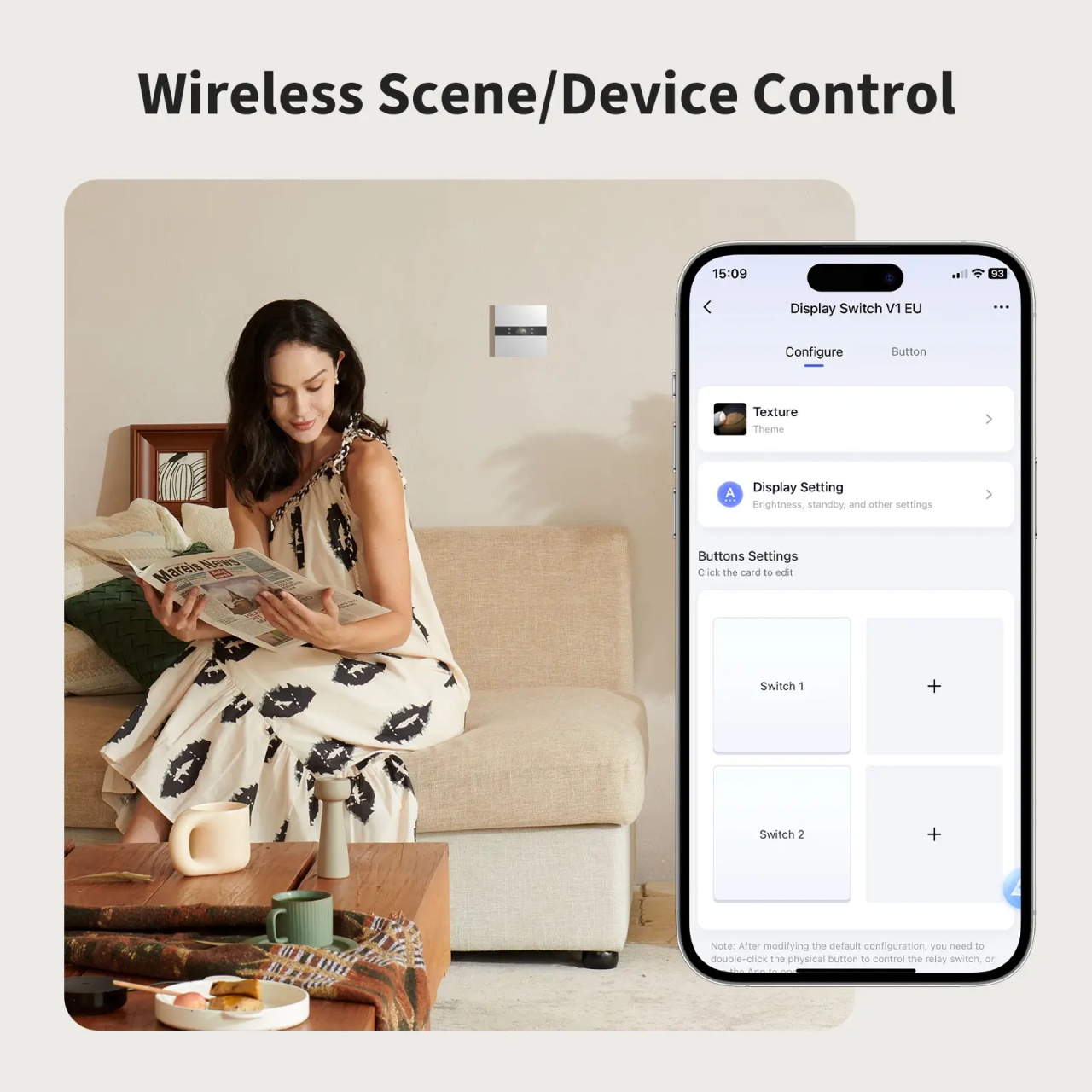

• The 2 left buttons function as physical switches for wired tasks.

• The 2 buttons on the right are wireless switches.

• All 4 buttons can be configured to trigger custom scenes.

🔹 Zigbee and Matter over Bridge⁴
The device functions as a Zigbee hub and Zigbee relay, stabilising your smart home network. Full integration with ecosystems such as Apple Home, Google Home, Amazon Alexa, SmartThings, Home Assistant and Homey via a compatible hub.

🔹 Proximity Activation⁵
The built-in presence sensor activates the screen when someone approaches. You can set the activation distance between 0.2m and 2m. Default automations can be triggered based on user proximity.

🔹 Energy Consumption Monitoring⁶
The device can monitor daily, weekly and monthly consumption of connected loads. This data is available in the Aqara Home app and can help you reduce unnecessary energy consumption.

🔹 Premium Design and Amp Resistance
The AG glass panel offers a sleek look and a pleasant, skin-like tactile finish. Anti-fingerprint technology keeps the surface clean and smudge-free.

Technical Specifications:

• Product Name: Display Switch V1 EU

• Model: WS-K02D

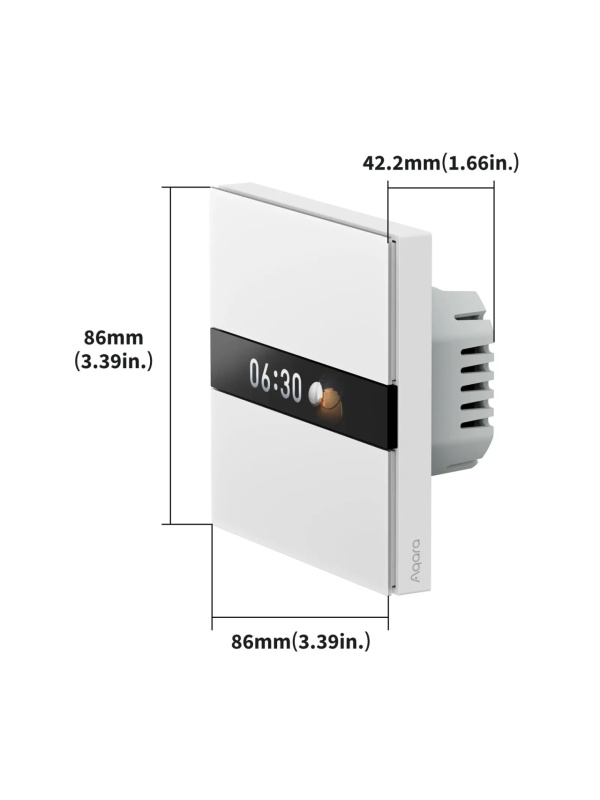

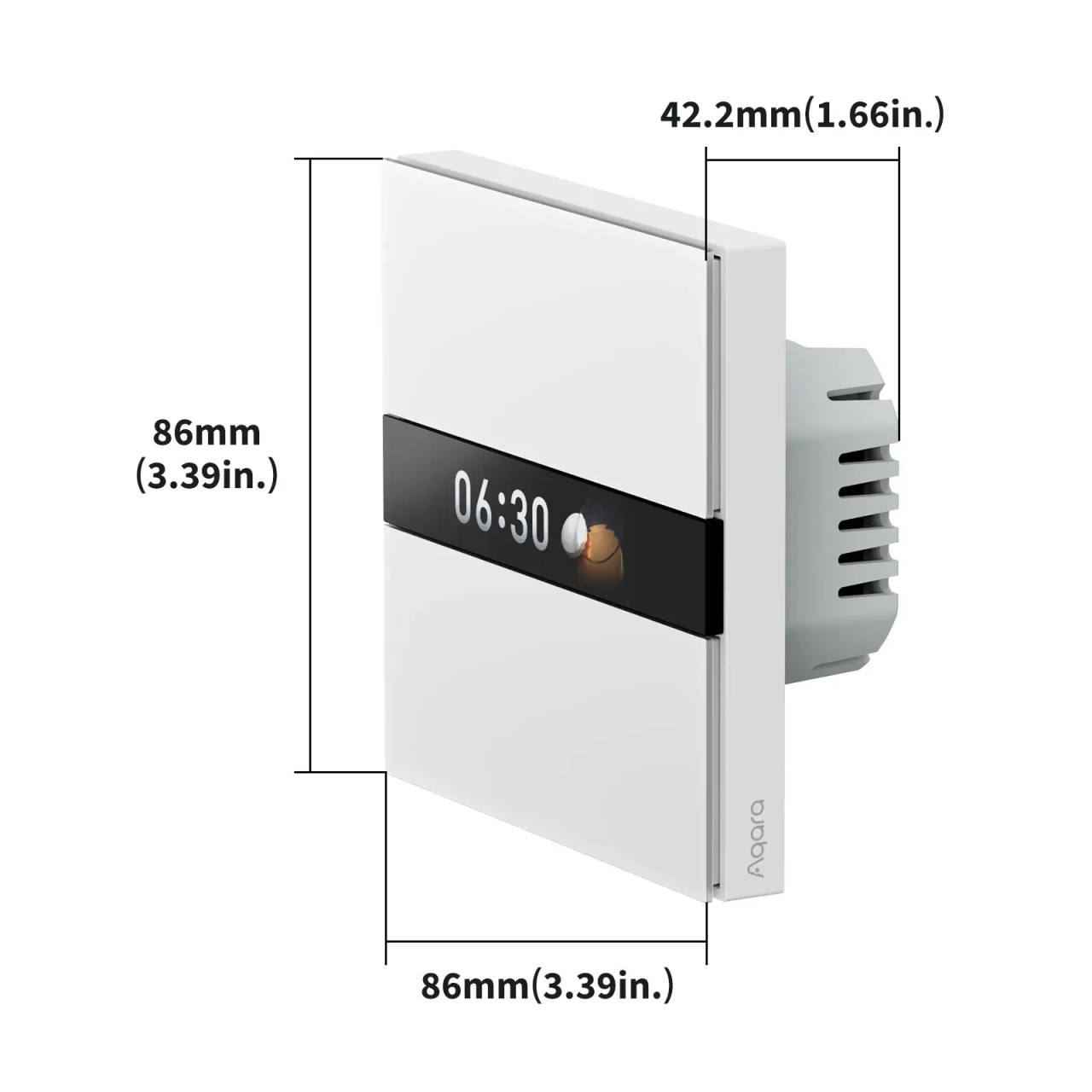

• Dimensions: 86 × 86 × 42.2 mm

• Wireless protocol: Zigbee, Bluetooth

• Electrical parameters: 200-240 VAC, 50/60 Hz, max. 8A (resistive load)

• Operating temperature: -10°C ~ 40°C

• Operating humidity: 0 ~ 95% RH (non-condensing)

Package Contents:

• Display Switch V1 EU × 1

• User manual × 1

• Declaration of Conformity × 1

• Set of screws × 1

Notes:

¹ Function only available in the Aqara Home app.
² If large text is activated, icons will no longer be displayed.
³ Advanced scenes and functions require compatible Aqara hub. Full compatibility with third-party apps may vary.
⁴ Requires Matter over Bridge compatible hub (all Aqara hubs except G2H Pro).
⁵ Proximity activation distance can be set in 5 steps.
⁶ Only available in the Aqara Home app.
