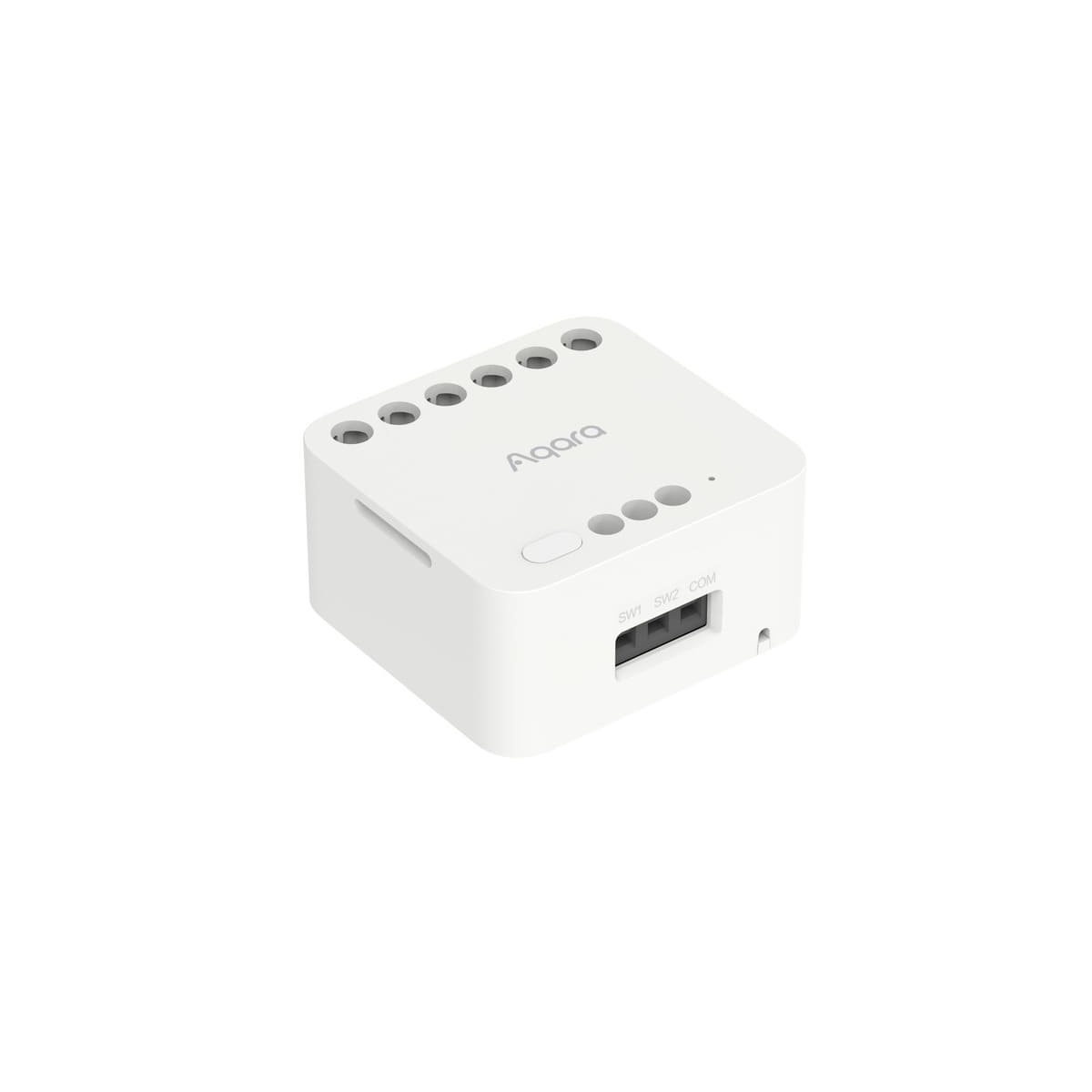

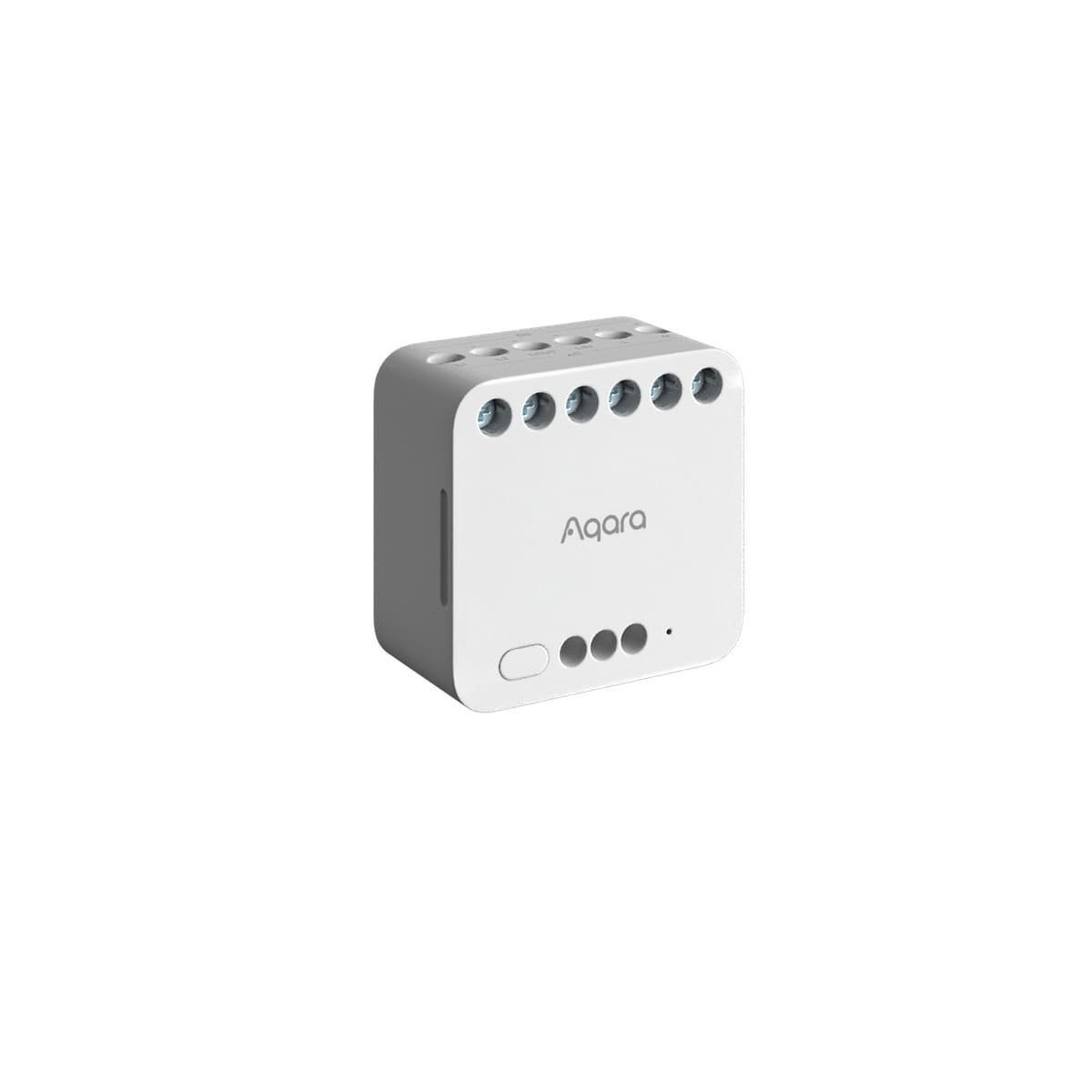

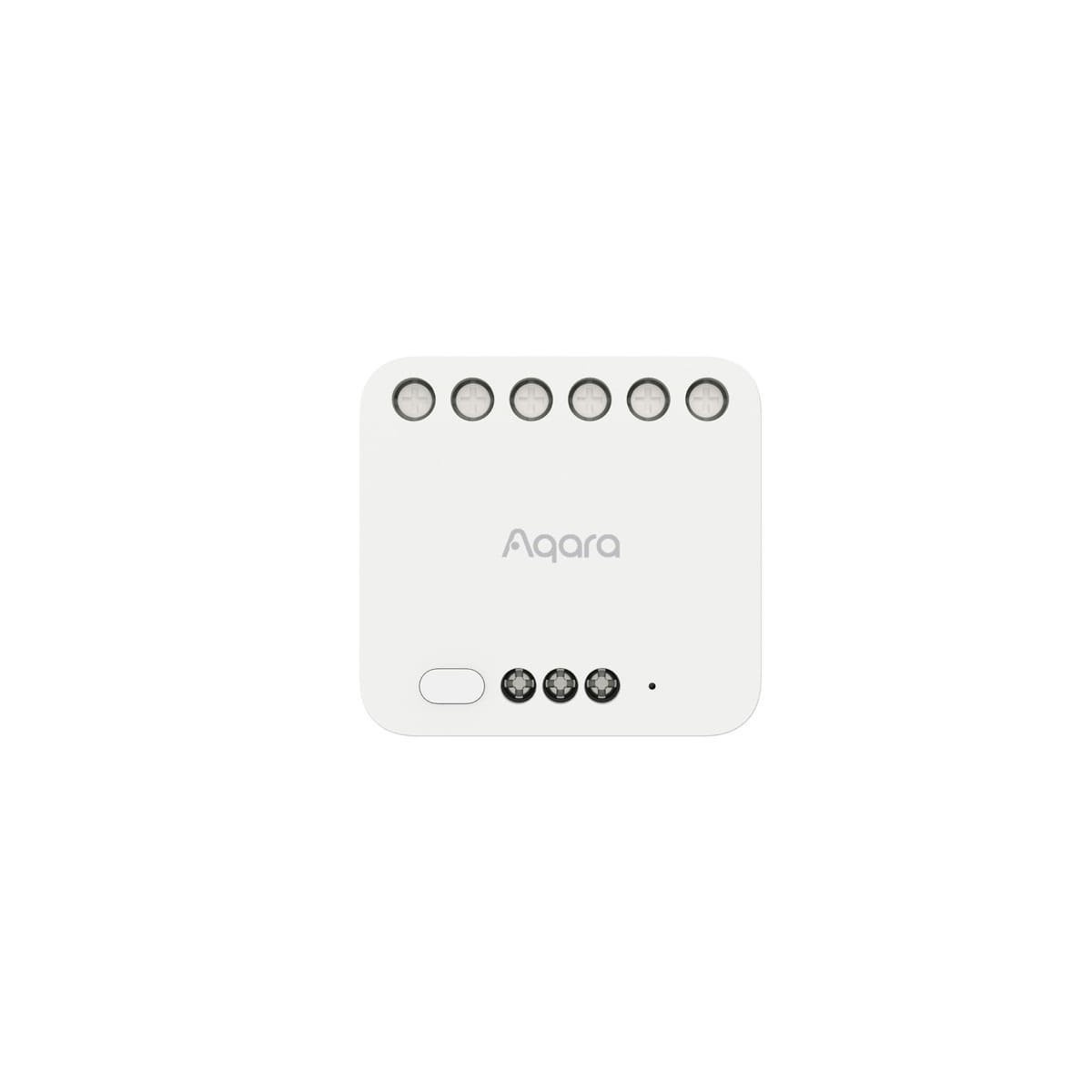

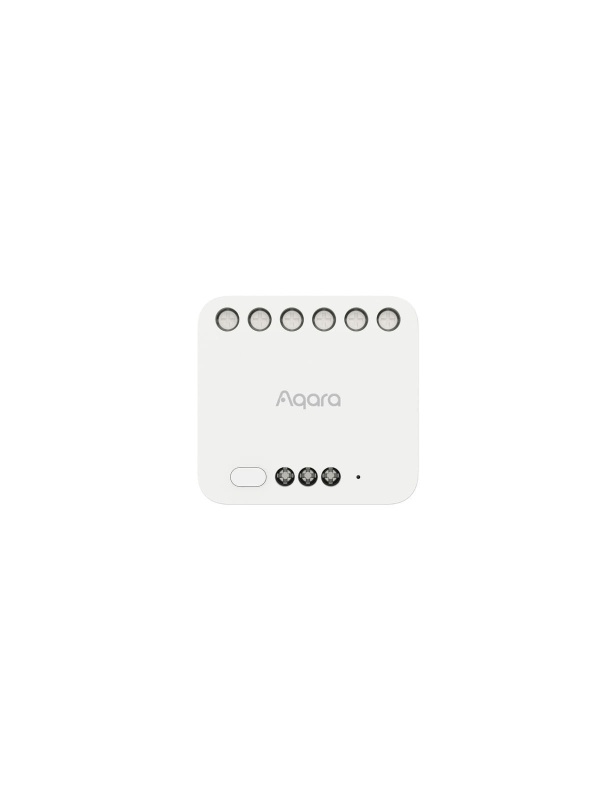

Aqara Dual Relay Module T2, Zigbee, consumption monitoring, dry contact

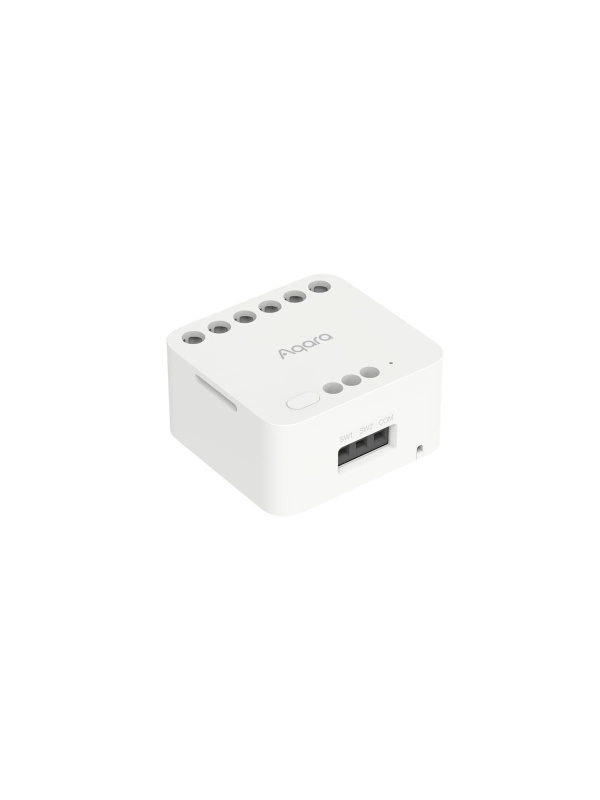

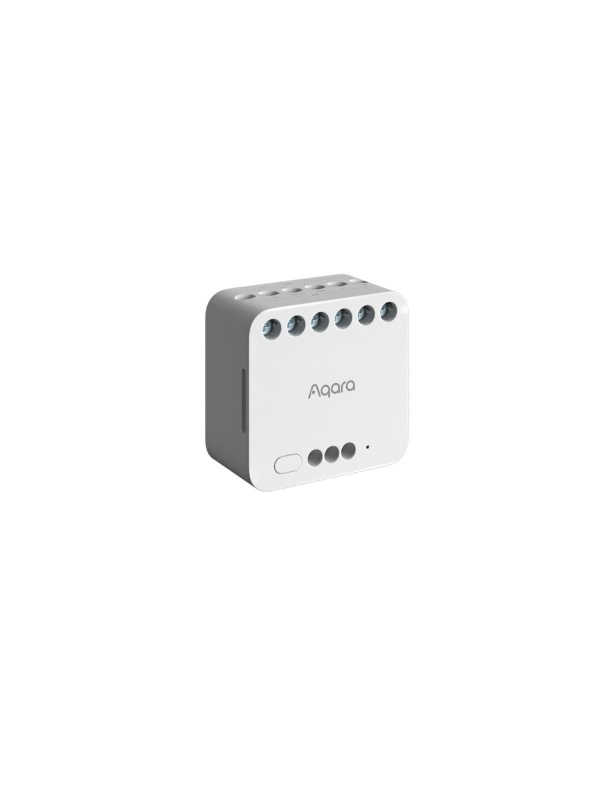

Aqara Dual Relay Module T2 - Dual relay module for smart automation

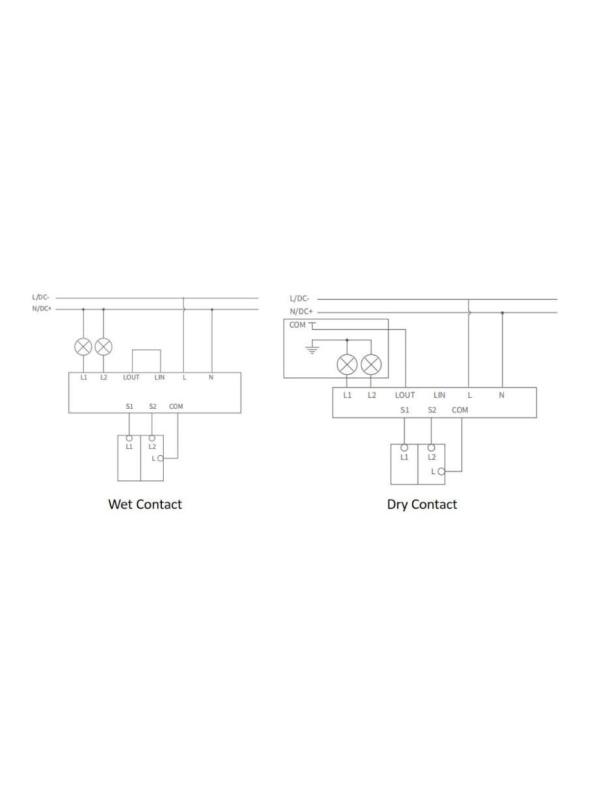

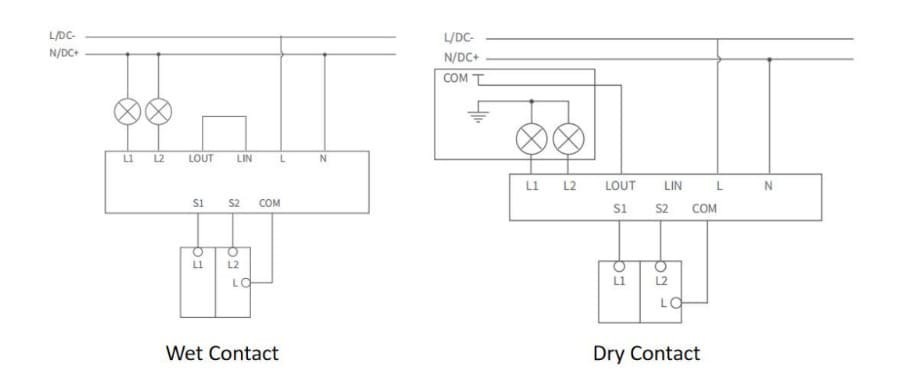

The Aqara Dual Relay Module T2 is a device that uses Zigbee technology to control the power supply (on/off). It is capable of controlling a variety of equipment, including motors, garage doors, lighting fixtures, switches and sockets, operating in both dry contact and wet contact modes. This module adds intelligence to traditional appliances, seamlessly integrating them into smart ecosystems like Apple Home and other compatible platforms.

⚠️ Recommendation: the depth of the mounting socket should be at least 60 mm for optimal installation.

Strengths:

🔧 Versatile solution for your home:
The T2 can be installed in ceiling lights, switches, sockets or for automatic control of appliances such as coffee makers, air fresheners, electric heaters, roller blinds or garage doors.

🏡 Compatibility with Apple Home and Matter over Bridge*
The T2 is compatible with Apple Home, Matter, Google Home and Amazon Alexa. You can turn traditional devices smart and easily integrate them into different smart ecosystems.

🚪 Motor control and interlock function:
You can securely control bi-directional motors, using the T2 as a central relay for motorised blinds, awnings and motorised roller blinds.

⚡ Power consumption monitoring and status memorisation:
T2 remembers the last state (on/off) in case of power failure and provides energy consumption statistics.

🛡️ Enhanced security:
You can set maximum/minimum values for voltage, current and power. In case of abnormal behaviour, the power is automatically switched off to prevent accidents.

🎛️ Wireless switch mode:
You can turn an existing switch into a scenario trigger (e.g. alarm system start, curtain operation, light control).***

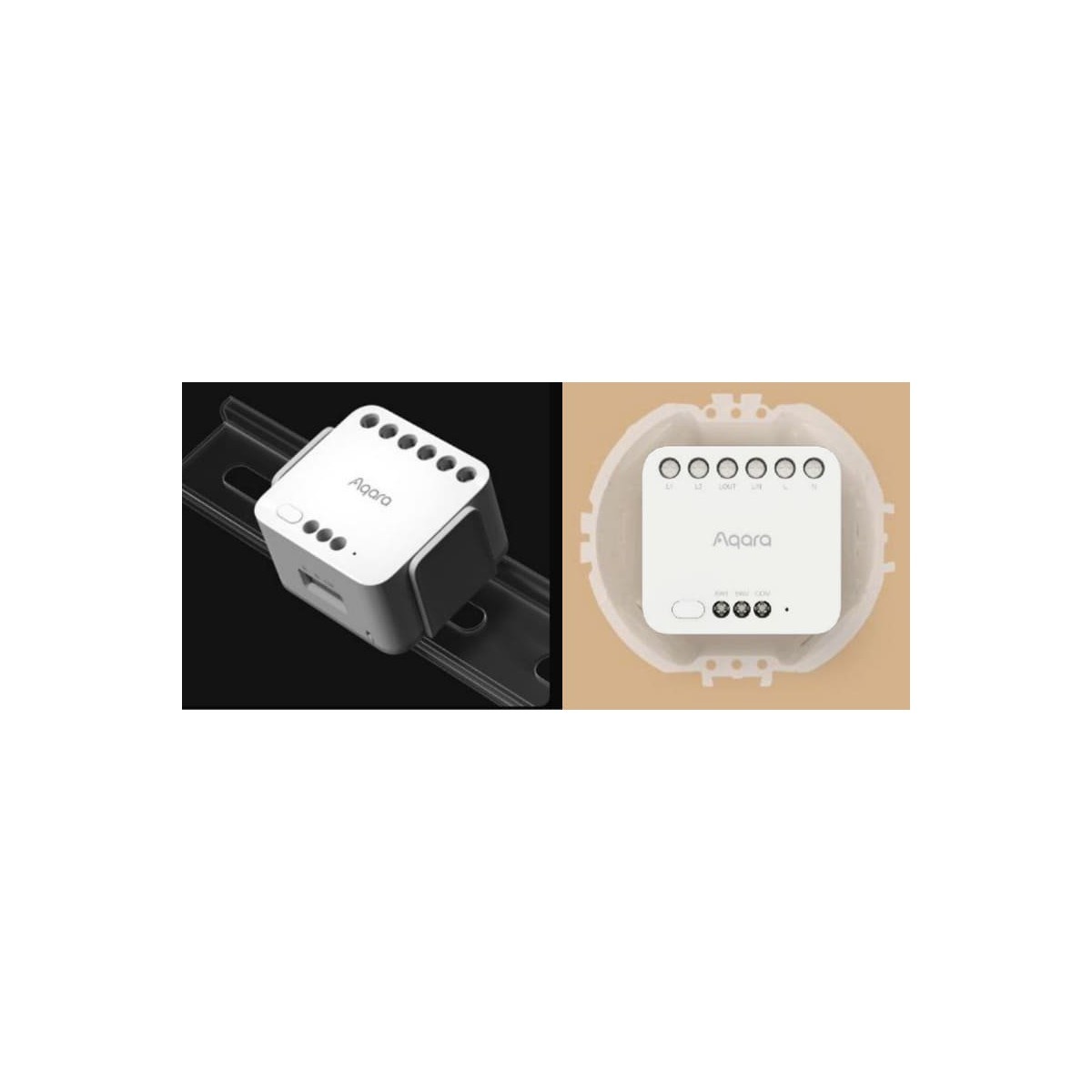

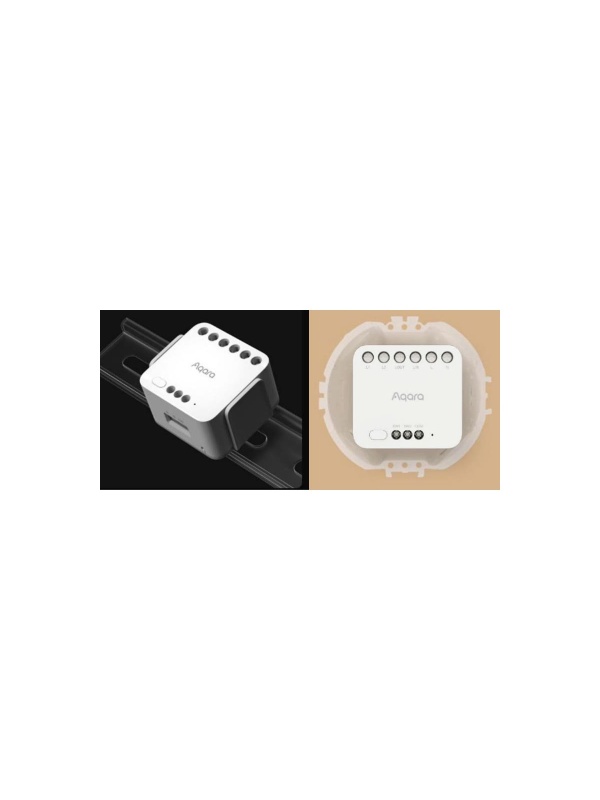

🔩 Easy installation, DIN rail mountable:
Compact design and DIN rail mountable makes it ideal for switchboards or wall sockets of 86 mm or US standard fold times.****

⚠️ Warnings:

• Integration with HomeKit, Google, Alexa and Matter requires a compatible Zigbee hub.

• We recommend that installation is carried out by an authorised electrician.

• **Switchesor sensors connected to S1/S2/COM must support the voltage supplied to the module.

• ***Maximum currentsupported is 10A.

Examples of use:

1. Intelligent garage door control
Use the module in dry contact mode to control the opening/closing of the garage door. You can integrate it into automations or expose it to third-party ecosystems.

2. Save energy by controlling your boiler/boiler
Control your central or boiler via dry contact and programme the heating according to the temperature in your home with the Aqara Thermostat.

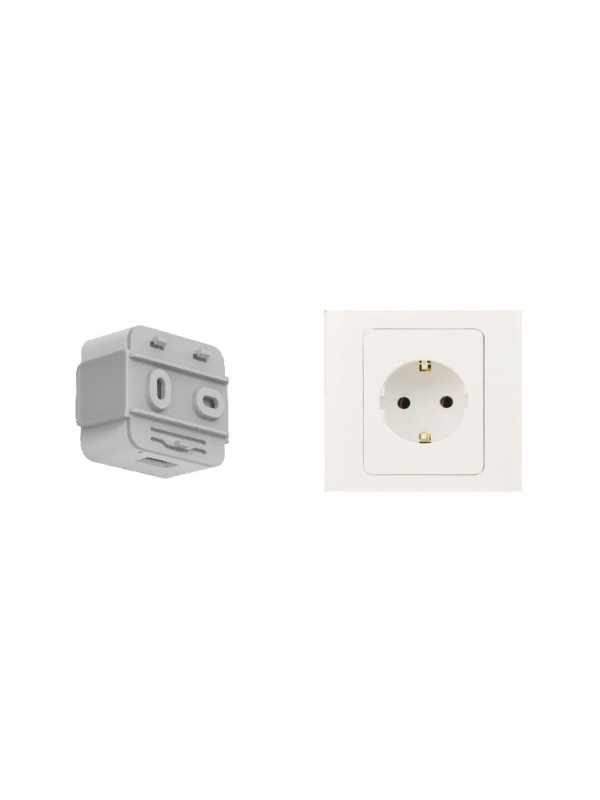

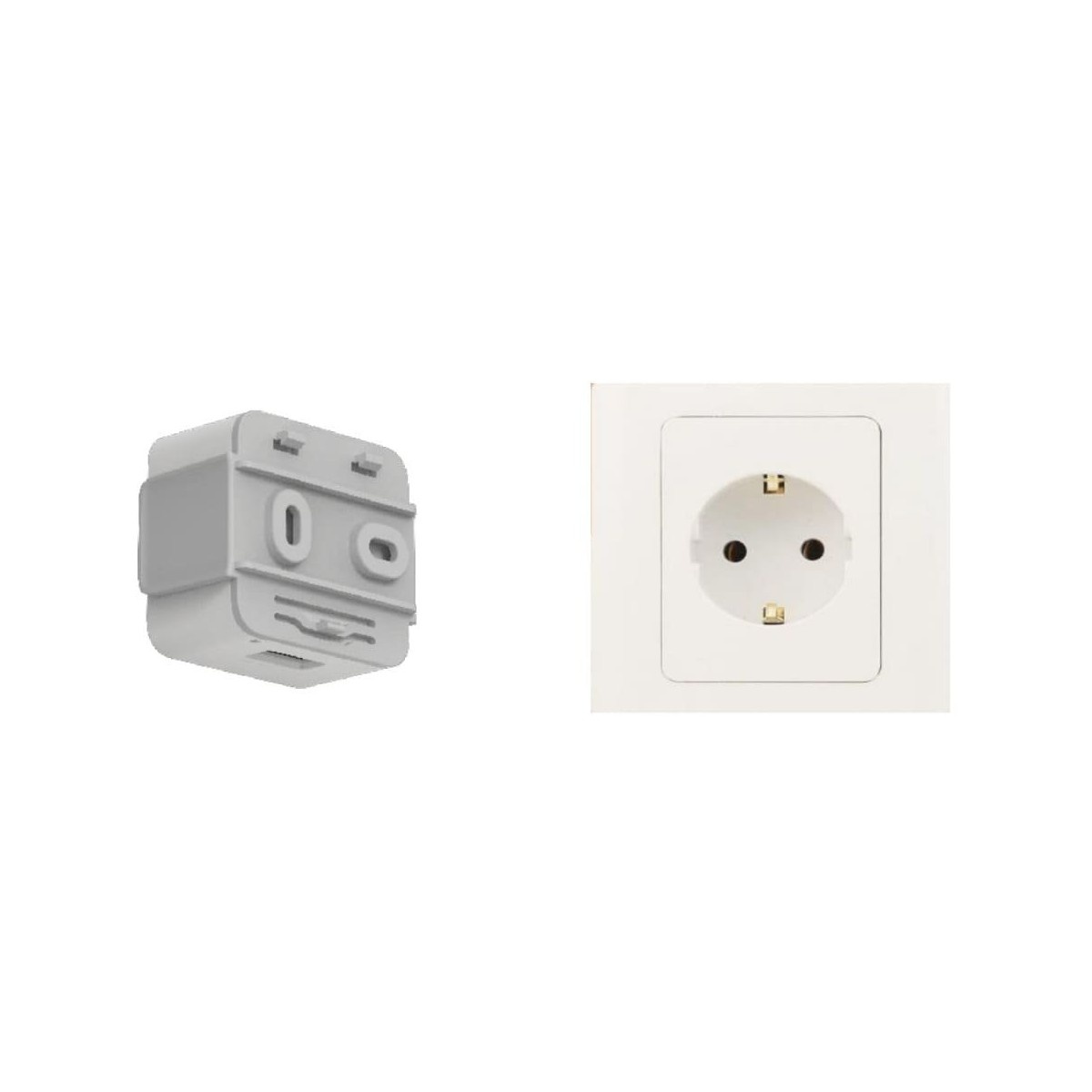

3. Fit behind existing switches or sockets
Turn traditional switches into smart ones and get energy consumption monitoring without changing the existing look of your home.

Technical specifications:

• Model: DCM-K01

• Wireless protocol: Zigbee

• Dimensions: 45.5 × 48 × 24 mm

• Operating Temperature: -10°C ~ 40°C

• Operating Humidity: 0 ~ 95% RH

• Zigbee Power: ≤ 13 dBm

Electrical Parameters:
🔌 AC:

• 100-250V, 50/60Hz

• Max 10A, max 2500W (incandescent bulbs)

• Max 1A, max 250W (LED, CFL)

• Max 1A, max 1/4 HP (motors)

🔋 DC:

• 24-30V: max 10A, 300W

• 30-60V: max 1A, 60W

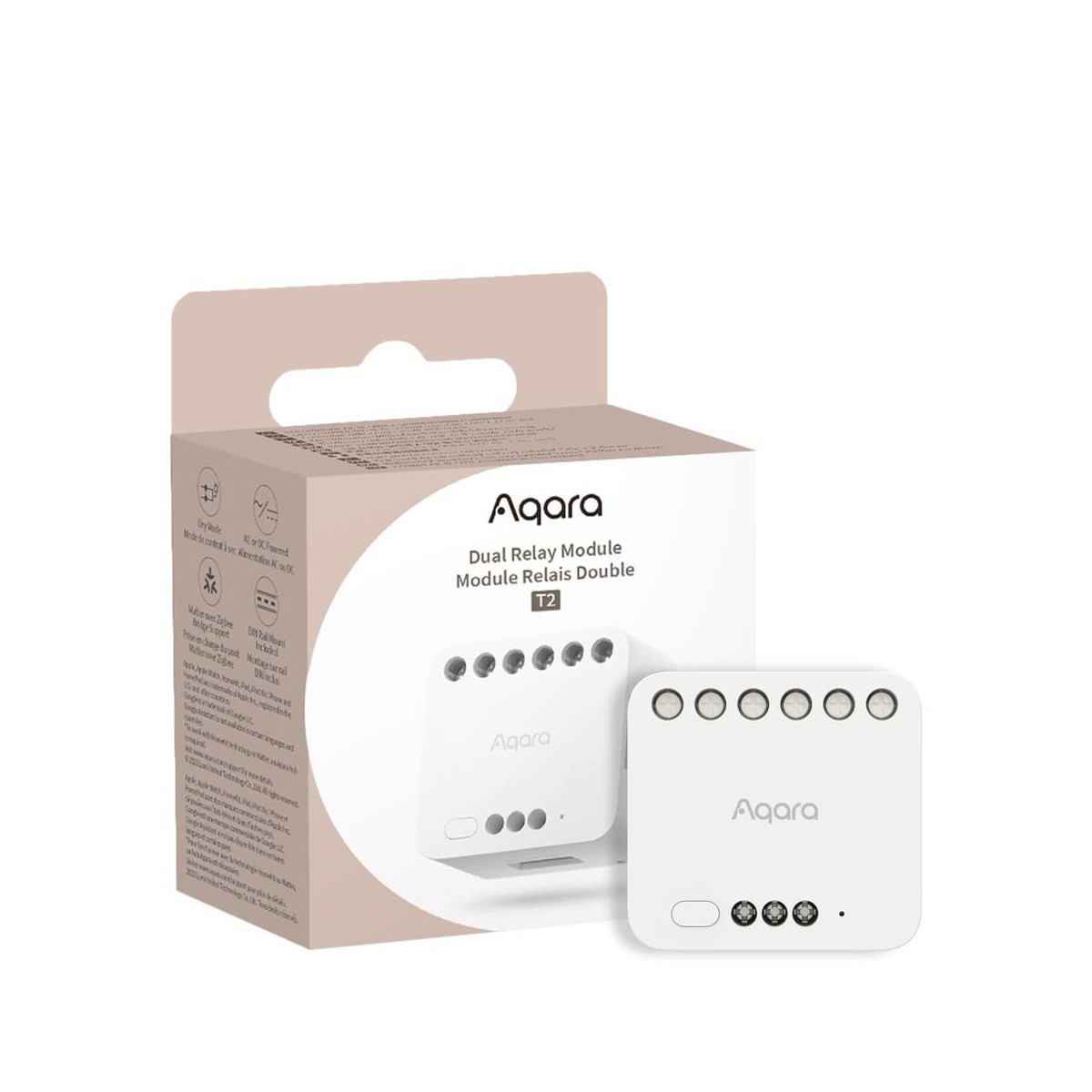

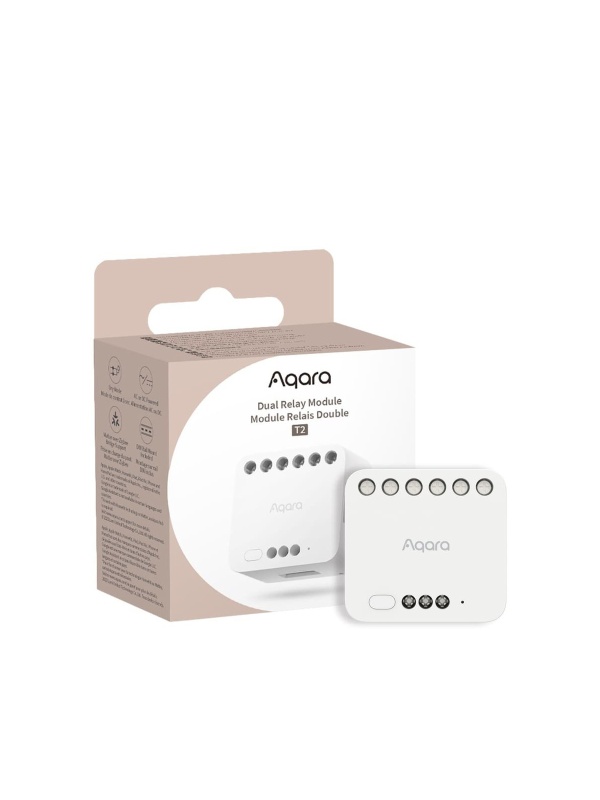

What the package contains:

• Dual Relay T2 T2 module × 1

• User manual × 1

• DIN rail mounting accessory × 1

• Jumper cable × 1
