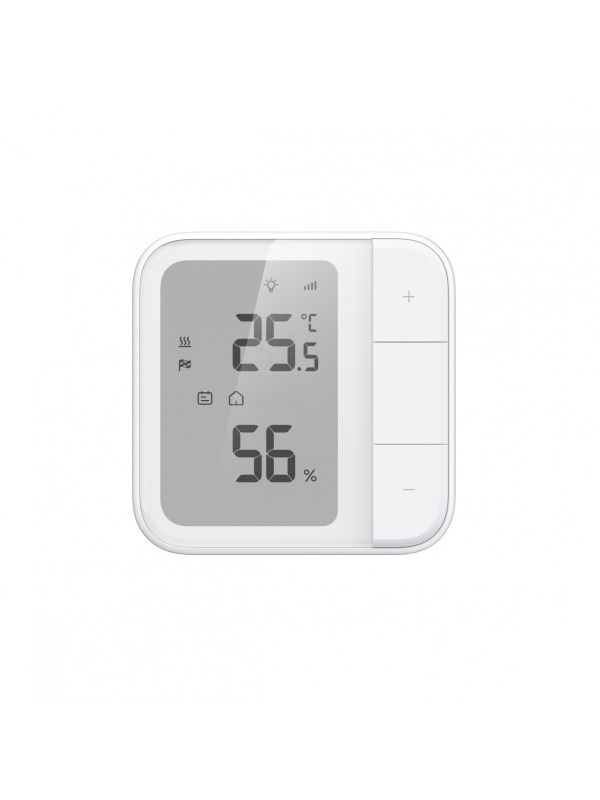

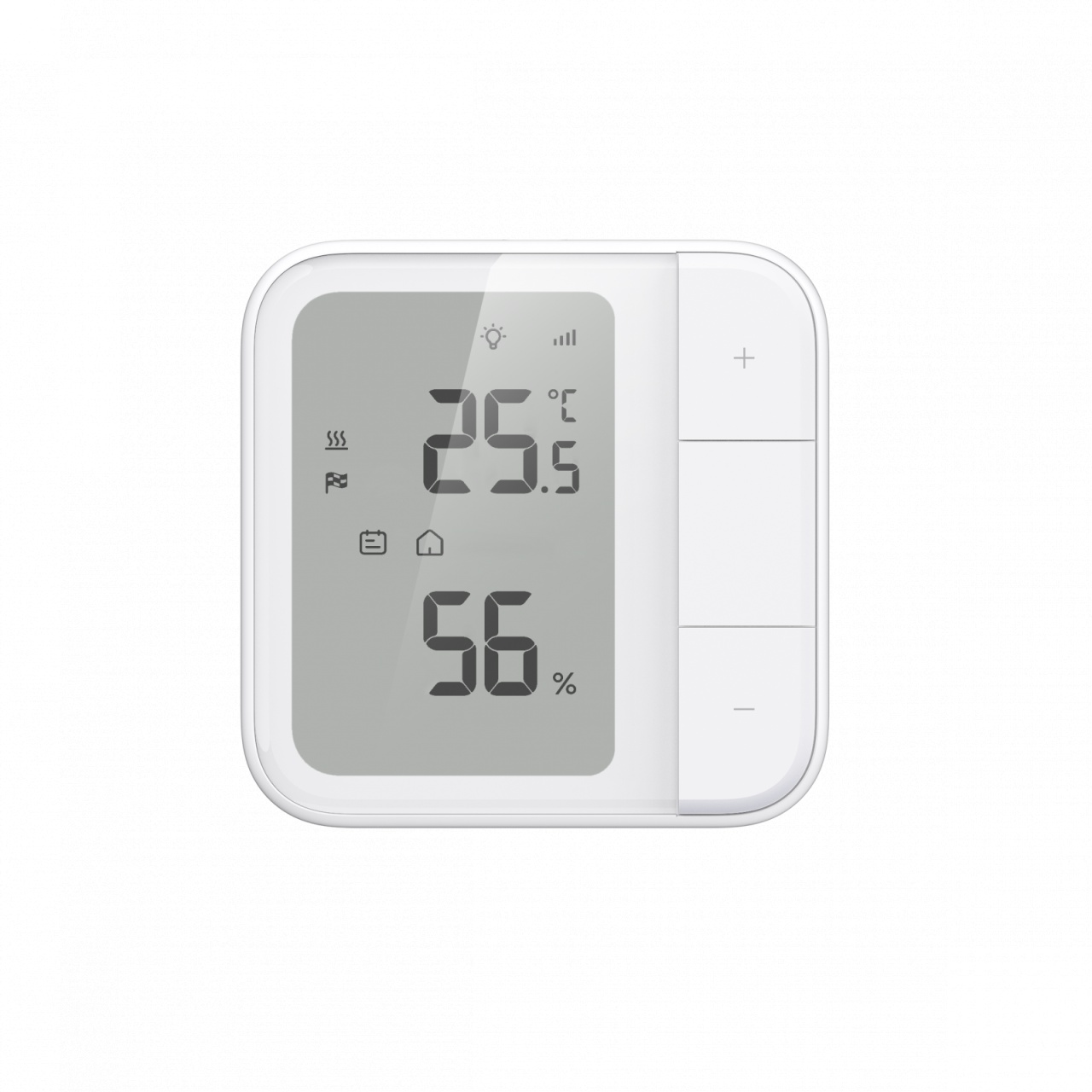

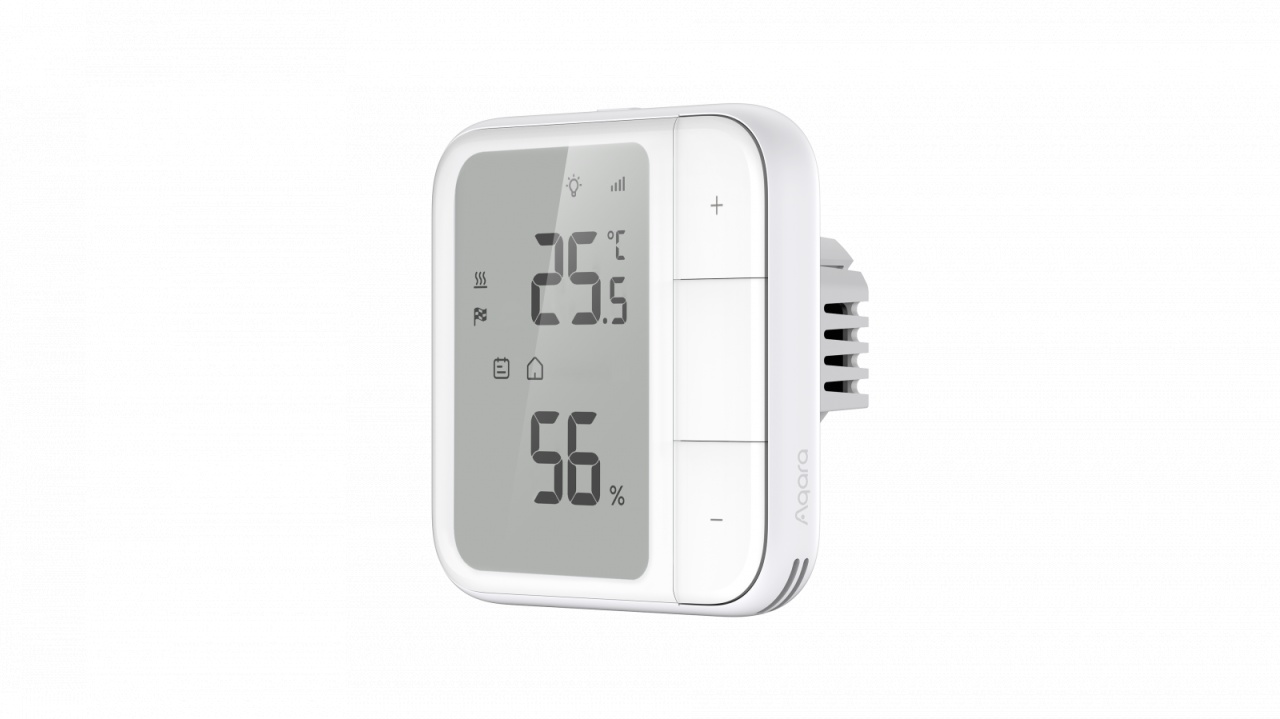

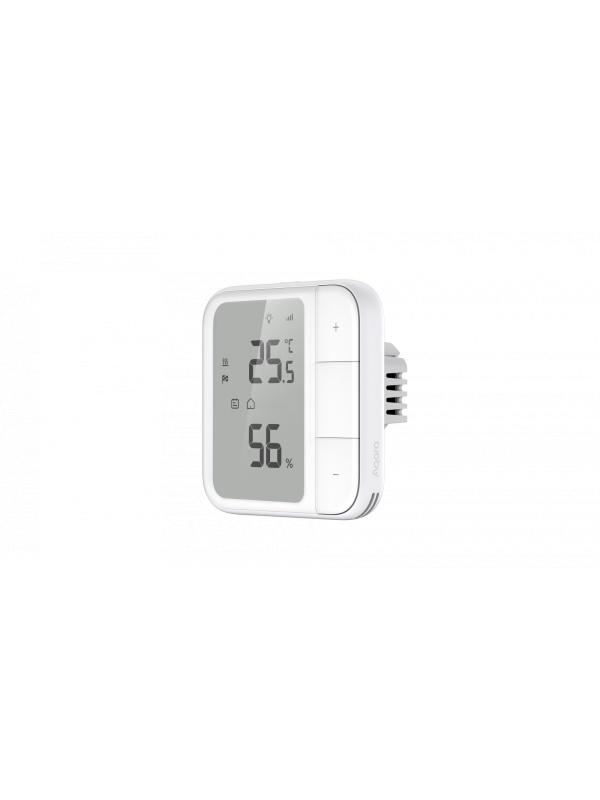

Aqara Floor Heating Thermostat W500 (UT-A01D) - Intelligent Control and Maximum Efficiency for Floor Heating

Transform your home into a space of absolute comfort with the new Aqara Floor Heating Thermostat W500. Whether you have an electric or hydronic heating system, this advanced device combines cutting-edge Matter over Thread technology with Zigbee reliability, giving you total control, energy savings and seamless integration with Apple Home, Google Home or Amazon Alexa ecosystems.

Key Benefits

1. Dual-Protocol: Thread & Zigbee

You benefit from total flexibility. In Thread mode, you connect directly to Matter ecosystems without the need for an Aqara hub. In Zigbee mode, you unlock exclusive features in the Aqara Home app and ensure compatibility with classic hubs, with ultra-fast response time.

2. Multiple Control and Local Programming

Adjust the temperature via physical buttons, app or voice commands. Smart Schedule feature allows you to set up to 7 temperature periods per day. Once set, schedules run locally on the device, ensuring convenience even in the event of an internet outage.

3. Accuracy and Multi-Sensor Monitoring

The W500 can collect data from the internal sensor, wired floor sensor (NTC included) or other associated Aqara temperature sensors. Fine calibration of ±5°C ensures that the sensed temperature is exactly as displayed on the screen.

4. Intelligent Energy Saving

Monitor consumption in real time and track daily or monthly history. Through automation, the thermostat can switch off the heating if it detects an open window or a sudden drop in temperature, preventing energy wastage.

5. Advanced Safety and Security

The device is equipped with mechanisms to protect your environment:

• Floor Protection: prevents overheating of sensitive materials (wood, laminate).

• Anti-freeze: Maintains a safe temperature of 5°C.

• Auto-off: Automatically switches off in case of overheating or electrical overload.

Technical Specifications

• Model: UT-A01D

• Dimensions: 86 × 86 × 45 mm

• Protocols: Thread, Zigbee, Bluetooth

• Power Supply: 220-250 VAC, 50/60 Hz

• Maximum Load: 16A (Resistive loads, Max 3600W)

• Sensors: internal sensor + external NTC sensor (included)

Package contents: Thermostat W500, User manual, Screw kit, NTC sensor.

Why Aqara W500?

Unlike regular Wi-Fi thermostats, the W500 offers Thread/Zigbee protocol stability and advanced safety features (Overload & Overheat). It's the ideal solution for users who want professional integration with Apple Home or Google Home, while retaining local control and monitoring energy consumption.

Note: Certain advanced functions (temperature calibration, open window detection and detailed energy monitoring) require the use of Zigbee mode in conjunction with an Aqara Hub.
