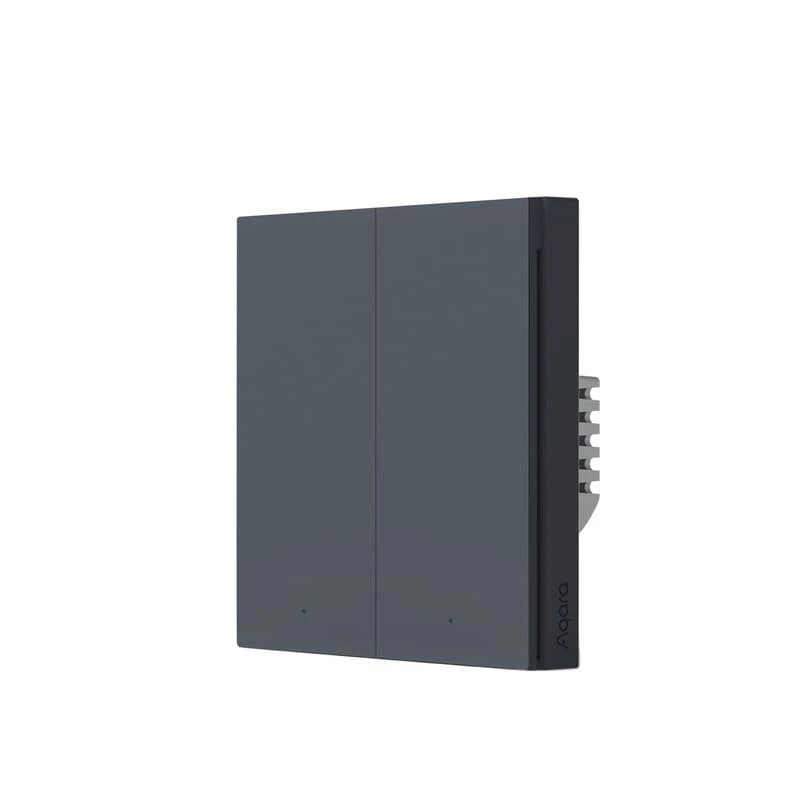

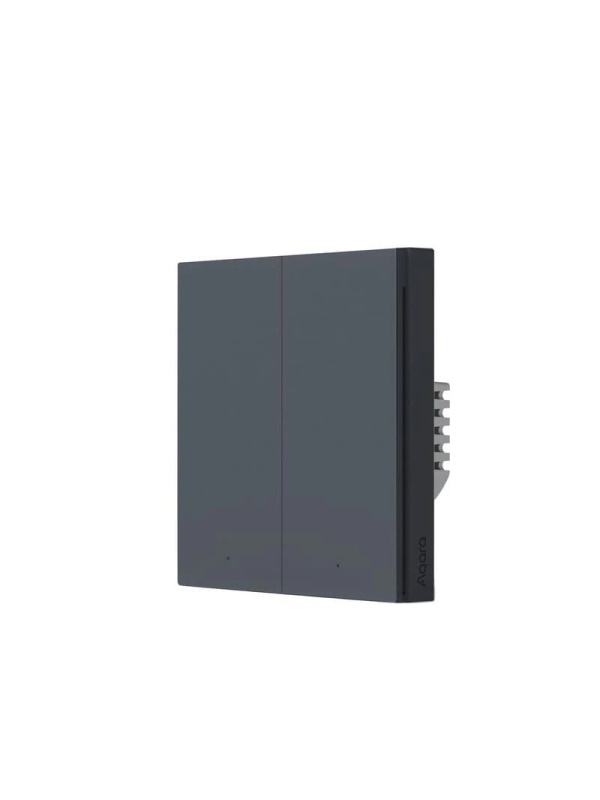

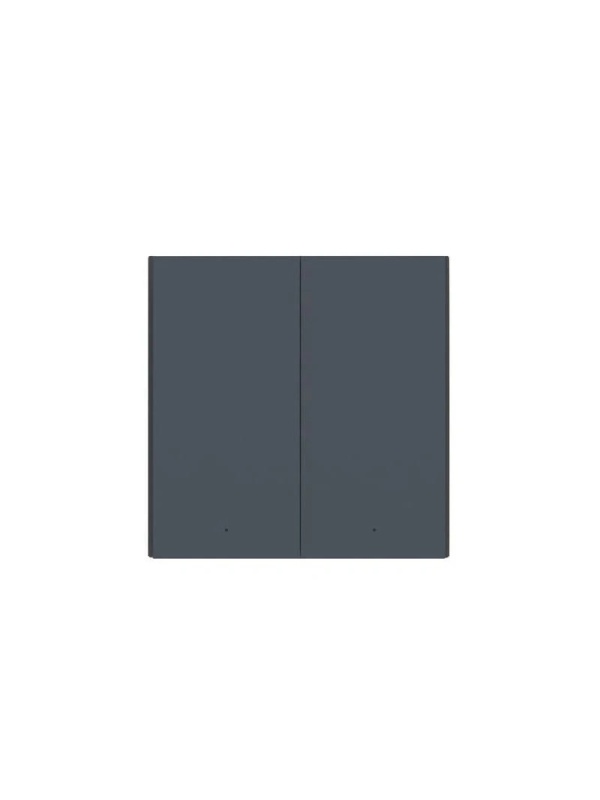

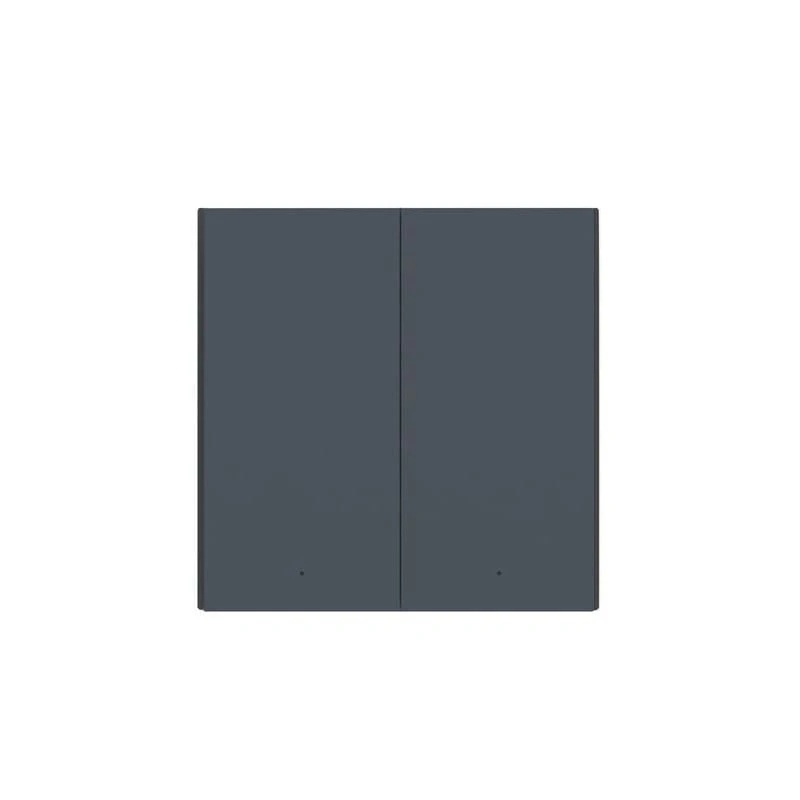

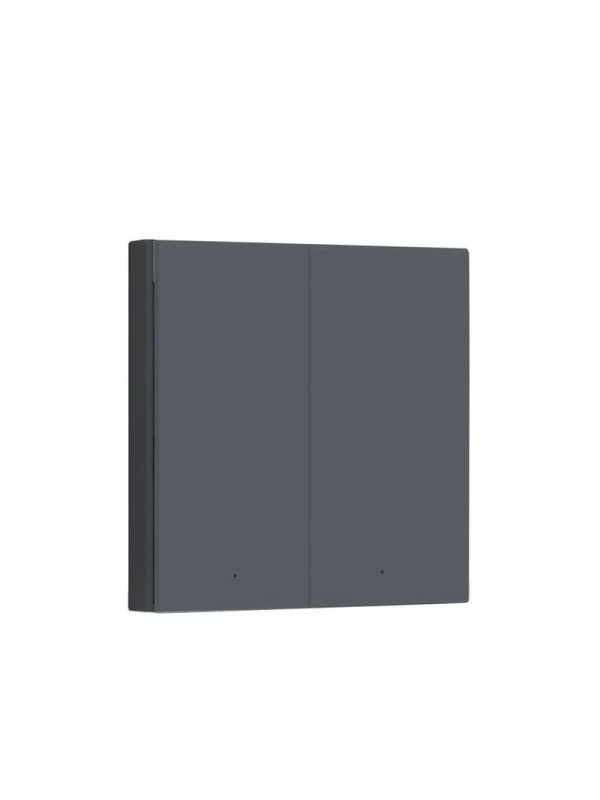

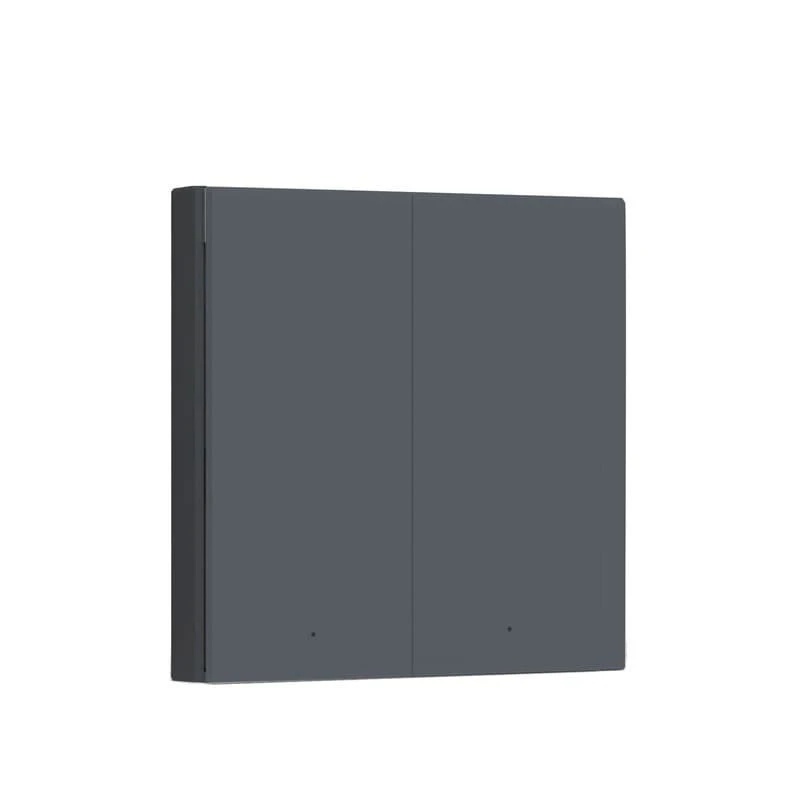

Aqara Smart Wall Switch H1 EU (Neutral wired, double pushbutton) (WS-EUK04) - Compatible with advanced Zigbee 3.0 protocol
The Aqara Smart Wall Switch H1 EU (Neutral-wired, double-button) turns the power on or off for any electrical load, such as lighting or fans. It works with a hub to provide remote control via app, voice commands, scheduling and automatic scripts. Together with other Aqara smart accessories, it creates a complete smart home experience.
🔹 Key Features:
✅ Remote control
Control lights or other electrical devices from the Aqara Home app, no matter where you are.
✅ Timed Switching
Programme the lights to switch on automatically at 7pm to greet you with a cosy atmosphere when you get home.
✅ S mart voice control
Compatible with voice assistants like Siri, Alexa or Google Assistant for a more convenient life.
✅ Reliable automations
Even if the Wi-Fi network goes down, local automations will continue to work as long as the Aqara hub is active.
✅ O verheat and overload protection
The circuit breaker shuts off automatically if it detects dangerous temperatures or loads.
✅ Quick modernisation of classic installations
Transform traditional switches into smart devices without major modifications.
🔧 Technical specifications:
-
Model: WS-EUK04
-
Dimensions: 85.8 × 86 × 37.55 mm
-
Wireless protocol: Zigbee 3.0
-
Operating voltage: 100-250V AC, 50/60 Hz
-
Maximum load (total for both outputs): 8A (resistive)
-
Minimum load: 3W (typical)
-
Operating Temperature: 0°C ~ 40°C
-
Operating Humidity: 0 - 95% RH, non-condensing
-
Operating frequency: 2400 ~ 2483.5 MHz
📦 What's in the box:
-
H1 EU Smart Switch (with Neutral, Double Button) ×1
-
Quick installation guide ×1
-
2 mounting screws
⚠️ Notes:
-
Requires a compatible Aqara Hub for full operation.
-
For complex (if-then) automation, connection to the hub is mandatory.
-
Only compatible with Apple HomeKit through an Aqara hub.
-
Intended for indoor use only. Hub connection must be made prior to use.
