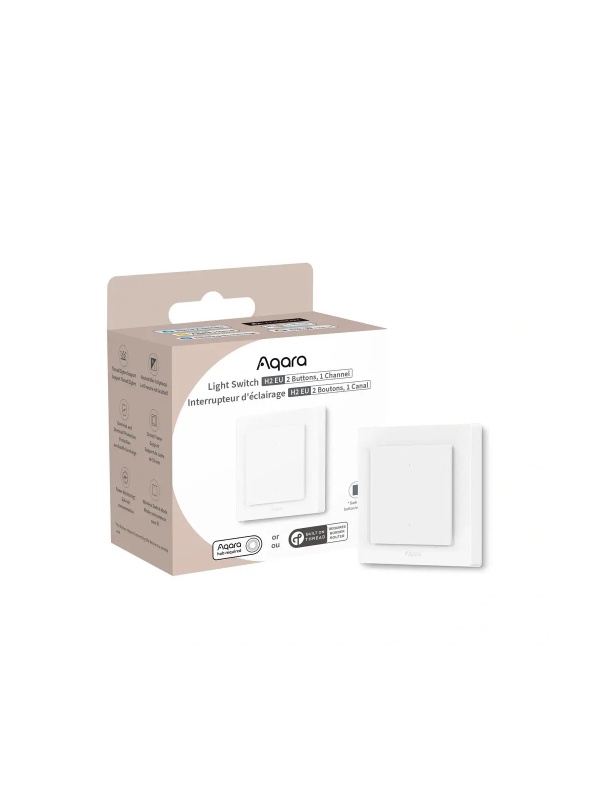

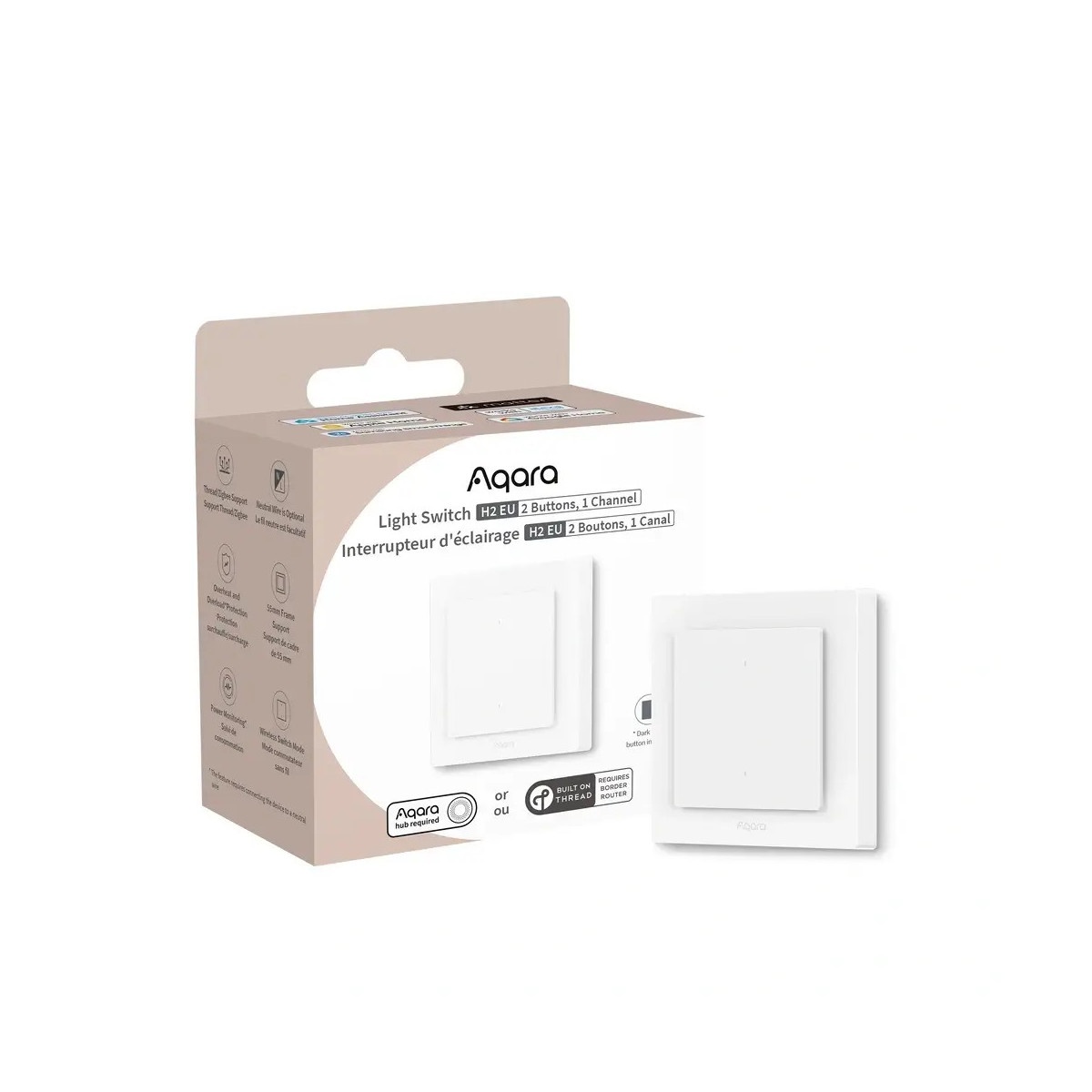

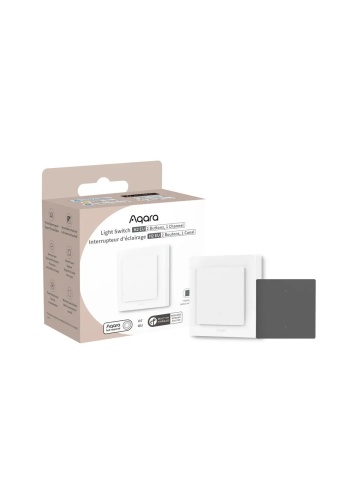

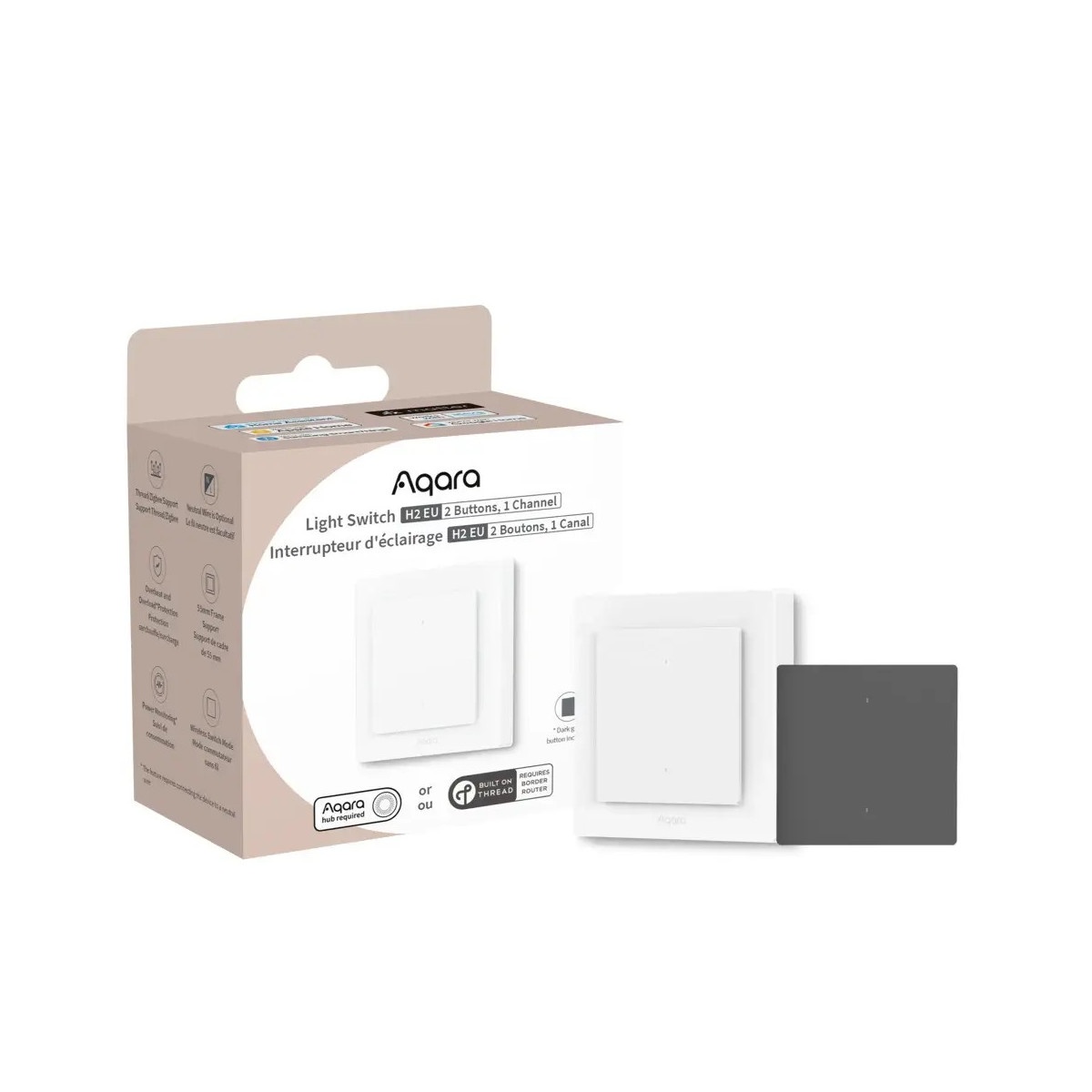

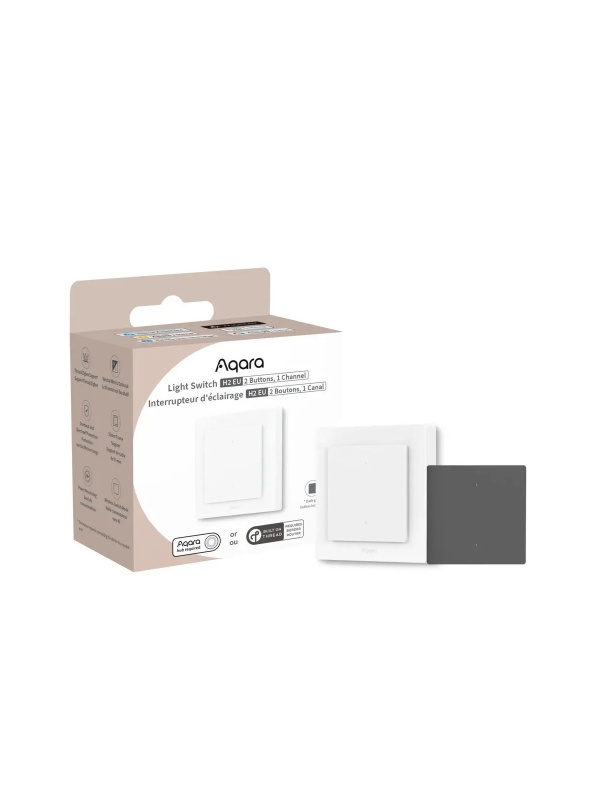

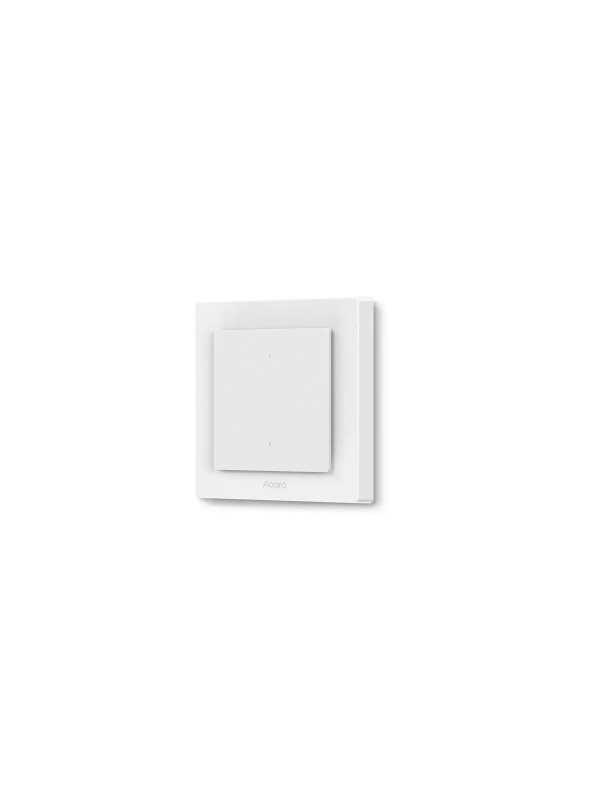

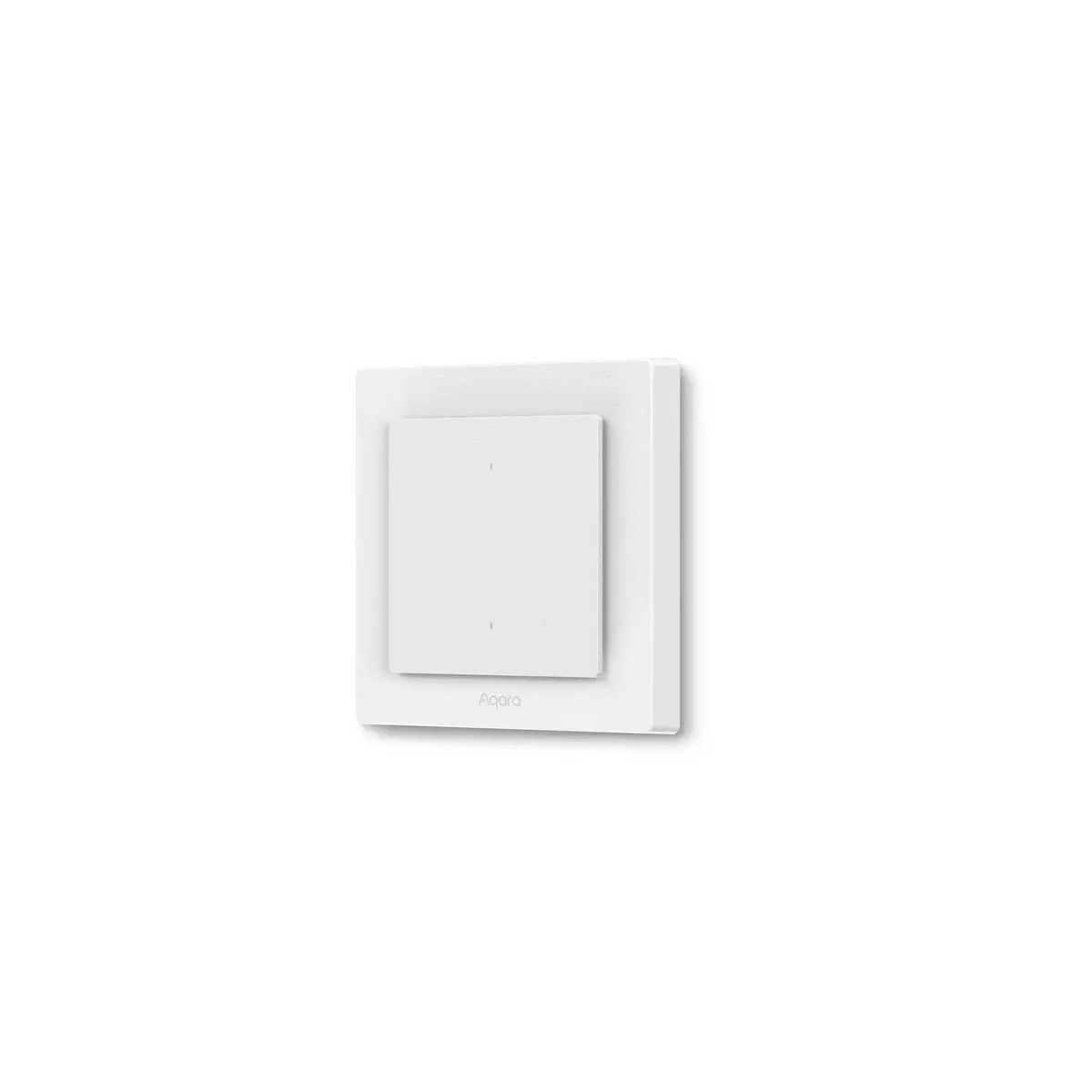

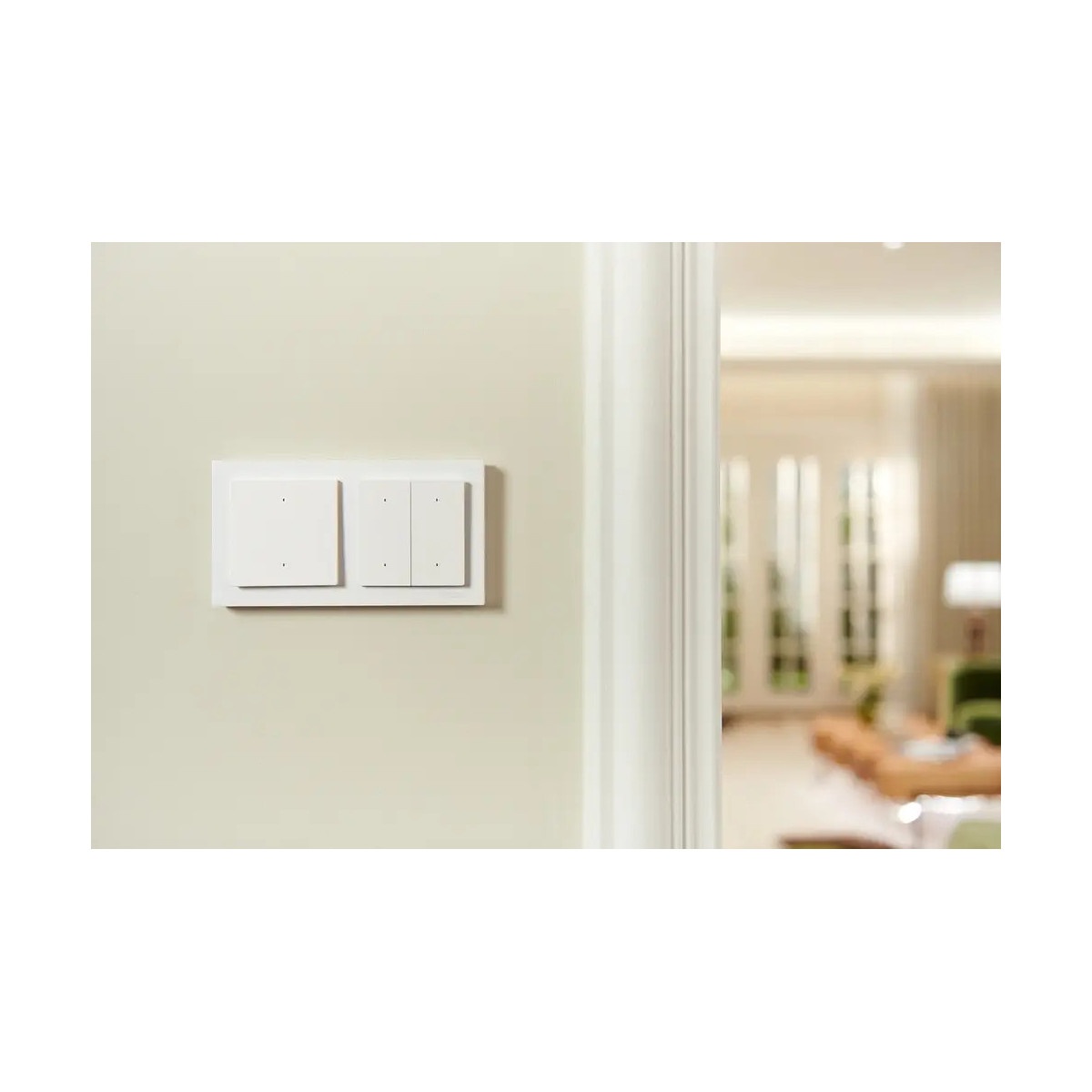

AQARA Light Switch H2 EU (2 Buttons, 1 Channel) (WS-K07D) - Zigbee and Thread, with relay

Aqara Light Switch H2 EU - Smart Wall Switch with Advanced Connectivity

Aqara Light Switch H2 EU is an intelligent switch based on Matter over Thread and Zigbee communication protocols, offering flexible control and high compatibility for lights and other devices. It fits into standard 55 mm frames and is compatible with both null wire and non-null wire installations, offering mounting flexibility. It allows remote control, programming, consumption monitoring, wireless mode and benefits from MARS-Tech technology, which improves the reliability of smart connections between the switch and Aqara bulbs.

✨ S trengths:

🔗 Thread and Zigbee support
Dual communication for integration with third-party brands (via Matter over Thread¹) and exclusive features in Aqara Home (via Zigbee²).

• Effortless integration with popular ecosystems: Apple HomeKit, Alexa, Google, etc.

• Full access to advanced features in Aqara Home

⚡ Compatible with both null and non-null installations
Hassle-free installation, whether you have null wire or not.

• Overload and overheat protection³

• Energy consumption monitoring³

• LED indicator settings

📊 Energy consumption monitoring⁴

• Daily, weekly and monthly reports (null wire only)

• Manual input of values possible (without null)

• Savings through efficient energy management

🧱 Compatible with standard 55 mm frames

• Fits EU standard modular systems

• Compatible with third-party frames such as Gira System 55, Merten M etc.

🔥 O verload and overheating protection⁵

• Automatically breaks the circuit if it detects problems

• Prevents device damage and electrical accidents

🎛️ Wireless switch mode

• Simple Push Mode: quick actions

• Multi-function mode: single, double or long press

• Enables personalised automations directly from the app

⚠️ Caveats:

1. For use in Matter ecosystems, a compatible Matter Controller and Thread Border Router is required.

2. An Aqara Zigbee hub is required for full integration.

3. Protection and monitoring features are only available for null threaded connections.

4. Some third-party Matter applications may not display this data, but the functionality is available in Aqara Home.

5. Overload protection works with null wire only.

6. Wireless modes are only available in Aqara Home (in Apple Home & Home Assistant partially exposed).

⚙️ Technical Specifications:

• Product Name: Aqara Light Switch H2 EU Double-button

• Model: WS-K07D

• Wireless Protocols: Zigbee, Thread, BLE

• Maximum load:

  • Incandescent bulb: 1600W (220V) / 800W (110V)

  • LED, fluorescent, energy saving: 300W

• Number of buttons: 2

• Number of relays: 1

• Power supply: phase or null wire

• Button type: Capacitive touch

• LED indicator: Red-Blue (dual)

• Operating Temperature: -10°C ~ 40°C

• Humidity: 0 ~ 95% RH
