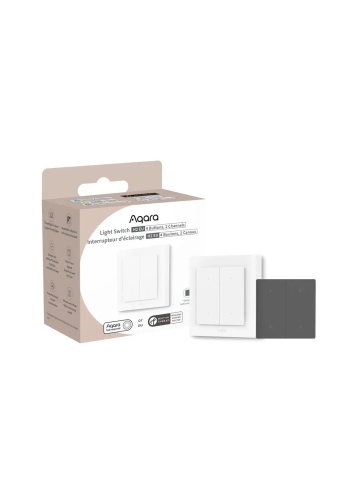

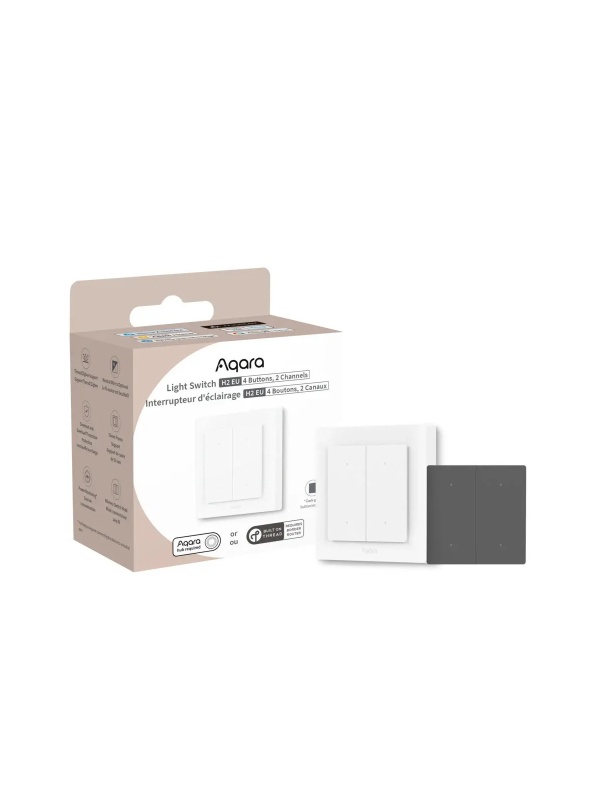

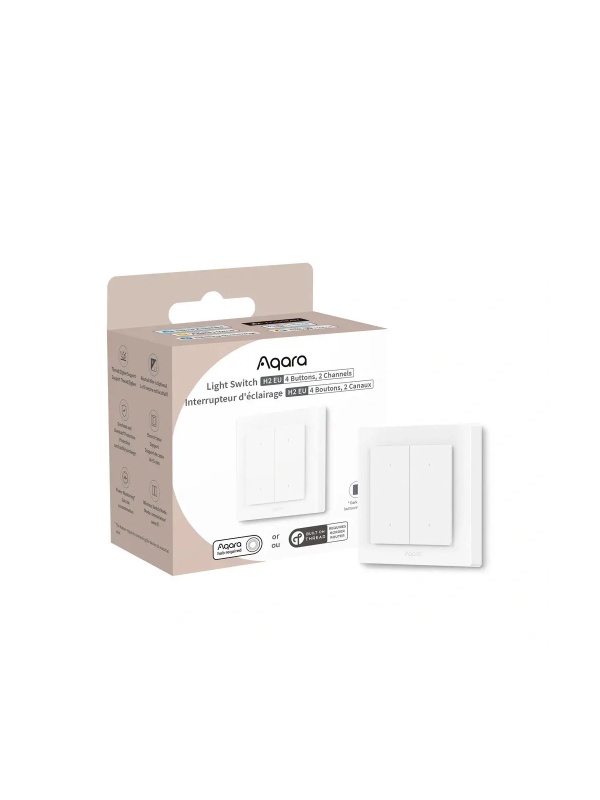

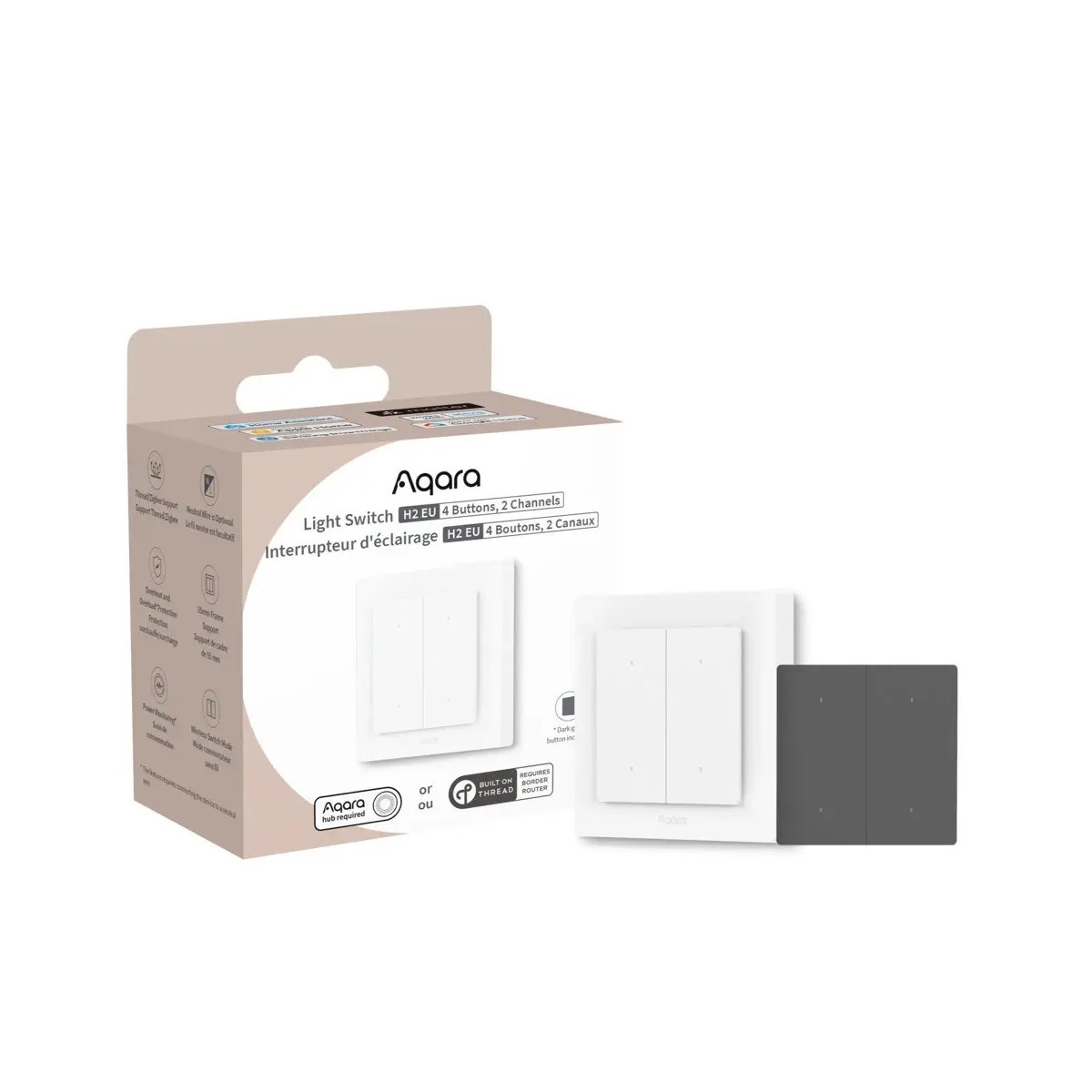

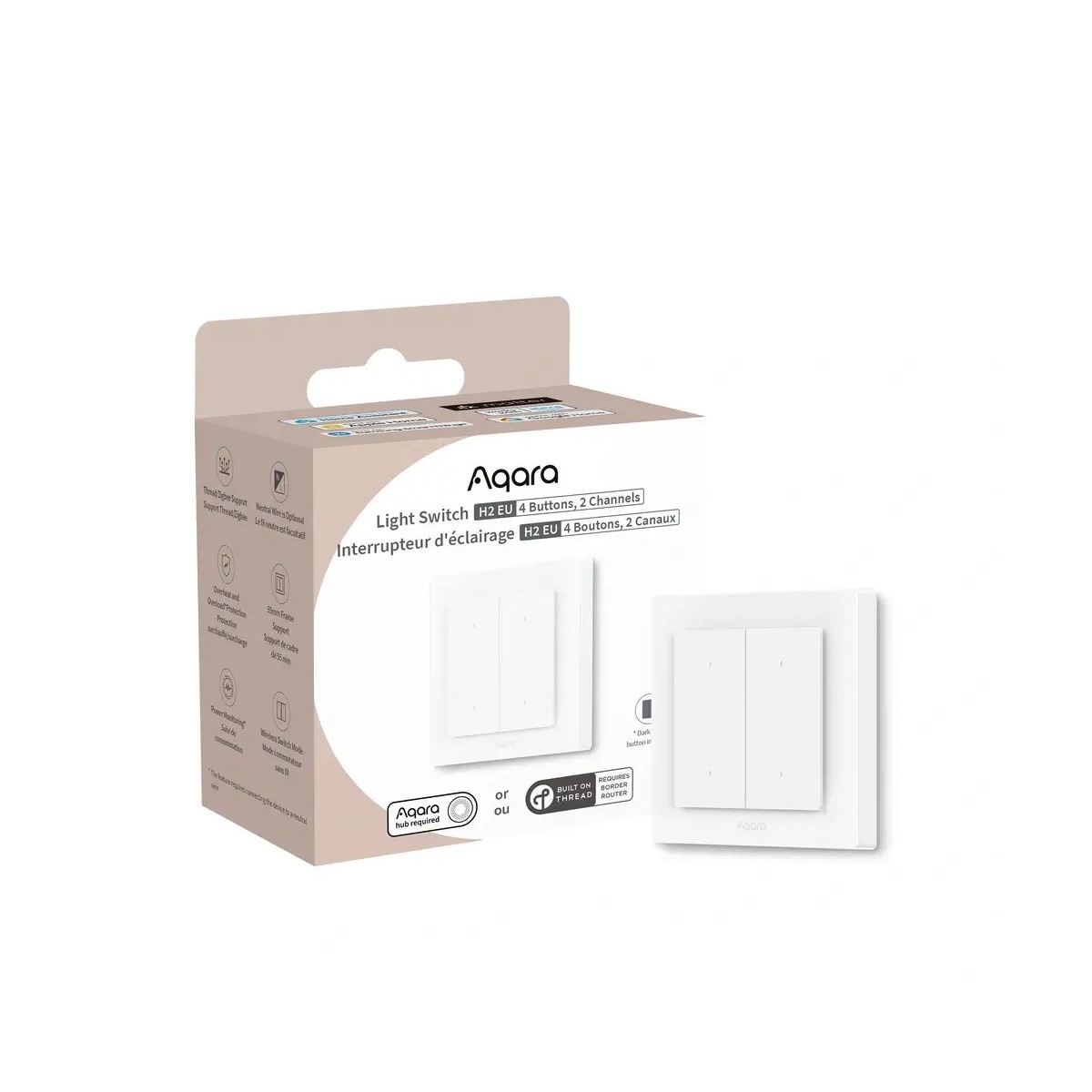

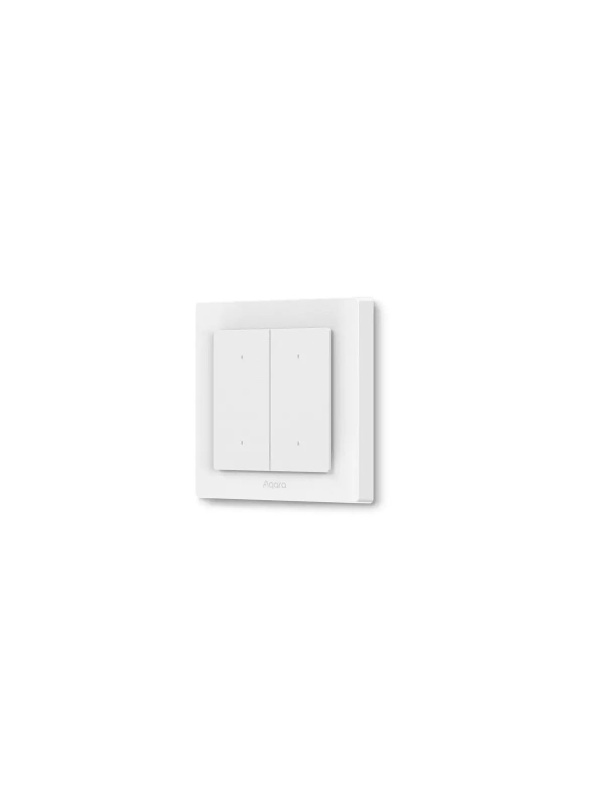

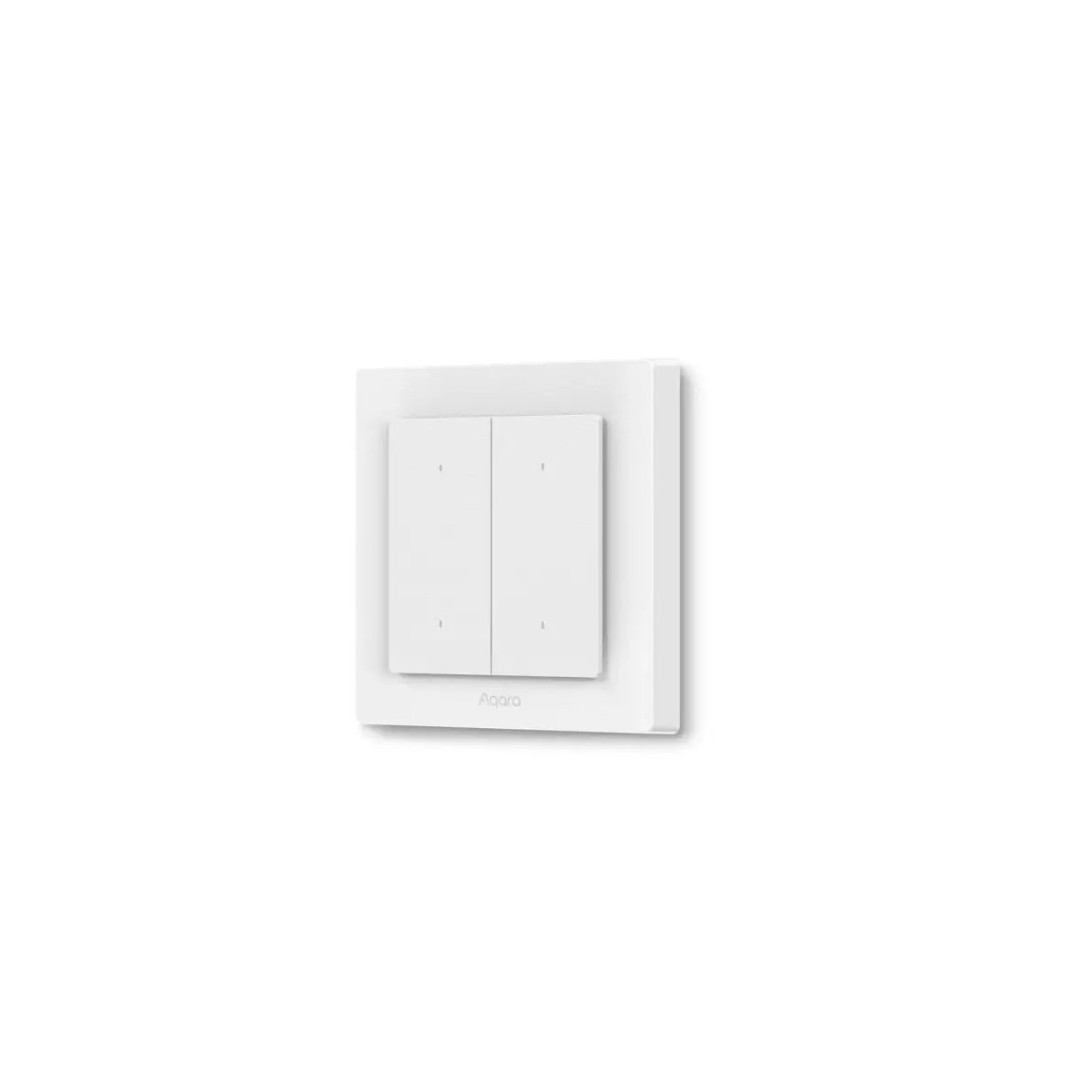

AQARA Light Switch H2 EU (4 Buttons, 2 Channels) (WS-K08D) - Zigbee and Thread with 2 relays

Aqara Light Switch H2 EU - Smart wall switch with advanced connectivity

Aqara Light Switch H2 EU is a smart switch compatible with Matter over Thread and Zigbee protocols, enabling control of lights and other devices with extended flexibility and compatibility. It fits into standard 55mm frames, and its design allows for both null-threaded and non-null-threaded installation, giving you more freedom when mounting.

🔲 Two Relays, Four Buttons

• The upper buttons control the electrical circuits (relays)

• Lower buttons work wirelessly for scripting, automation or controlling other devices

✨ Strengths:

🔌 Zigbee & Thread compatibility

• Matter over Thread support for integration with third-party ecosystems (Apple HomeKit, Google Home, Alexa, etc.)

• Supports Zigbee for access to all Aqara's advanced features (MARS-Tech, LED settings, local automation, etc.)

⚡ Compatible with wired and wireless null installations

• For homes without null: quick and hassle-free installation

• For homes with null: consumption monitoring, overload and overheating protection

📊 Energy consumption monitoring

• In null installations: detailed daily, weekly, monthly reports

• In installations without null: manual entry of values for a basic estimate

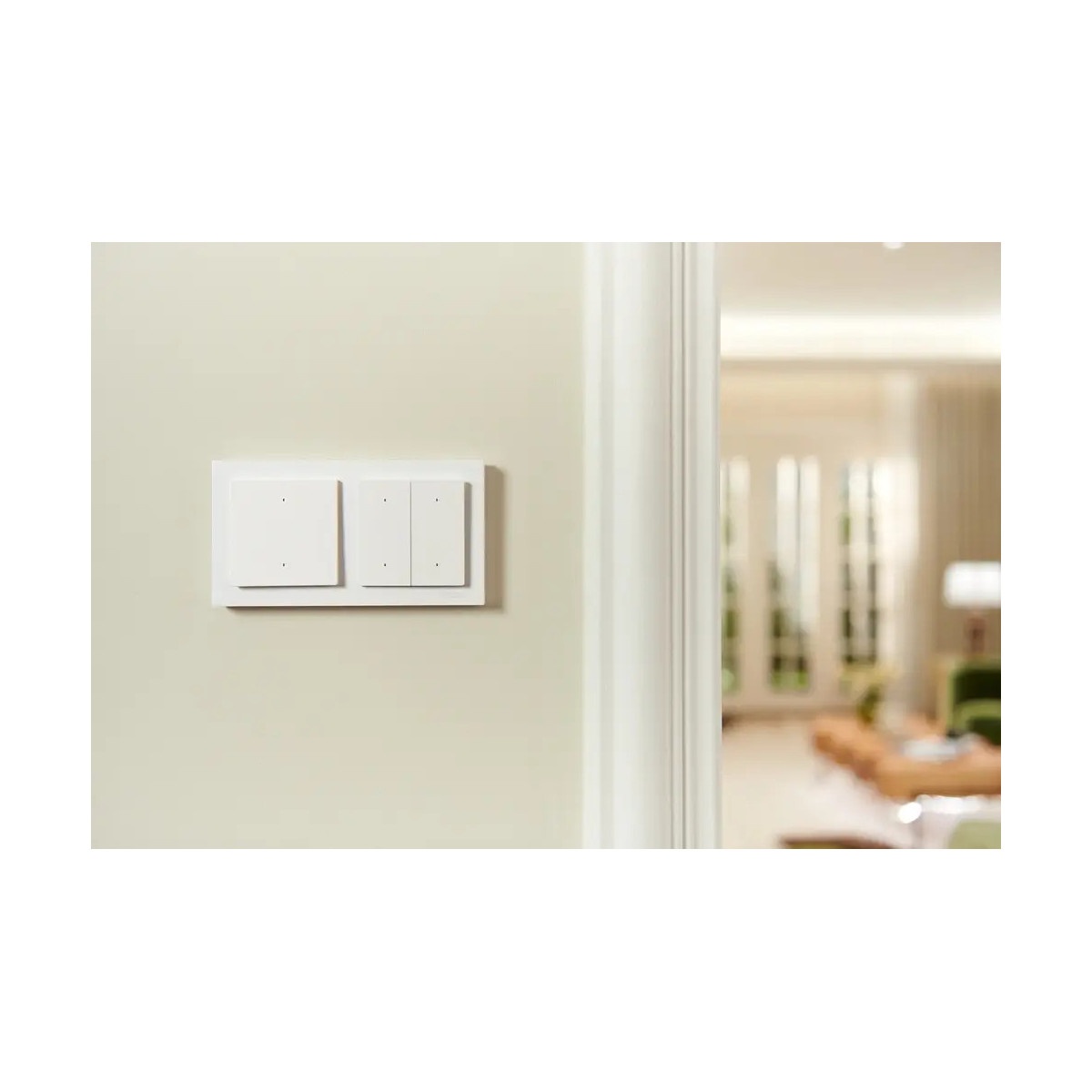

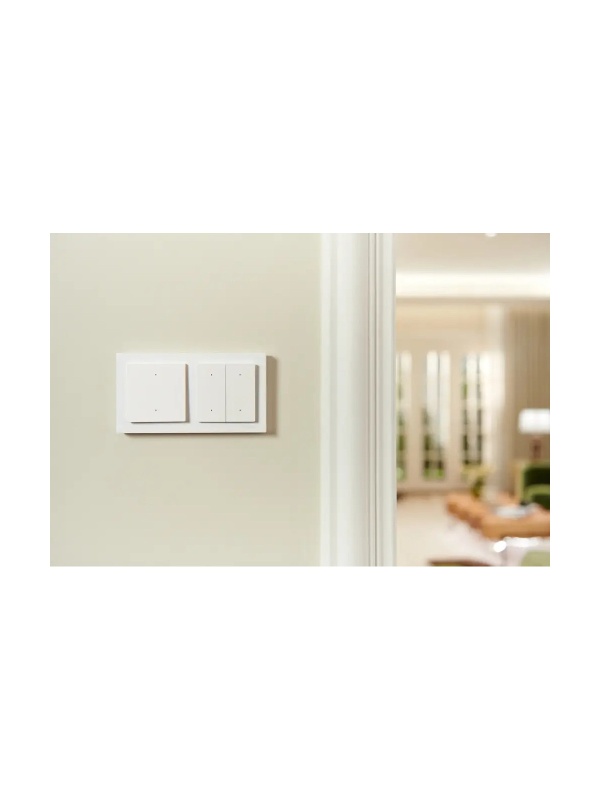

🧱 Compatible with 55 mm frames

• Fits in standard modular systems (e.g. Gira System 55, Merten M etc.)

• Simple installation in European cans without special adapters

🔥 O verload and overheating protection

• Automatically disconnects power in case of danger to prevent accidents and damage to devices

🎛️ Wireless switch mode

• Lower buttons can be configured for quick (single press) or advanced (double, long) control for customised scenarios

📋 Technical Specifications:

• Model: WS-K07D

• Wireless protocols: Zigbee, Thread, BLE

• Number of buttons: 4

• Number of relays: 2

• Power supply method: Without null / With null

• Maximum Power Supported:

  • Incandescent lamp: 1600W (220V)

  • LED/fluorescent/economical: 300W

• Button: Capacitive touch

• LED indicator: Red-Blue

• Operating Temperature: -10°C ~ 40°C

• Humidity: 0 - 95% RH

🔔 Note:

• An Aqara hub is required for full operation and integration with the Aqara app

• A Thread Border Router and Matter Controller is required for Matter integration

• Functions such as consumption monitoring and protections are only available with null thread

• Wireless mode and features exposed in third-party applications may vary depending on platform compatibility
