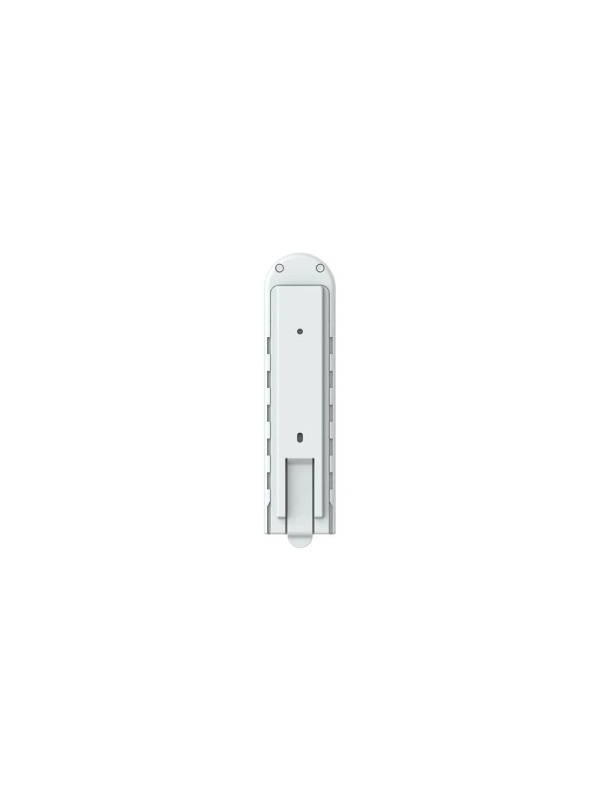

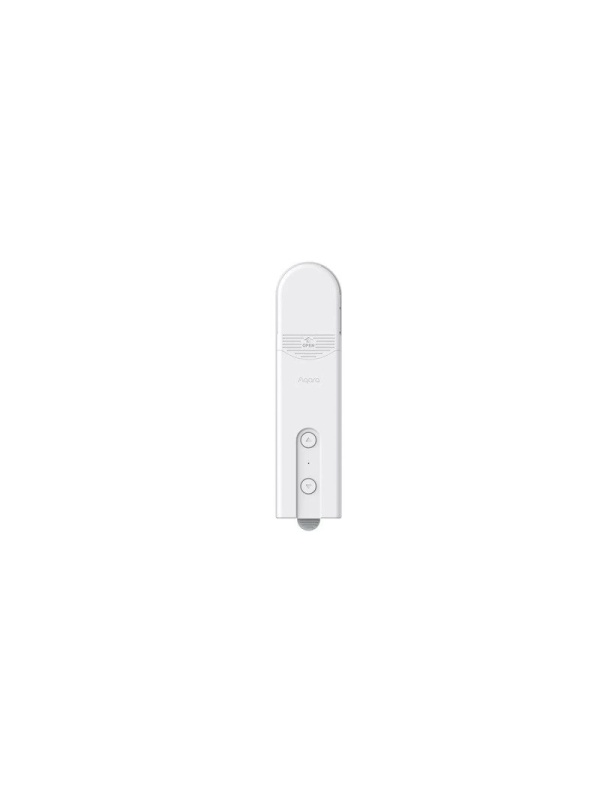

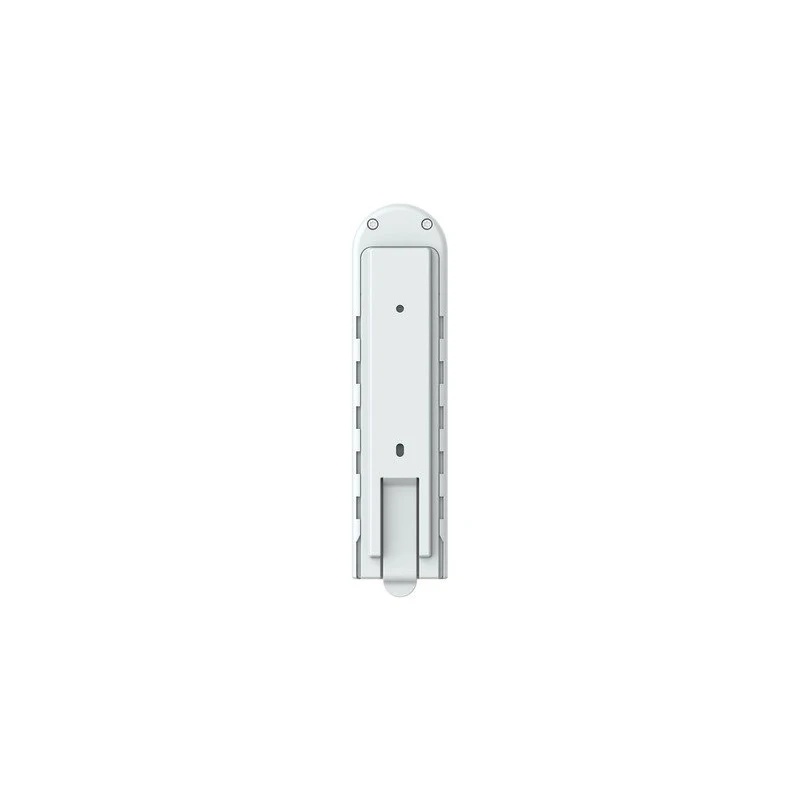

AQARA Roller Shade Automation Kit Roller Shade Driver E1, Zibee (RSD-M01)

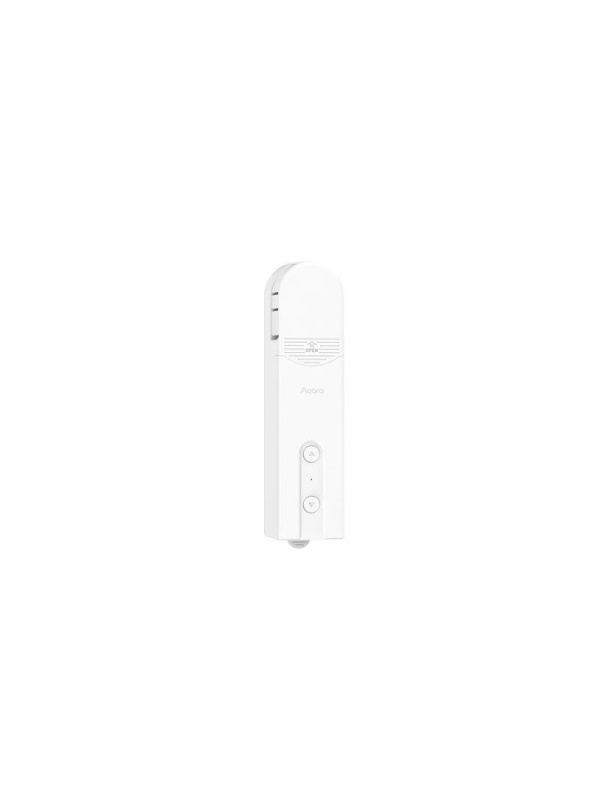

AQARA Roller Shade Roller Shade Driver E1 (RSD-M01) - Intelligent motor for ball bearing roller shades

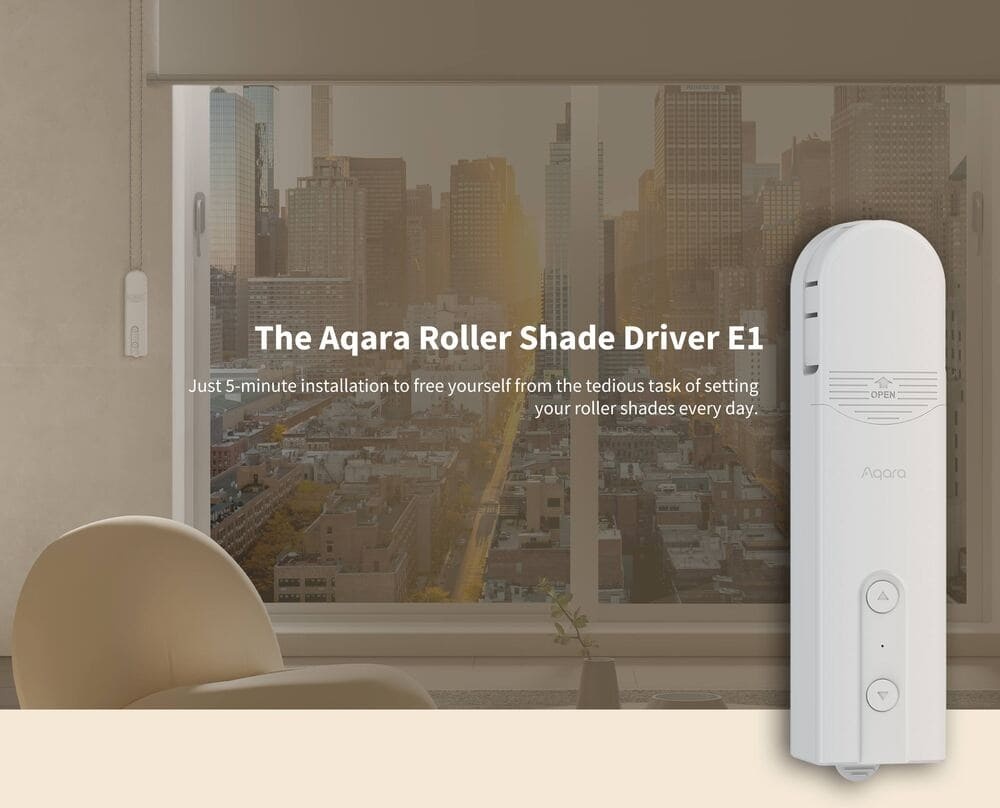

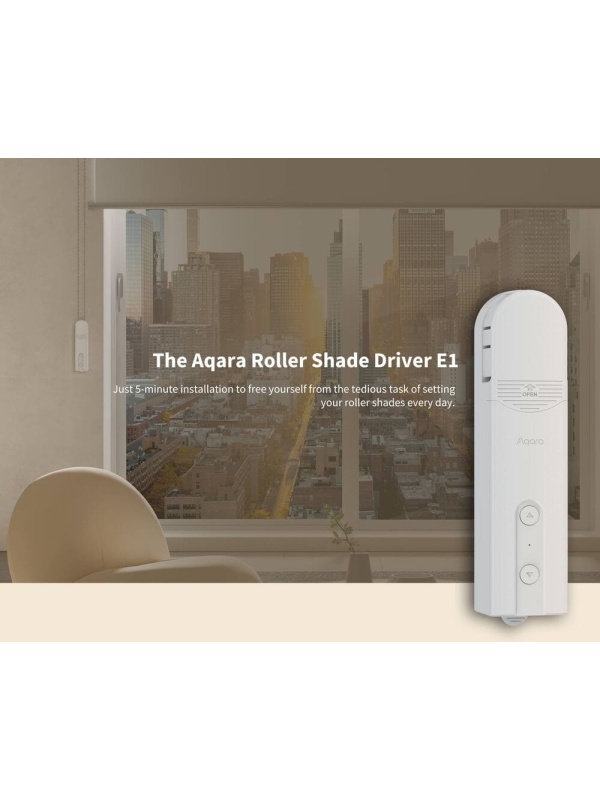

The AQARA Roller Shade Driver E1 is a smart retrofit device that transforms traditional ball string rollers into smart rollers without the need for complex installation or dedicated cabling. It works on both built-in battery and plugged in via USB-C cable (included).

Key Features:

🔧 Easy installation
Installs in just minutes: screw it to the wall, attach the adapter, insert the roller lanyard and it's ready to use.

📡 Zigbee 3.0 protocol
Provides fast, stable and energy-efficient connectivity. Compatible with Aqara hubs and smart ecosystems through a standardised protocol.

🌐 Extended compatibility
Works with Apple HomeKit, Google Assistant, Amazon Alexa, Amazon Alexa, IFTTT, Alice, Marusya (requires an Aqara hub).

📏 Personalised position control
Allows multiple preset positions (e.g. 25%, 50%, 75%) to be set for opening or closing the roller, user's choice.

🔋 Up to 2 months battery life
Aqara's energy-saving technology allows up to 2 months of battery life (at daily use - one raising and lowering of a 1.8 × 1.8 m roller).

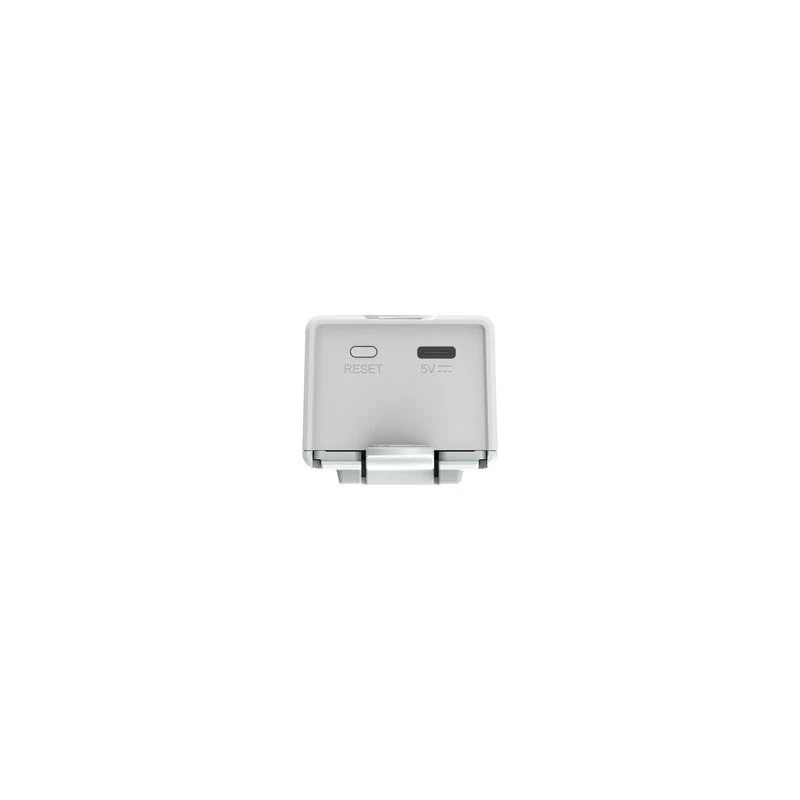

🔌 USB-C power supply
Can be used either cordless, battery powered or permanently plugged in via the modern USB-C port.

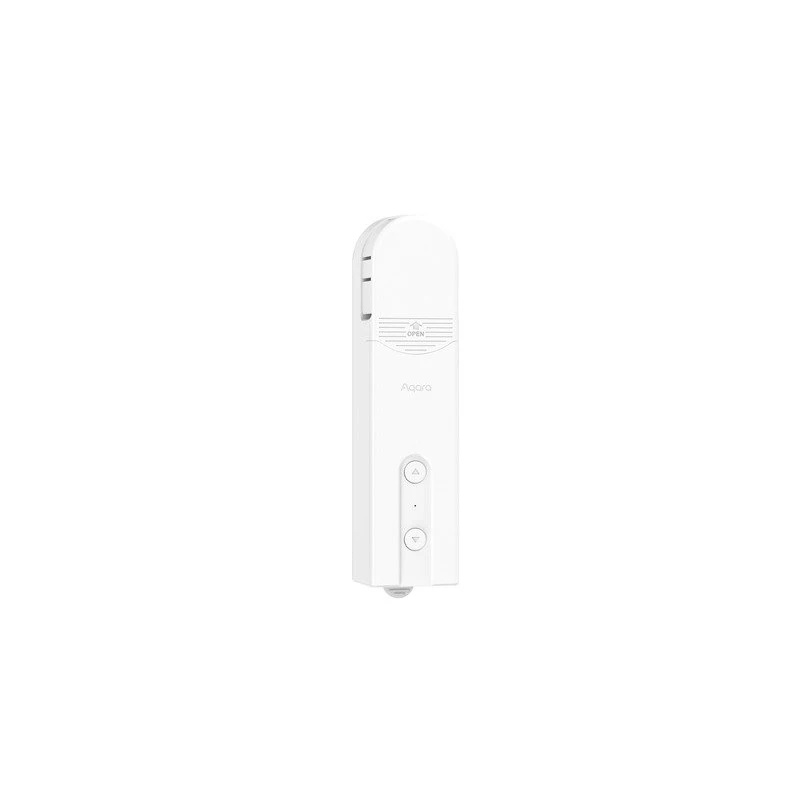

🔘 O ne-button control
Can be controlled with a single button via the Aqara Home app or devices like the Aqara Mini Switch.

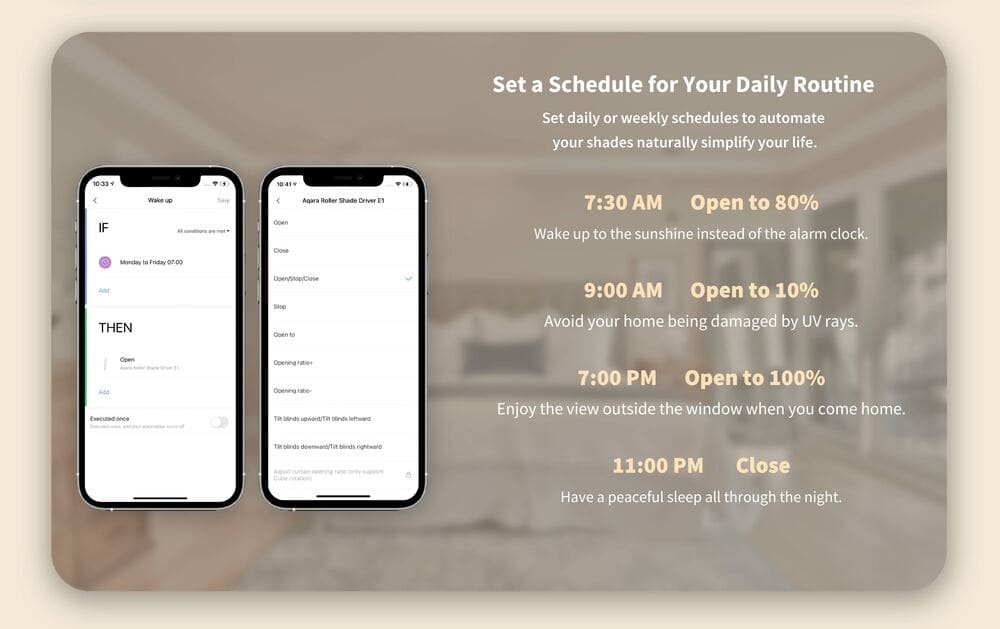

🏡 S mart automations

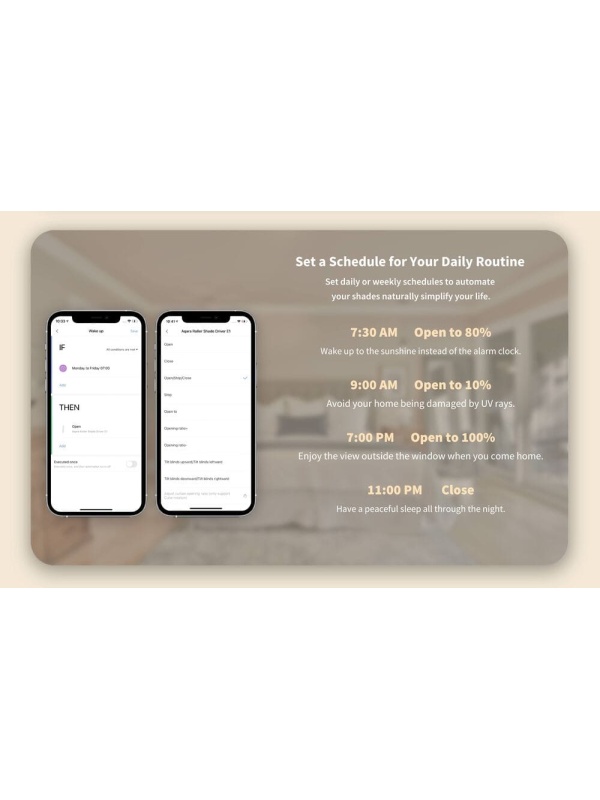

Set up automatic actions in the Aqara Home app (e.g. closing the roller at dusk, opening at dawn, etc.). The device will operate fully automatically.

⚙️ 4 adapters included for different types of ball cords
Compatible with most rollers on the market, thanks to the 4 interchangeable adapters included in the package.

Technical specifications:

• Model: RSD-M01

• Wireless protocol: Zigbee 3.0 (IEEE 802.15.4)

• Dimensions: 42 × 37 × 165 mm

• Operating Temperature: -10°C ~ 55°C

• Operating humidity: 0 - 95% RH (non-condensing)

• Battery Type: Lithium (not separately rechargeable)

• Input voltage: 5V 1A

• Maximum power consumption: 5W

• Standby time: up to 2 months (1 full movement/day of a 1.8m x 1.8m roll)

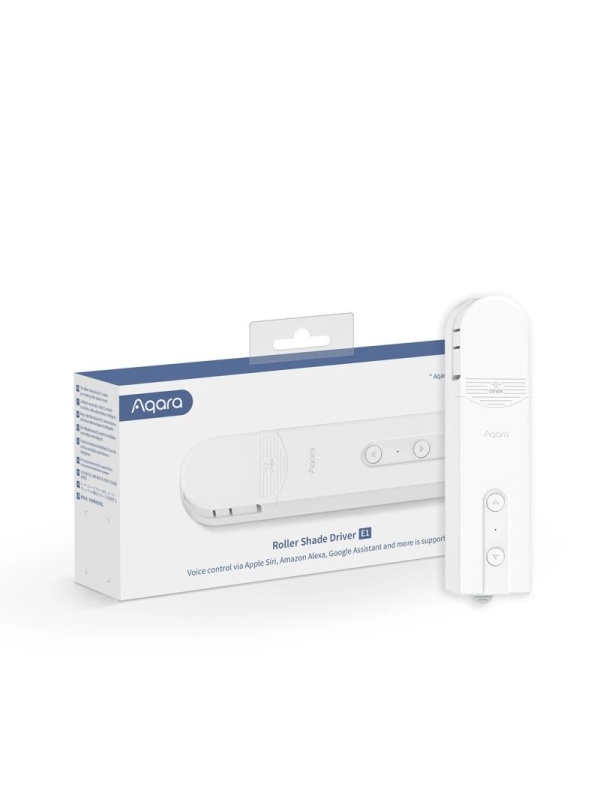

Package contents:

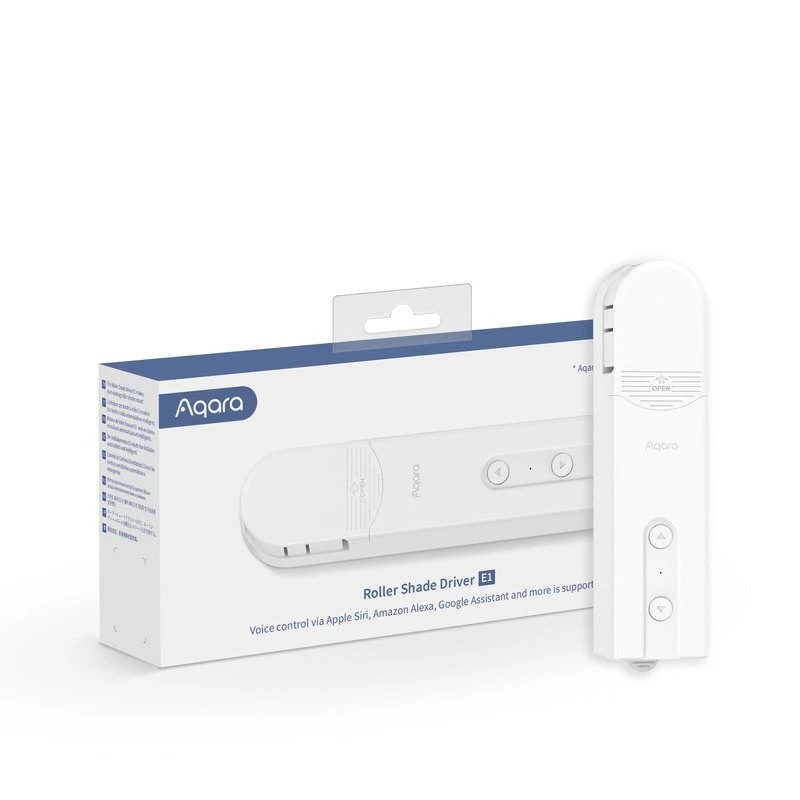

• 1 × Aqara Roller Shade Roller Shade Motor E1

• 2 × Screws

• 2 × Fixing dowel

• 1 × Double-stick adhesive tape

• 3 × Spare rotation pads

• 1 × USB-C to USB-A cable

💡 Aqara Roller Shade Driver E1 - the simple and elegant solution to turn your classic roller shades into smart roller shades, with app or voice control, hassle-free.
