Aqara Roller Shade Controller T1S , Apple HomeKit, Zigbee, Matter

Aqara Roller Shade Controller T1S - Intelligent curtain control, discreetly integrated

Once installed, the T1S becomes virtually invisible and seamlessly integrates your roller shades with smart automation from the Aqara Home app or third-party ecosystems. Open your curtains when you get home, close them for privacy and gently open them in the morning to make waking up easier.

Key features:

✅ Support Matter by Bridge:
Control your rolls via Apple Home, Siri, Google Home, Alexa, and IFTTT - all through a Matter-compatible hub.

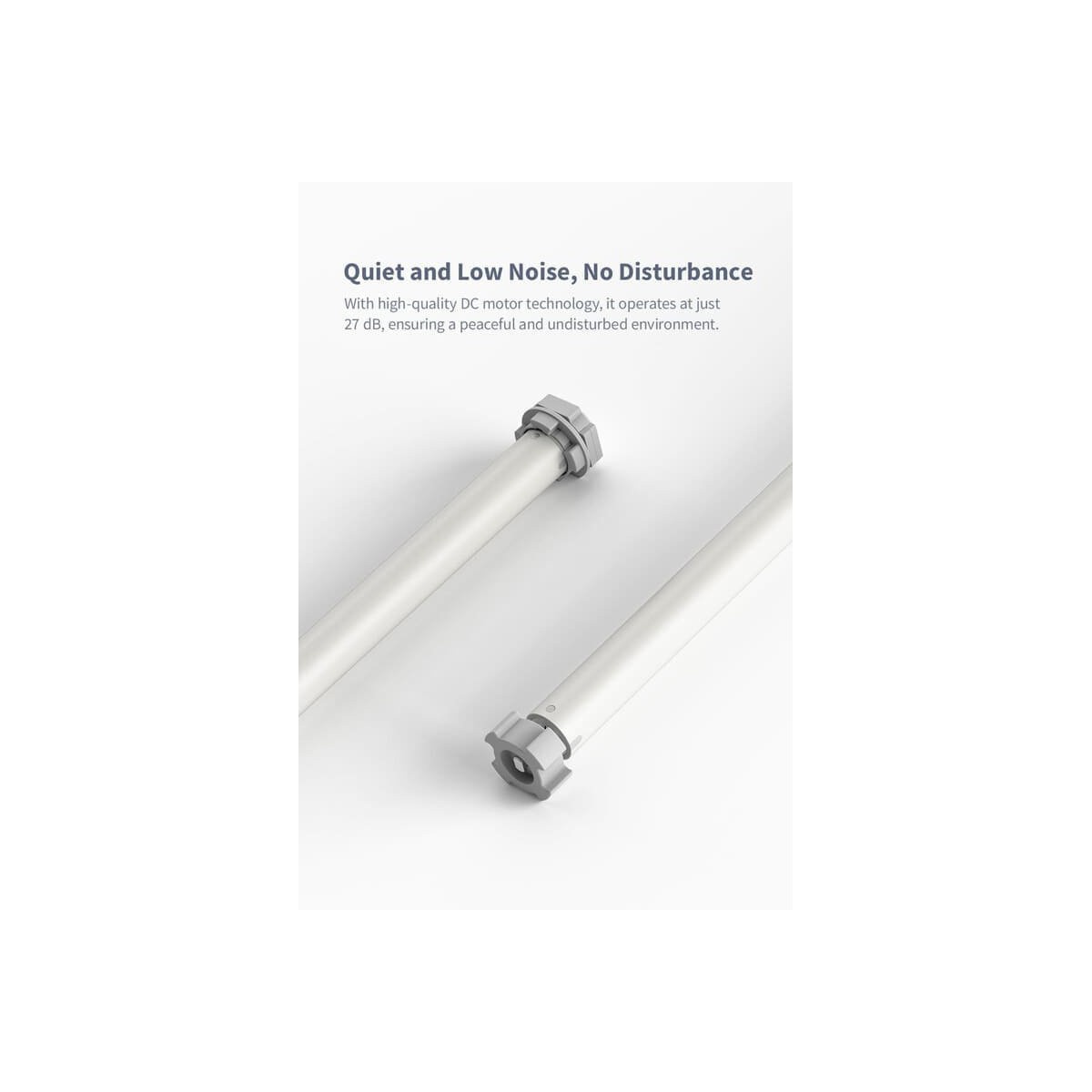

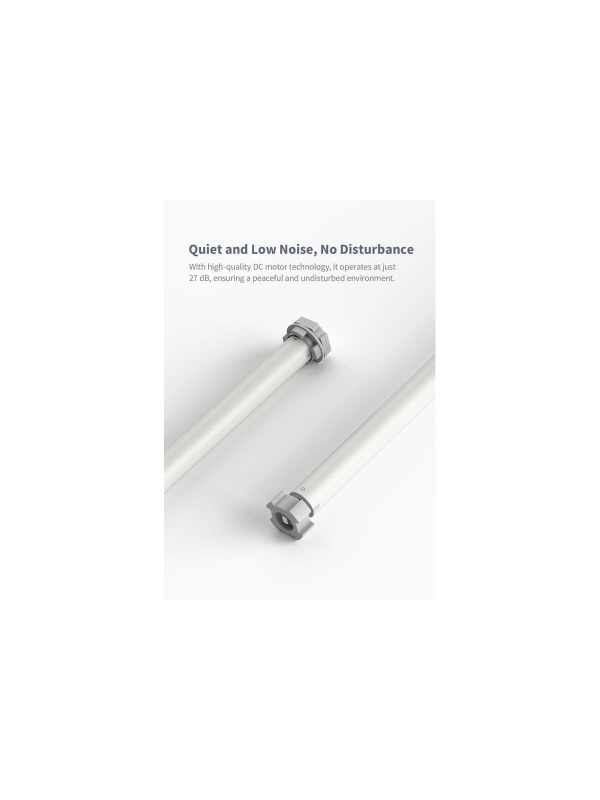

✅ High speed and low noise:
Next-generation DC motor delivers fast performance at just 27 dB for a quiet experience.

• New DC motor technology

• Speed: 25 rpm

• Noise level: 27 dB

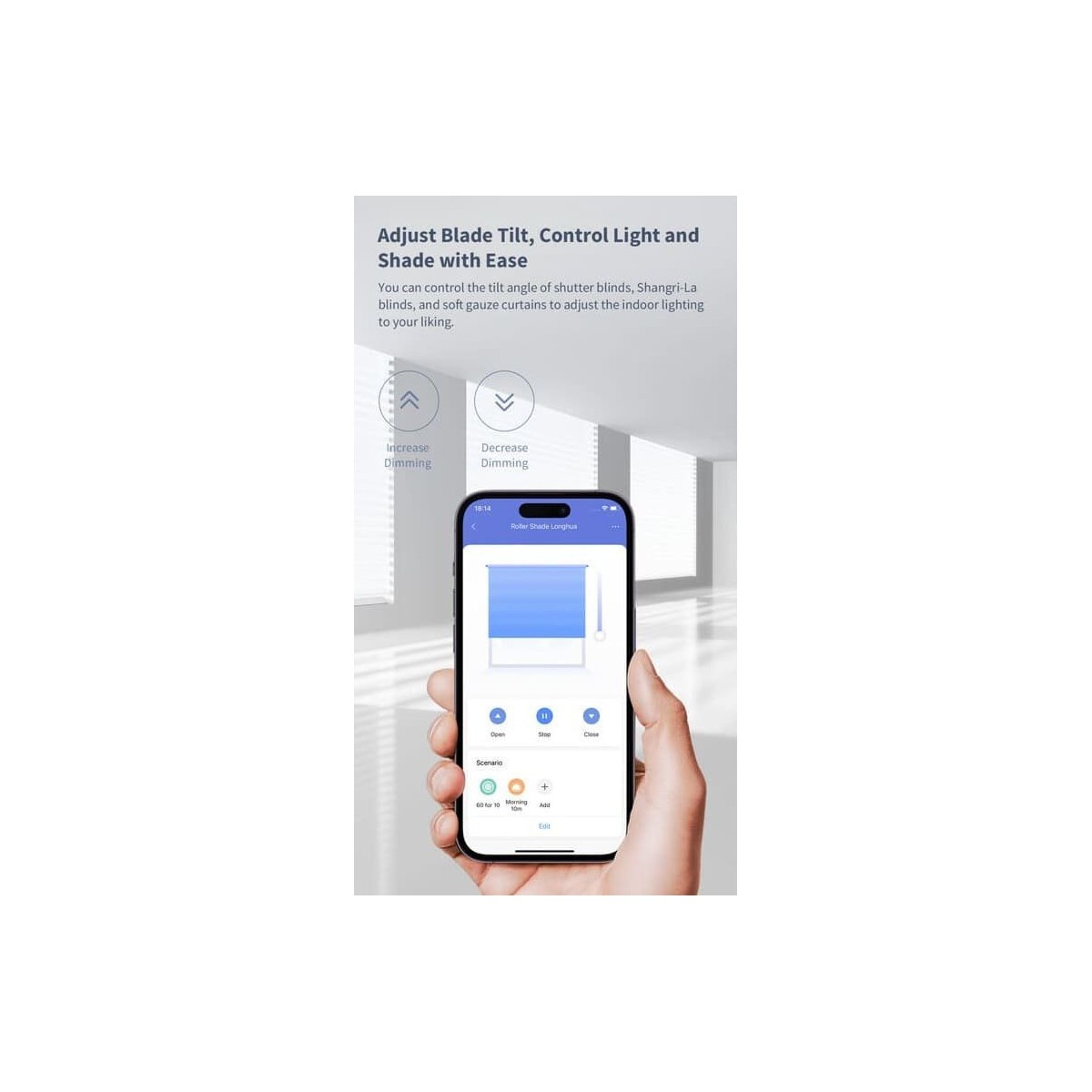

✅ Precise opening position control:
Set an opening percentage from the app for precise light or privacy - manually or automatically.

• Pre-defined opening positions

• Programmable durations

• Opening in per cent

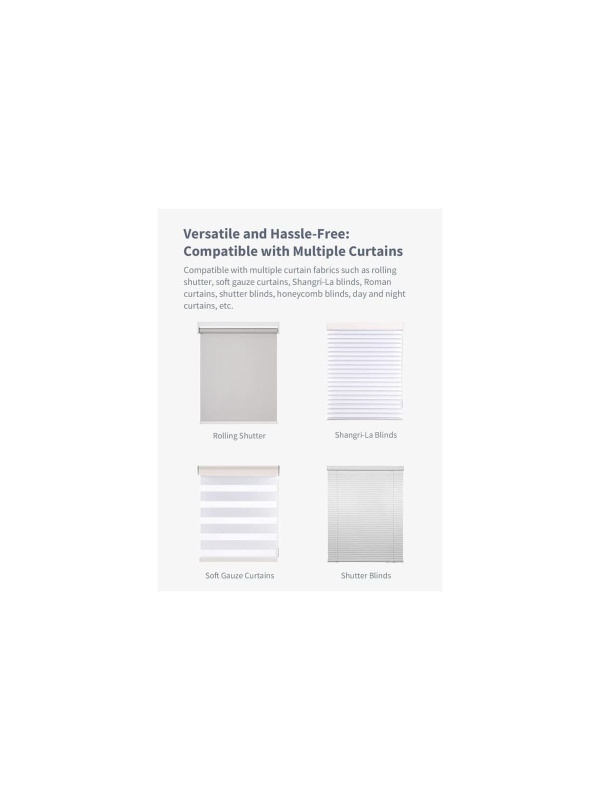

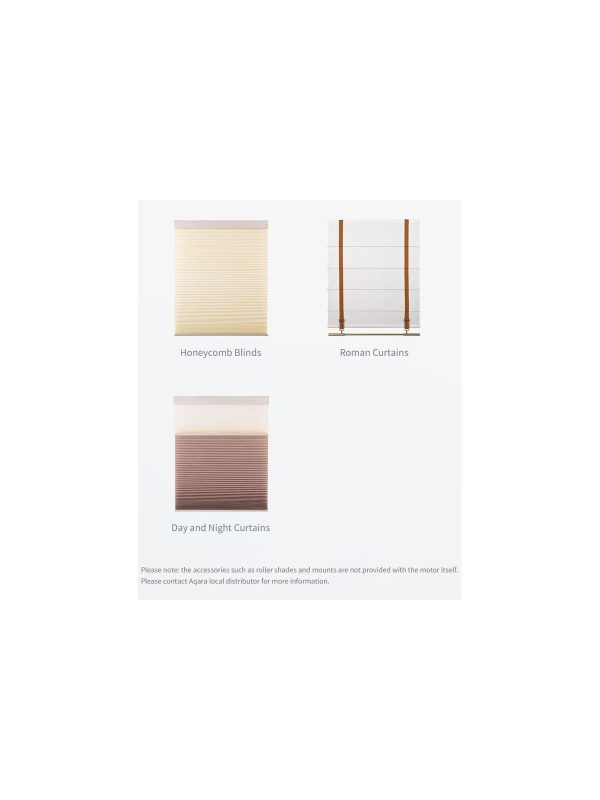

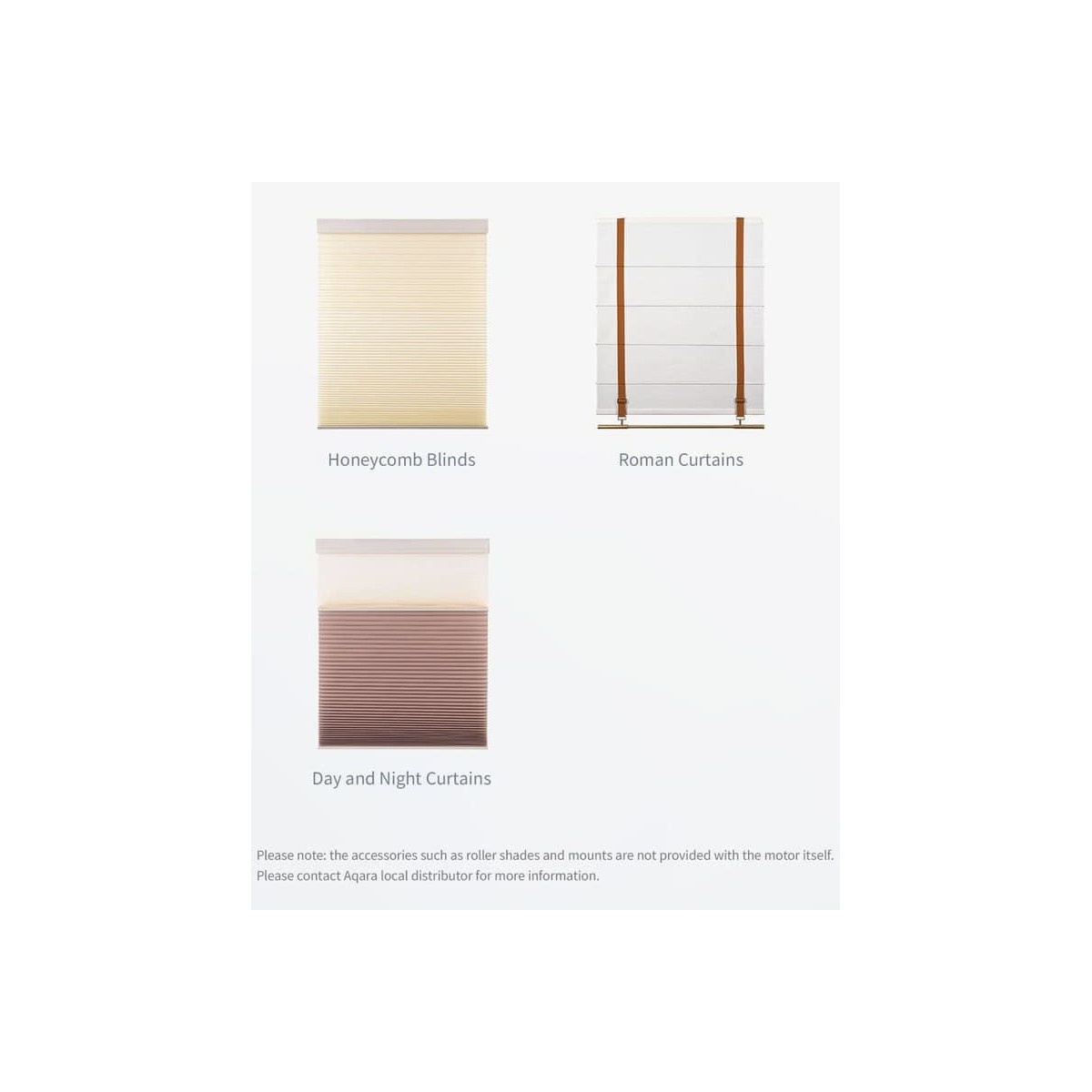

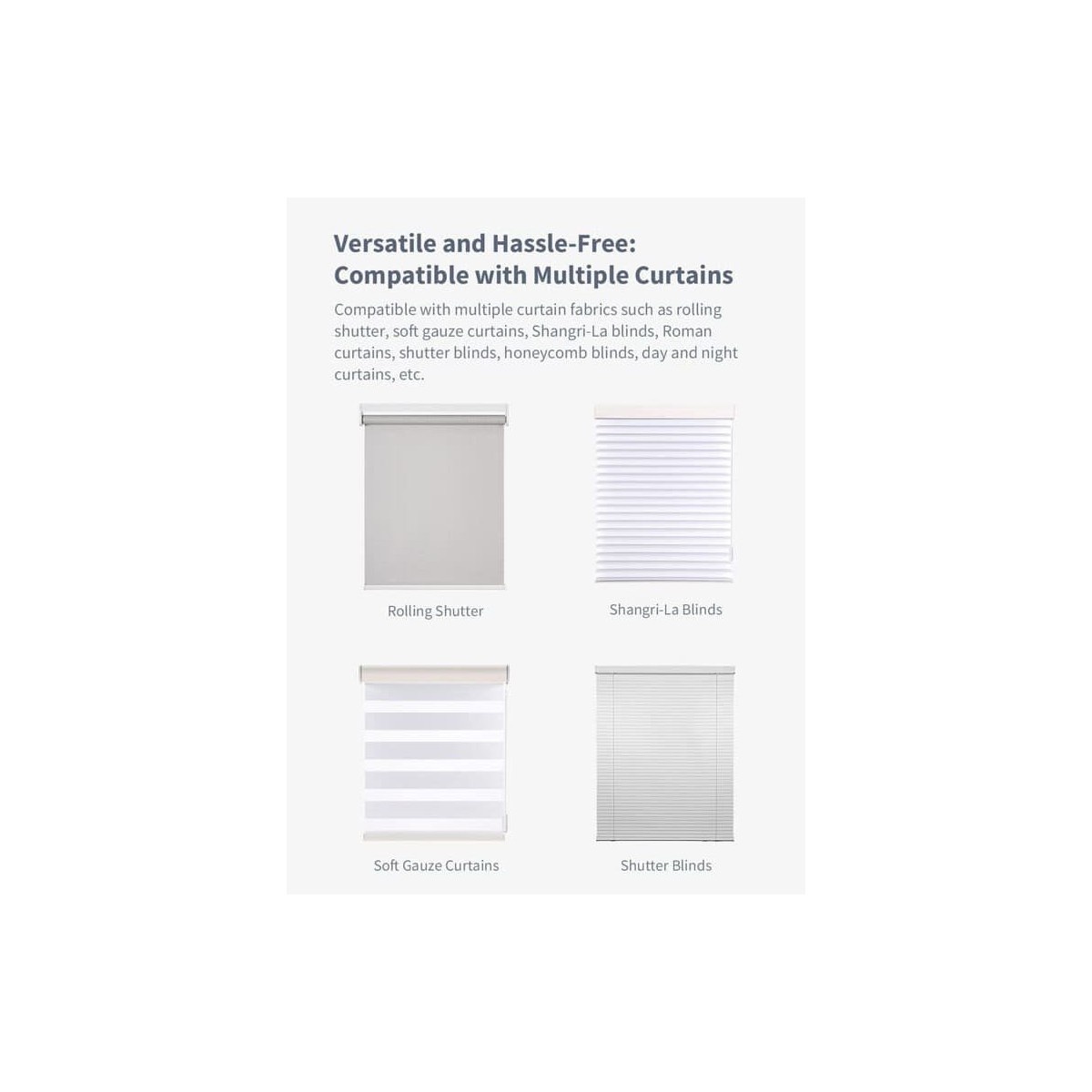

✅ Compatibility with various types of roller blinds:
Supports classic roller blinds, zebra curtains, Roman blinds and more.

• Up to 6kg load

• Minimum roller width: 600 mm

• Compatible with:

  • Classic roller blinds, Zebra, Horizontal blinds

  • Cellular blinds, Day and Night curtains, Roman blinds

✅ Automatic programmes and scripts:
Controls curtains automatically based on schedule, ambient light or presence.

✅ Very low standby power consumption:
Runs on Zigbee and consumes little power - perfect for efficient energy management.

• Low power consumption

• Stable Zigbee connection

• High security

• Easy integration into your smart ecosystem

Automation examples:

1. Automatically closes the roller when you leave home
   If: door sensor detects that it has closed
   Then: rolls the curtain down

2. Adjusts the roller according to daylight
   If: lighting reaches 100 lux
   Then: set roller to 50%

3. Control with Aqara Cube T1 Pro
   If: drag the cube
   Then: open/close the curtain

4. Privacy at bedtime
   If: motion sensor detects presence in bed
   Then: close the curtain

Technical specifications:

• Model: CD-M03D

• Motor diameter: 25 mm

• Motor length: 465 mm

• Rated voltage: 100-240V~, 50/60Hz

• Power: 20W

• Current: 0.3A

• Speed: 25 rpm

• Rated torque: 1.2N-m

• Maximum roller weight: 6kg

• Connectivity: Zigbee 3.0

• Operating temperature: -20°C ~ +55°C

• Zigbee Frequency: 2405-2480 MHz

• Insulation grade: Class A

• Cable length: 1.2 m

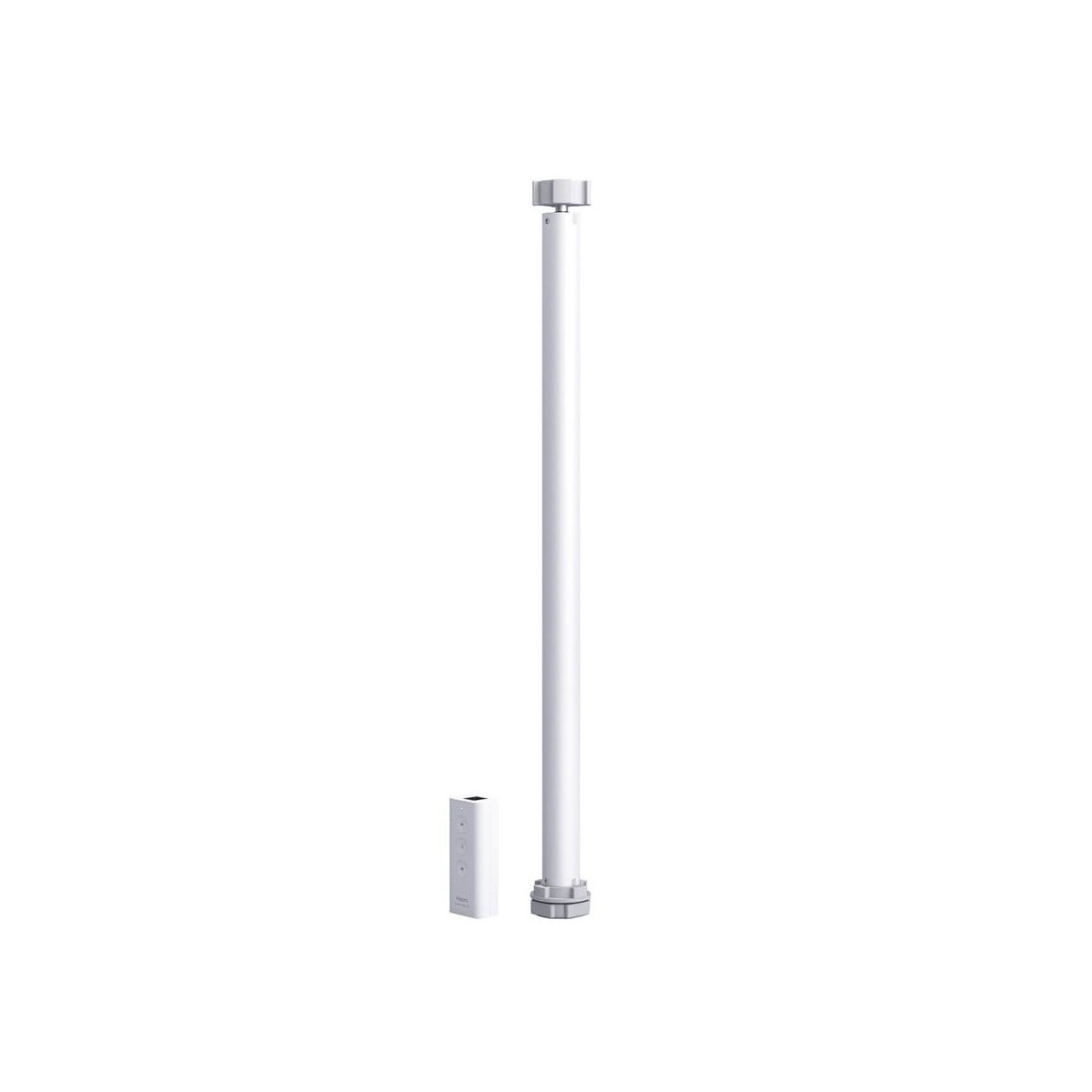

Package Contents:

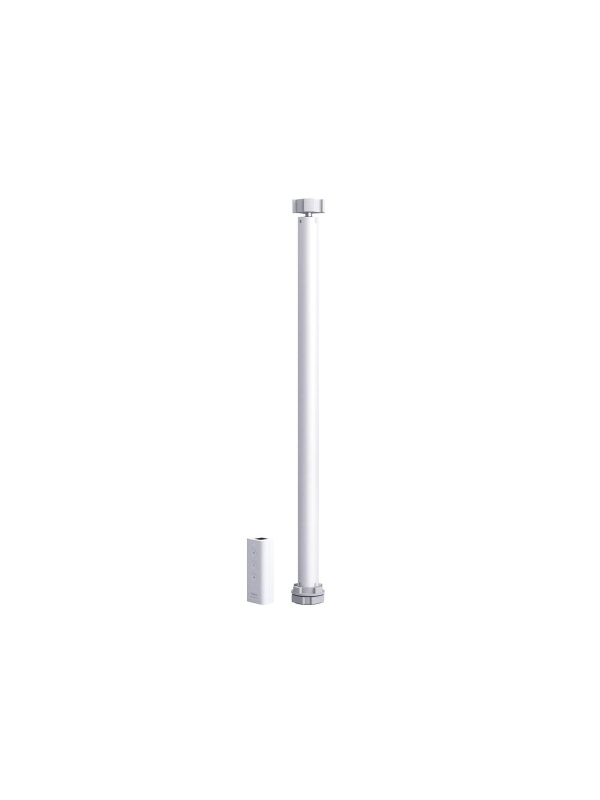

• Aqara Roller Shade Controller T1S T1S × 1

• Control box × 1

• User manual × 1

• Splash protection bag × 1

🔧 Note: Tube and roller shade must be purchased separately. Minimum roller width: 600 mm. High voltage supply.
