AQARA W100 temperature and humidity sensor (TH-S04D) - Zigbee and Thread compatible

AQARA W100 temperature and humidity sensor (TH-S04D) - Zigbee and Thread compatible

A highly accurate sensor with a 3.4 inch LCD display that monitors temperature and humidity in real time. It supports Zigbee and Thread technologies, allowing integration with third-party products or connection through an Aqara hub for advanced functions such as remote HVAC control. With three parametrisable buttons that can trigger up to nine different actions, the device helps increase comfort, energy efficiency and automation in your smart home.

✅ Temperature and humidity sensor - key features

📝 Important notes:

• Using the device in a Matter ecosystem requires a Matter Controller for that system and a Thread Border Router.

• An Aqara Zigbee hub is required.

• Factory reset is required to switch between protocols (Zigbee ↔ Thread).

• Previous wireless button configurations are lost when the sensor is connected to an Aqara thermostat.

• The secondary display only works in Zigbee mode connected to an Aqara hub.

• Connection with the Aqara E1 radiator thermostat is only possible via the Aqara Home app in Zigbee mode.

• Battery life is estimated based on Aqara lab tests.

• Customisation of sampling frequency and messaging is only available in Zigbee mode via the Aqara Home app.

🧩 E xtended compatibility - Zigbee + Thread + Matter

The device offers dual support for Zigbee and Thread and is Matter compatible, allowing easy integration with external ecosystems such as Apple Home, Amazon Alexa, Google Home, etc. At the same time, Zigbee together with an Aqara hub provides access to the exclusive features of the Aqara Home app.

🔘 3 parametric buttons = up to 9 actions

The sensor is equipped with three smart buttons that can trigger different actions with a single, double or long press - in total 9 different automations. You can switch devices on/off, activate comfort modes or scenes, all with a simple tap.

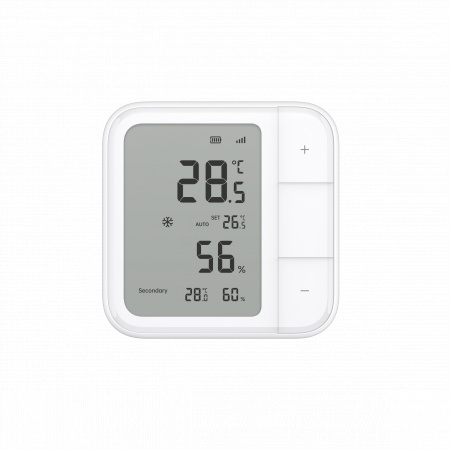

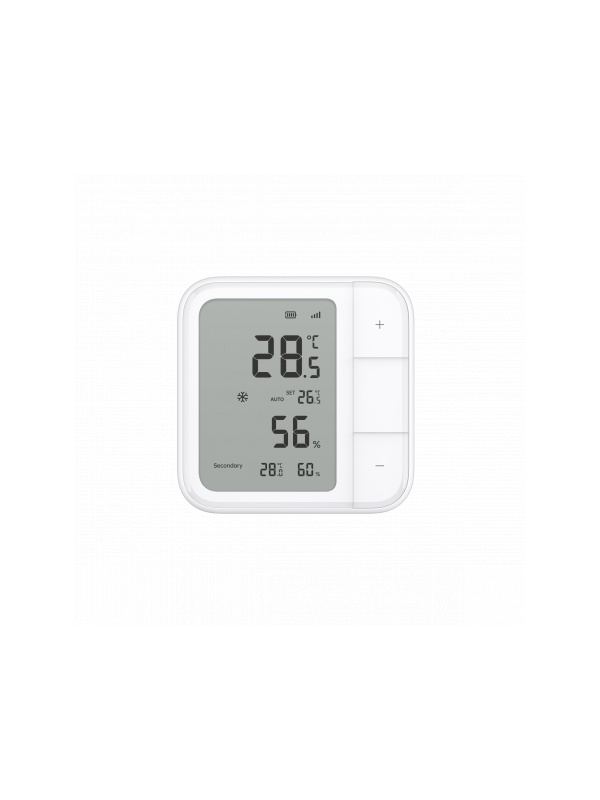

📺 Large LCD screen and high precision sensor

The device includes:

• Temperature sensor with ±0.2℃ accuracy

• Humidity sensor accurate to ±2%RH

• 3.4 inch LCD display with real-time data

Ideal for monitoring conditions in homes, storage rooms, greenhouses or rooms for people with special needs.

🌍 External sensor integration

In Zigbee mode, the sensor can be connected to another Aqara temperature and humidity sensor, displaying additional data in the secondary area of the display. If an external sensor is not connected, the secondary area will display the local values, giving a clear picture of the environment.

🌡️ Integration with HVAC for remote control

The sensor can be connected:

• to an Aqara thermostat via a hub

• or to an IR air conditioner via Aqara Hub M3

So you can set the desired temperature, humidity and modes directly from the app without manual intervention.

🔋 Long battery life

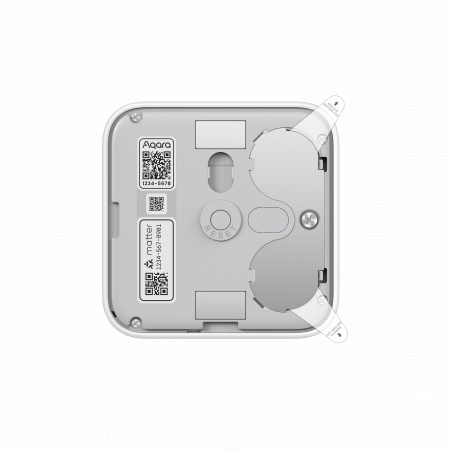

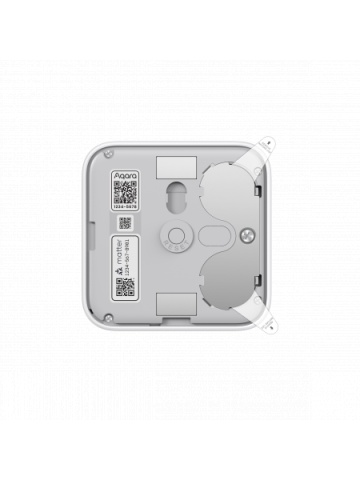

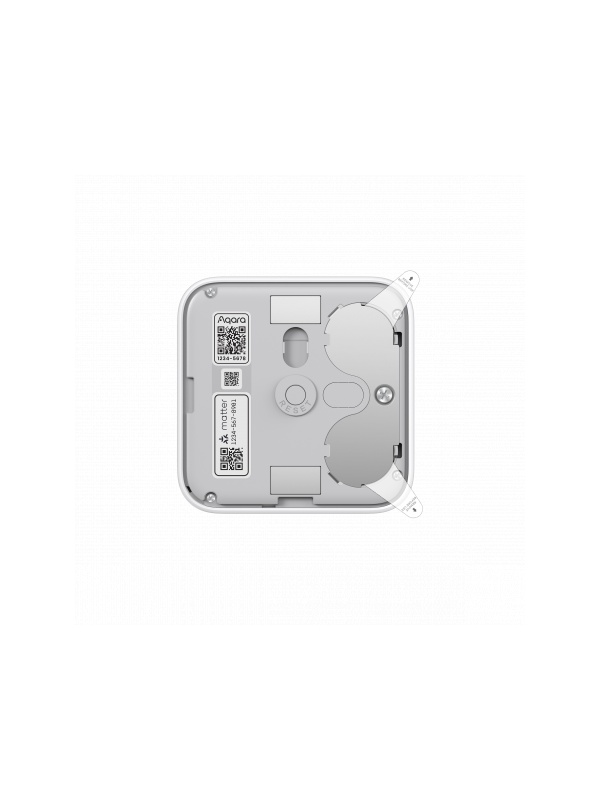

Powered by 2 CR2450 batteries, offering a battery life of:

• up to 2.4 years in Zigbee mode

• up to 2.3 years in Thread mode

You can adjust sampling and data transmission frequency for the perfect balance between performance and energy efficiency.

📦 Technical Specifications

• Product Name: Climate Sensor W100

• Model: TH-S04D

• Dimensions: 86 × 86 × 13.65 mm

• Temperature range: -20°C ~ 60°C

• Relative Humidity: 0 ~ 98% RH, non-condensing

• Wireless Protocols: Thread / Zigbee / Bluetooth

Package contains:
✅ 1x Aqara Climate W100 Sensor
✅ 1x User Manual
✅ 1x Declaration of Conformity
✅ 1x Set of screws
✅ 1x Wall bracket
✅ 1x Desk stand
