Curtain automation kit Aqara Roller Shade Controller T1S, Apple HomeKit, Zigbee, Matter

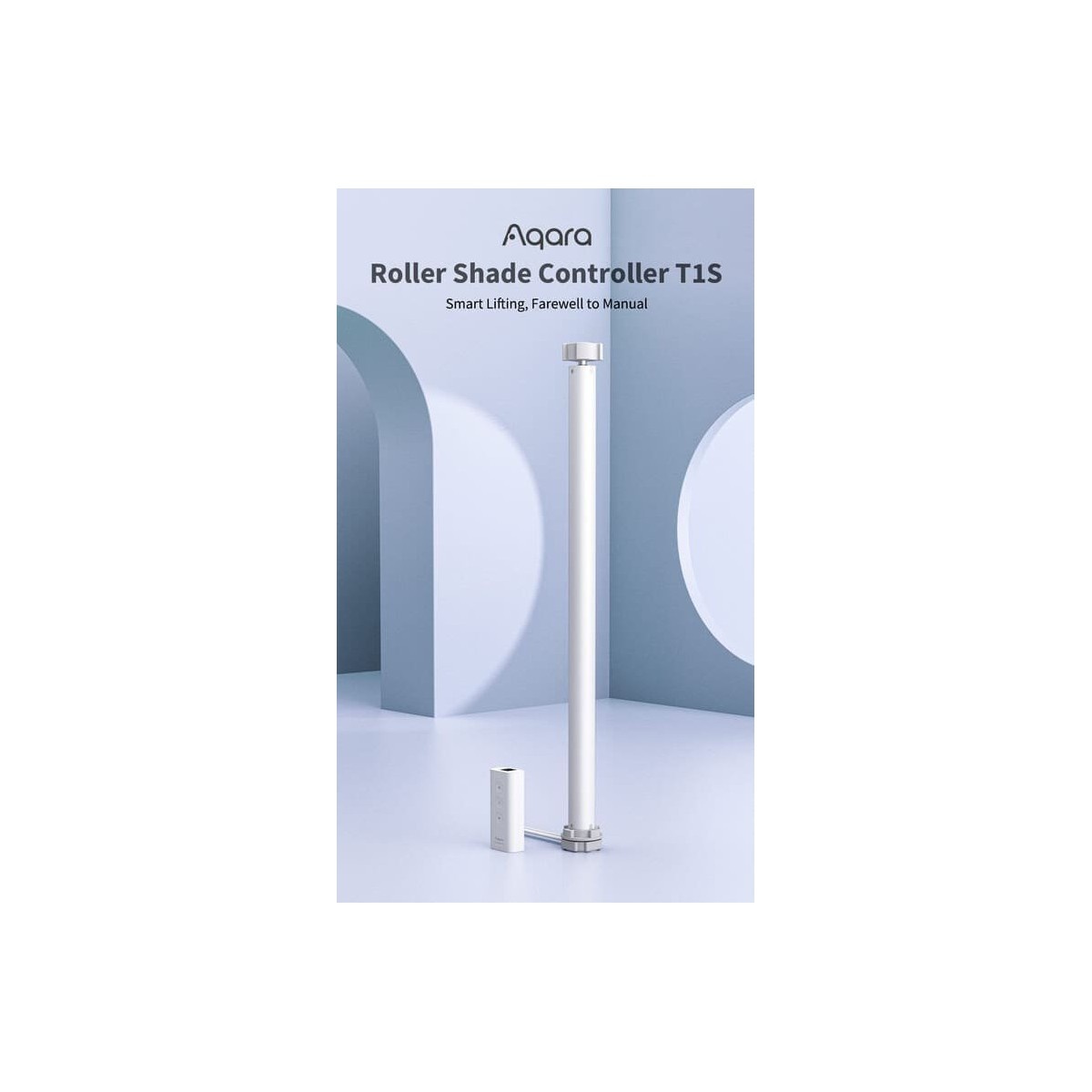

Aqara Roller Shade Controller T1S – Smart blind control, discreetly integrated

Once installed, the T1S becomes practically invisible and integrates your roller blinds seamlessly with smart automations in the Aqara Home app or third-party ecosystems. Open the blinds when you get home, close them for privacy and open them gently in the morning to make waking up easier.

Note: This product uses the Zigbee protocol and requires a compatible Zigbee hub/bridge (e.g. Aqara Hub / Aqara Hub E1 / Aqara Hub M2 / Aqara Hub M3) to connect to the network and be controlled from the app. It does not work independently over WiFi.

Key features:

Matter support via Bridge:
Control your roller blinds through Apple Home, Siri, Google Home, Alexa and IFTTT – all through a Matter-compatible hub.

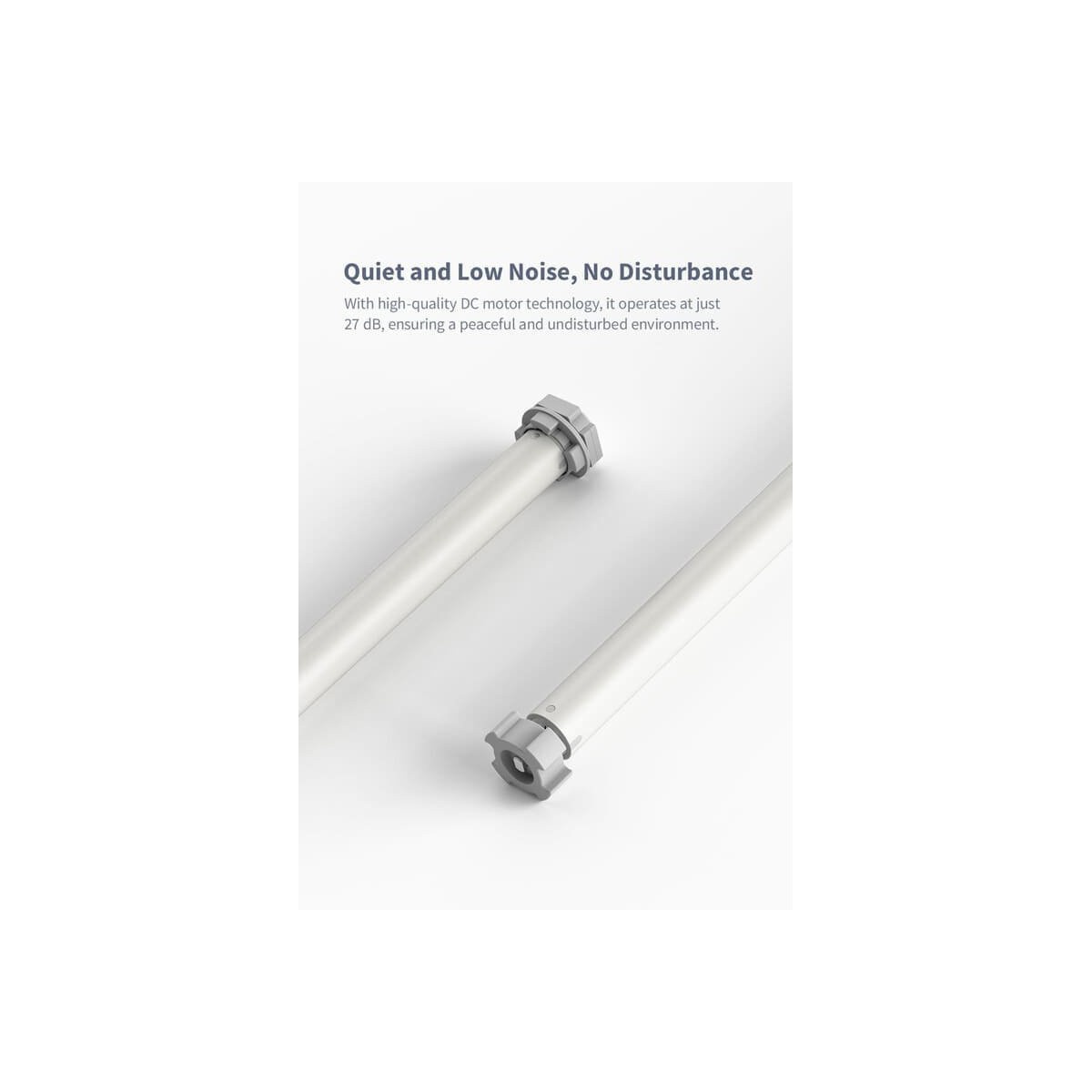

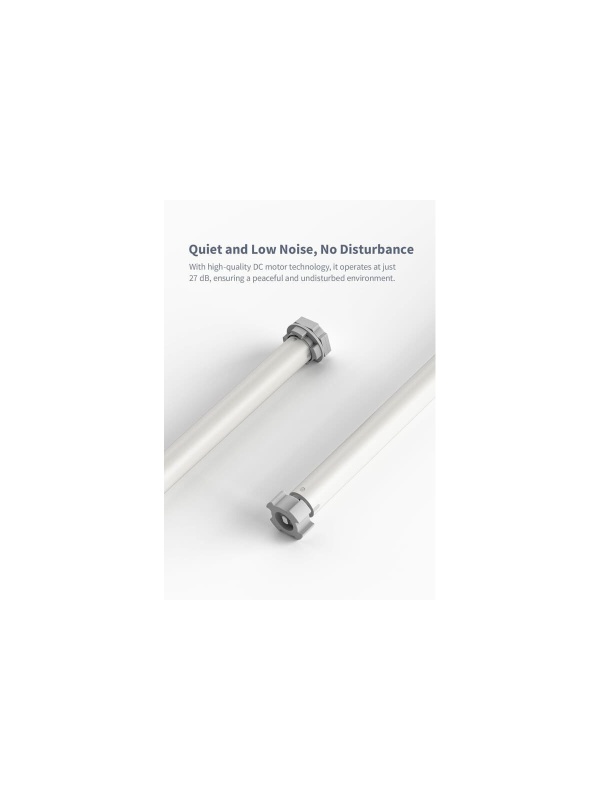

High speed and low noise:
The new-generation DC motor delivers fast performance at just 27 dB, for a quiet experience.

• New DC motor technology

• Speed: 25 revolutions/minute

• Noise level: 27 dB

Precise control of the opening position:
Set an opening percentage in the app for exactly the light or privacy you want – manually or automatically.

• Preset opening positions

• Programmable durations

• Opening by percentage

Compatible with various types of blinds:
Supports classic roller blinds, „zebra” blinds, Roman blinds and more.

• Up to 6 kg load

• Minimum blind width: 600 mm

• Compatible with:

  • Classic roller blinds, Zebra, Horizontal blinds

  • Cellular blinds, „Day and Night” blinds, Roman blinds

Schedules and automated scenes:
Control the blinds automatically based on time, ambient light or presence.

Very low standby consumption:
Runs on Zigbee and uses little power – perfect for efficient energy management.

• Low power consumption

• Stable Zigbee connection

• Increased safety

• Easy integration into your smart ecosystem

Automation examples:

1. Close the blind automatically when you leave home
   If: the door sensor detects that it has closed
   Then: lower the blind

2. Adjust the blind according to natural light
   If: illuminance reaches 100 lux
   Then: set the blind to 50%

3. Control with the Aqara Cube T1 Pro
   If: you slide the cube
   Then: open/close the blind

4. Privacy at bedtime
   If: the motion sensor detects presence in bed
   Then: close the blind

Technical specifications:

• Model: CD-M03D

• Motor diameter: 25 mm

• Motor length: 465 mm

• Rated voltage: 100–240V~, 50/60Hz

• Power: 20W

• Current: 0.3A

• Speed: 25 rpm

• Rated torque: 1.2N·m

• Maximum blind weight: 6 kg

• Connectivity: Zigbee 3.0

• Operating temperature: -20°C ~ +55°C

• Zigbee frequency: 2405–2480 MHz

• Insulation class: Class A

• Cable length: 1.2 m

Package contents:

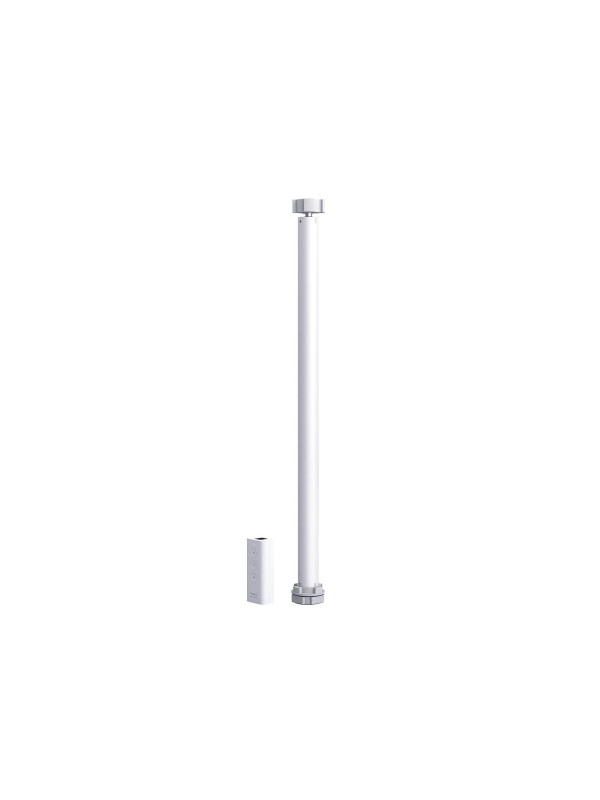

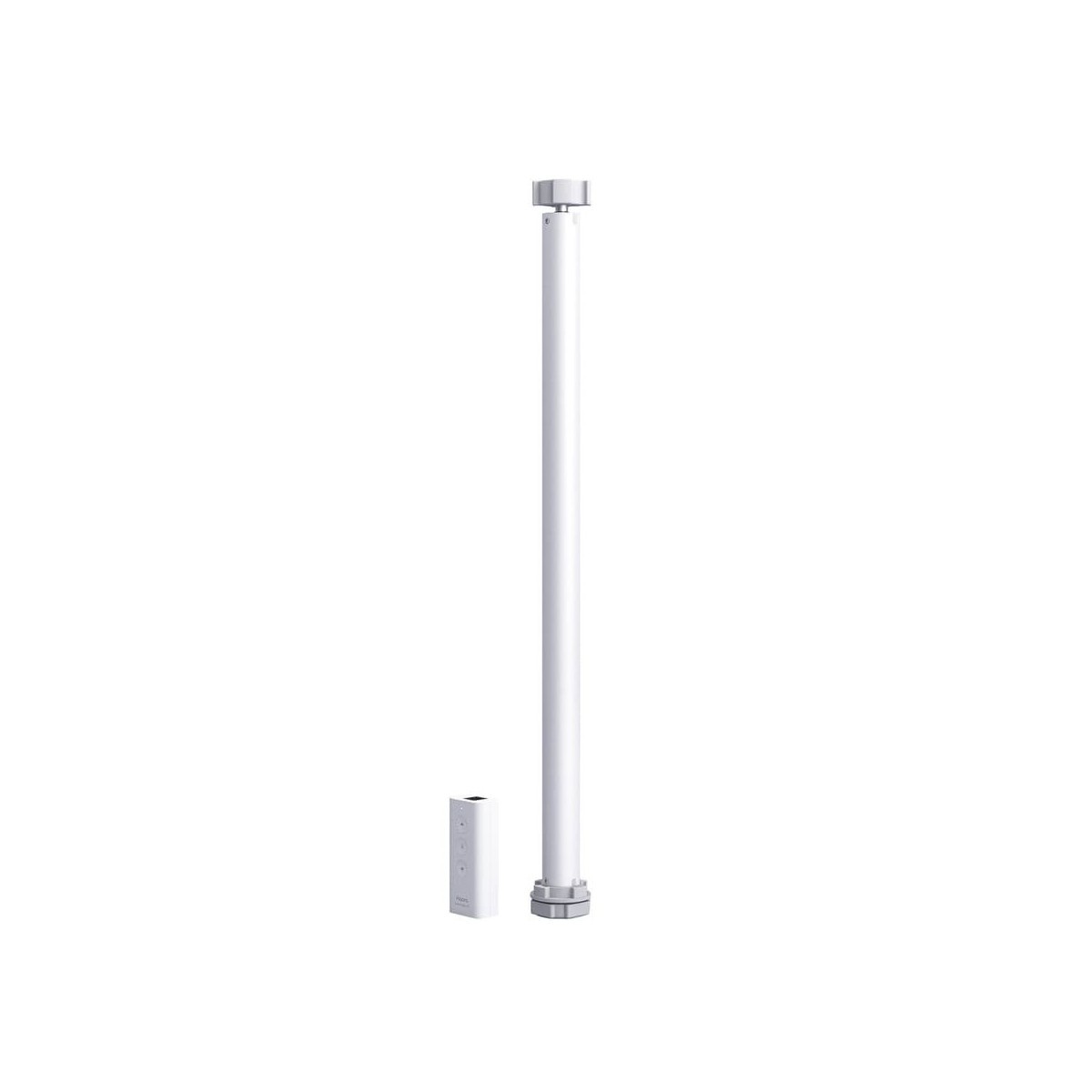

• Aqara Roller Shade Controller T1S × 1

• Control box × 1

• User manual × 1

• Splash protection bag × 1

Note: The tube and the roller blind must be purchased separately. Minimum blind width: 600 mm. Mains (high-voltage) power supply.

Practical use cases

• Motorise your existing roller blinds without replacing the motor, simply by adding the controller.
• Set a daily schedule for automatic opening and closing.
• Control the blinds remotely from the app, wherever you are.
