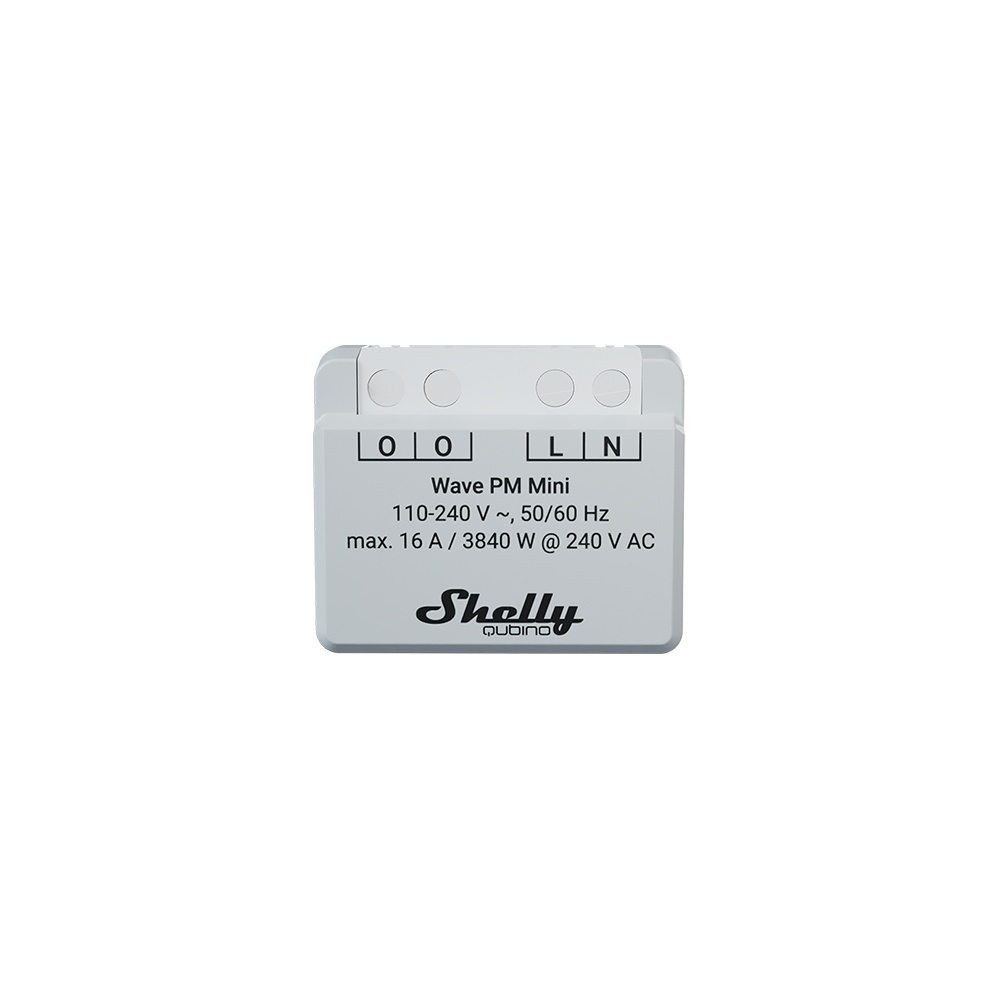

Energy meter Shelly Qubino Wave PM Mini, 16A, Z-Wave

Description

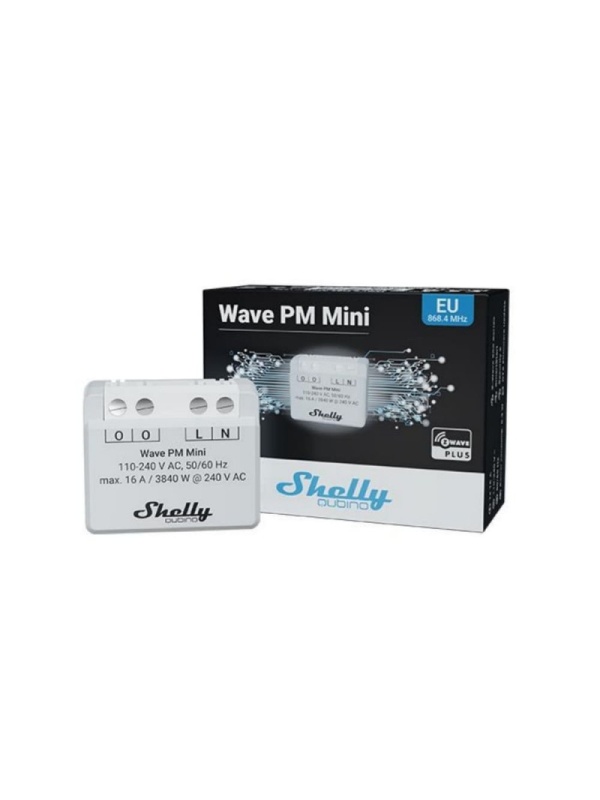

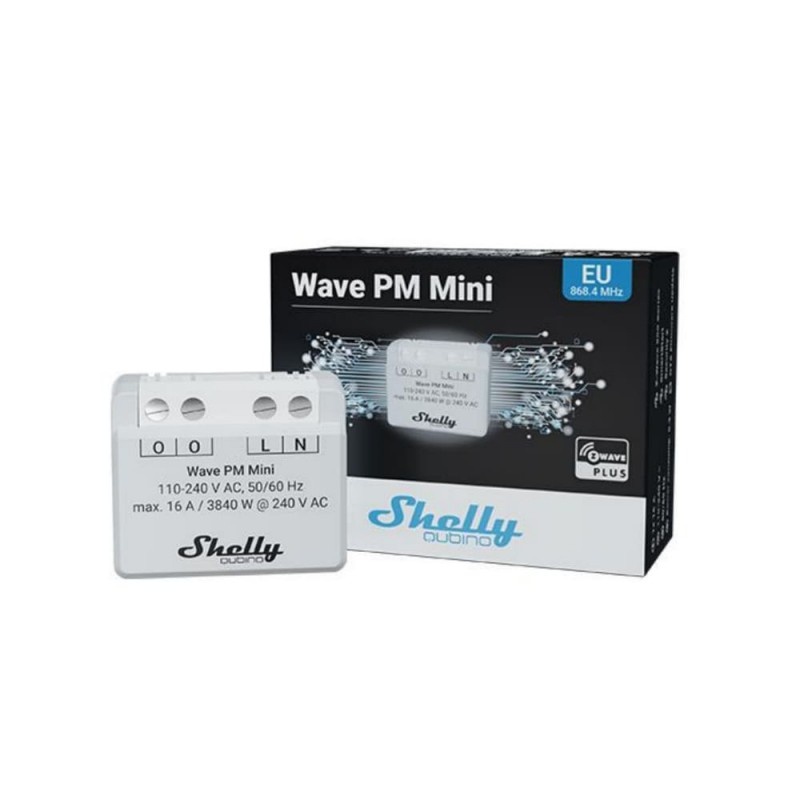

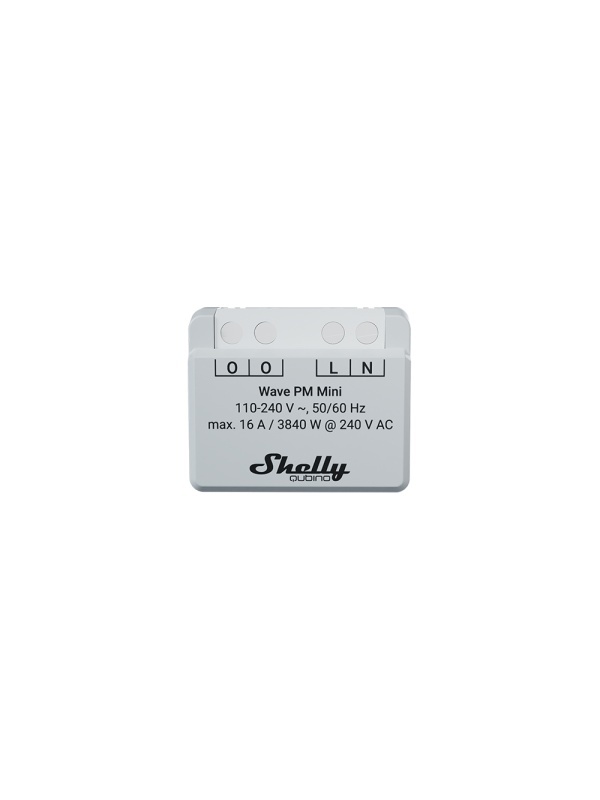

🔌 Shelly Qubino Wave PM Mini - Compact and accurate Z-Wave® smart energy meter

Highly accurate monitoring in an ultra-compact form factor - Shelly Qubino Wave PM Mini is the world's smallest Z-Wave® meter, ideal for tracking the energy consumption of appliances up to 16A, straight out of the app. Its minimalist design makes it perfect for mounting in tight spaces or behind sockets and switches.

✅ Key benefits:

⚡ Precise power metering - Measures real-time power consumption up to 3840 W (16 A at 240 V AC)
📶 Z-Wave 800 technology - Advanced connectivity with extended range and compatibility with over 4000 devices
🔐 SmartStart & S2 Security - Automatic configuration and high-level encryption for total security
📲 O TA Firmware Updates - Fast upgrades without disassembly
🔁 Z-Wave® repeater function - Extends the signal into your existing Z-Wave® network

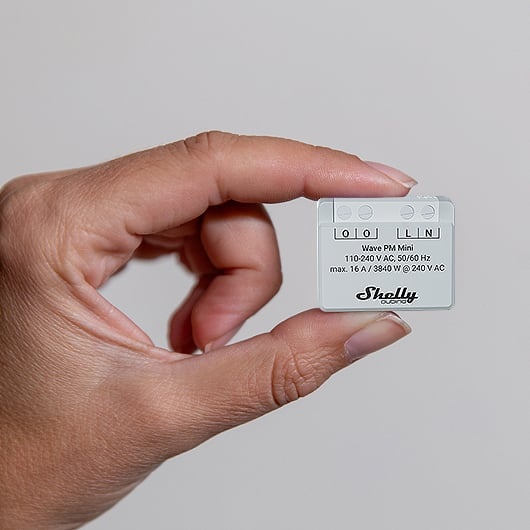

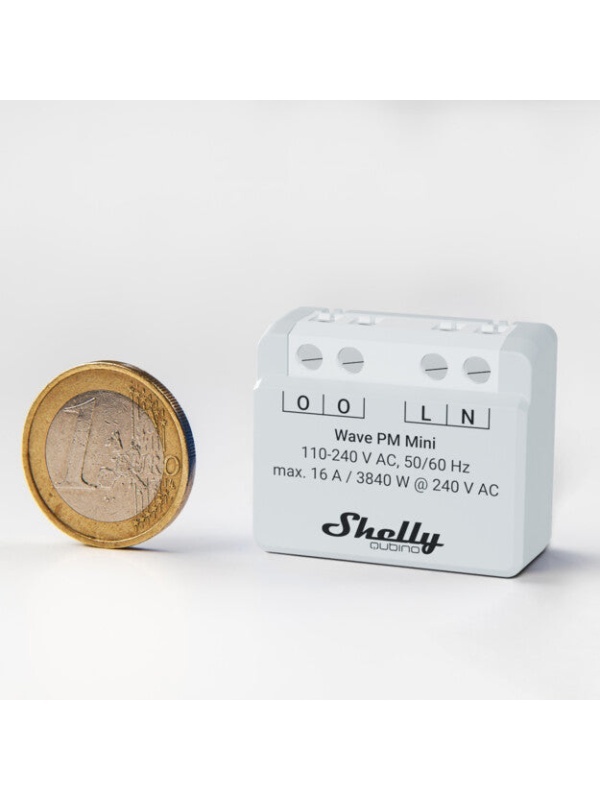

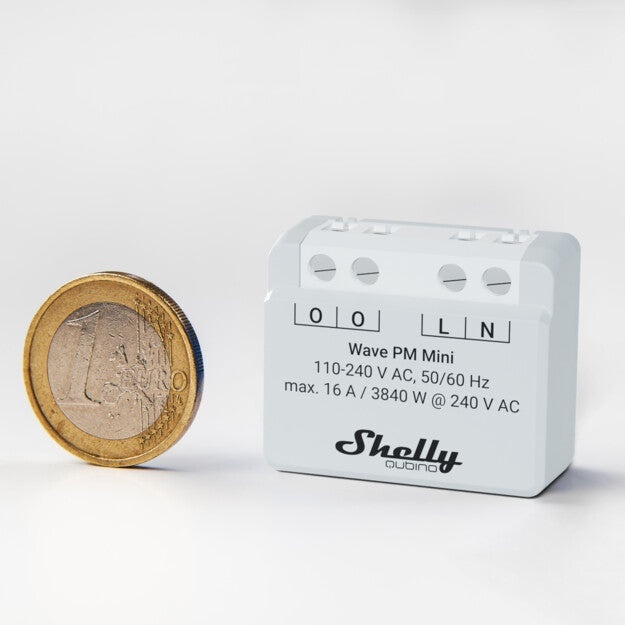

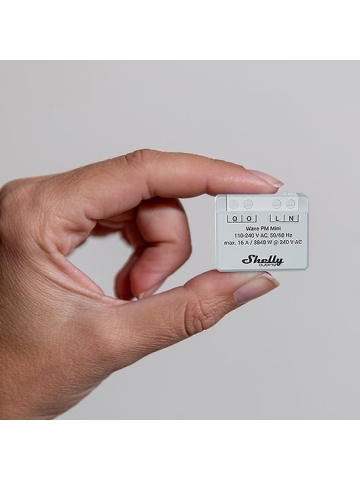

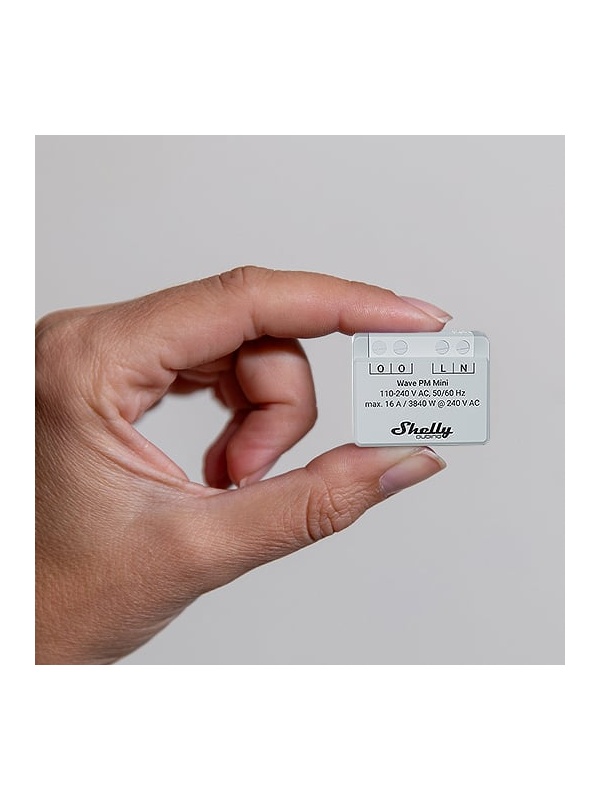

🧩 Ultra-compact design - Just 29 x 35 x 16 mm, fits in any standard appliance box
🌿 Low self-consumption - Only 0.3 W, ideal for energy efficient installations

⚙️ Technical specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Maximum measuring current: 16 A

• Maximum measured power: 3840 W

• Protection: External, 16 A (type B or C), 6 kA interruption

• CPU: Z-Wave® S800

• Frequency band: 868.4 MHz (for Europe)

• RF emitted power: < 25 mW

• Coverage distance: up to 40 m indoors

• Dimensions: 29 x 35 x 16 ±0.5 mm

• Mounting: In wall box

• Housing Material: Plastic, light grey

• Operating temperature: -20°C to +40°C

• Operating humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 Compatible with all Z-Wave® certified hubs - Ideal for integration into systems such as Home Assistant, Fibaro, Vera, etc.

💡 Choose the Shelly Qubino Wave PM Mini for efficient and reliable control of your electricity consumption directly from your Z-Wave network!
