FC311B-20
Description

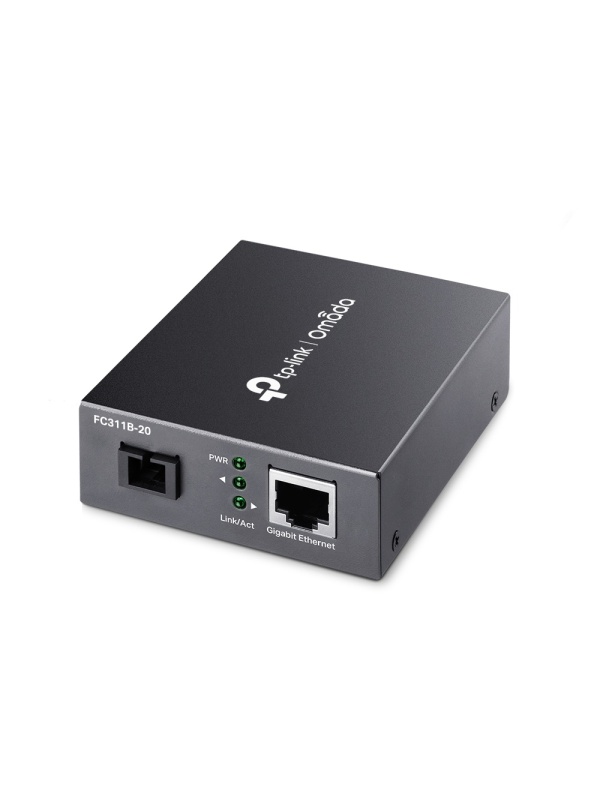

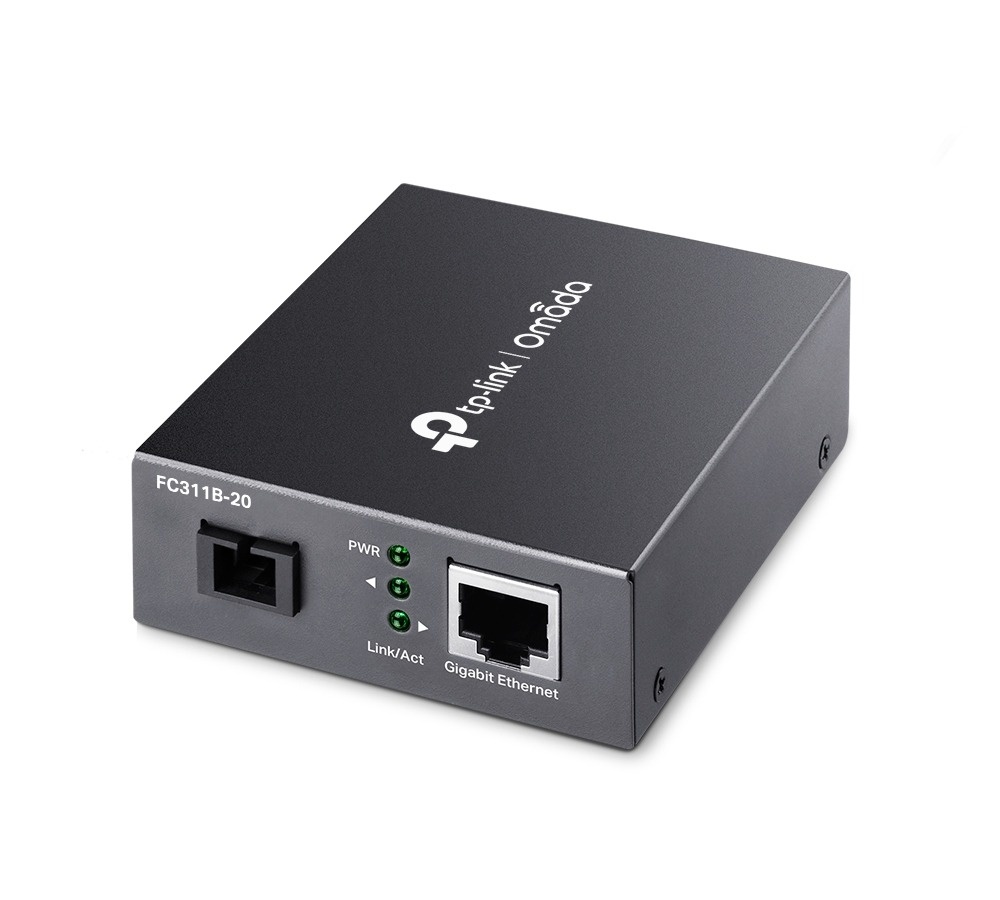

Gigabit WDM Media Converter - TP-Link TL-FC311B-20
🌐 Turn a single single-mode fibre optic into a reliable Gigabit connection over distances up to 20 km
🔌 Essential functionality
The TL-FC311B-20 is a wavelength division multiplexing (WDM) media converter that converts the signal between the RJ45 Gigabit port and a single-mode SC optical fibre, using a single fibre for long-distance bidirectional transmission(tp-link.com).
💡 Technology and compatibility
-
Transmits at 1310 nm and receives at 1550 nm; must be paired with TL-FC311A-20 (which works in reverse) to form a full link(tp-link.com)
-
Connects Ethernet devices (routers, switches, APs) to the optical network, ideal for remote surveillance or monitoring sites
🧰 Technical Specifications
| Feature | Details |
|---|---|
| Ports | 1× RJ45 Gigabit (10/100/1000 Mbps, auto-MDI/MDIX), 1× SC fibre |
| Technology | WDM for single fibre cable |
| Fibre distance | Up to 20 km on single-mode 9/125 µm fibre |
| Wavelengths | 1310 nm TX, 1550 nm RX |
| Power supply | 5 V ⎓ 0.6 A external adapter |
| LED indicators | Power & Link/Activity |
| Operating temperature | 0-50 °C; storage -40-70 °C |
| Humidity | 10-90 % RH operating, 5-90 % RH storage |
| Dimensions | 95 × 73 × 27 mm |
✅ Advantages wifishop.ro style
-
Save fibre: transmit and receive on the same fibre - 50% more economical than two-wire solutions
-
Plug-and-play: automatic Ethernet negotiation (duplex/speed) without configuration
-
Solid construction: robust, compact and lightweight housing
-
Ideal for projects: remote video surveillance, campuses, parks, outdoor networks
🎯 The TP-Link TL-FC311B-20 is the simple, efficient and professional solution to extend your Gigabit network over long distances using a single fibre optic. Compatible with TL-FC311A-20 for complete deployment.
