Glass/door sensor Aqara Door and Window Sensor P2, Matter, Apple HomeKit

English translation - Aqara Door and Window Sensor P2

Aqara Door and Window Sensor P2 - When the iconic sensor meets Matter over Thread support.
The Aqara P2 door and window sensor integrates all the advanced automation and security features the Aqara brand is known for*, but also offers the ability to connect directly to compatible Thread routers such as smart speakers to take advantage of the Matter standard for smart homes.

🌟 Key features

✅ Native Matter* compatibility
No need to worry about different protocols or ecosystems. All you need is a Matter app and a compatible Thread Border Router.

• Easy integration into multiple ecosystems (Apple, Google, Alexa, SmartThings)

• High-speed, high-efficiency Thread protocol

• Low power consumption

Open/close status monitoring
Receive real-time notifications when the sensor detects activity - whether you're home or away.

• Local and remote alarm

• High-precision Hall sensor

• In-app notifications

🏠 Smart local automations
Enables complex scenarios such as adjusting the thermostat or activating security cameras when opening a door/window. Automations are local - works even without internet.

• Security

• Energy saving

• Monitoring valuables and pets

🗣️ Voice assistant compatibility
Supports Apple Siri and Amazon Alexa, for notifications or voice commands about door/window status.

🛠️ Easy installation and maintenance

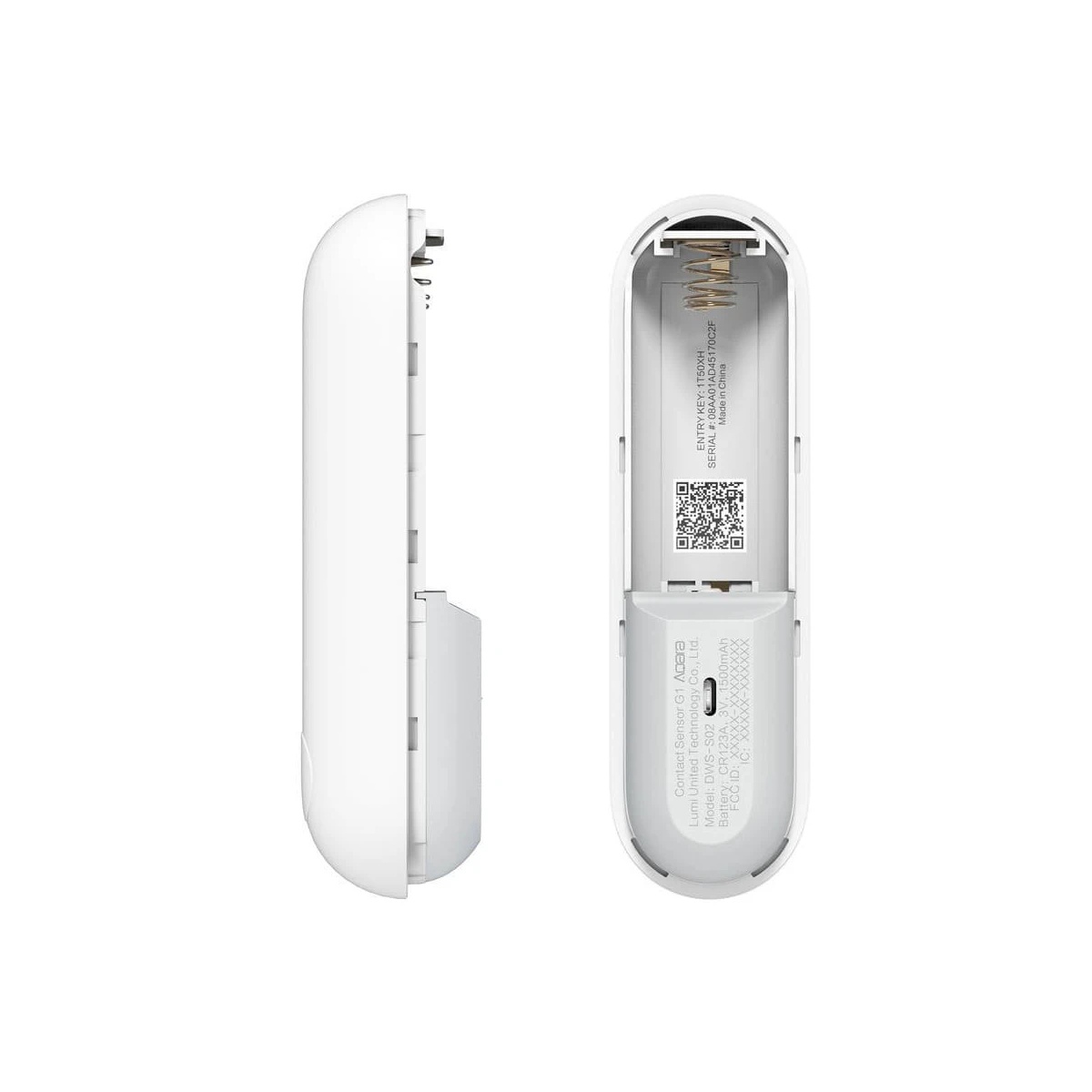

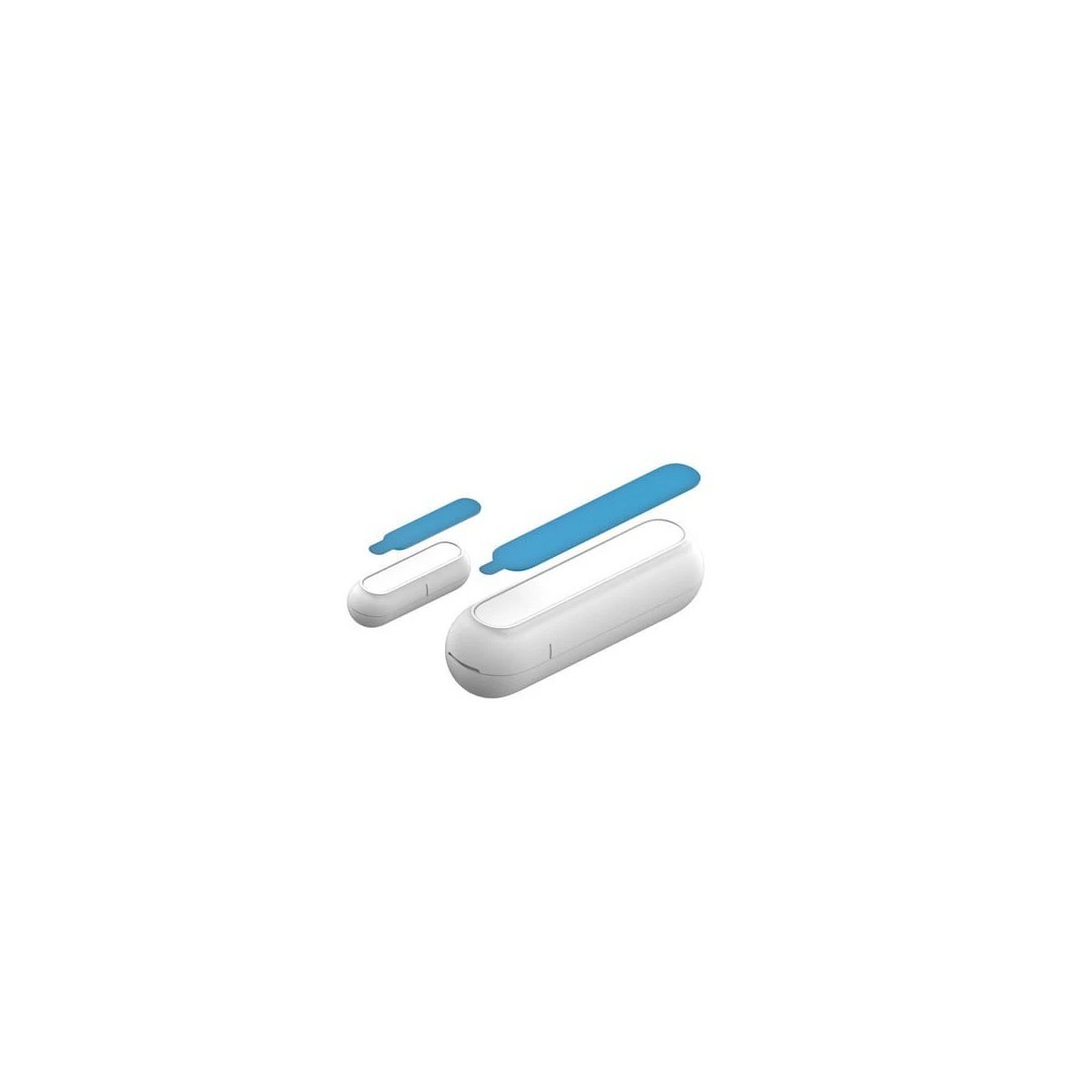

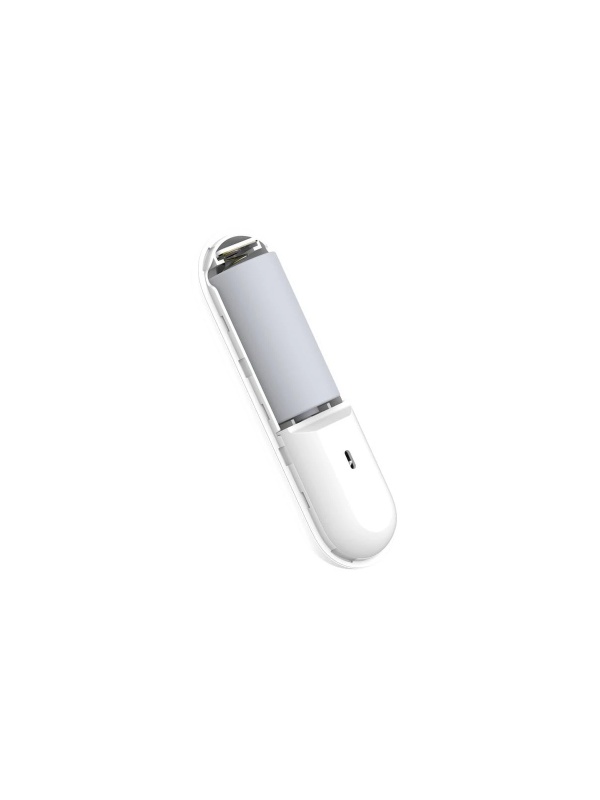

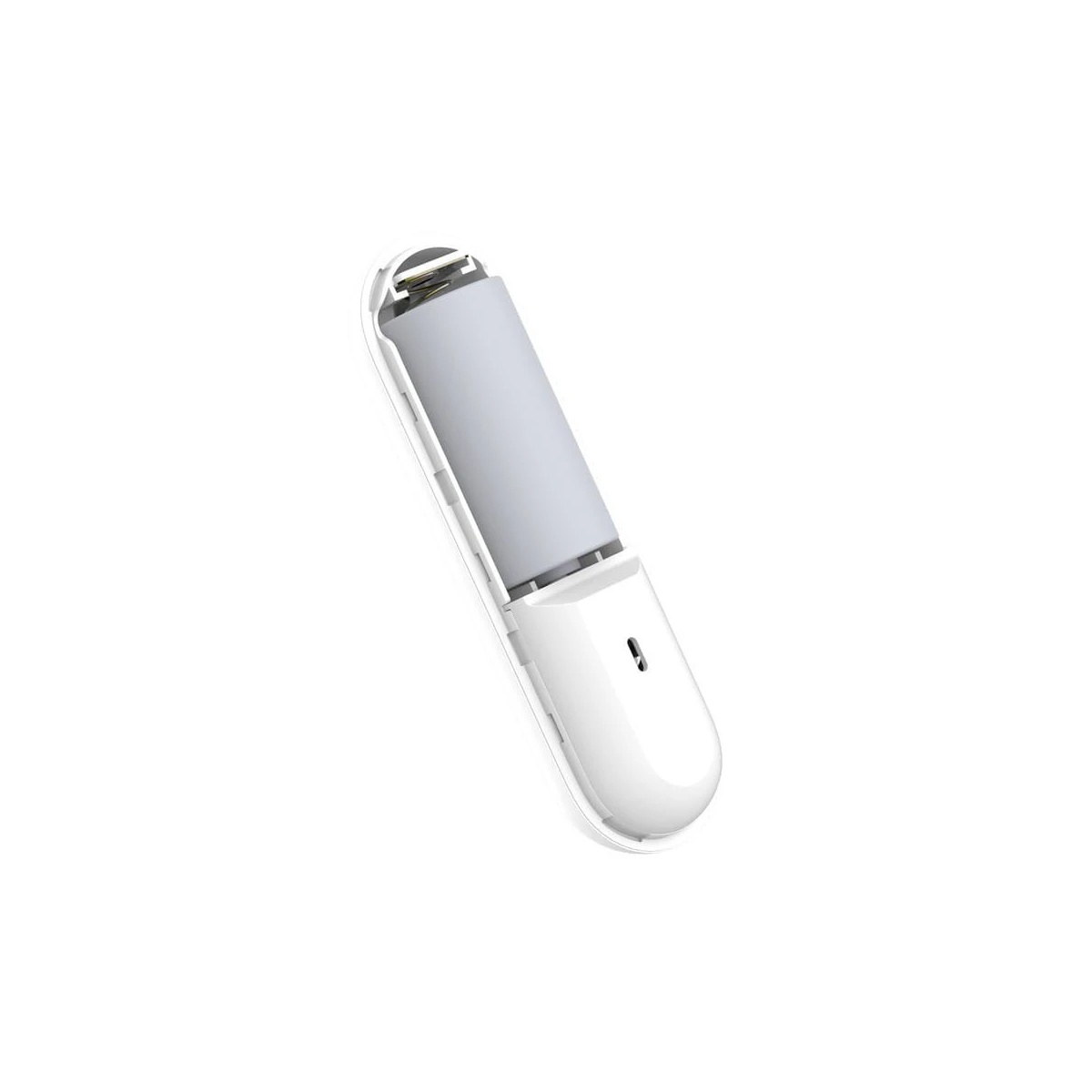

Compact and adhesive design - can be mounted on a variety of surfaces. Powered by long-life CR123A battery.

• Quick to mount

• Battery included (CR123A)

• Low maintenance

🔧 Additional features in the Aqara Home app*
When the Aqara M3 hub is released, you'll be able to adjust sensitivity (1-3 cm), response time, activate sabotage alarms, or use the programmable button.

• Sabotage alert

• Distance and sleep time settings

* To use the sensor with a Matter ecosystem, a Thread Border Router and/or Matter Controller is required.
** Battery life varies depending on the application and router used. An Aqara router is recommended for best results.
*** Advanced features in the Aqara application will be available with the launch of the Aqara M3 hub.

🔁 Automation examples:

1. Prevents automatic switching off of the light in the toilet
   If the toilet lid is up → disable the automation "switch off light after 2 min of inactivity"
   → P2 Sensor + Router Thread + Motion Sensor

2. Detects air conditioner switching on
   If sensor detects opening → do not execute AC switch on scenario
   → P2 Sensor + Router Thread + IR Controller

3. Save energy with open windows/doors
   If a window is open → switches off thermostat
   → P2 Sensor + Router Thread + Thermostat

4. Smart Alarm System
   Used in conjunction with the Aqara M3 hub, sends notifications when the door is open in your absence
   → P2 Sensor + M3 Hub

5. Invisible mounting inside the door
   You can mount the sensor inside the door using a 23 mm drill bit - it becomes completely invisible
   → P2 Sensor + M3 Hub

📦 Technical specifications:

• Model: DW-S02D

• Battery: CR123A

• Wireless protocol: Thread, BLE 5.0

• Bluetooth frequency: 2402-2480 MHz, max. 13 dBm

• Thread Frequency: 2405-2480 MHz, max. 13 dBm

• Dimensions:

  • Main unit: 77 × 22 × 22 mm

  • Magnetic drive: 36 × 11.5 × 7.3 mm

• Operating Temperature: -10 °C ~ 50 °C

• Operating humidity: 0 ~ 95% RH, non-condensing

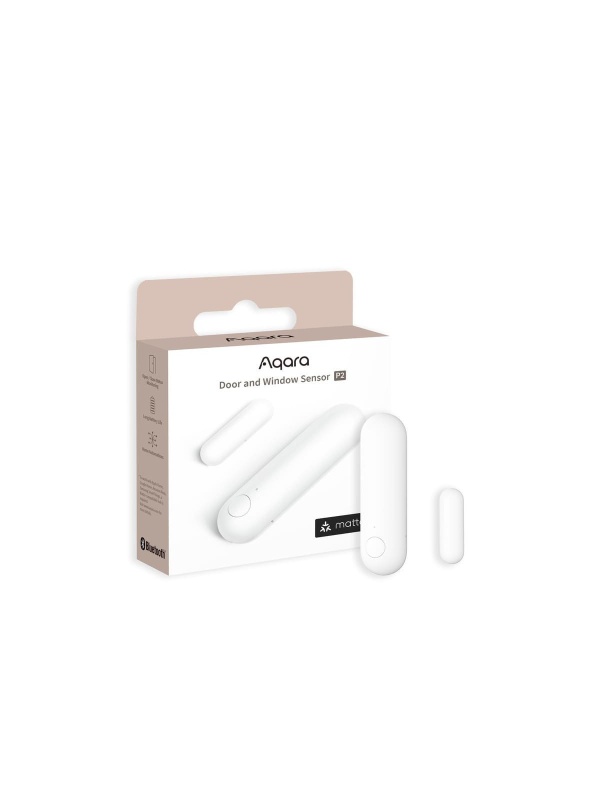

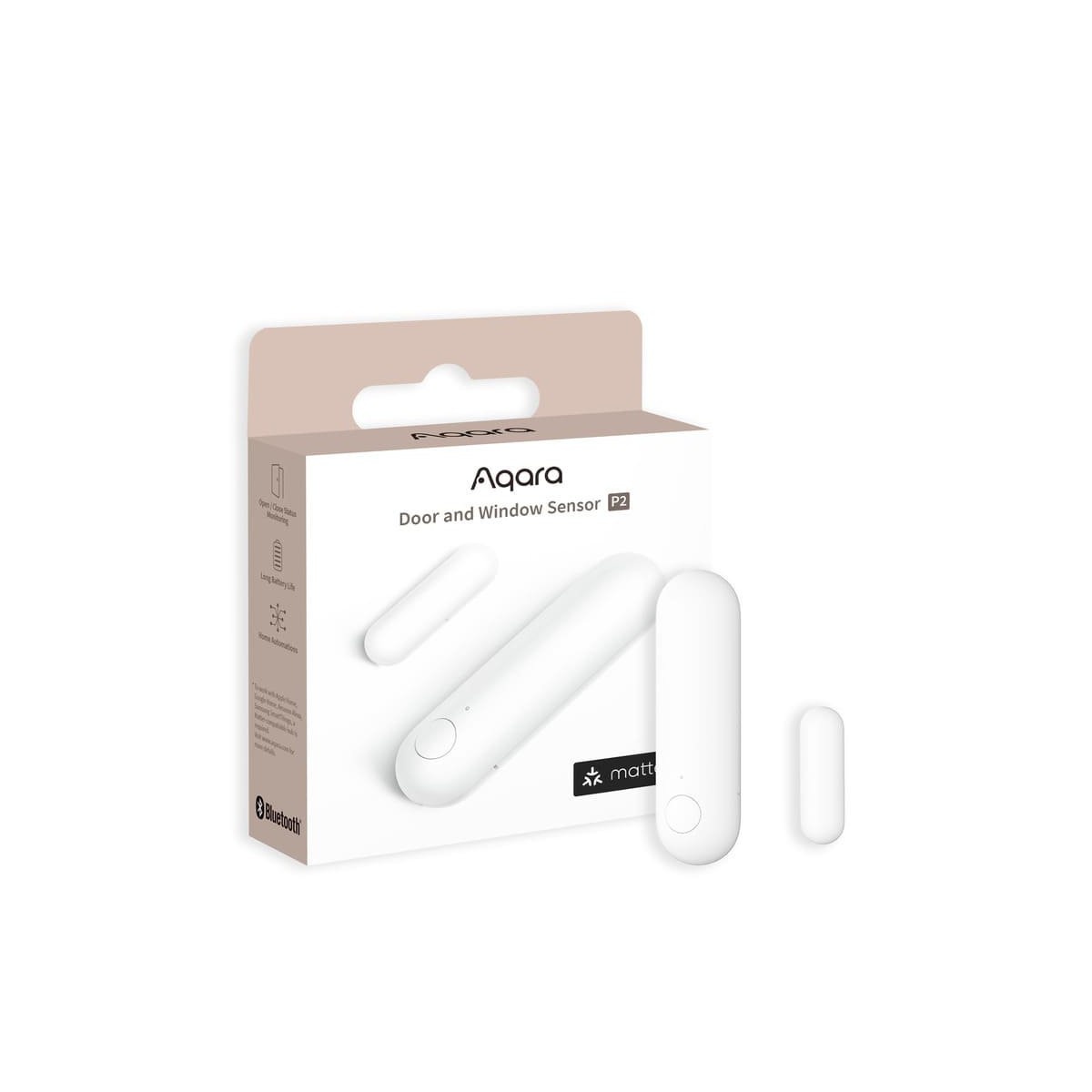

• Package Contents:

  • Main sensor × 1

  • Round magnet × 1

  • Flat magnets × 2

  • Adhesive tapes × 4

  • User manual × 1

Aqara Door and Window Sensor P2 is a next-generation Matter and Thread compatible smart sensor ideal for security, energy efficiency and advanced automation in a smart home.
