Hardware Controller TP-Link Omada OC220

TP-Link OC220 - Omada Hardware Controller

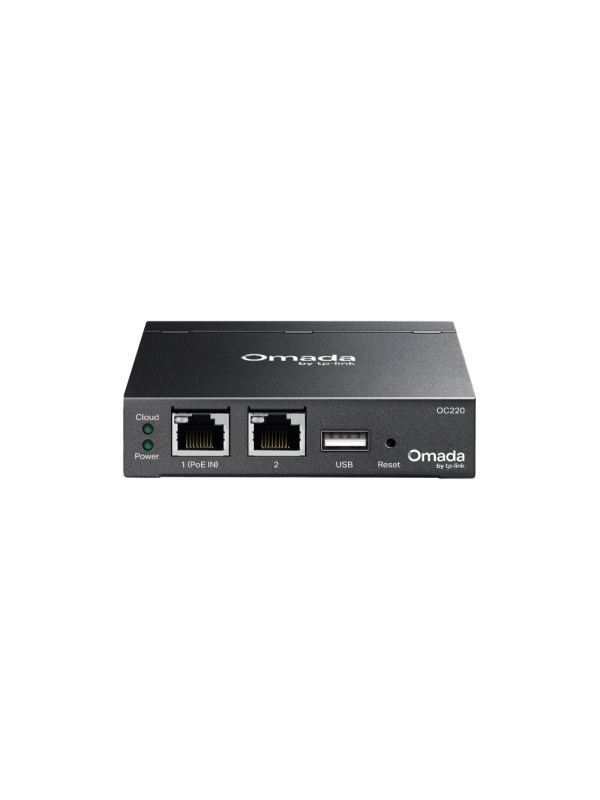

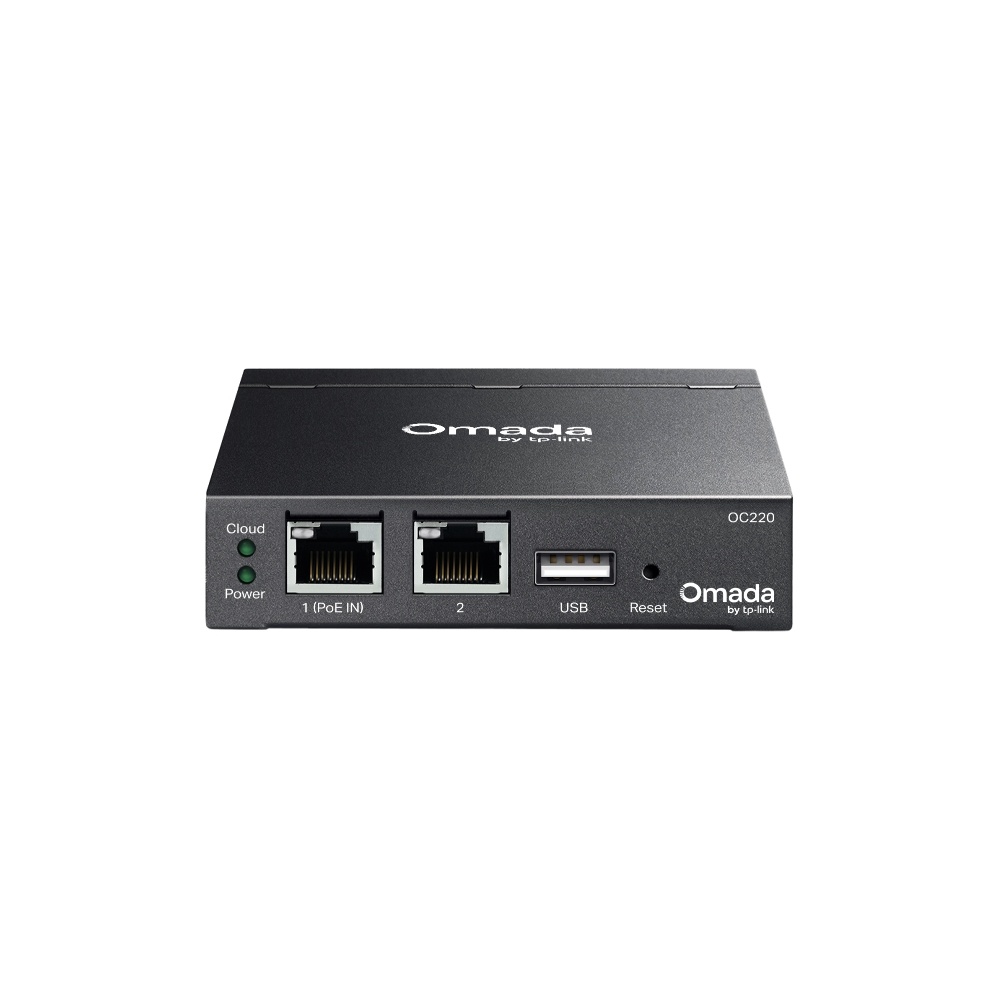

TP-Link OC220 is a dedicated hardware controller for the Omada SDN platform, offering centralised management of switches, access points, gateways and other business network equipment from a single interface. As a dedicated hardware device, it eliminates the need to run controller software on a separate server or computer, remaining permanently available on the network.

With a quad-core processor and 2GB of DDR4 memory, OC220 offers enough performance to manage medium-sized networks: up to 100 Omada access points, 10 gateways, 20 switches and 2 DeltaStream GPON OLTs. The fanless metal housing allows discreet desk or wall mounting, and power can be supplied via PoE 802.3af or a micro-USB adapter.

Key features:

• Quad-core processor, 2GB DDR4 RAM
• Support for up to 100 access points, 10 gateways, 20 switches and 2 OLTs
• Two Gigabit RJ45 ports, one with PoE 802.3af support for power
• USB 2.0 port for data backup
• Fanless design, completely silent
• Free cloud access or local management, with complete privacy

With the local management option, OC220 allows full network administration without sending data to the cloud, an important requirement for organisations with strict privacy or data security policies.

Practical use cases:

• Centralising management of all Omada equipment in a company with multiple sites
• Replacing a dedicated software controller server with a compact, energy-efficient hardware device
• Managing a large network without exposing configuration data in the cloud, for companies with strict privacy requirements

TP-Link OC220 is the dedicated hardware solution for companies that want full control and centralised management of their Omada infrastructure, with or without cloud connectivity.
