LED strip controller Shelly Plus RGBW PM 12/24V - set of 2 pieces, RGBW, RGB and light profiles, energy metering, Wi-Fi and Bluetooth, app control
Description

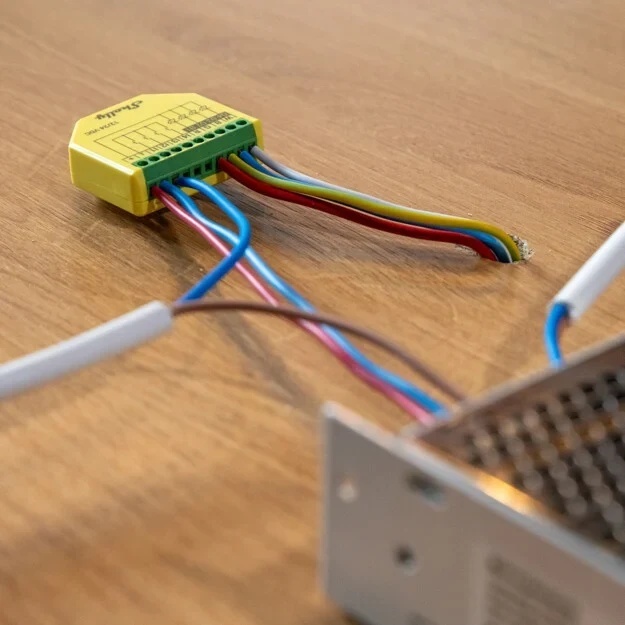

The Shelly Plus RGBW PM is an LED strip controller controlled via Wi-Fi and Bluetooth. It connects like any LED strip controller and lets you control the lighting directly from your phone or tablet, without a dedicated remote.
The controller supports three operating profiles: rgbw, rgb and light. In the light profile, several LED strips (light groups) can be controlled independently on separate channels. The power measurement function lets you track voltage, current and power consumption in real time. This item is the two-piece pack, suitable for projects where two controllers are needed.
Key features

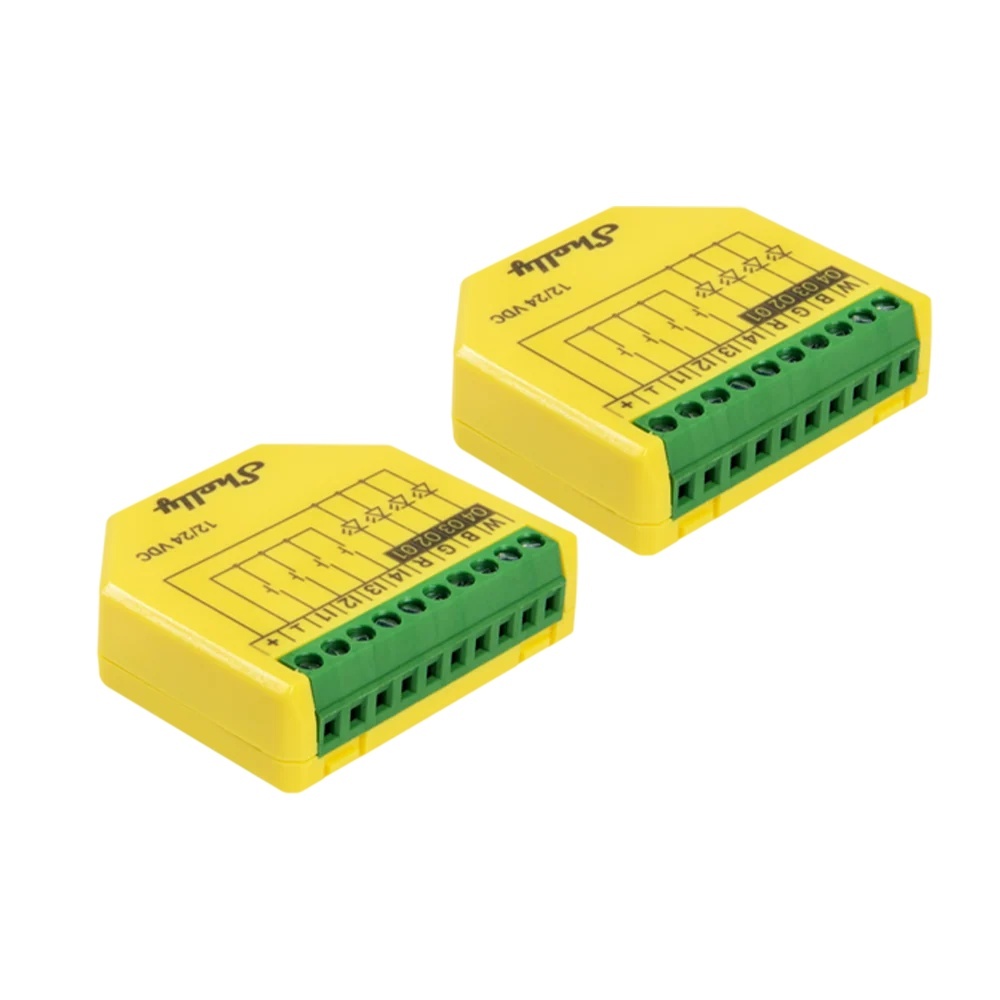

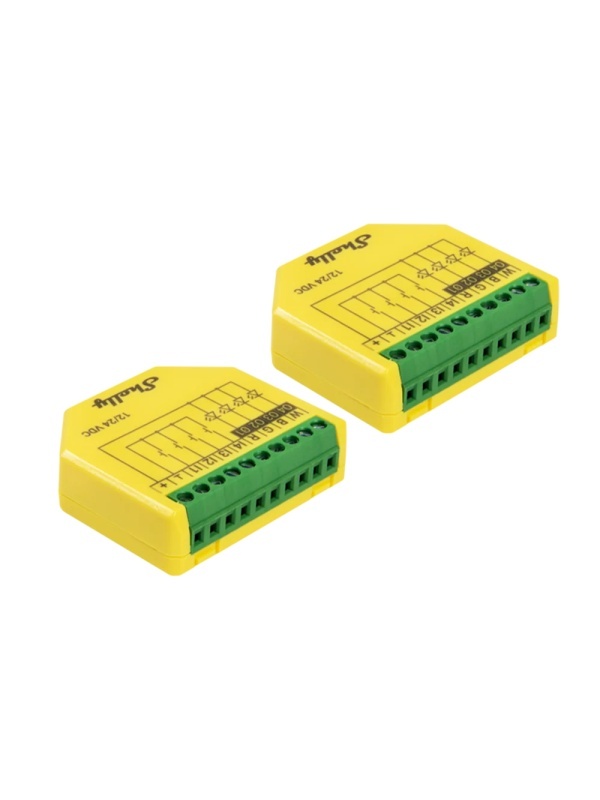

- Set of 2 Shelly Plus RGBW PM controllers in a single pack
- Three operating profiles: rgbw, rgb and light
- In the light profile, up to 4 LED strips can be controlled independently
- Real-time measurement of voltage, current and power

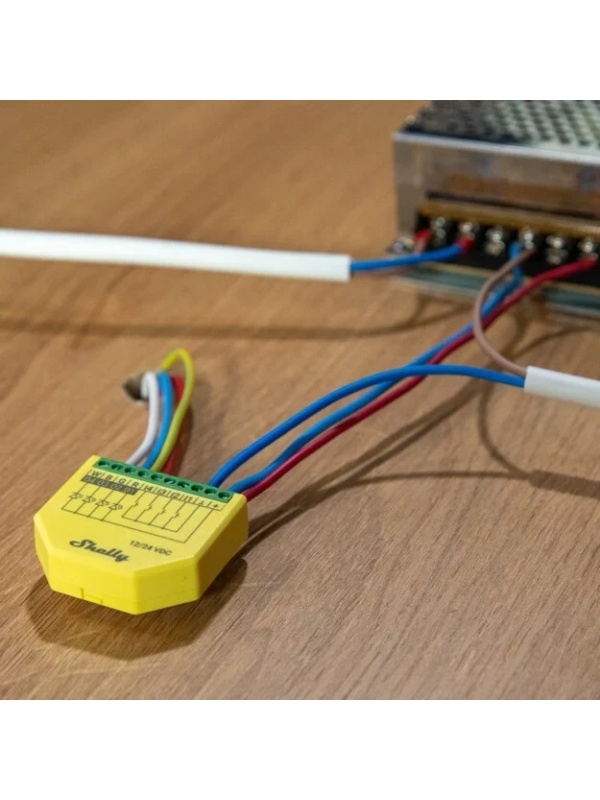

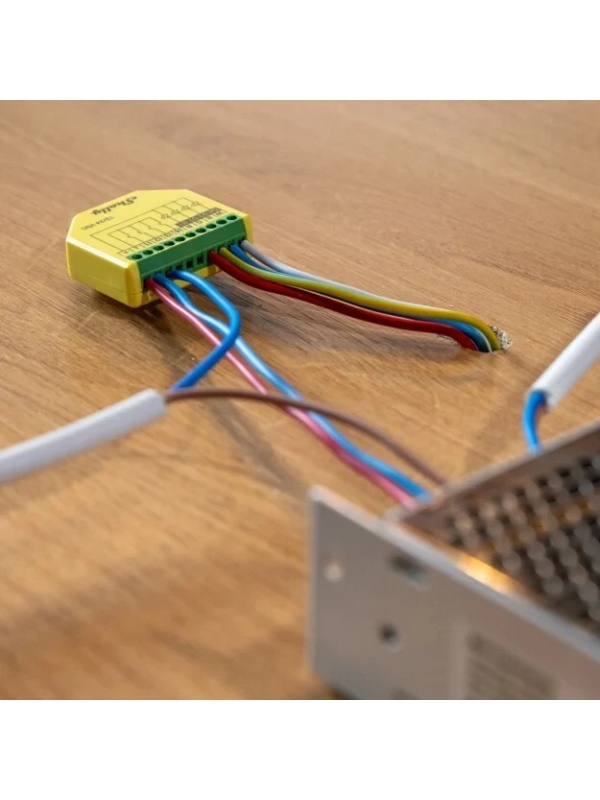

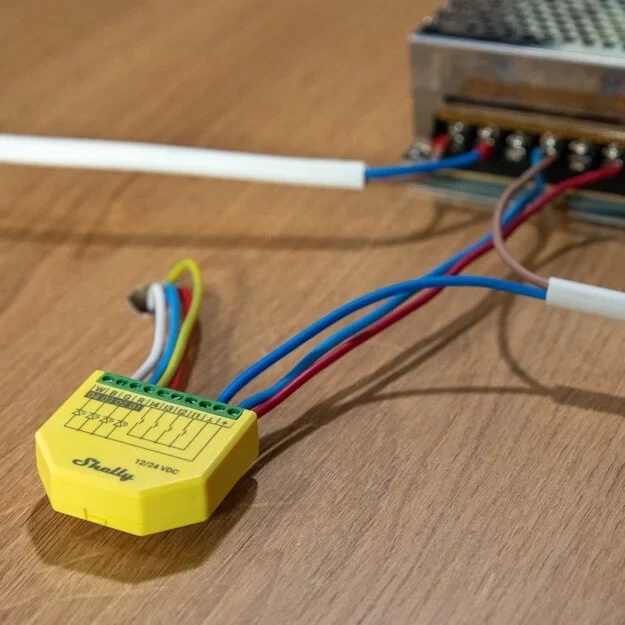

- 12 V or 24 V DC power supply
- Wi-Fi and Bluetooth, no additional hub needed
- Schedules, local actions, webhooks, scripting and MQTT
Practical use cases
- Ambient lighting on two levels of a house. One controller on the ground floor and one upstairs, controlled from the same app, with the same colour scene started simultaneously on both floors.
- Display window and shelving in a store. In the light profile, a single controller independently controls four white strips on different shelves, while the second controller handles the RGB strip in the display window.
- Child's room with a coloured night light. A schedule switches to dim red in the evening, the colour that disturbs sleep the least, and turns the strip off completely at wake-up time.
- Checking the consumption of an extensive LED installation. The built-in measurement shows how much the strips actually draw on each controller, useful for correctly sizing the power supply.
Technical specifications
| Construction and dimensions | |

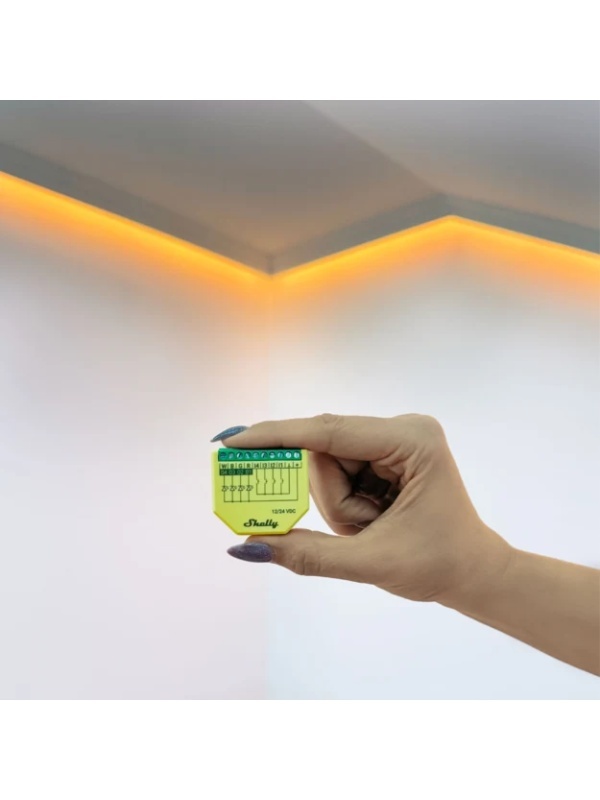

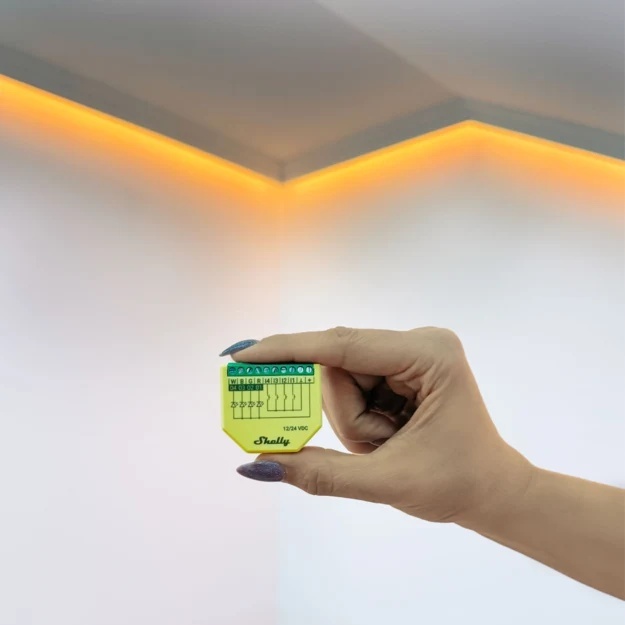

| Dimensions (H x W x D) | 42x37x12 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in |
| Weight | 17 g / 0.60 oz |
| Maximum screw terminal torque | 0.2 Nm / 1.8 lbin |
| Conductor cross section | 0.1 ... 1 mm² / 30 ... 16 AWG (solid, stranded and with ferrules) |
| Conductor stripping length | 6 mm / 0.24 in |

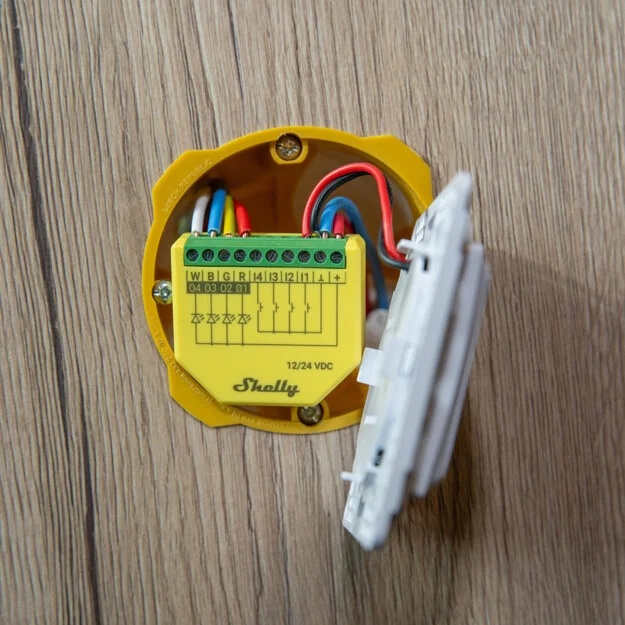

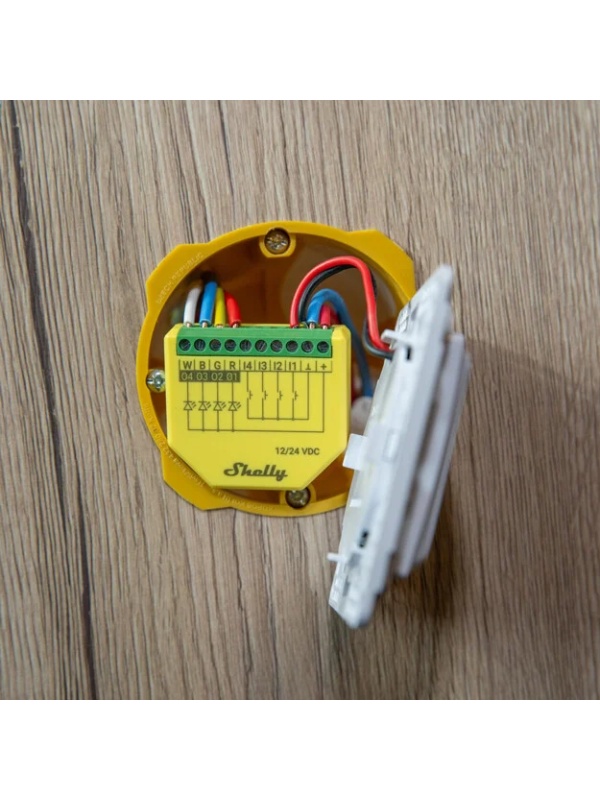

| Mounting | In-wall (wall box) |
| Housing material | Plastic |
| Housing colour | Yellow |
| Connector colour | Green |
| Environmental conditions | |
| Ambient operating temperature | -20 °C ... 40 °C / -5 °F ... 105 °F |
| Humidity | 30 % ... 70 % RH |
| Electrical parameters | |
| Power supply | 12/24 VDC |
| Power consumption | < 1.2 W |
| Output circuit parameters | |
| Maximum control voltage | 24 VDC |
| Maximum control current | 4 A per channel (10 A total) |
| PWM frequency | 833 Hz |
| Sensors and metering | |
| Voltmeter | 0-24 V |
| Voltmeter accuracy | ± 5% |
| Ammeter | 0-10 A |
| Ammeter accuracy | ± 10% |
| Power and energy measurement | Power metering |
| No-load threshold | 0.5 VA per channel |
| Internal temperature sensor | Da |
| Radio communication | |
| Wi-Fi | |
| RF band | IEEE 802.11b/g/n HT20: 2412–2472 MHz IEEE 802.11n HT40: 2422-2462 MHz |
| Maximum RF power | < 20 dBm |
| Range | up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions) |
| Bluetooth | |
| Protocol | 4.2 |
| RF band | 2400 - 2483.5 MHz |
| Maximum RF power | < 4 dBm |
| Range | up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions) |
| Microcontroller | |
| Processor | ESP-Shelly C38F |
| Clock frequency | 160 MHz |
| RAM | 400 KB |
| Flash memory | 4 MB |
| Firmware features | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per webhook |
| Scripting | Da |
| MQTT | Da |
The Shelly Plus RGBW PM x2 is the right choice for anyone who needs to equip two LED lighting zones and wants colour control, on separate channels and with power measurement.
