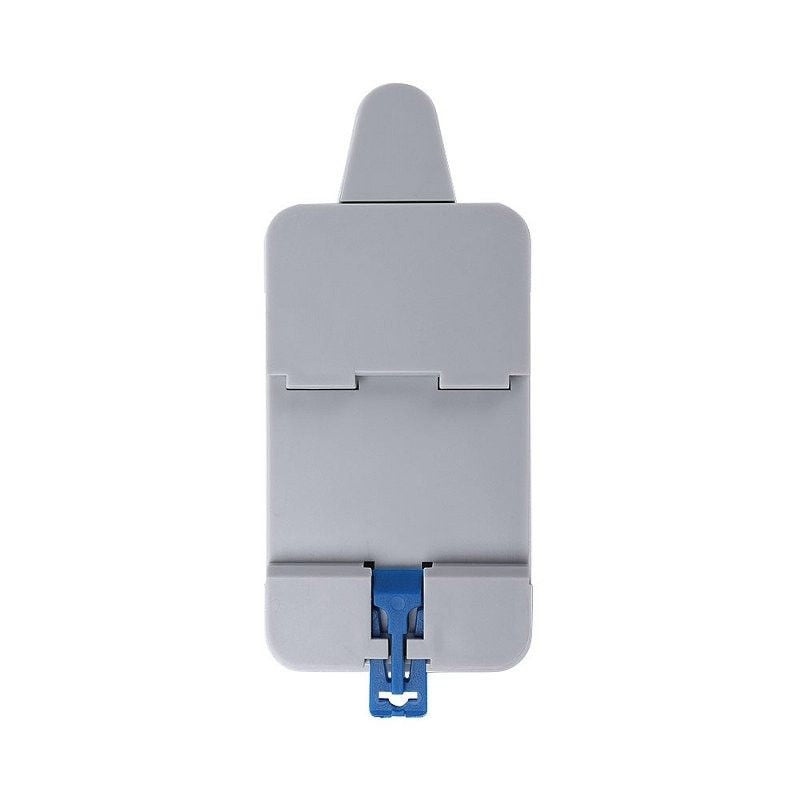

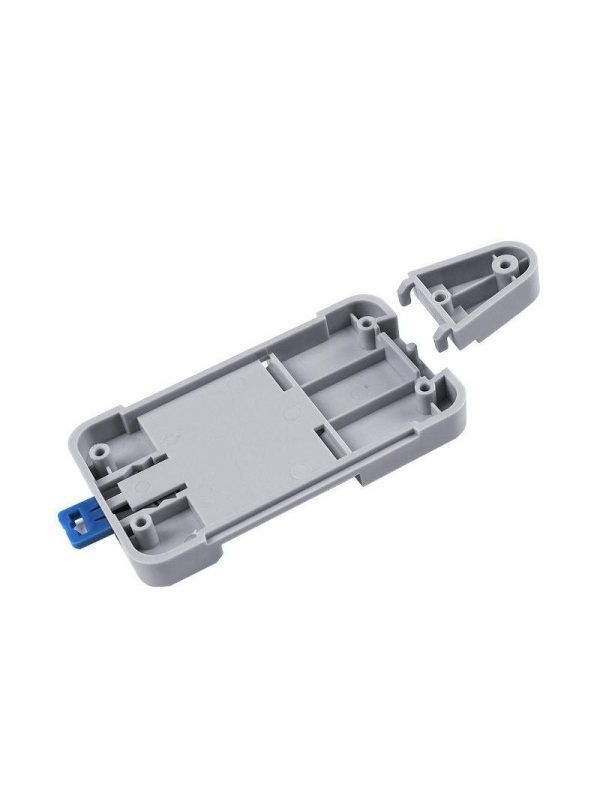

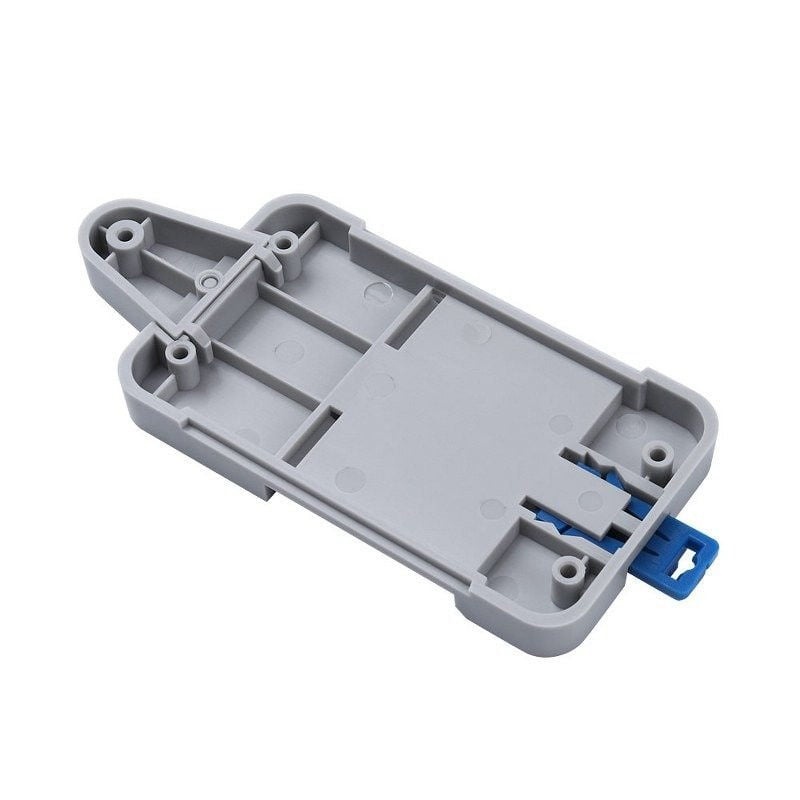

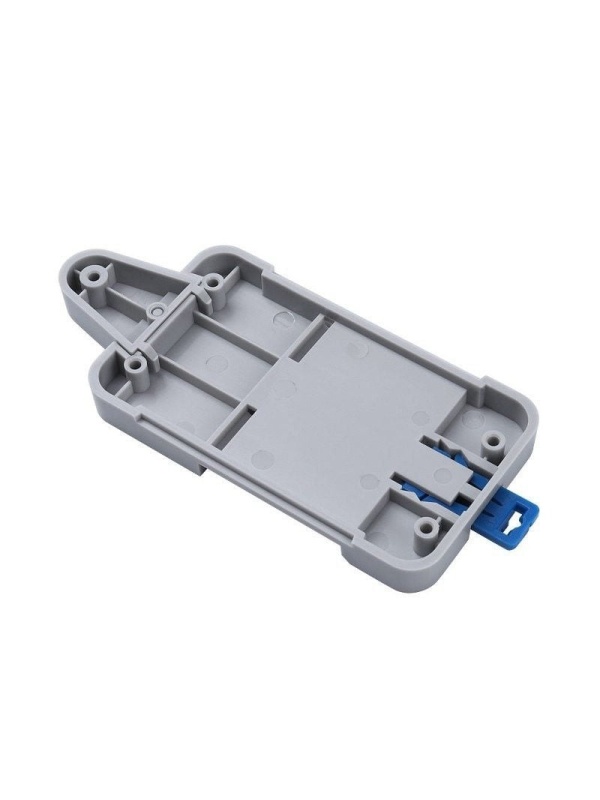

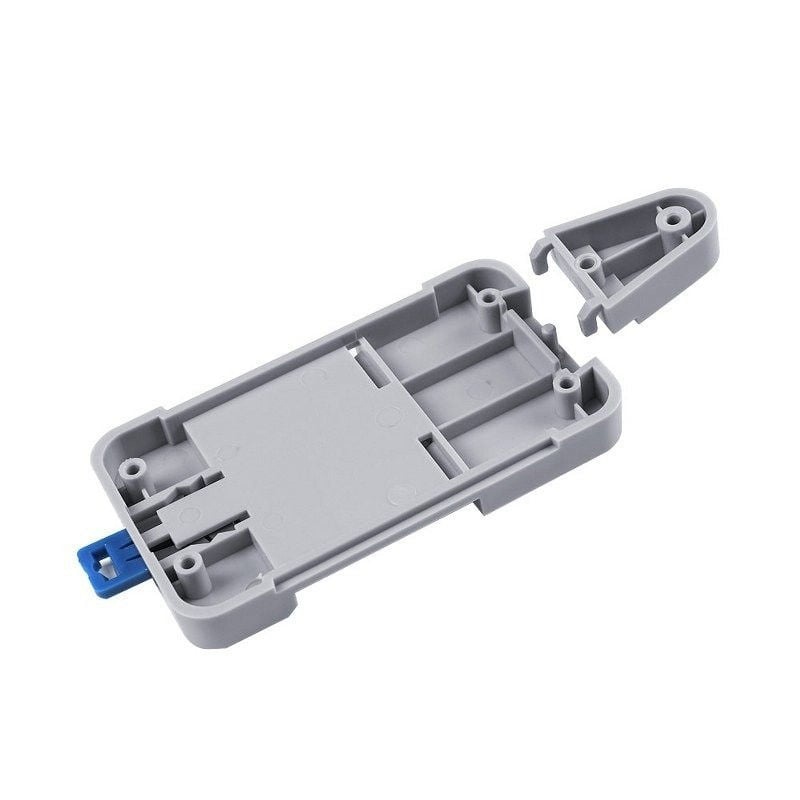

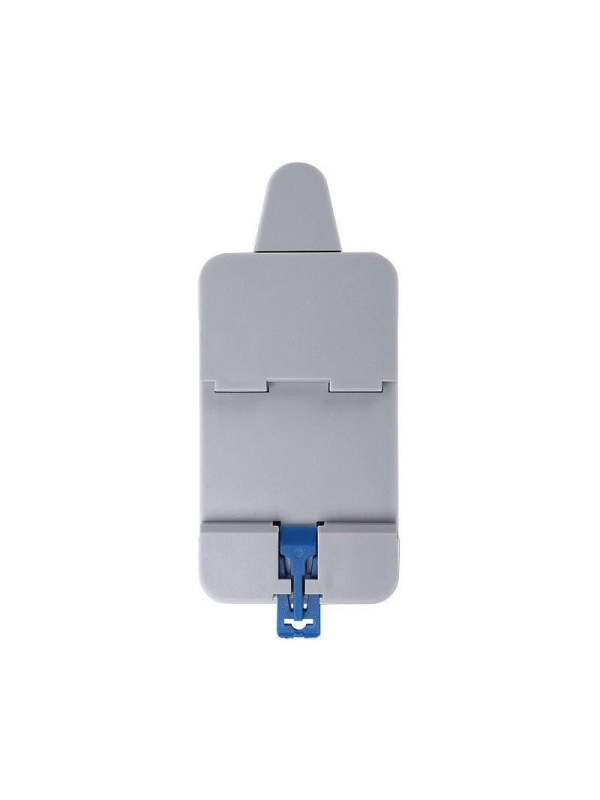

Mounting bracket Sonoff DR for DIN rail

As you know, most Sonoff products cannot be mounted on a DIN rail, which makes it difficult to place them in the electrical panel. This is now possible thanks to the Sonoff DR bracket.

Practical use cases

• Mounting a Sonoff Basic R2/R3 or POW R2 relay on the DIN rail in the electrical panel, alongside the fuses, instead of leaving it loose in the panel.
• Fixing the relay to the holder with the 4 included M3 screws, then clipping it onto and releasing it from the rail via the push-pull mechanism when it needs to be removed for servicing.
• Organising several Sonoff modules (TH10/TH16, Dual R2, RF R2/R3) in a panel dedicated to automations, for a tidy installation.

Technical specifications:

Model	SONOFF DR Bracket (DIN Rail Tray)
Type	passive accessory - DIN rail mounting bracket
Material	ABS V0, flame-retardant
Mechanism	push-pull fixing/release
Contents	4 M3 screws for fixing the relay to the bracket (DIN rail not included)
Compatibility	Sonoff Basic R2/R3, RF R2/R3, TH10/TH16, POW R1/R2, Dual R2 and similar modules
