Open box Energy meter Shelly Pro 3EM 3CT 63

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

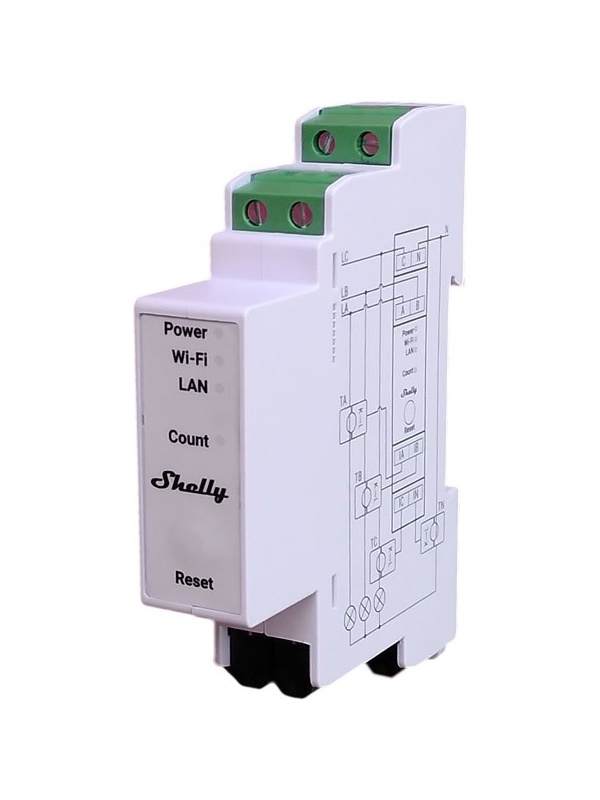

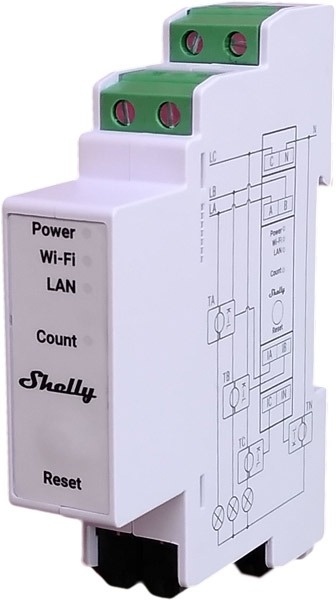

The Shelly Pro 3EM-3CT63 is a professional three-phase energy meter, DIN rail mountable, designed for integrators and installers who need accurate monitoring of electricity consumption in residential or commercial buildings. The device measures voltage, current, active and apparent power on each phase in real time, with class B accuracy according to IEC 62053-21.

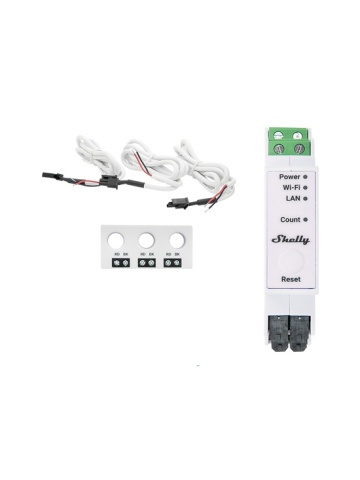

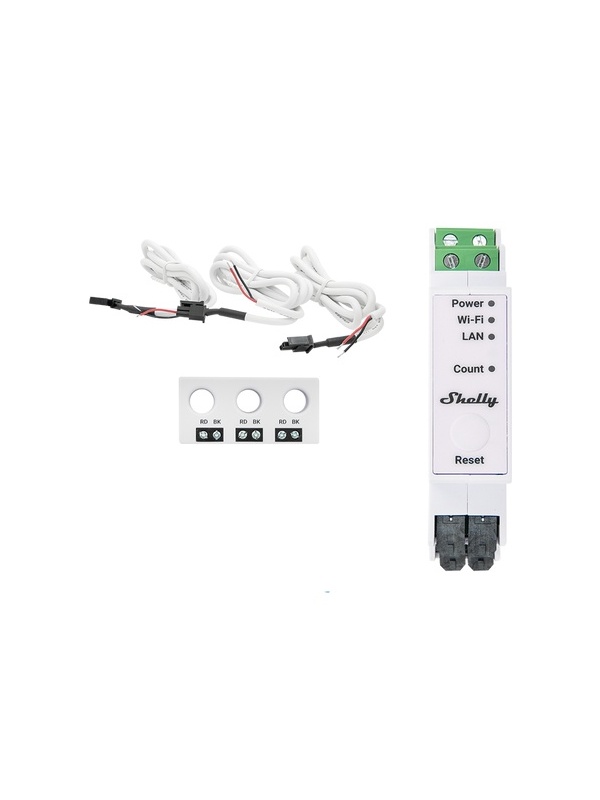

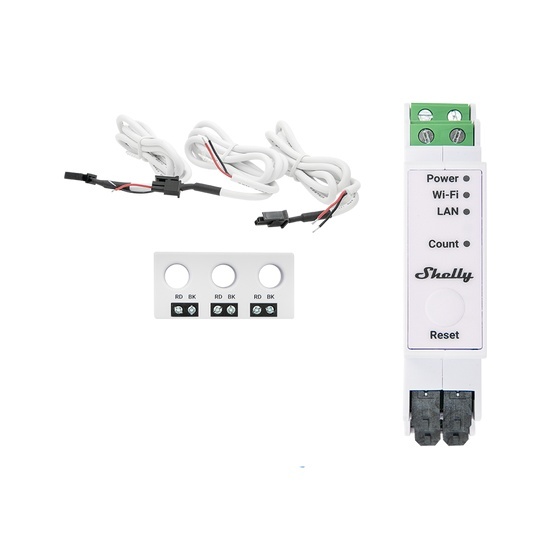

It comes equipped with proprietary Shelly current transformers, capable of measuring up to 63A per phase, enough for most residential and small commercial three-phase installations. Data is stored locally in non-volatile memory for up to 60 days, at 1-minute intervals, and an internal real-time clock keeps records accurate even without a connection to an SNTP server.

It is useful for monitoring the total consumption of a home, tracking the production of a photovoltaic system or detailed analysis of consumption on each phase in a three-phase electrical panel. LAN, WiFi and Bluetooth connectivity, together with support for Modbus, MQTT, HTTP and WebSocket, make it suitable both for integration into smart home ecosystems and into SCADA or energy management systems.

Note: this model has no built-in relay and cannot cut the power supply; for contactor control, a separate Shelly Pro 3EM Switch Add-on module attached to the device is required.

Practical use cases

• Mounted on the main electrical panel, it gives a real-time picture of the total consumption of the home, helping to identify the appliances that use the most energy.
• Used to monitor a dedicated circuit (air conditioning, heat pump, electric car charger), it lets you track the monthly costs of each individual load.
• Useful in systems with their own energy production (photovoltaic panels), to compare the energy produced with the energy consumed and optimise the use of large appliances during peak production hours.
• Sends alerts in the app in case of abnormal consumption, helping to quickly detect faulty equipment.

Technical specifications

The Shelly Pro 3EM-3CT63 is the right choice for professional and accurate monitoring of three-phase consumption, with the option of a wired LAN connection for maximum reliability.
