Open box Shelly Bypass accessory for Shelly 1L/2L Gen3

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

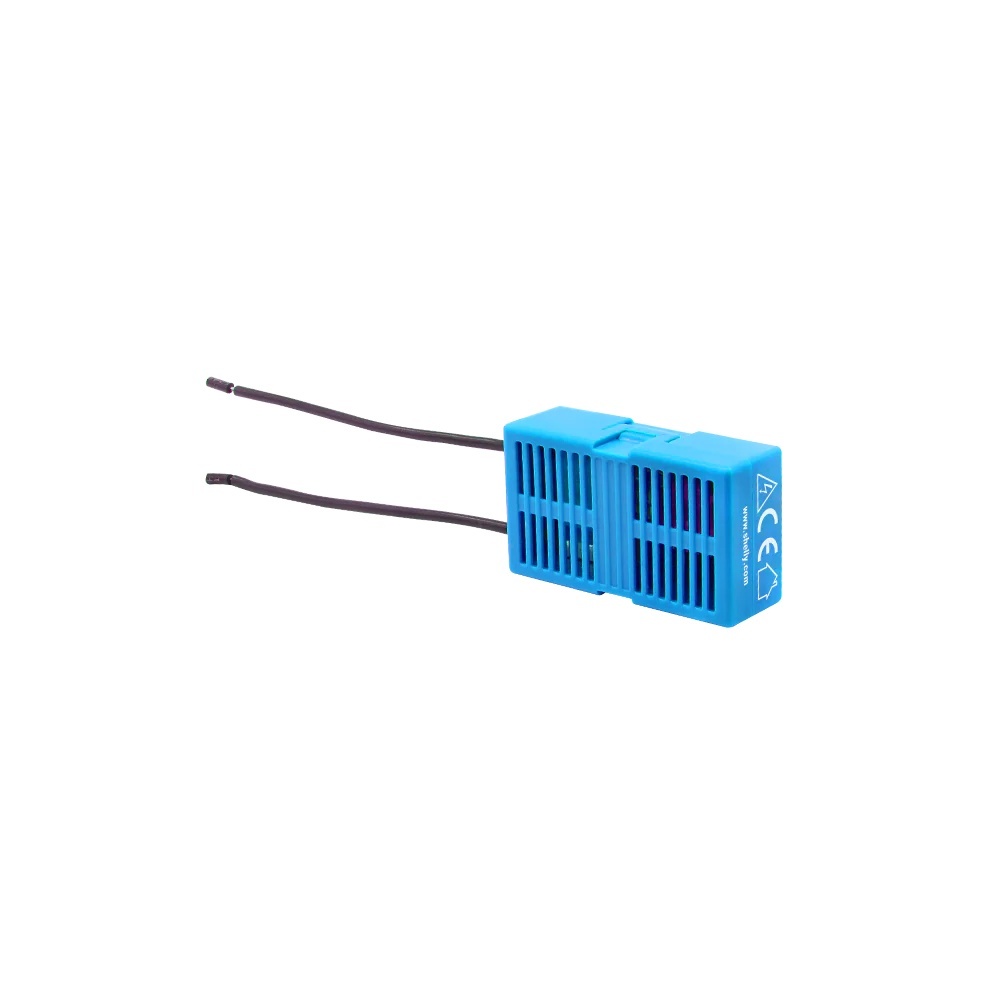

Shelly Bypass for Shelly 1L/2L Gen3 is a mandatory accessory in installations without a neutral wire that use low-power LED light fittings. Its role is to ensure a constant minimum load, needed to power the internal electronics of the Shelly relay, even when the lighting circuit is switched off.

Without this bypass, low-power LED bulbs may flicker slightly when off, or the Shelly relay may have power problems in installations without neutral, because the holding current required by the electronic circuit can no longer be drawn from the connected load. The bypass solves this problem by taking on that minimum load, regardless of the state of the circuit.

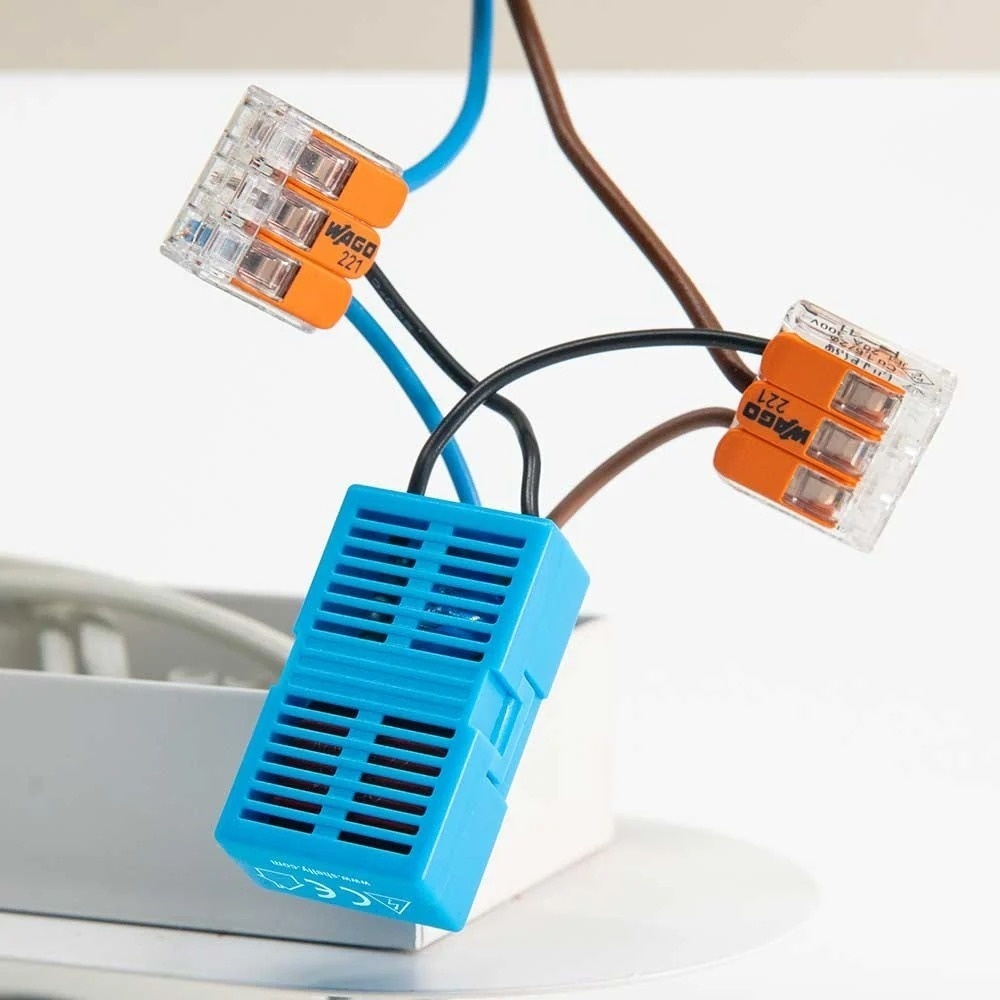

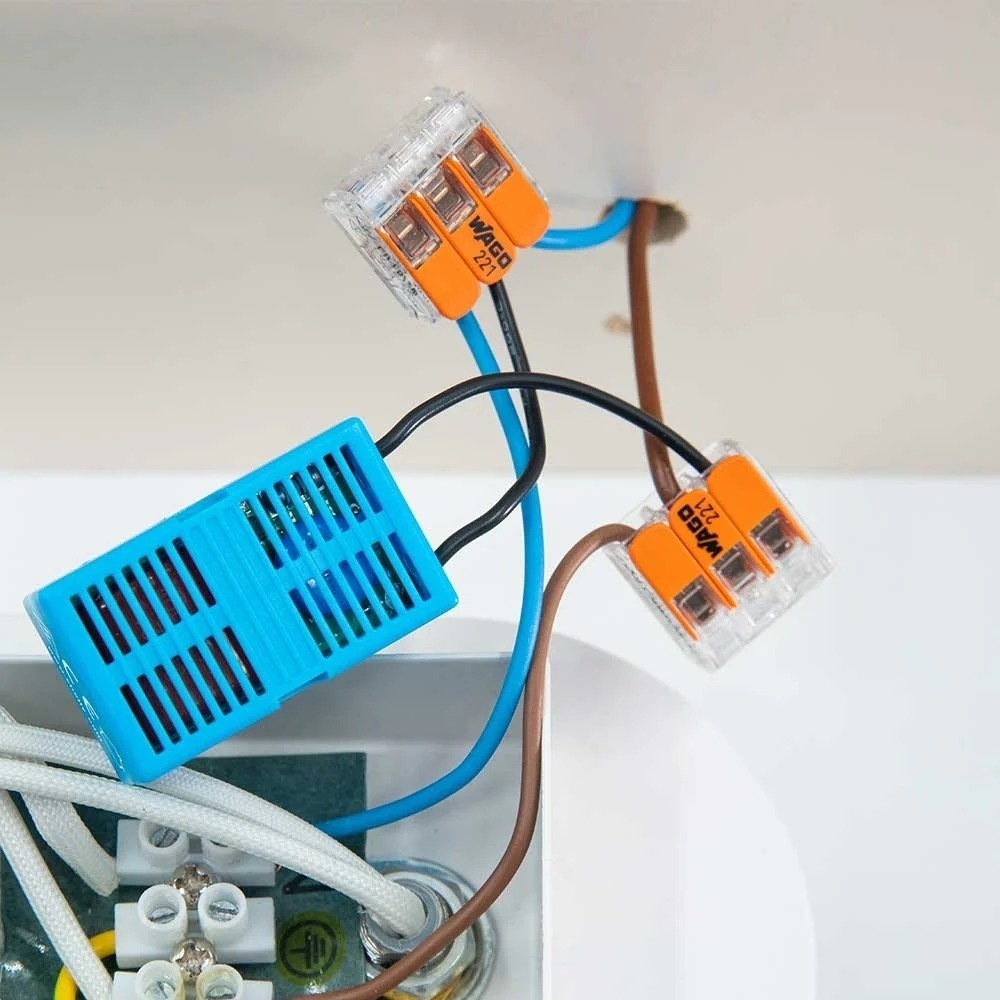

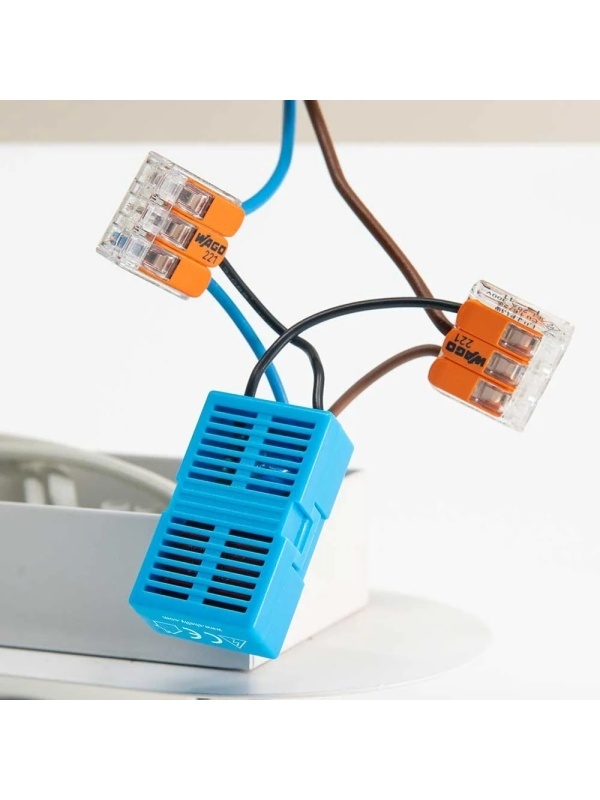

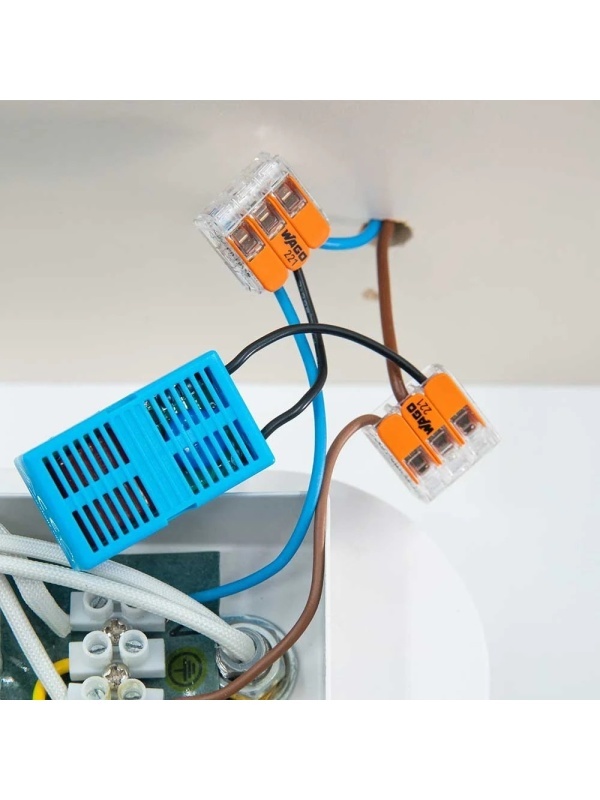

It is designed specifically for the third generation of the Shelly 1L (one channel) and 2L (two channels) models, no-neutral devices intended for older electrical installations where running an additional neutral wire is not possible or is expensive. It is mounted directly in the wall box, in parallel with the controlled lighting circuit.

Caution: installation must be carried out by qualified personnel, following the wiring diagram in the Shelly 1L/2L Gen3 manual; the bypass is recommended especially for LED light fittings under 10W.

Practical use cases

• Mounted in parallel with a low-power LED bulb, it eliminates flickering or partial dimming caused by a load too small for the dimmer or relay.
• Needed especially with modern LED lighting, which consumes very little energy and can cause operating problems without this accessory.
• Easy to install in the junction box, with no additional configuration in the app.
• Recommended as a standard solution when a Shelly dimmer or relay controls a single low-power LED circuit.

Technical specifications

For installations without a neutral wire with low-power LED lighting, this bypass eliminates flickering and power problems of Shelly 1L/2L Gen3 relays, ensuring stable and reliable operation.
