Open box Shelly Bypass for Dimmer Gen3 – Accessory for LED Lighting, Installation Without Neutral, Compatible with Shelly Dimmer Gen3

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

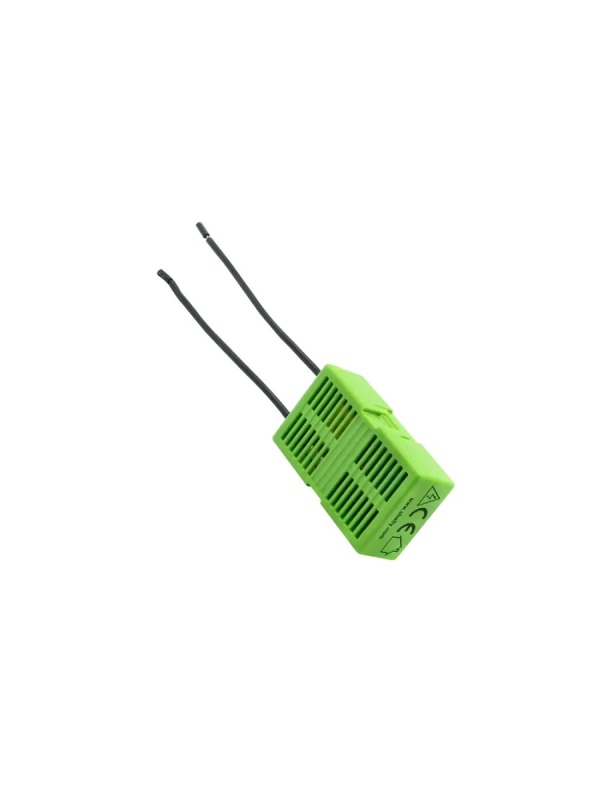

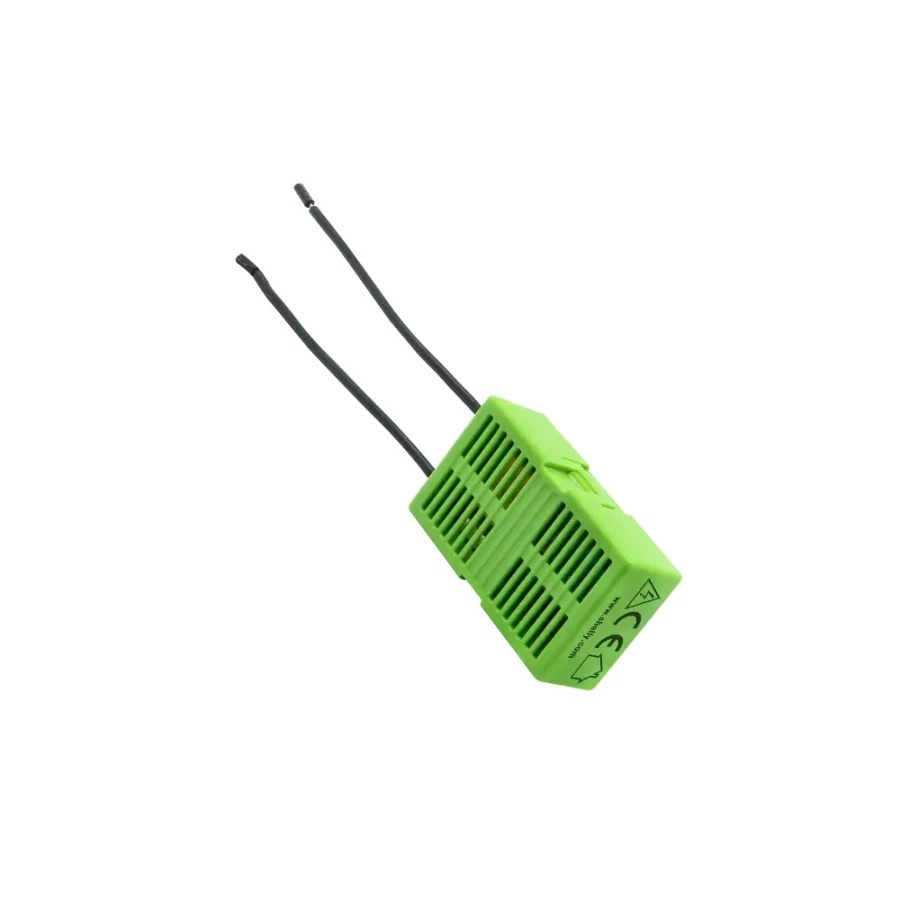

Shelly Bypass for Dimmer Gen3 is an essential accessory in LED lighting installations without a neutral wire, providing the constant minimum load needed to power the internal electronics of the Shelly Dimmer Gen3, even when the lighting circuit is off or at minimum brightness.

Without this bypass, low-power LED light fittings can flicker when off or cause the dimmer to operate unstably in installations without a neutral, because the holding current required by the dimmer's electronic circuit cannot be drawn correctly through the connected load. The bypass solves this problem by taking up the necessary minimum load.

It is designed specifically for the Shelly Dimmer Gen3, a no-neutral device intended for older electrical installations where running an additional neutral wire is impossible or expensive. It is installed directly in the wall box, in parallel with the lighting circuit controlled by the dimmer.

Note: installation must be carried out by qualified personnel, following the wiring diagram in the Shelly Dimmer Gen3 manual; using the bypass is recommended for low-power LED light fittings.

Practical use cases

• In an old installation without a neutral wire, mounted in parallel with a chandelier with low-power LED bulbs controlled by a Shelly Dimmer Gen3, it eliminates light flickering in the off state.
• Ensures stable operation of the Shelly Dimmer Gen3 at minimum intensity, when the connected LED load cannot carry the required holding current.
• Useful when upgrading LED spotlight lighting in a hallway or bedroom, where running an additional neutral wire is not possible or is costly.

Technical specifications

For LED lighting installations without a neutral wire, this bypass eliminates flickering and unstable operation of the Shelly Dimmer Gen3, ensuring a reliable dimming experience.
