Open box Shelly Wave 1PM Mini LR – Smart Z-Wave Long Range relay with energy metering

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

Shelly Wave 1PM Mini LR – Z-Wave Long Range smart relay with energy metering

Shelly Wave 1PM Mini LR is a smart relay from the new generation of Shelly Wave devices, equipped with Z-Wave Long Range (LR) technology for extended coverage and more stable communication in the smart home network.

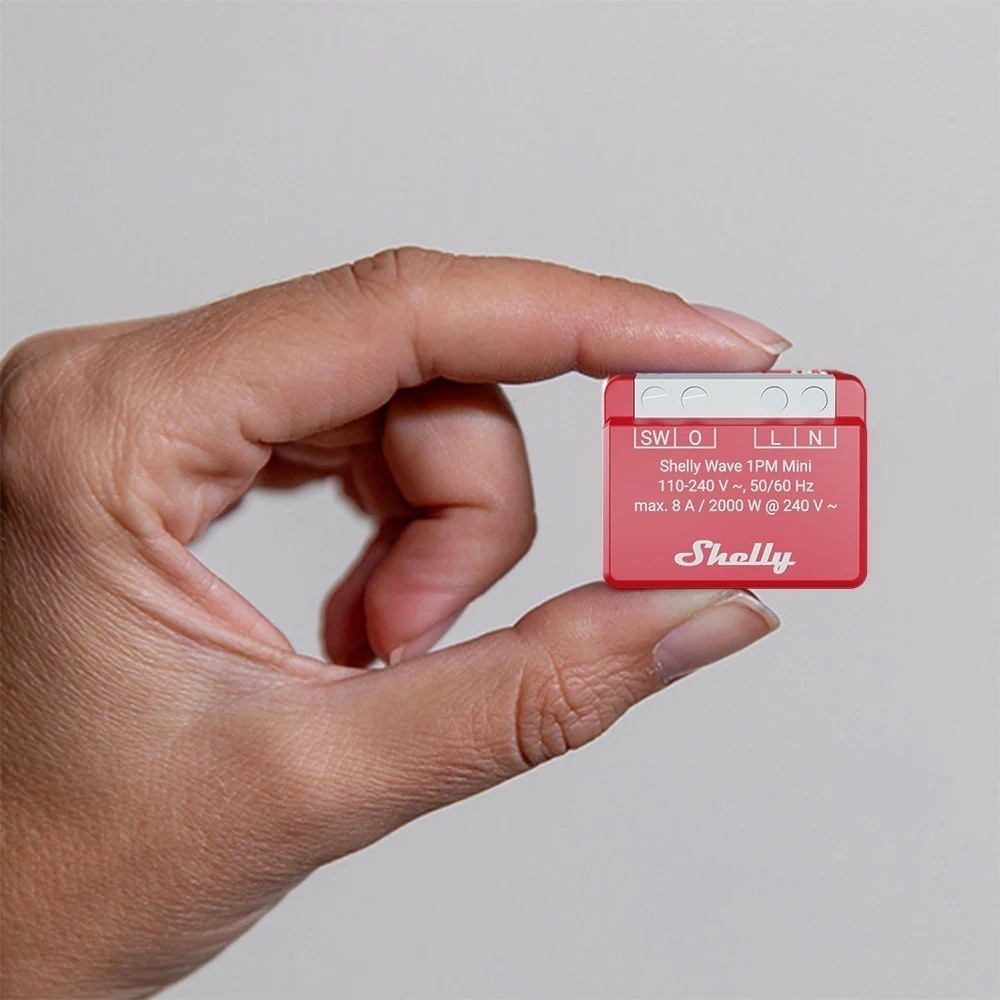

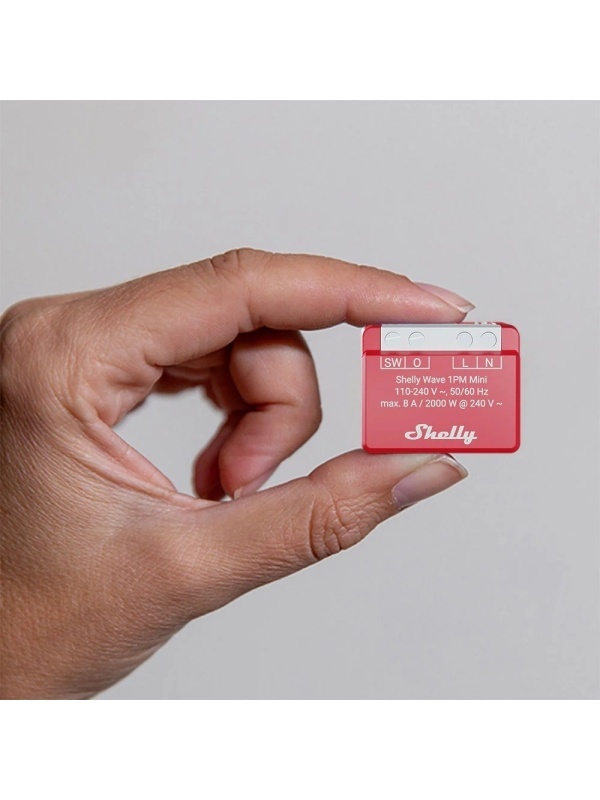

Thanks to its miniature size, Shelly Wave 1PM Mini LR installs easily in wall boxes, behind switches or sockets, offering full control and real-time energy monitoring.

Main functions

• ON/OFF control for circuits of up to 8A (2000W)

• Accurate measurement of voltage, current and energy consumption

• Z-Wave 800 LR protocol – extended range and stable connectivity

• Local operation and integration into existing Z-Wave networks

• 30% smaller than standard Shelly Wave models

• Support for direct association, scenes and complex automations

• Compatible with Z-Wave JS, Z-Wave JS UI and other integration platforms

• Overtemperature and overvoltage protection

• Physical reset button for quick setup

Technical specifications

• Power supply: 110–240V AC

• Maximum current: 8A

• Maximum power: 2000W

• Protocol: Z-Wave Long Range 800

• Frequency band: 868.4 MHz (EU)

• Range: up to 1 km in open field

• Measurement: current, voltage, power and total consumption

• Dimensions: 29 x 35 x 16 mm

• Operating temperature: –20°C to +40°C

• Self-consumption: <1W

User benefits

• Compact size for discreet installation in standard wall boxes

• Extended range and stable communication via Z-Wave Long Range

• Accurate real-time measurement of energy consumed

• Quick installation and easy integration into existing Z-Wave networks

• Local operation even without an internet connection

• Broad compatibility with smart home controllers and platforms

Practical use cases

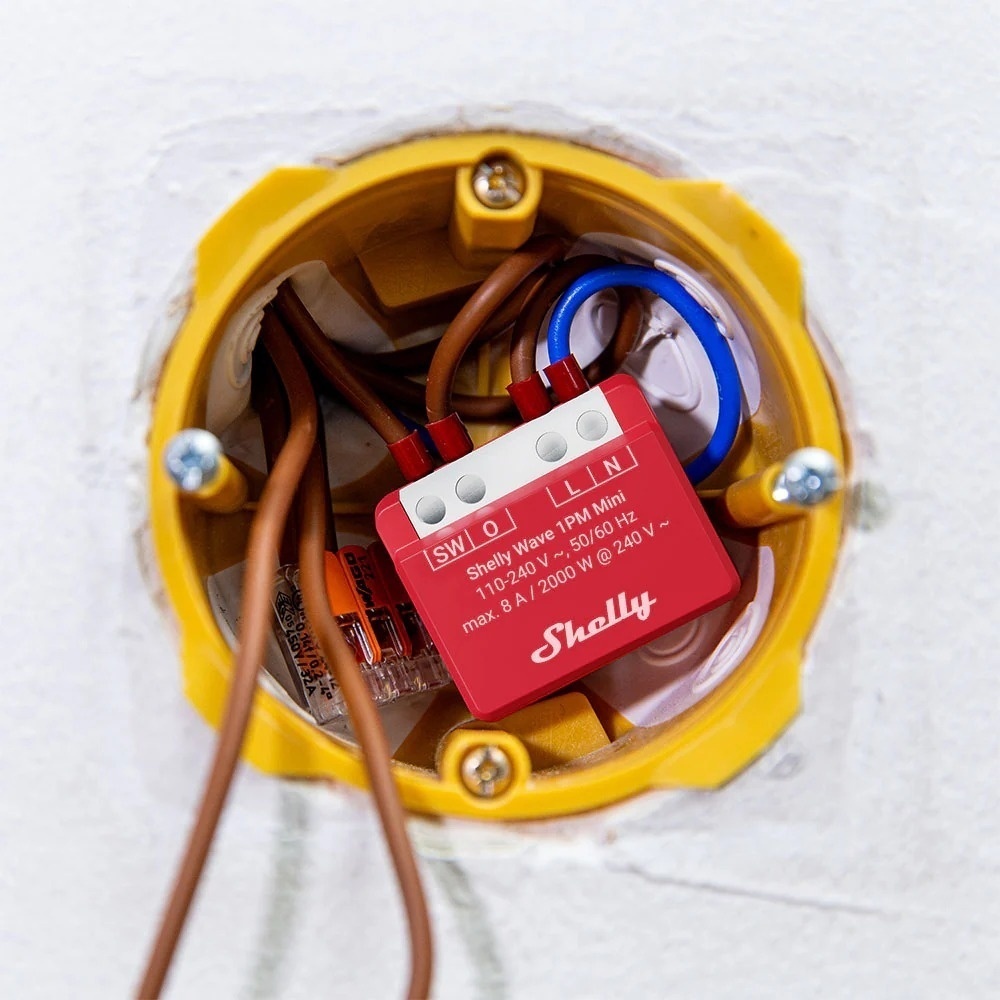

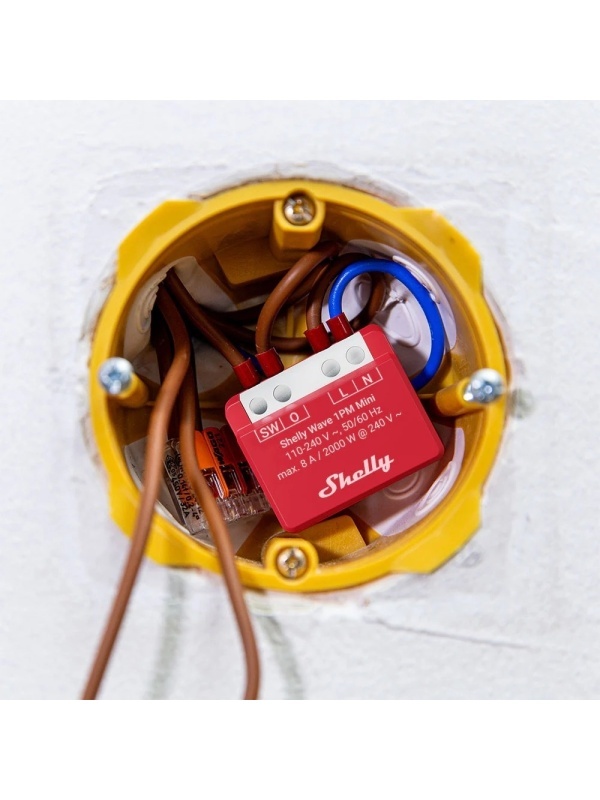

• Mounted in the wall box behind a classic switch, it controls the lighting of a room in the Z-Wave network, with real-time consumption measurement.
• Installed on the circuit of a load of up to 8A, it shows the voltage, current and energy consumed, useful for identifying high consumption.
• Thanks to Z-Wave Long Range, it can be used in outbuildings or garages far from the controller, with a range of up to 1 km in open field.
• Integrated into Z-Wave JS or Z-Wave JS UI, it takes part in local scenes and automations, without an internet connection.
