Open box Simple smart WiFi switch Sonoff M5-2C-86, 2.4 GHz, Bluetooth, mechanical
Description
What does "open box" mean?
Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

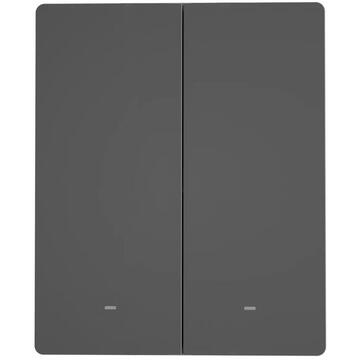

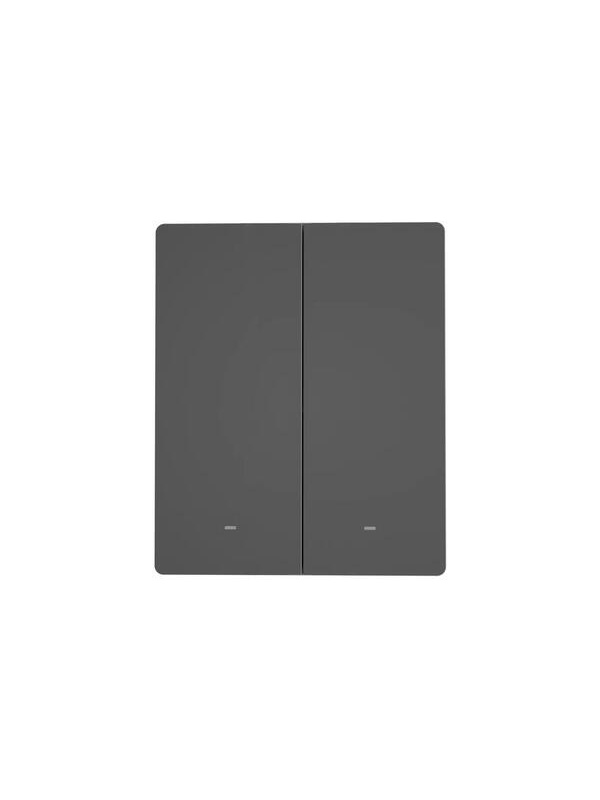

Sonoff M5-2C-86 Wi-Fi smart switch, 2 channels, 10A, 2.4 GHz + Bluetooth, mechanical buttons
The Sonoff M5-2C-86 is a smart switch with 2 independent channels, a design with mechanical buttons, WiFi 2.4 GHz connectivity and Bluetooth eWeLink-Remote. Ideal for controlling two lighting circuits or electrical appliances, it offers the classic reliability of a physical switch together with the modern functions of a smart home.
2 physical buttons, individual control
-
Fast switching for each circuit, with tactile feedback
-
Status LED for each button – visible, but adjustable
-
Perfect for users who prefer mechanical operation
Smart control via the eWeLink app
-
Control from anywhere, over the internet
-
Schedules, countdown, cyclic control and smart scenes
-
Can be shared with family members
-
Compatible with Amazon Alexa and Google Assistant
Stable connectivity: WiFi + Bluetooth
-
Connection via WiFi 2.4 GHz
-
Bluetooth eWeLink-Remote for local wireless control
-
Compatible with accessories such as the Sonoff S-MATE2 and Sonoff R5
Adjustable LED lighting
-
Shows the ON/OFF state of each channel
-
Adjustable brightness or LED can be switched off completely – ideal for bedrooms
Classic design, quick installation
-
Standard 86 × 86 mm format, compatible with standard wall boxes
-
Can be mounted individually or in multi-gang frames from the M5 series
-
Matt white finish, modern and discreet
Practical use cases
- Replaces a conventional wall switch, keeping manual touch control while adding app control and voice commands (Alexa/Google Assistant).
- Used to create lighting scenes that adjust several circuits in a room simultaneously with a single touch.
- Integrated into an automation that automatically switches off lights left on after bedtime or when nobody is in the room any more.
Technical specifications:
| Model | M5-2C-86 |
| Number of channels | 2 independent channels |
| Supply voltage | 100-240V AC, 50/60Hz |
| Switch type | Physical mechanism (buttons) |
| Status LED | Adjustable, can optionally be disabled |
| Processor | ESP32 |
| Protocol | WiFi 802.11 b/g/n 2.4GHz + Bluetooth (eWeLink-Remote), Matter via eWeLink CUBE |
| Load | 5A/channel, 10A total, 2200W |
| Dimensions | 86 x 86 x 41.5 mm |
| Operating temperature | -10C ~ 40C |
| Housing material | PC V0 (flame-retardant) |
| Compatibility | eWeLink, Alexa, Google Assistant; Apple Home/Google Home/Alexa via CUBE |
Easily control two light sources or appliances in your home with the Sonoff M5-2C-86 – the smart mechanical switch that combines classic functionality with the latest smart technology.
