Open box Smart control panel Shelly Wall Display X1i Silver - 4 inch colour touchscreen, 720x720 resolution, power base with 1 output circuit included, 1W speaker, Wi-Fi and Bluetooth, app control
Description
What does "open box" mean?
Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

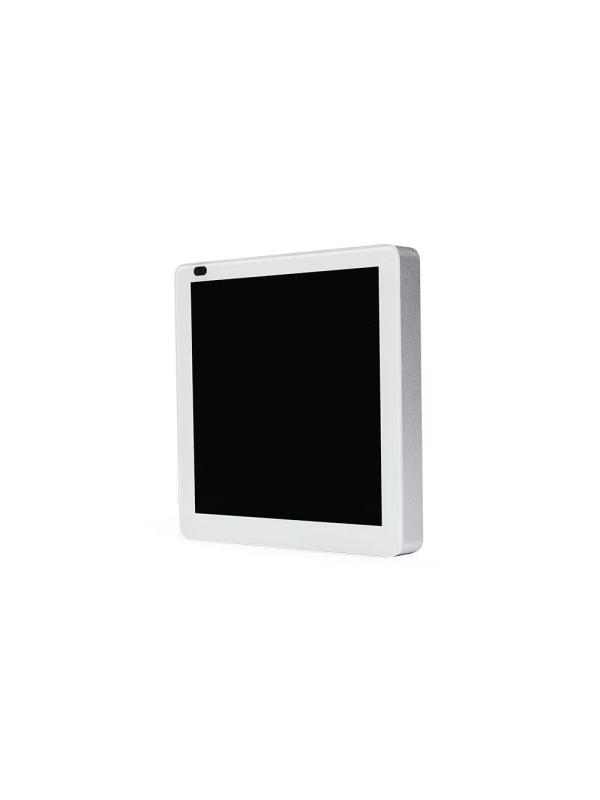

Shelly Wall Display X1i is a smart home control panel with a 4-inch colour screen and an interchangeable power base. It mounts in a wall box, in place of a standard switch, and becomes the central control point for the devices in your home.

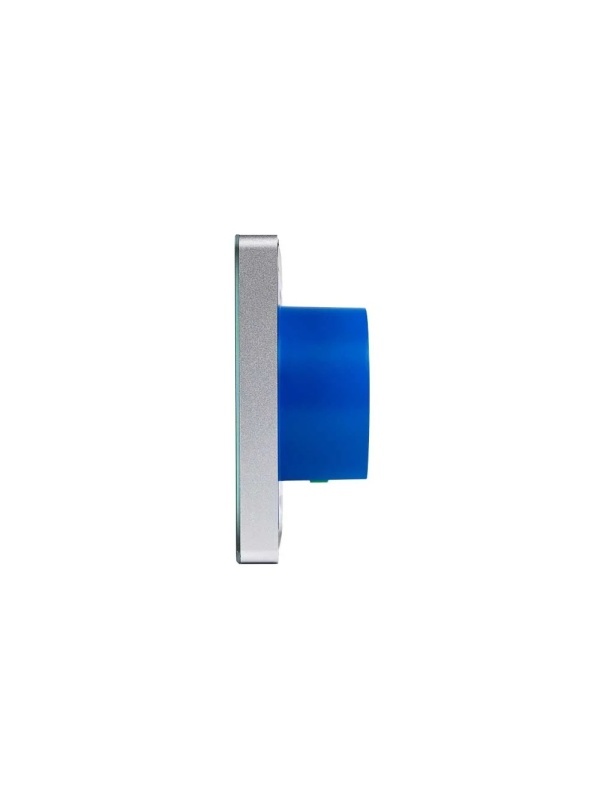

The panel ships with a power base that also provides switching for one load circuit, so it effectively replaces the switch it takes the place of. If control of two circuits is needed, the base can be swapped for the Shelly 2-Output Power Base for Wall Display. The screen is a 5-point capacitive touchscreen with a resolution of 720x720 px, and the housing combines plastic with aluminium and glass.
Key features

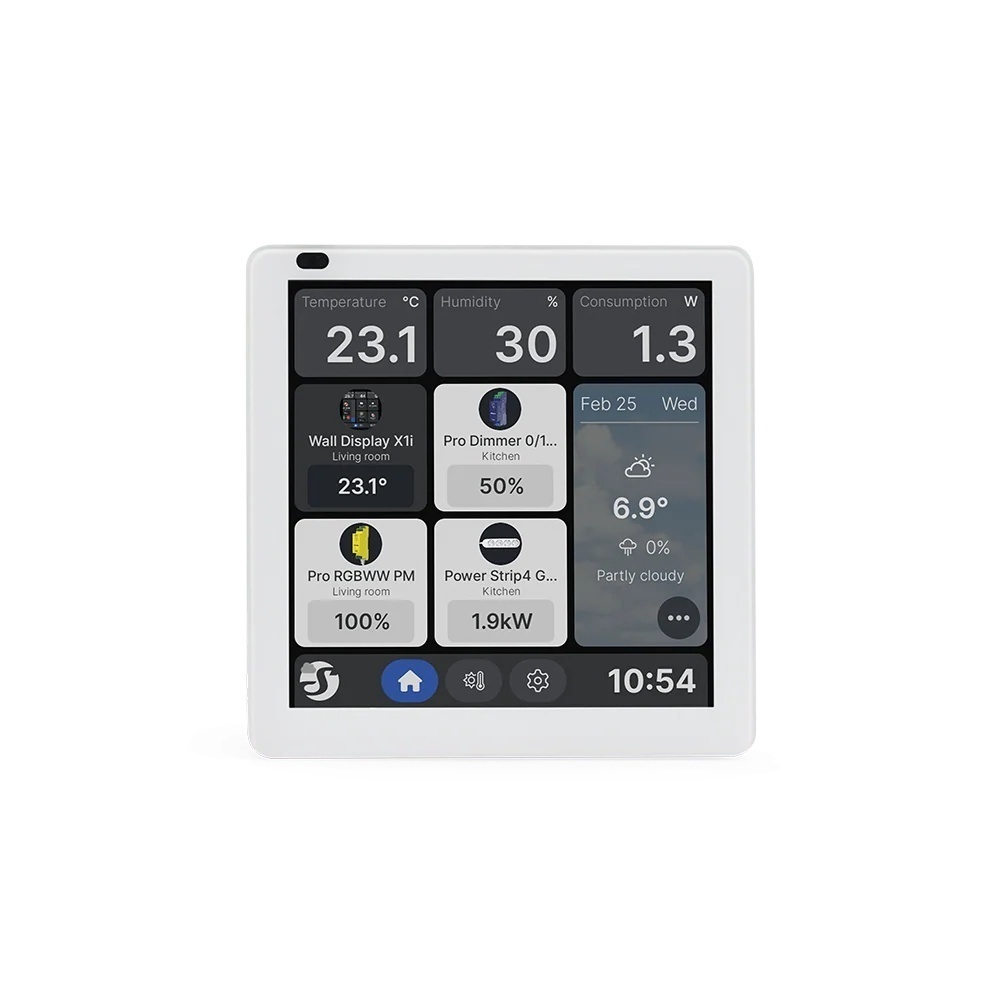

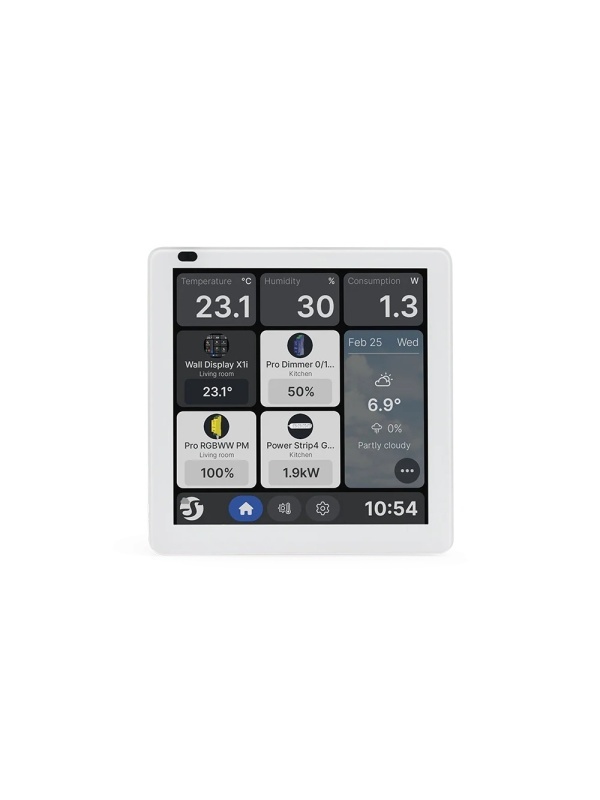

- 4-inch colour screen, 5-point capacitive touch, 720x720 px resolution
- Power base included, with 1 switchable output circuit
- Compatible with the Shelly 2-Output Power Base for Wall Display, for controlling two circuits
- Built-in 1 W speaker for audible notifications
- Mounts in a wall box, in place of an existing switch
- 100-240 V~ power supply, consumption under 5 W, plus auxiliary USB Type-C 5V / 1A power
- Plastic, aluminium and glass housing, available in silver
- Wi-Fi and Bluetooth connectivity
Practical use cases
- Replacing the switch at the living room entrance. The panel takes over control of the lighting circuit through the included power base and adds, in the same spot on the wall, access to the thermostat, scenes and the rest of the devices in the home.
- Control point in the hallway, by the door. A single screen replaces several remotes and apps: when you leave, you activate the scene that turns off the lights and lowers the temperature, without taking out your phone.
- Hotel room or rental apartment. Guests get a simple, visible panel for lighting and climate control, and the built-in speaker can signal notifications, without them having to install any app.
- Renovation where control of two circuits is wanted. Keep the same display and fit the two-output base, so the panel controls, for example, the chandelier and the spotlights in the same room separately.
Technical specifications
| Construction and dimensions | |

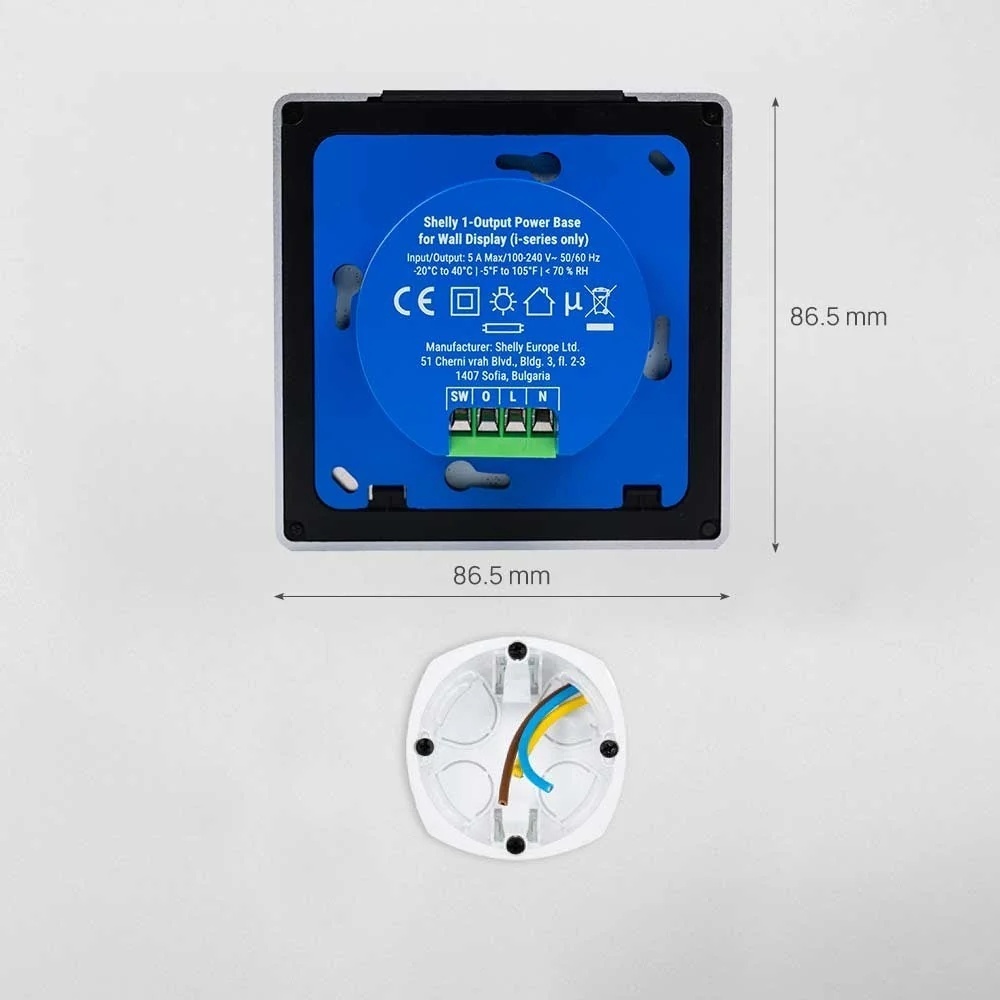

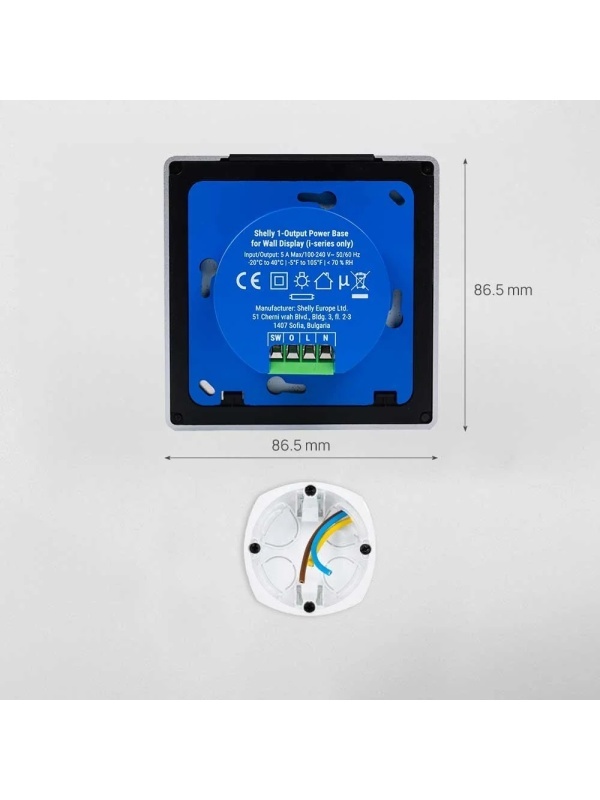

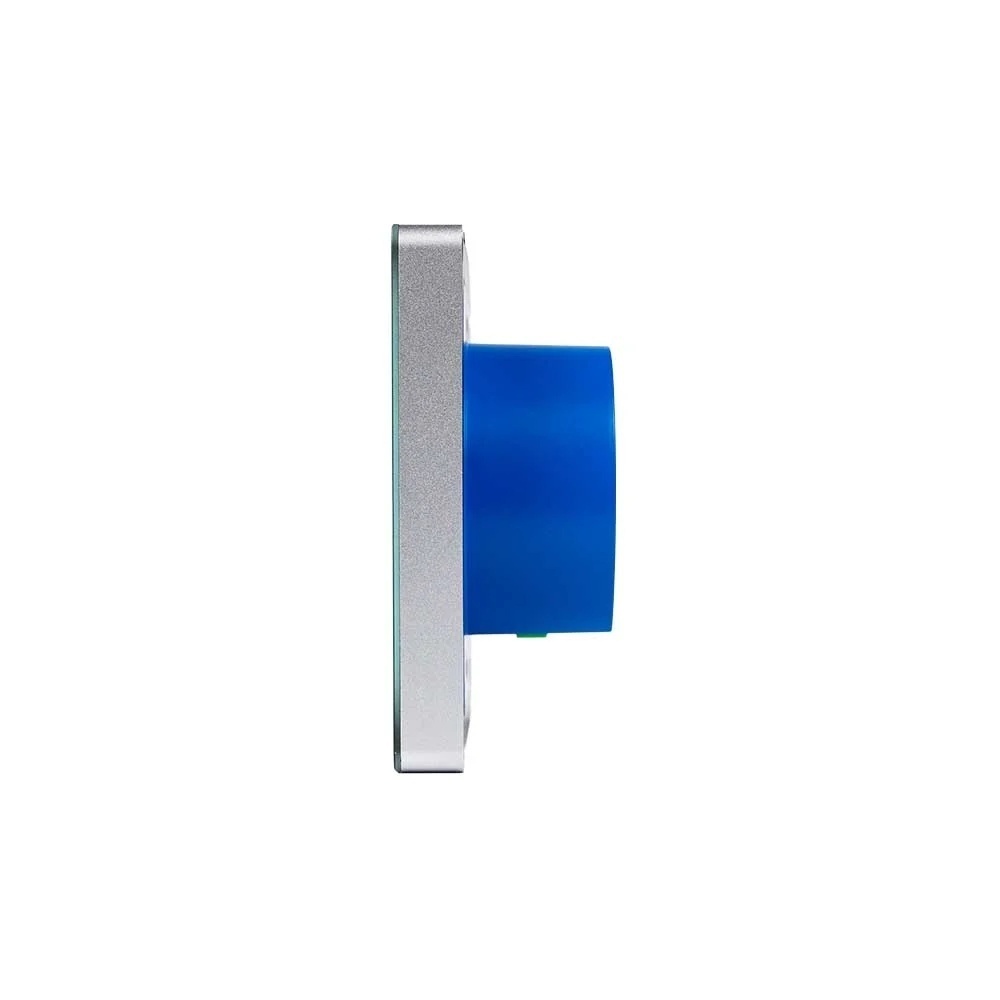

| Dimensions (H x W x D) | With power base: 86.5x86.5x35.7 mm / 3.40x3.40x1.40 inch Without power base: 86.5x86.5x11 mm / 3.40x3.40x0.43 inch |
| Weight | With power base: 163 g / 5.75 oz Without power base: 113 g / 3.99 oz |
| Touchscreen | 5-point capacitive |
| Screen resolution (px) | 720x720p |
| Maximum screw terminal torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.75 ... 2.5 mm² / 18 ... 14 AWG (solid, stranded and with ferrules) |
| Conductor stripping length | 6 ... 7 mm / 0.24 ... 0.28 inch |
| Mounting | Wall box |
| Housing material | Plastic, aluminium, glass |
| Housing colour | Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
| Speaker | 1 W |
| Environmental conditions | |
| Ambient operating temperature | -20 °C ... 40 °C / -5 °F ... 105 °F |
| Humidity | 30 % ... 70 % RH |
| Maximum altitude | 2000 m / 6562 ft |
| Electrical parameters | |
| Power supply | 100-240 V~, 50/60Hz |
| Power consumption | < 5 W |
| USB Type-C power supply | 5V⎓, 1A |
| Output circuit parameters | |
| Maximum switching voltage | 240 ~ |
| Maximum switching current | 5 A |
| USB Type-C, voltage | 5 V⎓ |
| USB Type-C, current | 0.5 A |
| Sensors and metering | |
| Light sensor | Da |
| Microphone | Da |
| Proximity sensor | Da |
| Radio communication | |
| Wi-Fi | |
| Protocol | Wi-Fi 6 Dual Band |
| RF band | 2412 – 2472 MHz 5150 – 5850 MHz |
| Maximum RF power | < 20 dBm |
| Range | up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions) |
| Bluetooth | |
| Protocol | 5.0 |
| RF band | 2402 - 2480 MHz |
| Maximum RF power | < 4 dBm |
| Range | up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions) |
| Microcontroller | |
| Processor | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
| RAM | 1 GB |
| Flash memory | 8 GB |
| Operating system | Android 11 |
| Firmware features | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 2 URLs per hook |
| Scripting | Nu |
| MQTT | Da |
Shelly Wall Display X1i Silver is the right choice for anyone who wants to replace an ordinary switch with a complete control point for the entire home.
