Open box Smart relay Shelly 1PM Mini GEN3, 1 channel, 8A
Description
What does "open box" mean?
Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

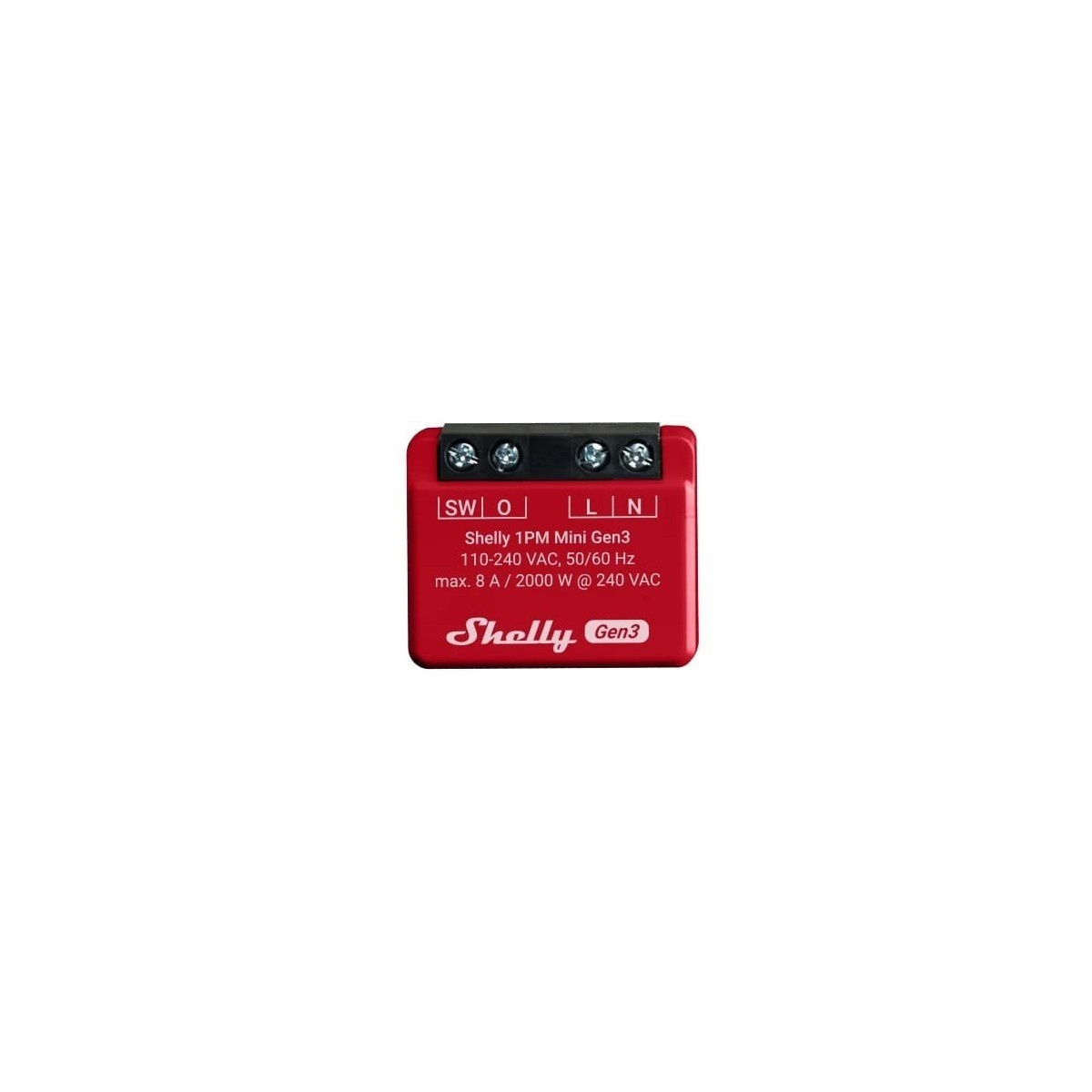

Shelly 1PM Mini Gen3 is the smallest Wi-Fi smart relay with power metering in the Shelly range, suitable for controlling and monitoring the consumption of lights, electrical appliances and other devices of up to 8 A. It connects directly to the Wi-Fi network and is added quickly via Bluetooth, with no hub.
Its compact size allows installation in standard wall boxes, behind sockets and switches, or even inside household appliances. Unlike the basic Shelly 1 Mini Gen3, this model measures power consumption in real time and offers free cloud storage for analysing historical data.
Shelly 1PM Mini Gen3 supports schedules, scenes, local actions, advanced scripting via mJS, HTTPS, MQTTS, WebSockets and KNXnet/IP support. It has built-in protection against overheating, overvoltage, overcurrent and overload, plus a Wi-Fi range extender function and a Bluetooth gateway for Shelly BLU accessories.
In practice, Shelly 1PM Mini Gen3 is useful for monitoring the consumption of a small electric heater, a coffee machine or a robot vacuum, and also for identifying appliances that waste energy in standby, helping to reduce the monthly electricity bill.
Practical use cases
- Installed on the circuit of a large kitchen appliance (oven, washing machine), it measures actual consumption without interrupting the power supply, giving accurate data for the electricity bill.
- Useful for identifying “vampire” appliances that consume energy in standby, helping to reduce the monthly bill without changing usage habits.

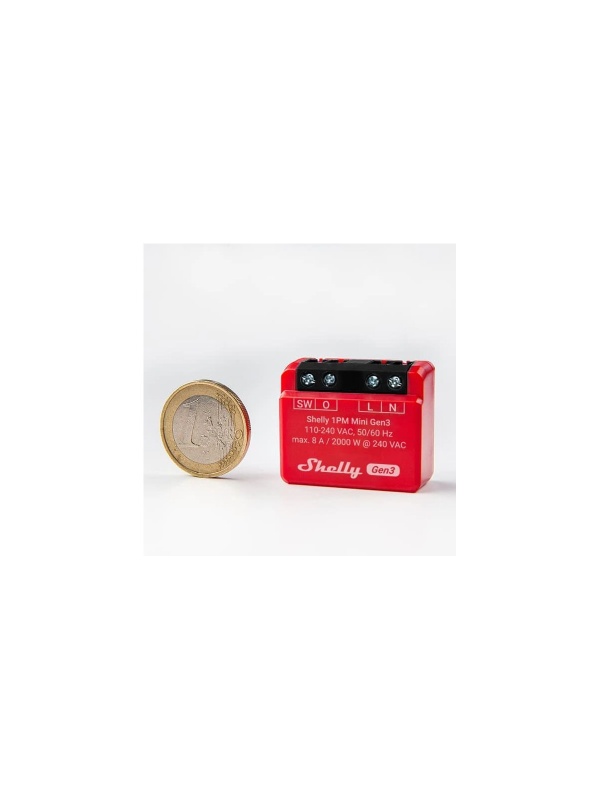

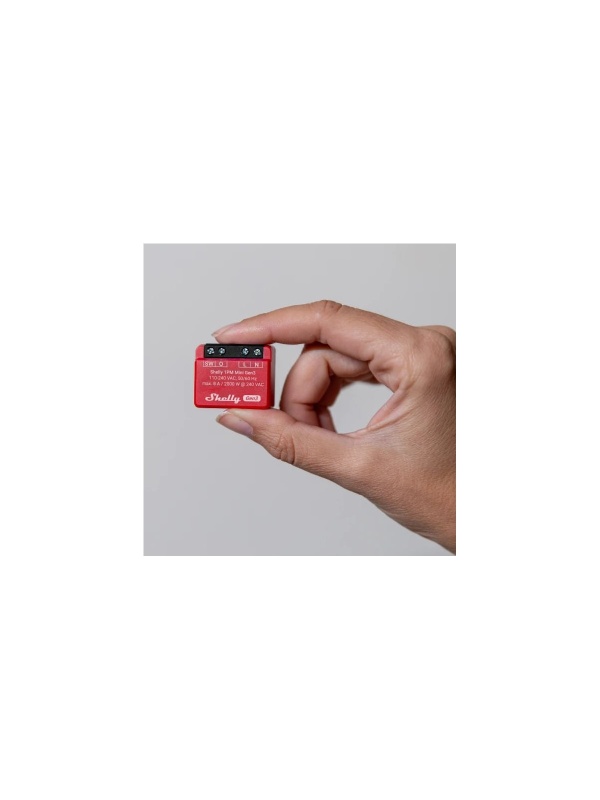

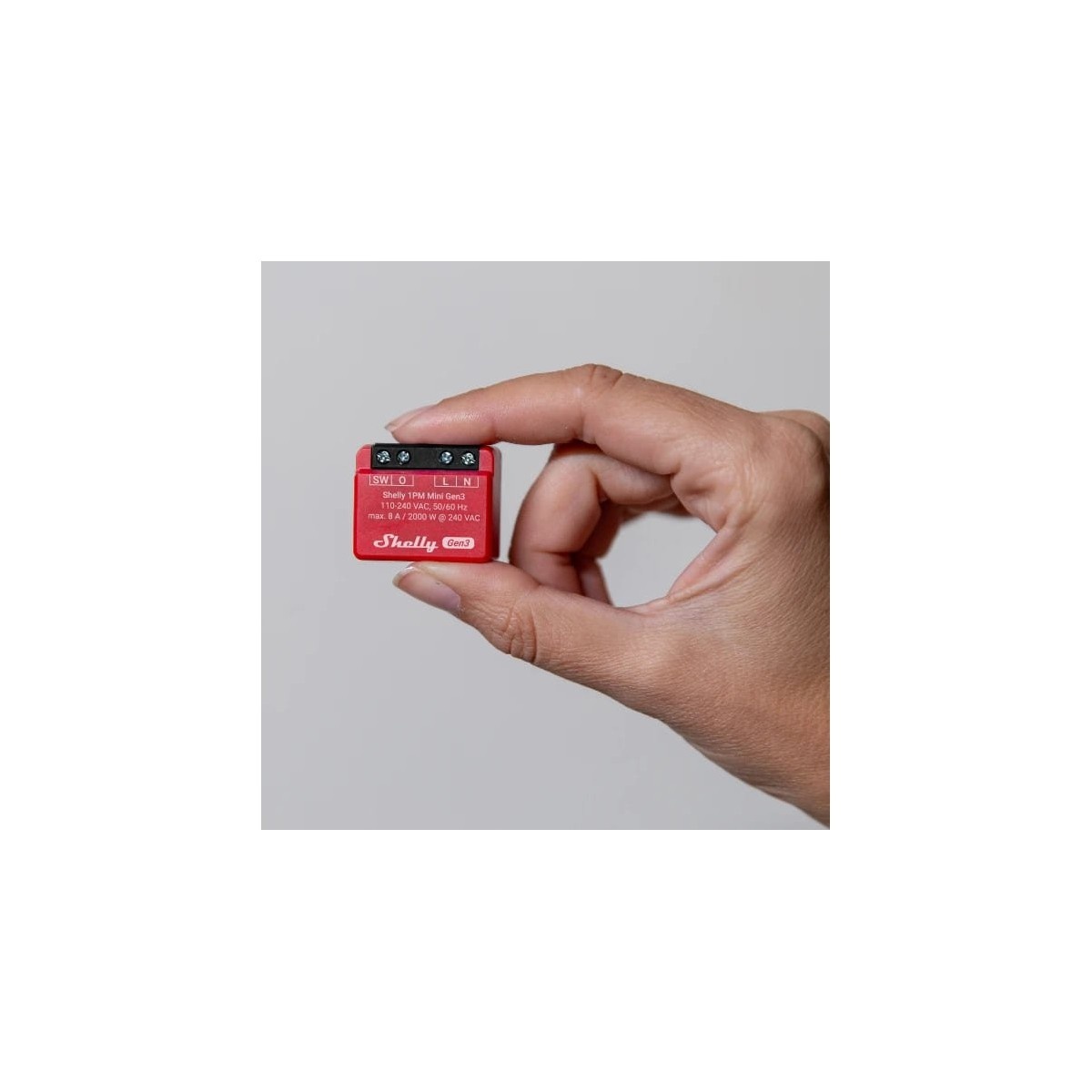

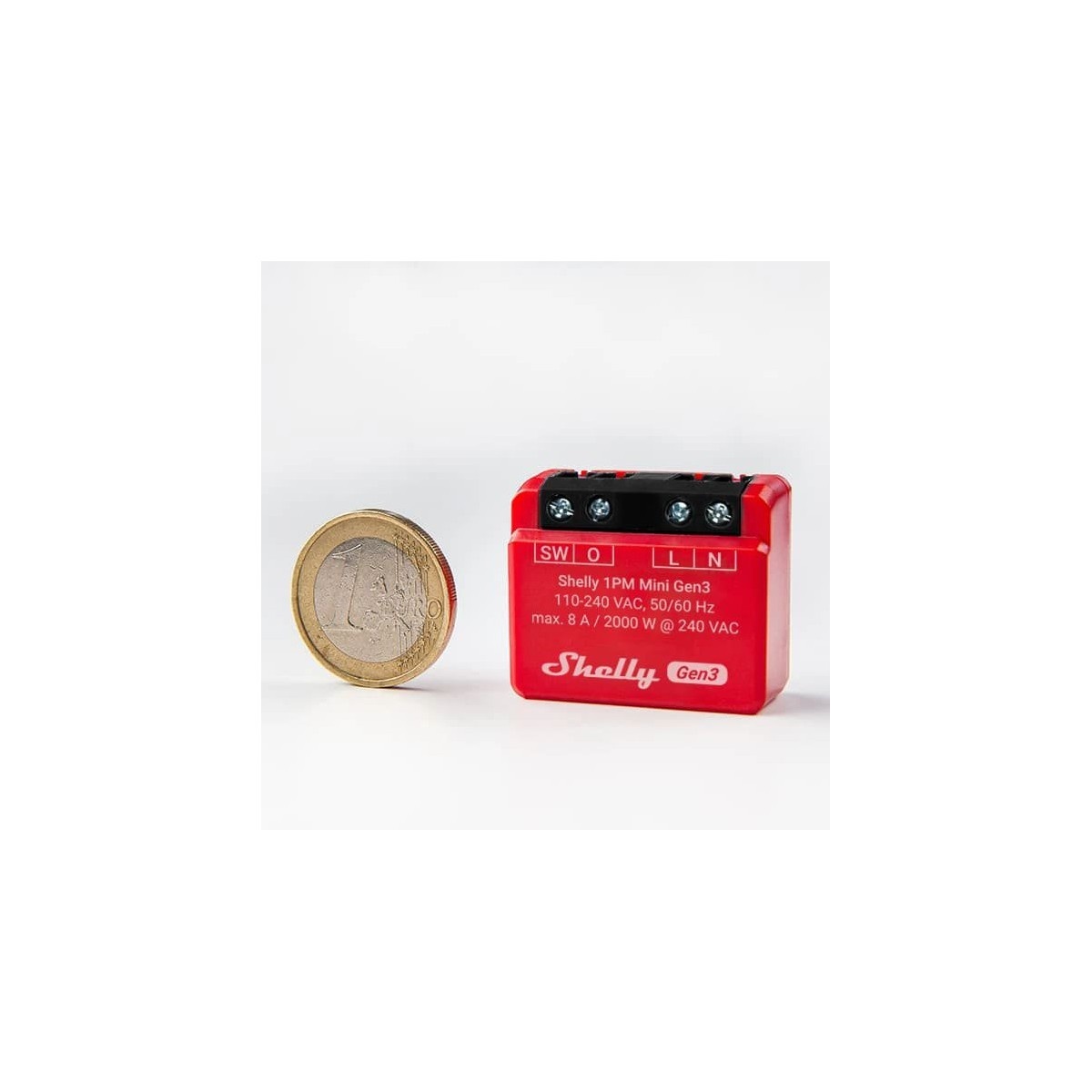

- Mounted in the wall box, behind a socket or switch, thanks to its small size (29 x 34 x 16 mm) it integrates discreetly into the existing installation, with no visible cables.
- Perfect for monitoring a dedicated circuit (air conditioning, electric water heater), separately from the rest of the household consumption, for more precise financial control.
Technical specifications
| Dimensions | 29 x 34 x 16 mm |
| Weight | 18 g |
| Power supply | 110-240V AC |
| Self-consumption | < 1.2 W |
| Maximum switching | 8 A / 240V AC |
| Maximum switched power | 2000 W |
| Power metering | Yes, in real time |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.2 |
| Wi-Fi range | up to 30 m indoors / 50 m outdoors |
| Operating temperature | -20°C la +40°C |
| Memory | 8 MB |
| Warranty | 3 years |
Shelly 1PM Mini Gen3 is the right choice for automating and monitoring consumption in tight spaces, offering precise energy data and full control from the Shelly Smart Control app.
