Open box Smart relay Shelly Qubino Wave 1 Mini, 1 channel, 8A, Z-Wave, dry contact

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

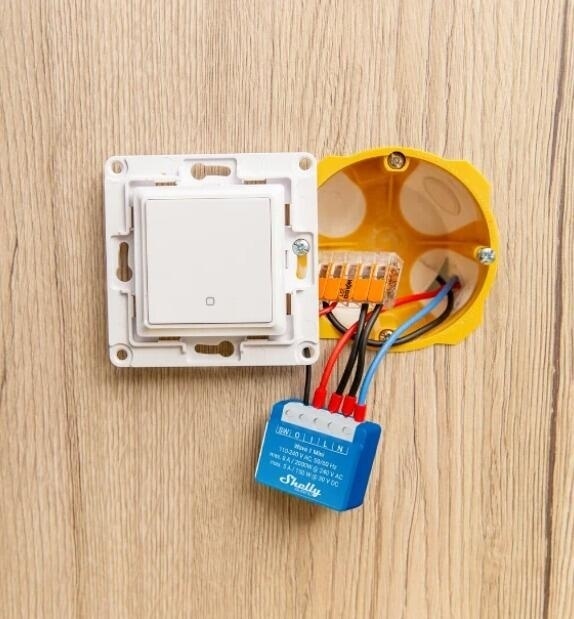

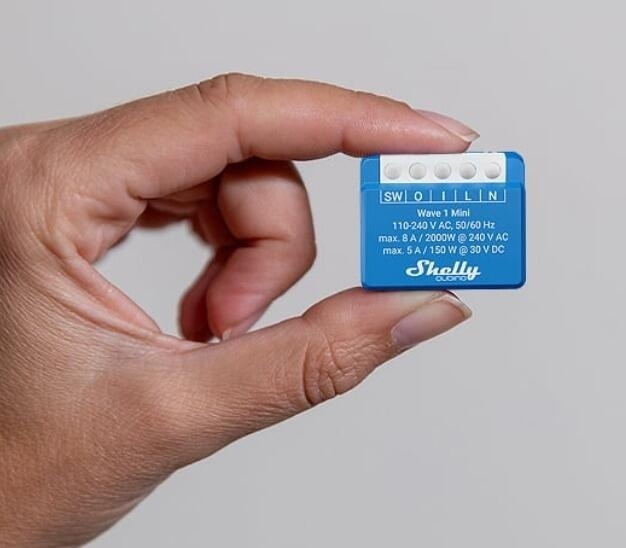

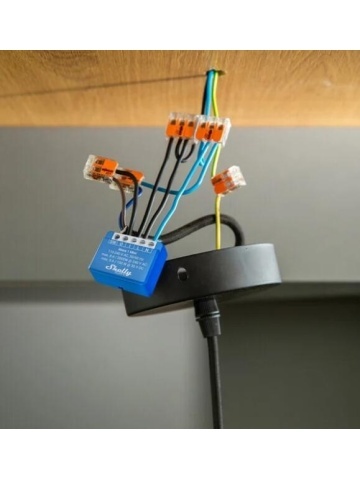

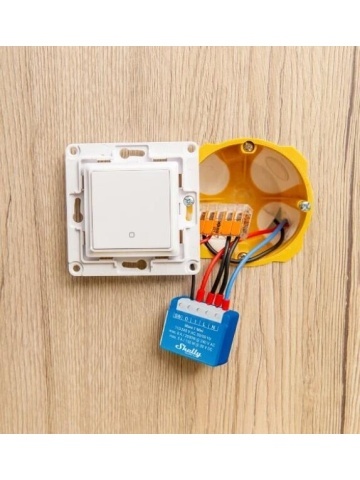

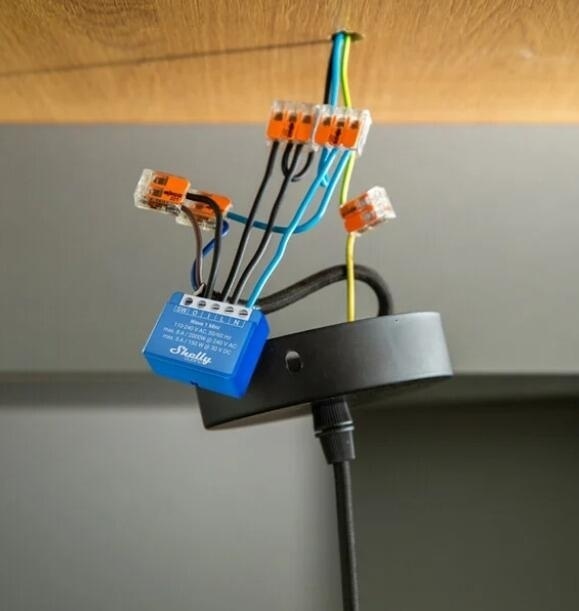

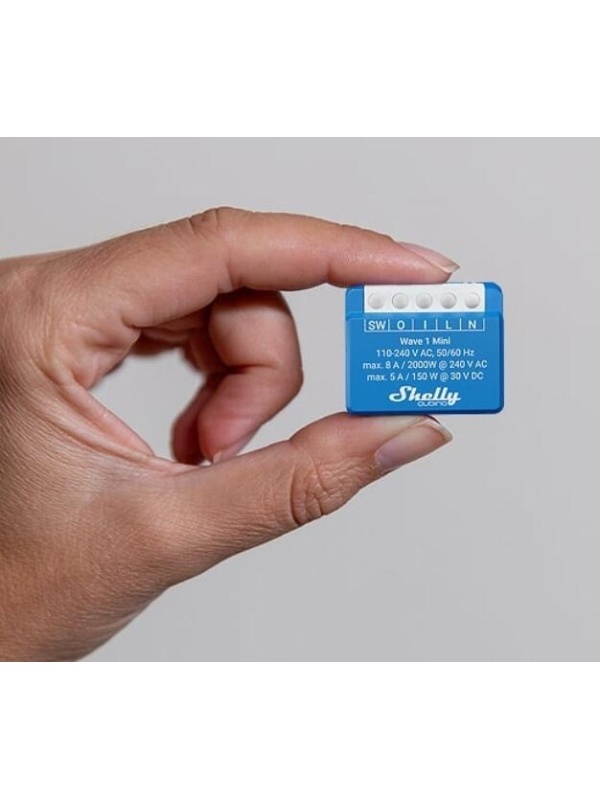

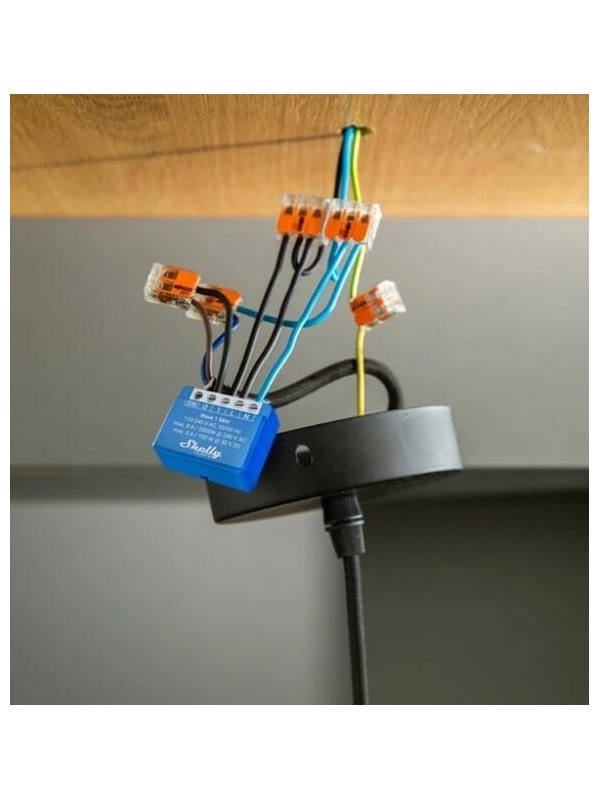

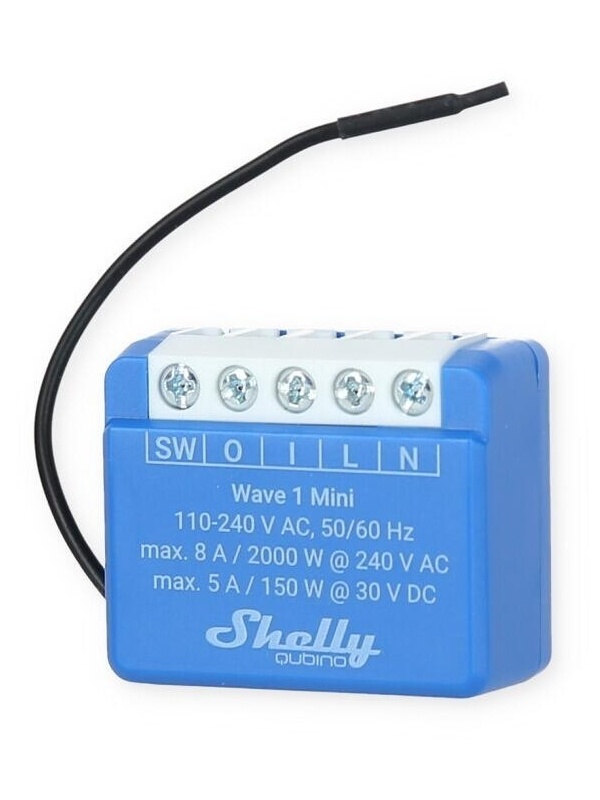

Shelly Qubino Wave 1 Mini is the smallest Z-Wave relay in the Shelly range, designed for automation and remote control of small electrical appliances such as lights, locks, garage doors or irrigation systems. Its ultra-compact dimensions let it fit behind any switch or socket, or even inside a piece of electrical equipment, where space is extremely limited.

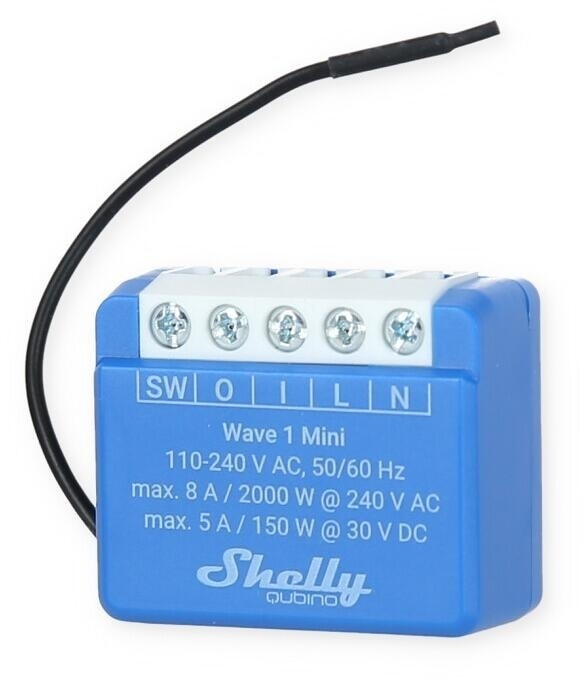

It uses the latest Z-Wave chip, the S800 series, one of the most widespread and stable smart home technologies, and integrates directly into an existing Z-Wave network via a compatible hub. The dry contacts can switch loads of up to 240V AC at 8A or 30V DC at 5A, covering most residential applications.

Built-in overheating protection allows safe operation even in tighter mounting spaces with limited ventilation. It is the right choice for installers who already work in a Z-Wave ecosystem and need a compact module for simple control, without power metering.

Please note: Shelly Qubino Wave 1 Mini uses Z-Wave technology and requires a compatible Z-Wave hub or controller to be integrated and controlled.

Practical use cases

• It integrates into an existing Z-Wave network (Z-Wave hub, Home Assistant with a Z-Wave stick, or another compatible controller), extending home automation without adding a new ecosystem.

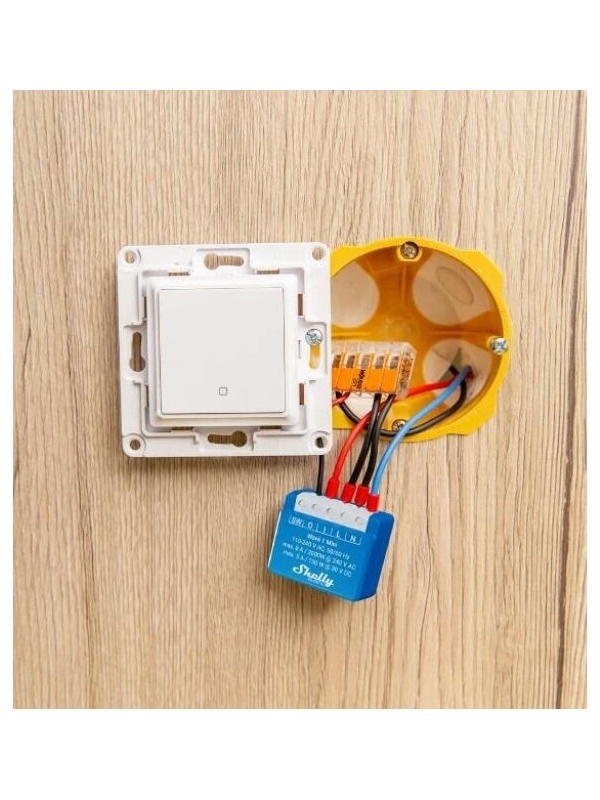

• Installed behind a switch or socket, it works as a Z-Wave relay, benefiting from the extended coverage and stability typical of this protocol, ideal in buildings with thick walls.
• Each Wave device also works as a repeater in the Z-Wave mesh network, helping to extend the signal to other, more distant nodes.
• Note: Requires a compatible Z-Wave hub/controller (e.g. Home Assistant with a Z-Wave adapter) to be connected to the network and controlled from the app.

Technical specifications

The most compact Z-Wave relay in the Shelly portfolio, ideal for discreet automations in extremely tight spaces.
