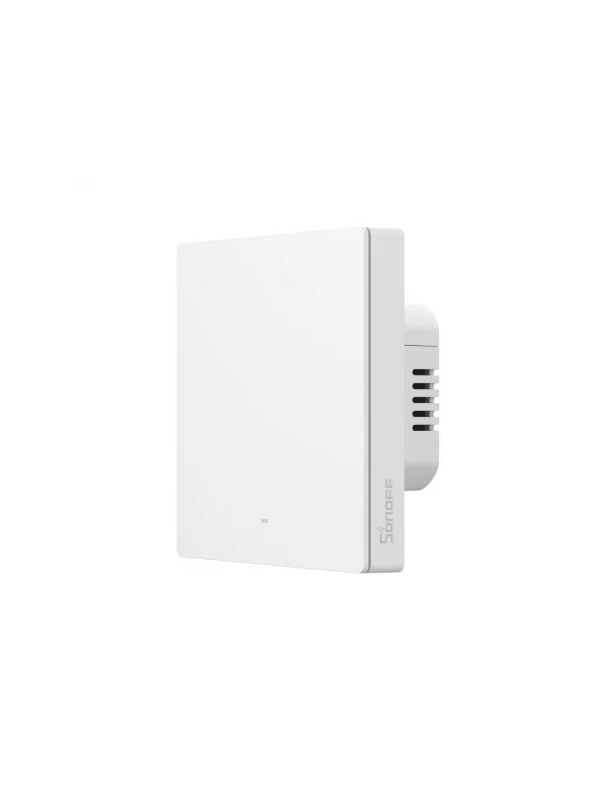

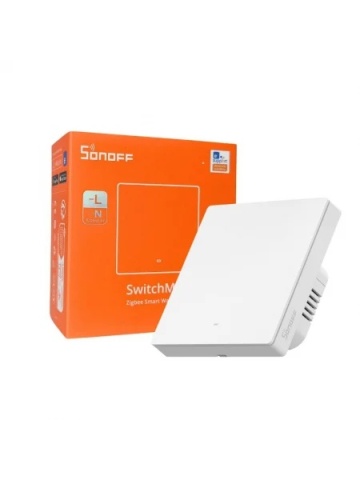

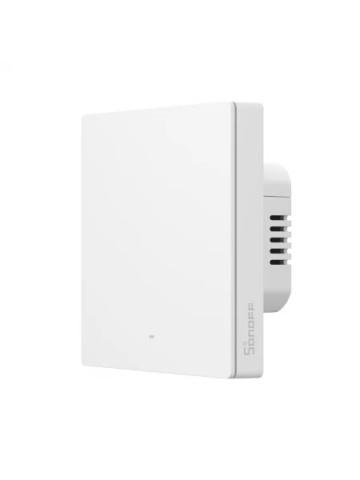

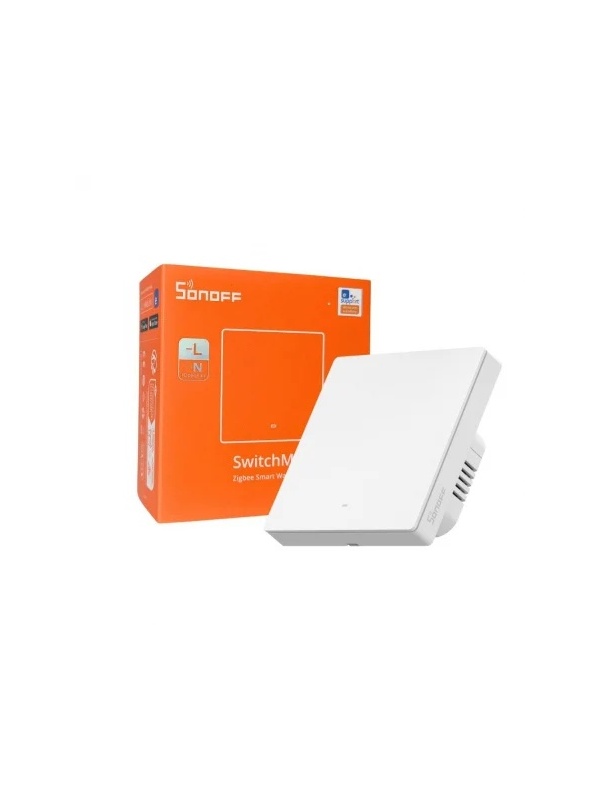

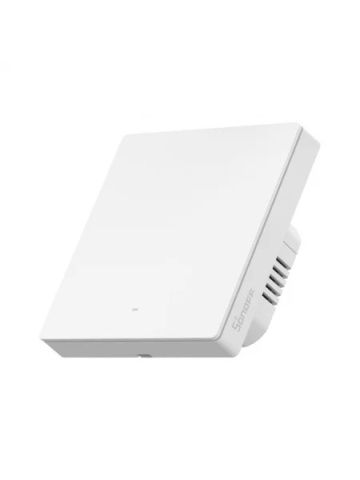

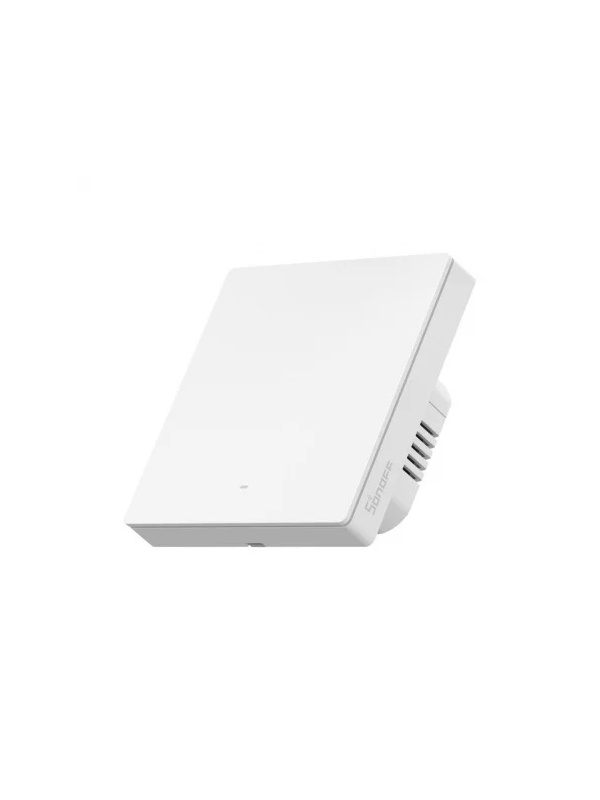

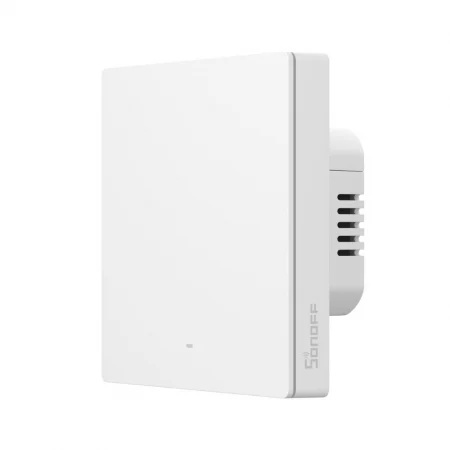

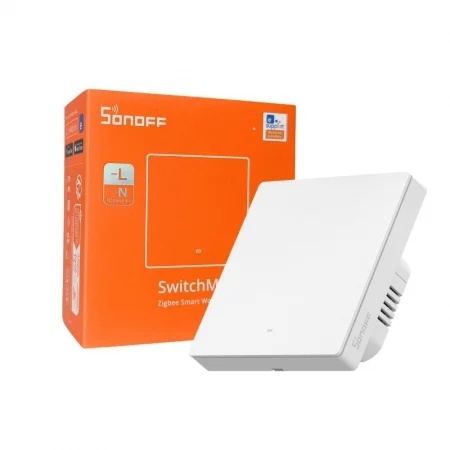

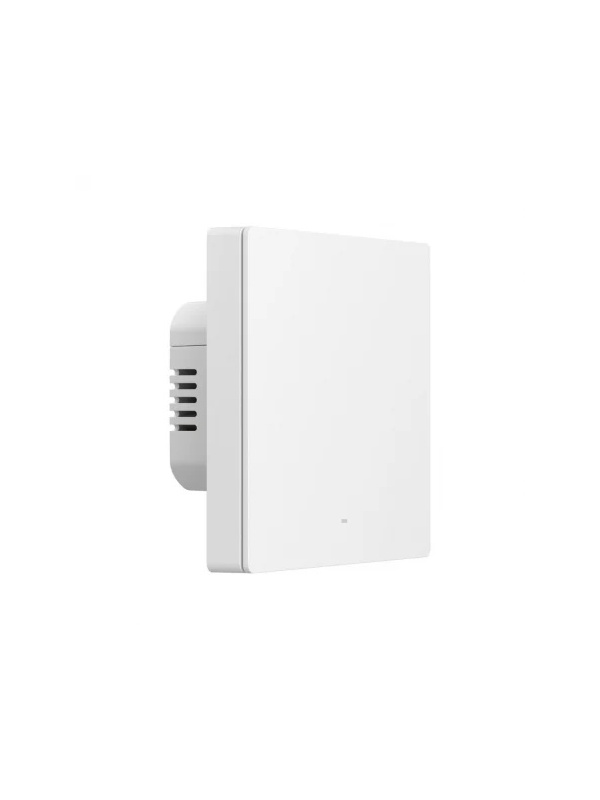

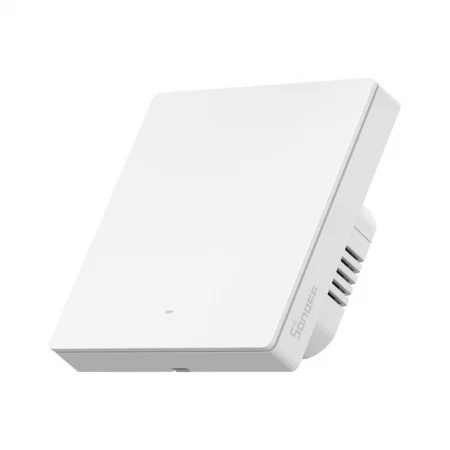

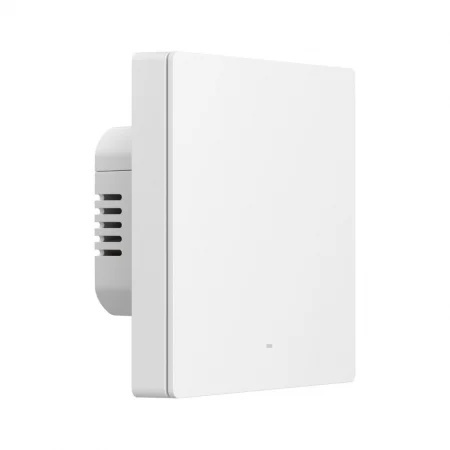

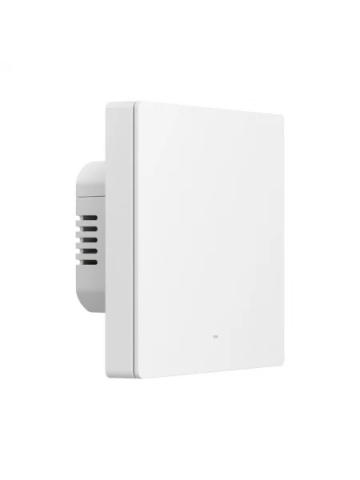

Open box Smart switch Sonoff ZBM5-1C-86W, 1 channel, 10A, Zigbee, White

What does "open box" mean?

Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

Sonoff ZBM5-1C-86W smart switch, Zigbee, 1 channel, eWeLink compatible

Control your lights from anywhere with the Sonoff ZBM5-1C-86W, a 1-channel modular Zigbee smart switch compatible with the eWeLink app. Part of the SwitchMan M5 series, this elegant model installs easily in standard modular wall boxes and adds smart functionality with no aesthetic compromise.

Note: This product uses the Zigbee protocol and requires a compatible Zigbee hub/bridge (e.g. Sonoff ZBBridge-P / Sonoff ZBBridge-U / Sonoff ZBDongle-E / Sonoff Dongle-M) to be connected to the network and controlled from the app. It does not work on its own over WiFi.

Smart functions

Zigbee 3.0 control – Integrates with compatible Zigbee hubs such as the Sonoff NSPanel Pro, iHost, ZBBridge-P and others.
eWeLink compatible – Control the lights remotely from the eWeLink app or activate smart scenes.
Voice control – Works with Amazon Alexa, Google Assistant and SmartThings for quick, easy-to-use commands.
Automatic scenes – Create automations that switch on the lights based on time, sensor or state.
Silent press and LED feedback – Button with a pleasant tactile response and configurable status LED.

Technical specifications:

• Model: ZBM5-1C-86W

• Channels: 1 channel (1 button)

• Supply voltage: 100-240V AC, 50/60Hz

• Maximum load: 10A resistive / 400W LED (at 240V)

• Connectivity: Zigbee 3.0

• App compatibility: eWeLink

• Voice control: Alexa, Google Assistant

• Compatible wall boxes: Type 86 (square wall box)

• Dimensions: 87 x 87 x 40.2 mm

• Mounting: In a type 86 flush-mounted wall box

Practical use cases

• Replaces a classic wall switch, keeping manual control by pressing, but adding app control and voice commands (Alexa/Google Assistant).
• Used to create lighting scenes that adjust several circuits in a room simultaneously with a single press.
• Integrated into an automation that automatically switches off lights left on after bedtime or when nobody is in the room any more.
