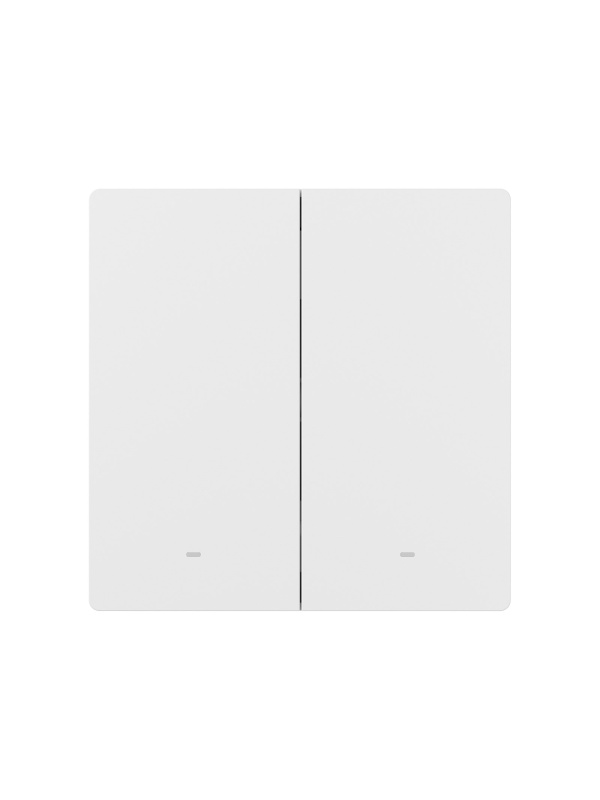

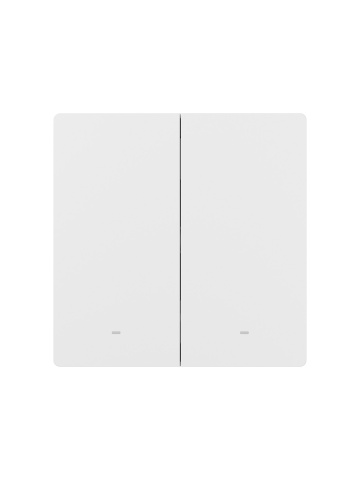

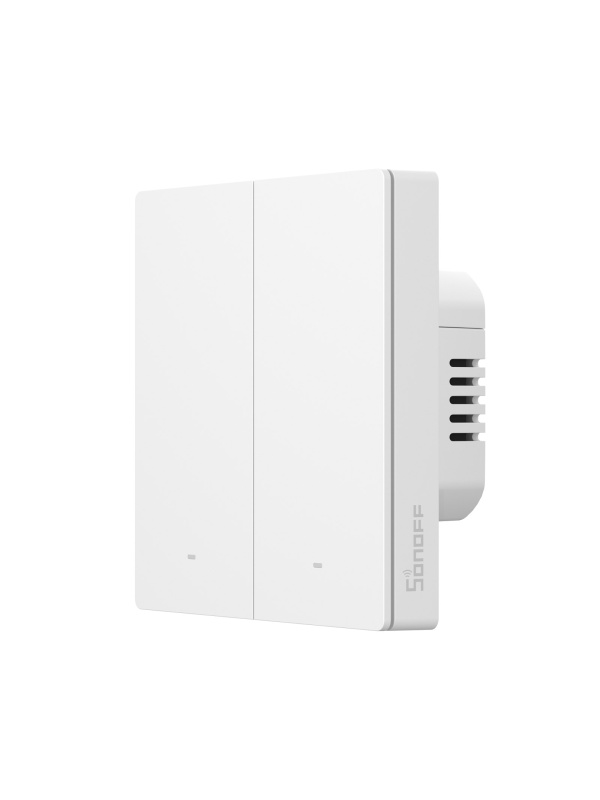

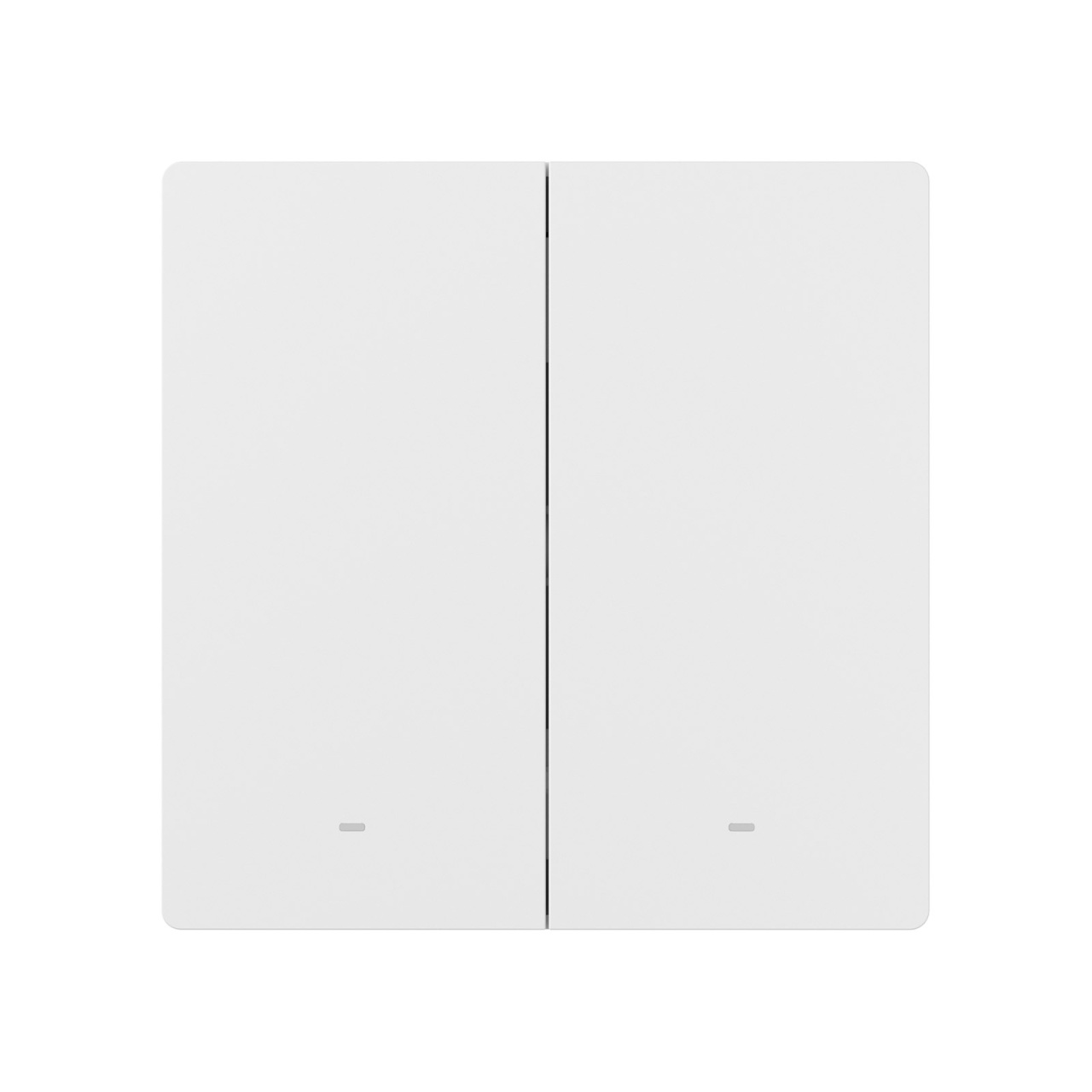

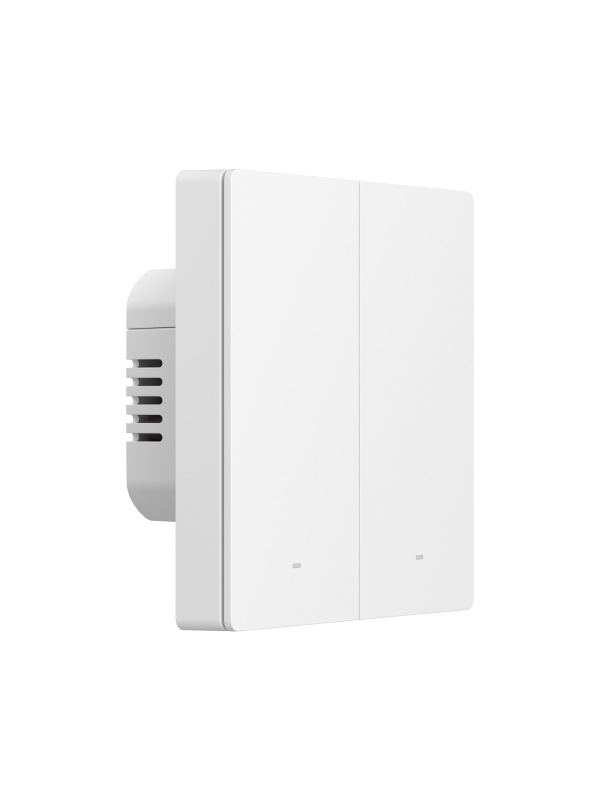

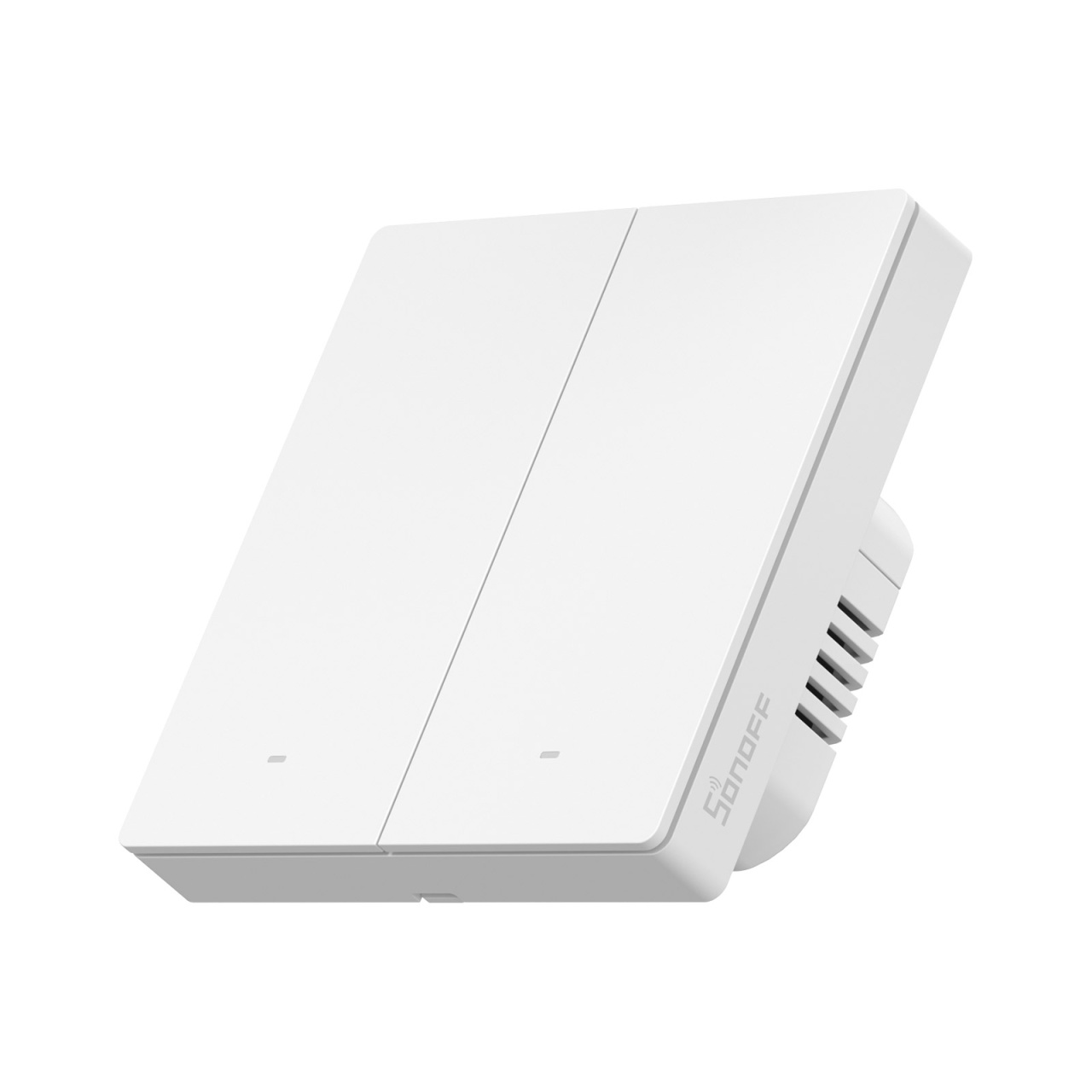

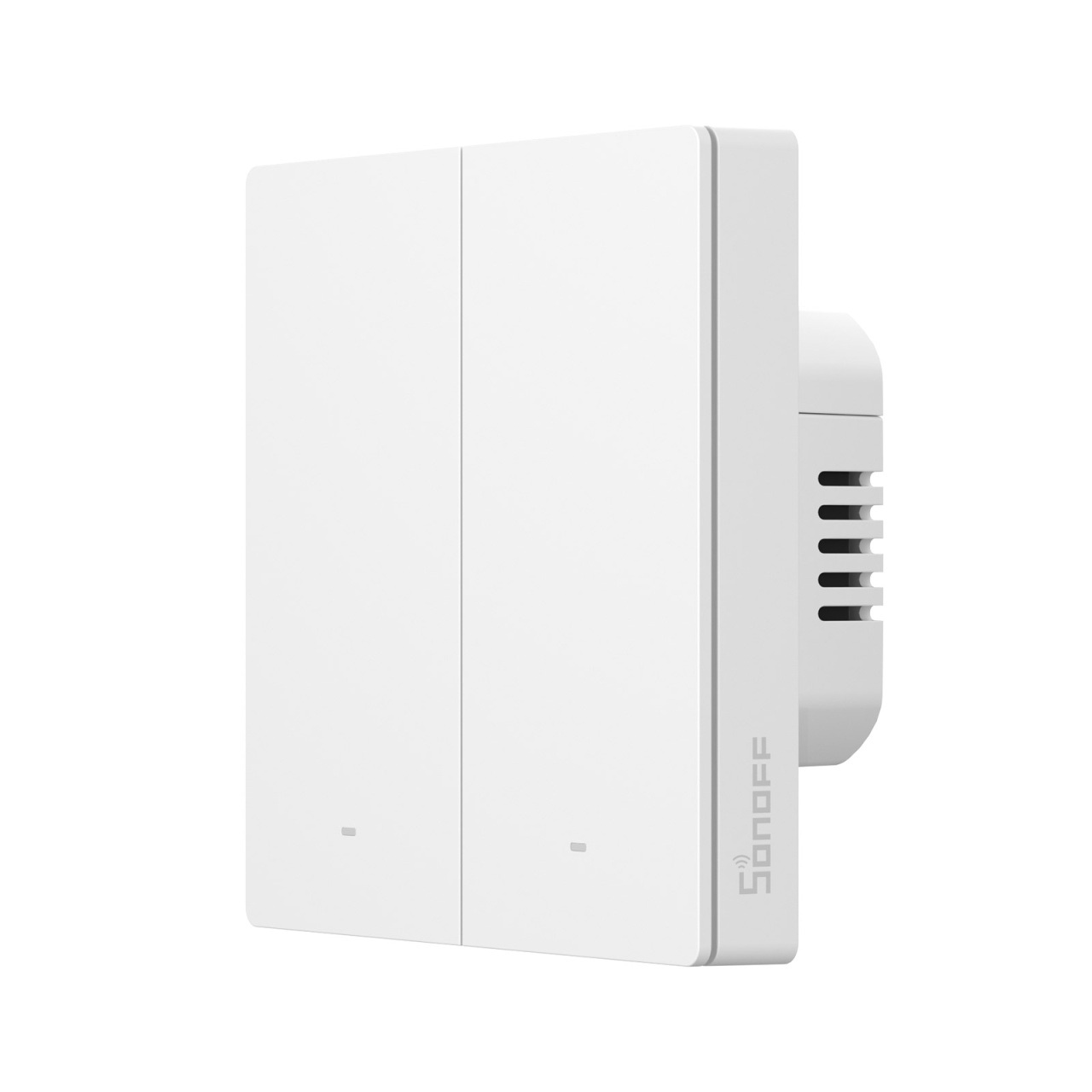

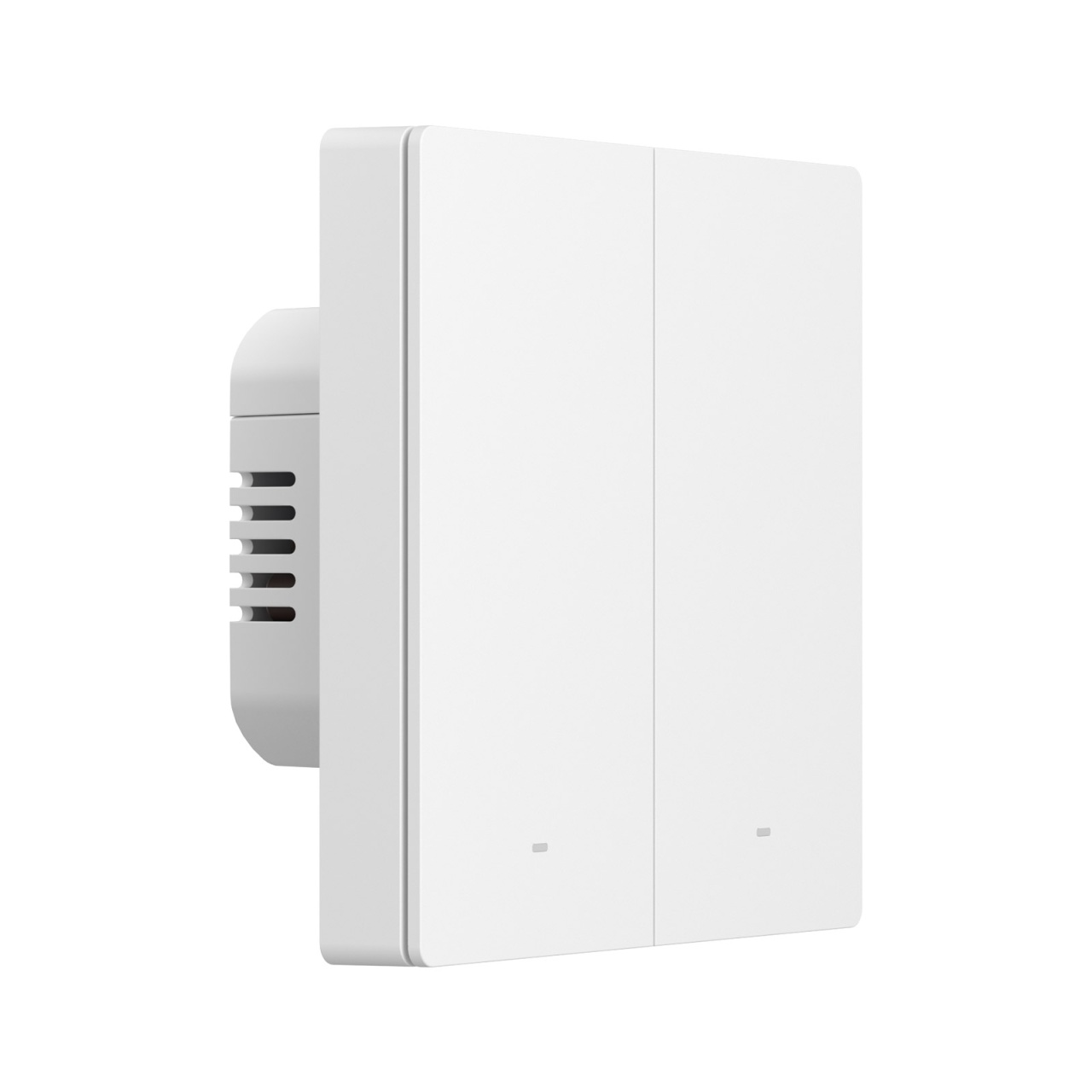

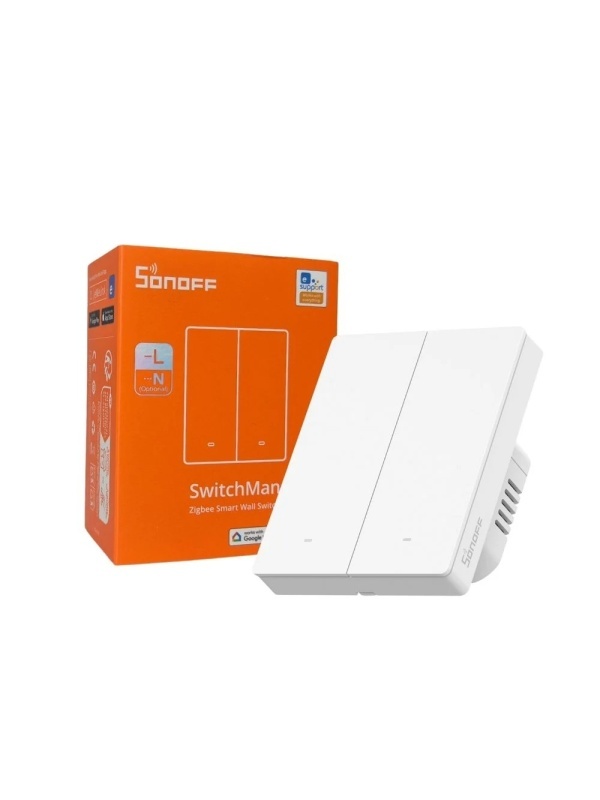

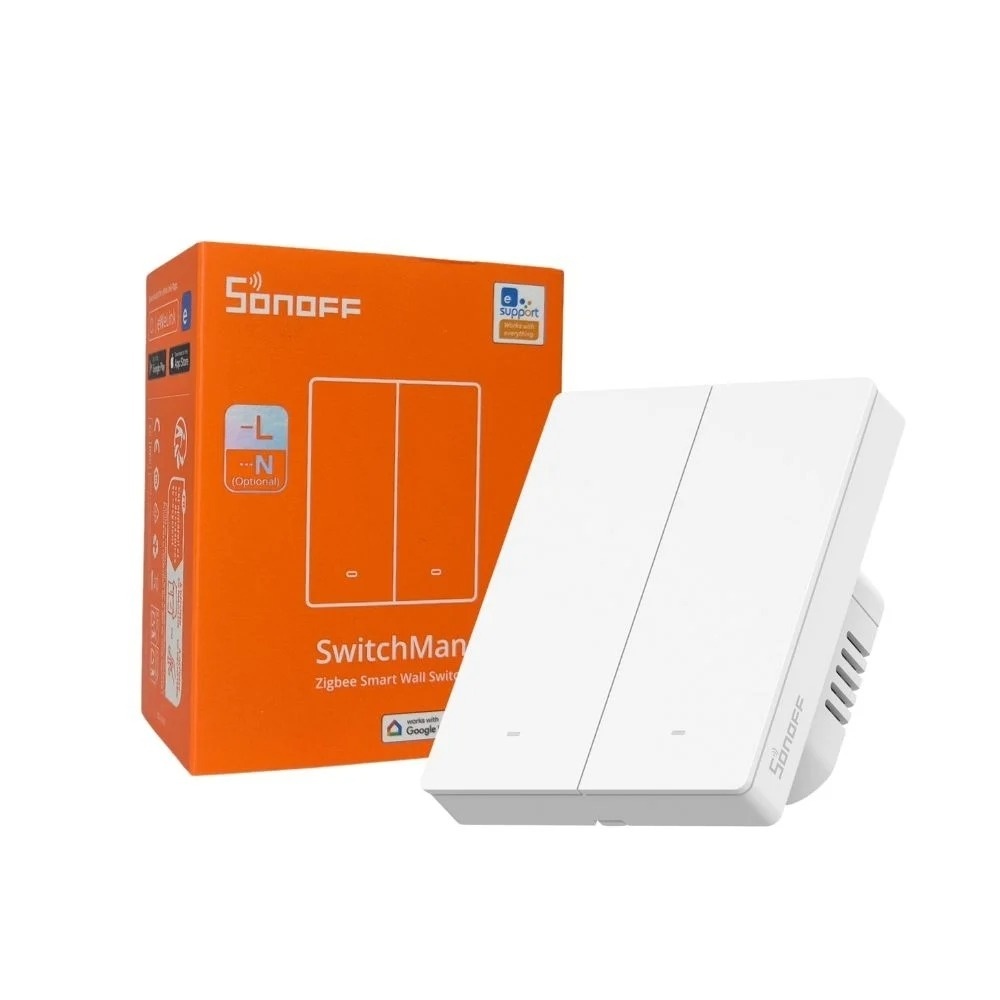

Open box Smart switch Sonoff ZBM5-2C-86W, 2 channels, 10A, Zigbee, White
Description
What does "open box" mean?
Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

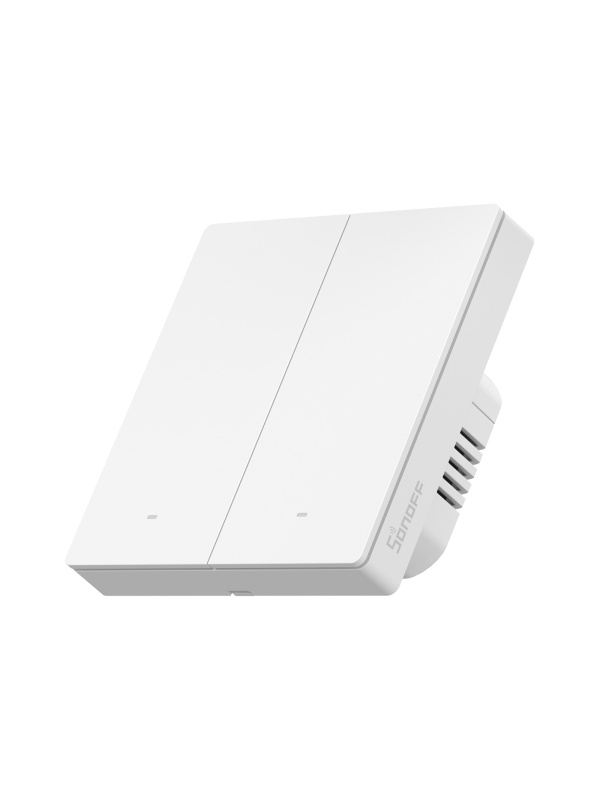

Sonoff ZBM5-2C-86W smart Zigbee wall switch, 2 channels, eWeLink compatible
Control the lights in your home directly from your phone with the Sonoff ZBM5-2C-86W smart switch. This 2-channel model is part of the SwitchMan M5 series and is compatible with Zigbee 3.0 systems, making it ideal for upgrading your electrical installation without major changes.
Note: This product uses the Zigbee protocol and requires a compatible Zigbee hub/bridge (e.g. Sonoff ZBBridge-P / Sonoff ZBBridge-U / Sonoff ZBDongle-E / Sonoff Dongle-M) to be connected to the network and controlled from the app. It does not work on its own over WiFi.
Smart functions
Individual control of 2 circuits – Switches two light sources or two distinct zones separately.
Zigbee 3.0 protocol – Ensures a stable connection and fast response via compatible Zigbee hubs: Sonoff NSPanel Pro, ZBBridge-P, iHost etc.
Control via the eWeLink app – Schedule, activate remotely or integrate into smart scenarios.
Compatible with voice assistants – Works with Amazon Alexa, Google Assistant and SmartThings.
Visual and audible feedback – Configurable status LED and silent press with tactile feedback.
86 format – Fits standard EU-type wall boxes (86 format).
Recommended applications:
Smart lighting control in rooms with two zones (e.g. living room and hallway)
Complex automations based on sensors or schedules
Upgrading the existing installation without additional wiring
Turn every room into a smart, comfortable and energy-efficient space with Sonoff ZBM5-2C-86W!
Practical use cases
- Replaces a classic wall switch, keeping manual control through the physical buttons, but adding app control and voice commands (Alexa/Google Assistant).
- Used to create lighting scenes that adjust several circuits in a room simultaneously with a single touch.
- Integrated into an automation that automatically switches off lights left on after bedtime or when nobody is in the room any more.
Technical specifications:
| Model | ZBM5-2C-86W (SwitchMan Zigbee) |
| Number of channels | 2 (2 buttons) |
| Protocol | Zigbee 3.0 |
| Load | 100-240V AC, 10A/channel, max 10A total (resistive load); LED max. 400W@240V per channel / total |
| App compatibility | eWeLink |
| Voice compatibility | Alexa, Google Assistant |
| Mounting | Flush-mounted, standard EU wall box, 86 format |
| Dimensions | 87 x 87 x 40.2 mm |
| Operating temperature | -10C ~ 40C |
| Wiring modes | with or without neutral wire (min. load 3W) |
ZBM5-2C-86W is the ideal choice for anyone who wants to upgrade classic wall switches with smart control, without giving up manual control via physical buttons.
