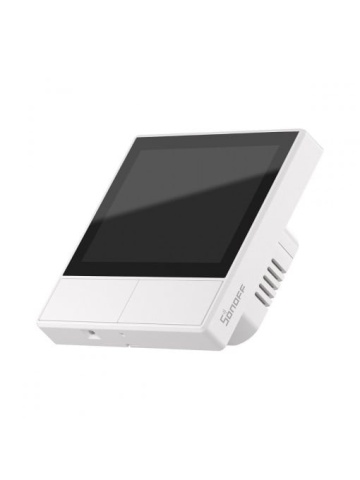

Open box Smart touch switch with thermostat function Sonoff NS Panel - white
Description

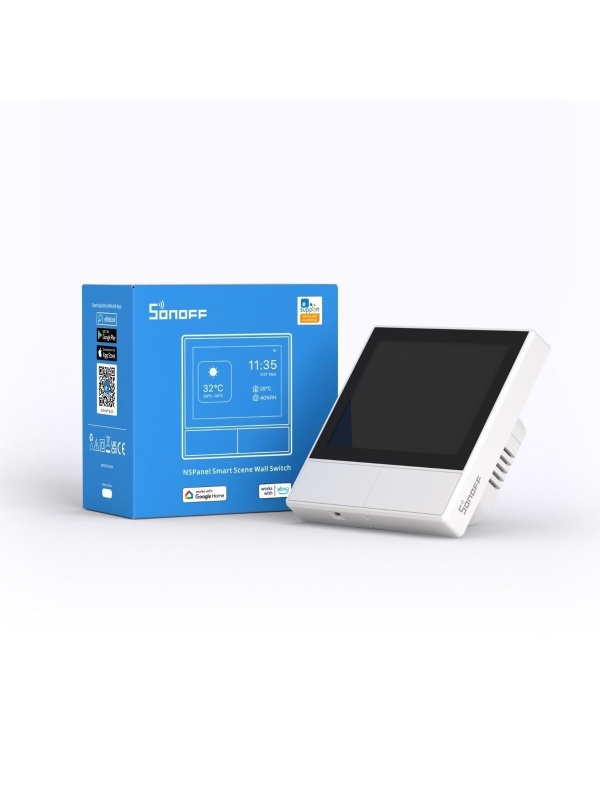

What does "open box" mean?
Open-box products are returned products with opened or damaged packaging, but fully checked from a technical point of view and completely functional. They come with the same warranty as new products.

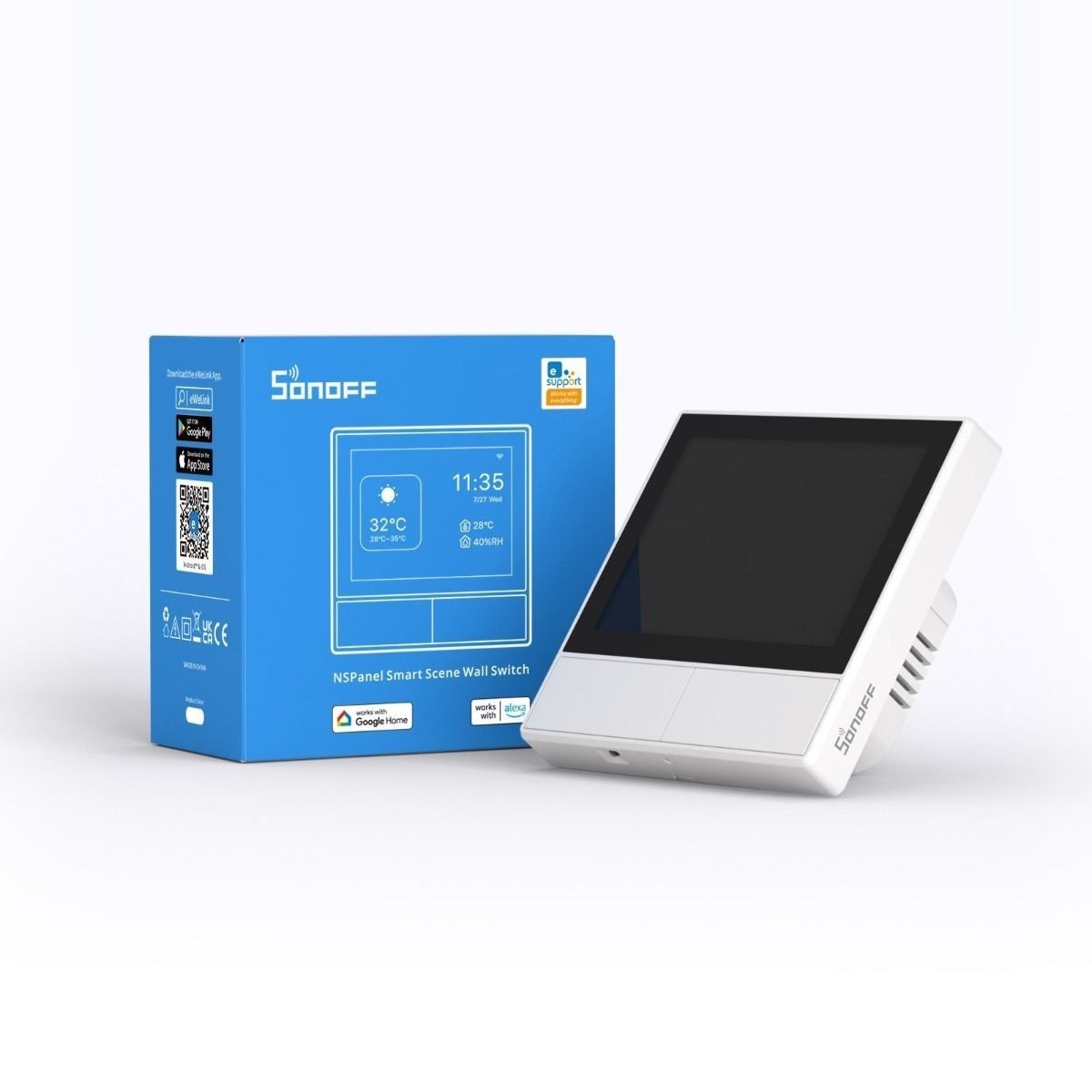

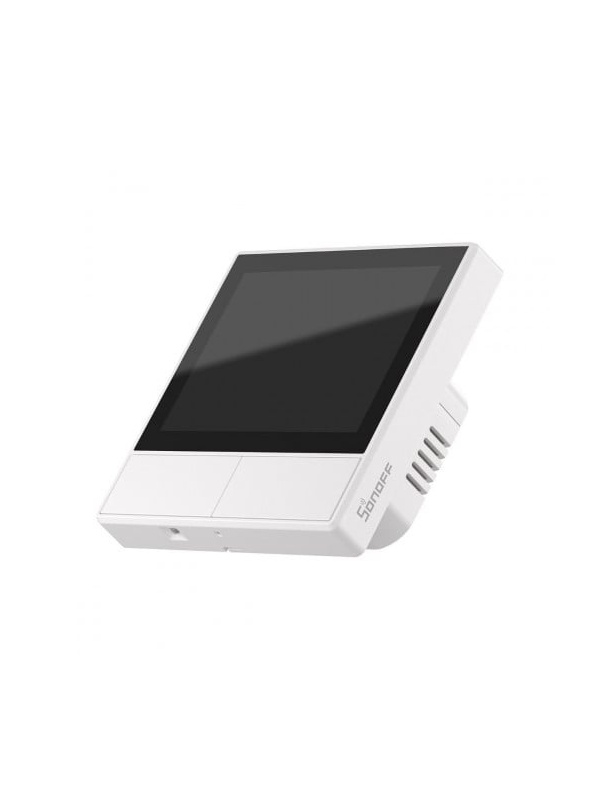

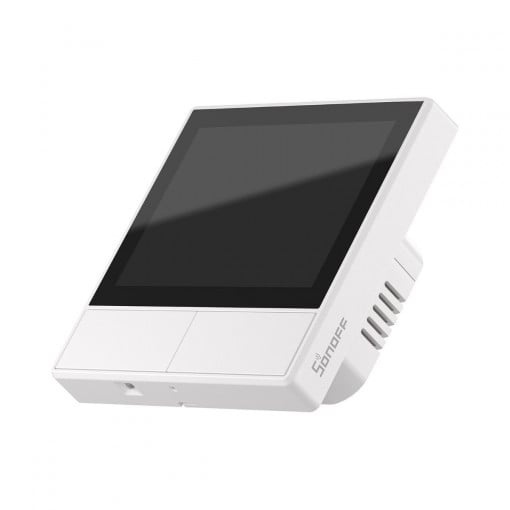

Sonoff NS Panel smart touch switch with thermostat function, WiFi + TFT screen, white
The Sonoff NS Panel is a smart wall switch with a colour TFT touchscreen that combines light control, smart scenes and a smart thermostat function in a single device. With an elegant design and rich functionality, the NS Panel is the perfect choice for centralised control of your smart home, directly from the wall.
Multifunction TFT touchscreen
-
3.5" colour screen with an intuitive interface
-
Shows temperature, humidity, time and weather
-
Allows control of two physical channels + quick scenes from the eWeLink app
Smart thermostat function
-
Real-time display of temperature and humidity
-
Lets you set a temperature threshold for automatically switching a heating or cooling system on/off
-
Compatible with the Sonoff THS01 temperature and humidity sensor (with RJ9 connector)
Built-in smart control for two circuits
-
Local control for two independent electrical channels (e.g. lights, socket, heating)
-
Control from the eWeLink app or directly from the touchscreen
-
Schedules, timer and automatic scenes
Remote and voice control
-
Compatible with Amazon Alexa, Google Assistant and SmartThings
-
Control connected devices by voice or directly from the mobile app
-
Lets you control favourite scenes configured in eWeLink
WiFi + Bluetooth connectivity
-
Connects via WiFi 2.4 GHz
-
Bluetooth for quick and stable pairing
Standard installation, elegant design
-

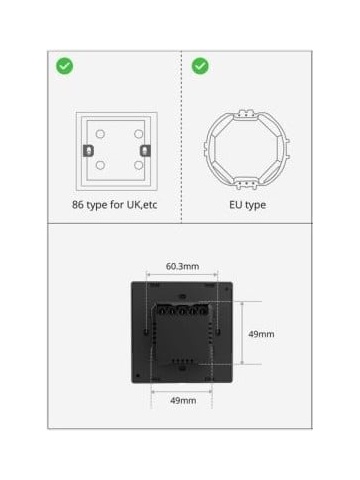

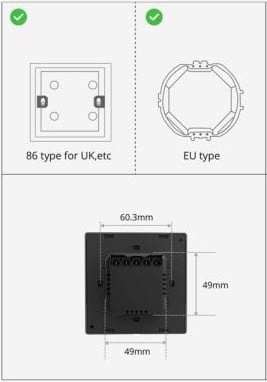

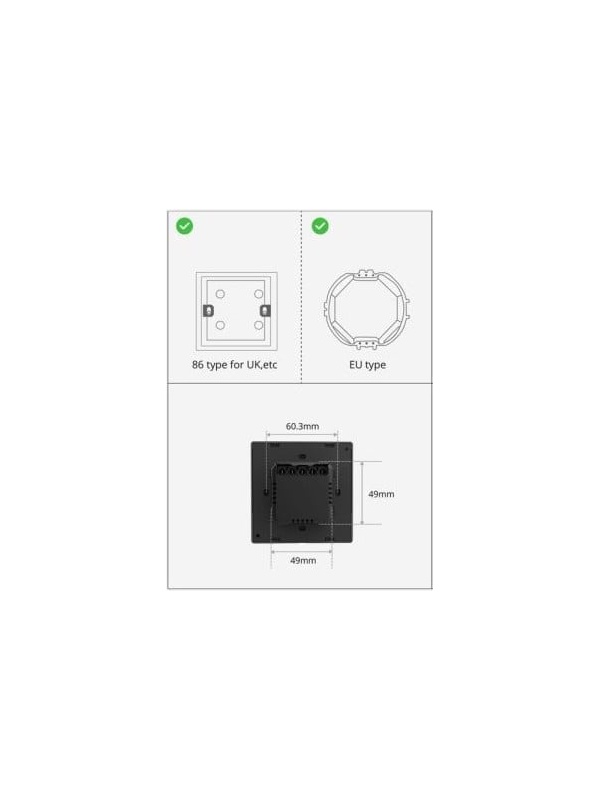

Mounts in a standard wall box
-
Modern design with a white casing and premium finishes
-
Suitable for any setting – living room, hallway, bedroom or office
Practical use cases
- Installed in place of a classic switch, it becomes a central control panel for all the scenes and smart devices in the home.
- Used as a smart thermostat to control the boiler or the air conditioning, with a touch display for quick temperature adjustment.
- Integrated into an advanced automation system (e.g. Home Assistant), showing sensor status directly on the screen.
Technical specifications:
| Feature | Specification |
|---|---|
| Model | Sonoff NS Panel |
| Controllable channels | 2 physical channels + multiple smart scenes |
| Screen | TFT touch, 3.5” colour |
| Compatible sensors | THS01 (temperature/humidity – RJ9) |
| Supply voltage | 100–240V AC, 50/60Hz |
| Connectivity | WiFi 2.4 GHz + Bluetooth |
| Compatibility | eWeLink, Alexa, Google Assistant, SmartThings |
| Dimensions | 86 × 86 × 41.7 mm |
| Colour | White |
Turn your home into a smart, elegant space with the Sonoff NS Panel – the touch switch with a screen, multiple control and a thermostat function, for complete, integrated and efficient comfort.
Technical specifications:
| Model | NSPanel-EUW |
| Protocol | WiFi 802.11 b/g/n 2.4GHz, Bluetooth 4.2 BLE |

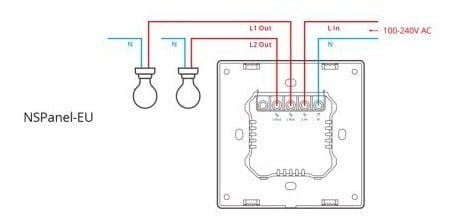

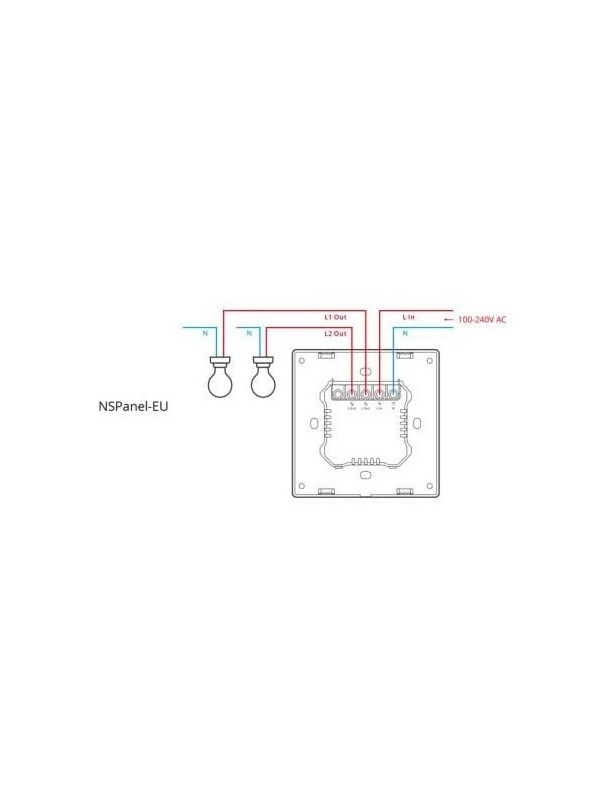

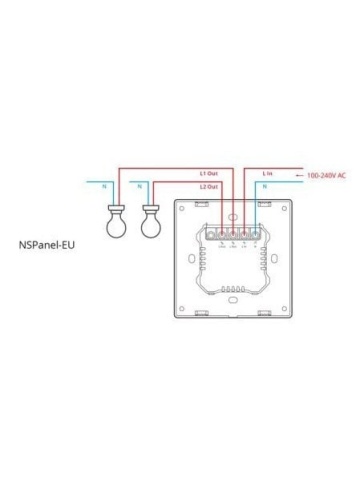

| Power supply | input 100-240V AC 4A max; output 100-240V AC 2A/channel, 4A total |
| Display | TFT 3.5 inch capacitive, 480x320px |
| Relay load | 300W/110V total, 600W/220V total |
| Dimensions | 86 x 86 x 41.7 mm |
| Compatibility | eWeLink, Alexa, Google Assistant, Siri Shortcuts; requires a neutral wire |
The NSPanel-EUW is the right choice for anyone who wants an elegant, intuitive central control panel for the whole smart home.
