Pack of 2x Shelly 1 Mini Gen4 – Smart relay WiFi, Zigbee, Matter, Bluetooth
Description
2x Shelly 1 Mini Gen4 pack – Compact multi-protocol smart relays

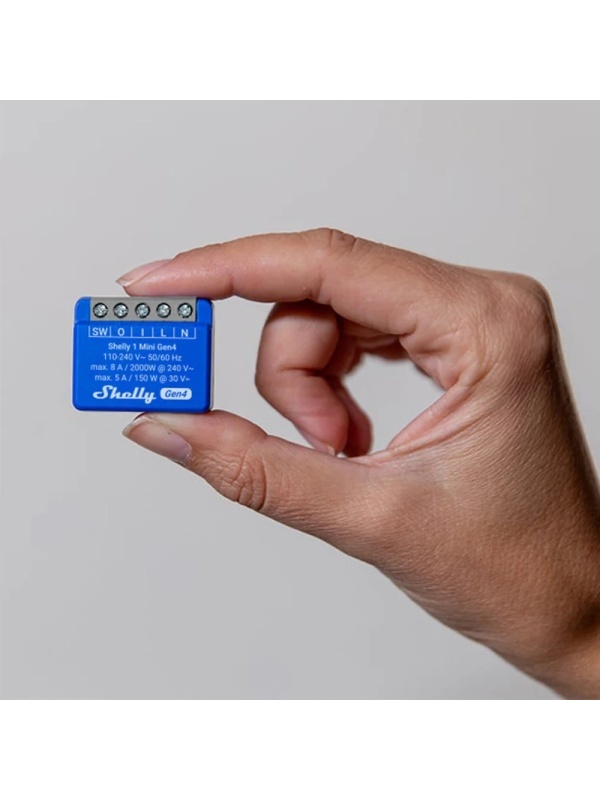

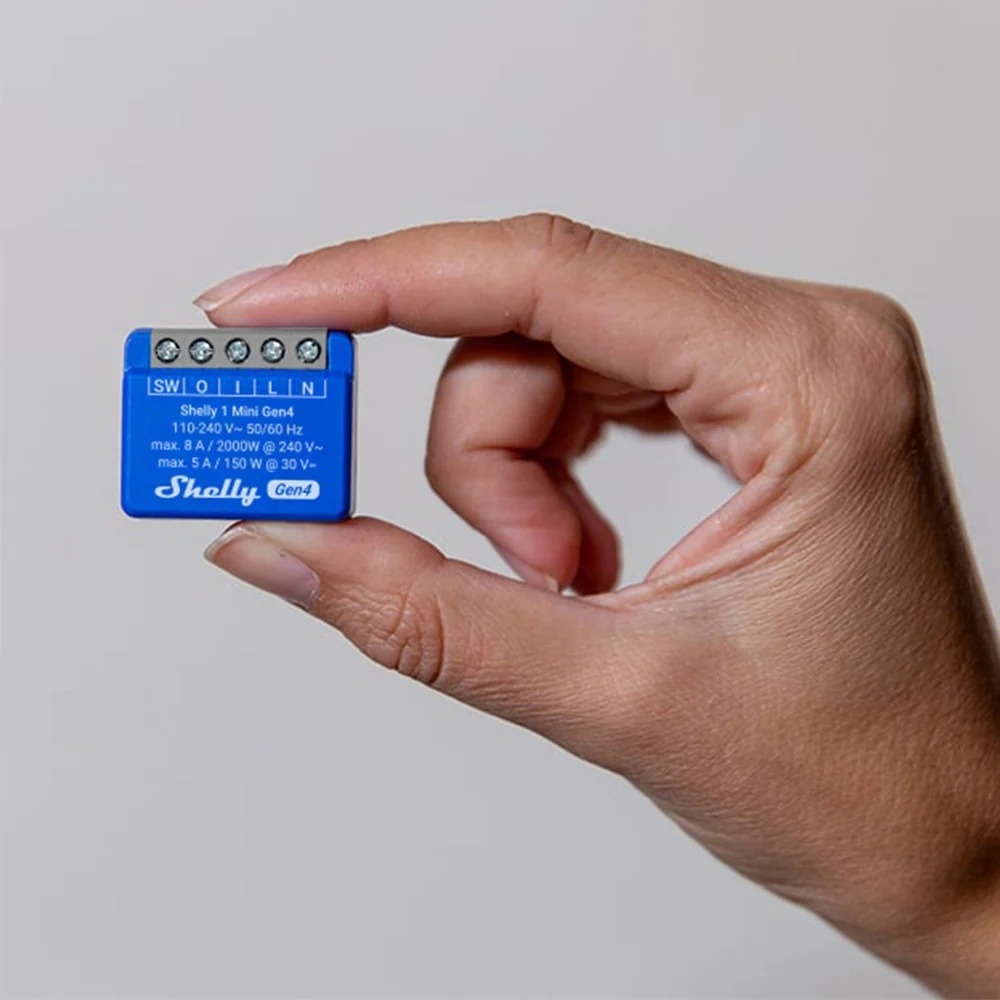

Shelly 1 Mini Gen4 is the compact, improved version of the Shelly 1 Gen4 model, designed for tight spaces and discreet integration. More than 30% smaller than the standard model, Shelly 1 Mini Gen4 offers the same power and reliability, but in an ultra-compact format.

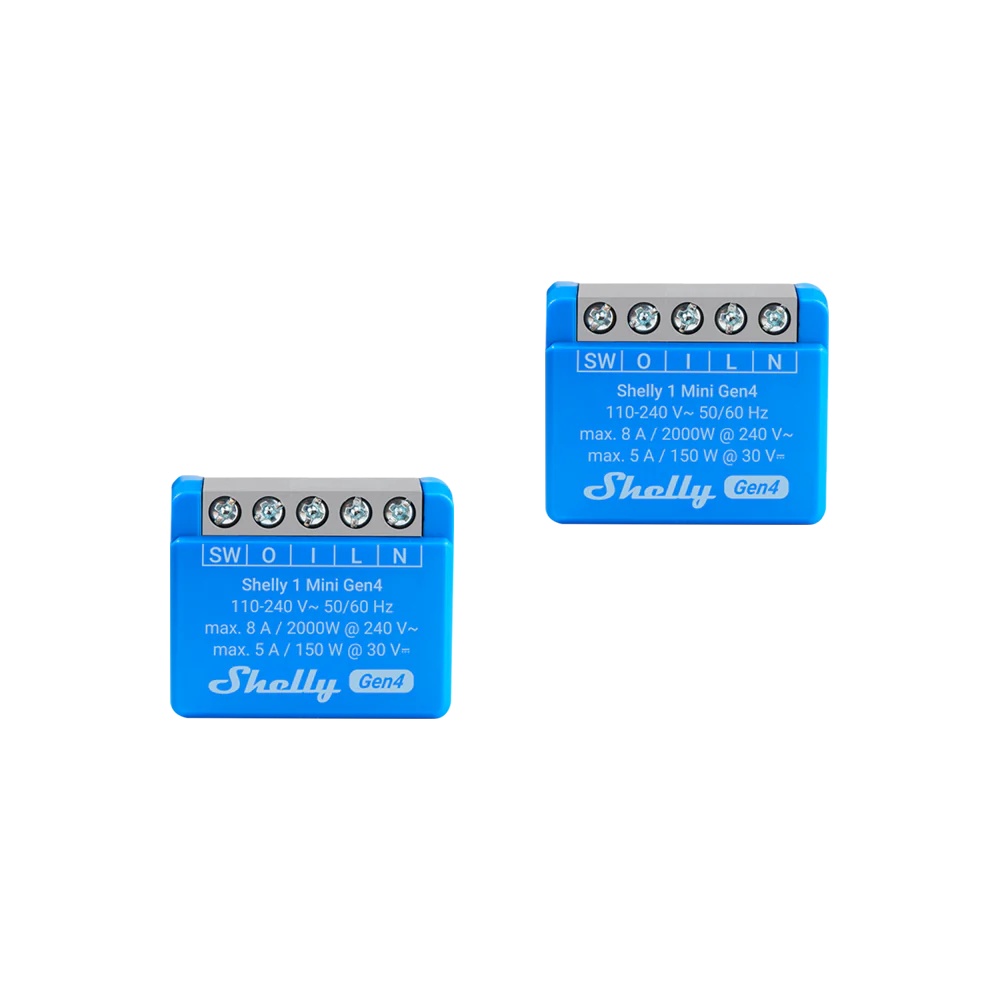

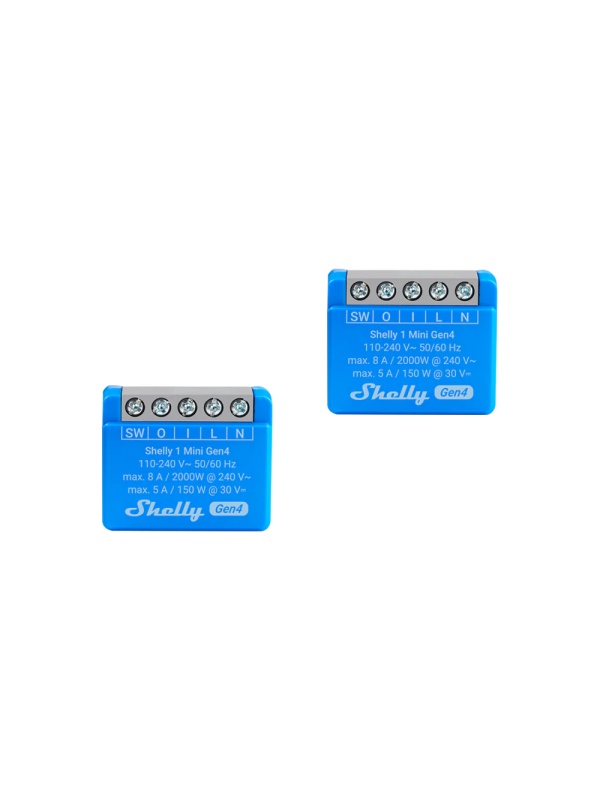

The pack includes 2 Shelly 1 Mini Gen4 modules, ideal for automating lights, sockets and electrical appliances.
Main functions
-
ON/OFF control for circuits of up to 8A (2000W at 240V AC)
-
Multi-protocol connectivity: WiFi, Zigbee, Bluetooth and Matter
-
Local operation without an additional hub – direct connection to WiFi
-
Compatible with Home Assistant, Alexa, Google Home and other smart home platforms
-
Support for automations, scenes and timers
-
Control via the Shelly Smart Control app, MQTT, HTTP or Cloud
-
Overtemperature and overvoltage protection for extra safety
-
Easy mounting in wall boxes, switches or light fittings
Technical specifications
-
Power supply: 110–240V AC / 24–60V DC
-
Maximum current: 8A
-
Connectivity: WiFi 802.11 b/g/n, Zigbee, Bluetooth, Matter
-
Dimensions: 29 x 36 x 16 mm
-
Operating temperature: –20°C to +40°C
-
Self-consumption: <1W
User benefits
-
Miniaturised format – suitable for tight spaces or complex installations
-
Quick installation and easy integration into existing circuits
-
Multi-protocol compatibility for extended integration
-
Local control even without an internet connection
-
Latest-generation reliability and performance
Practical use cases

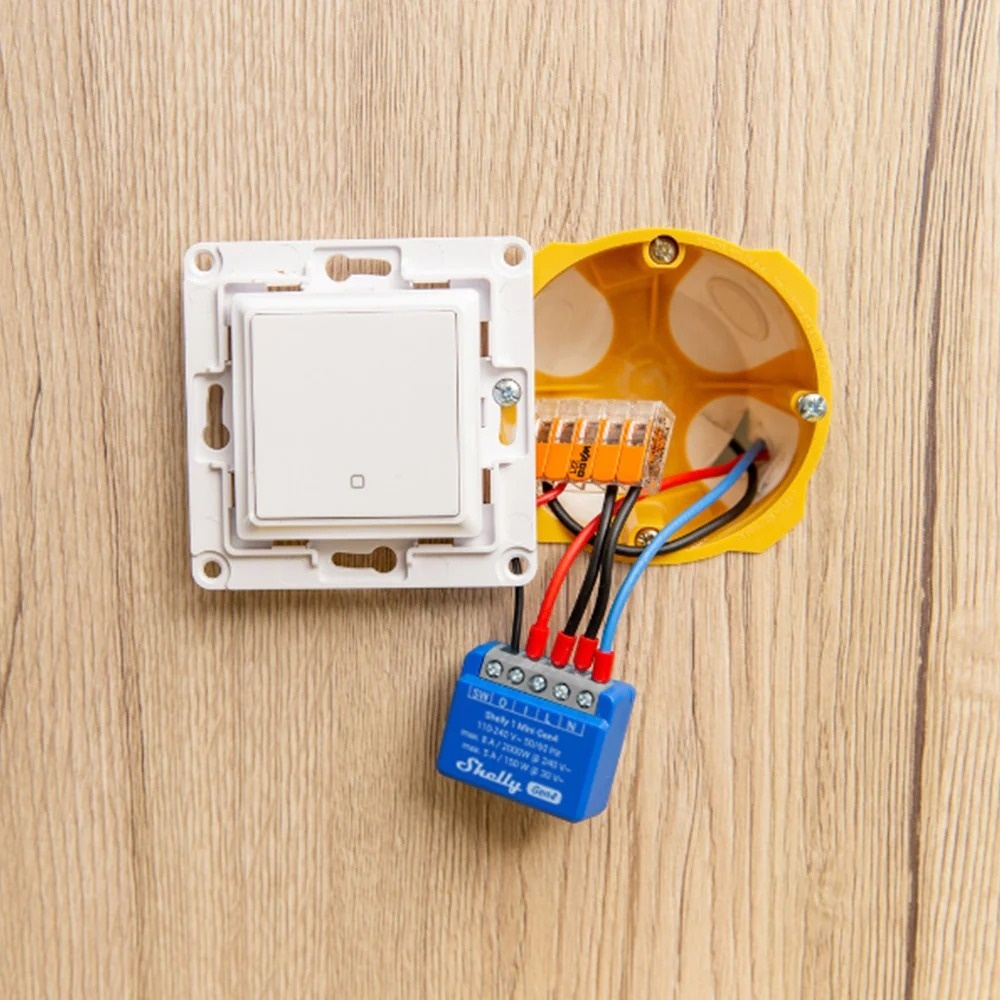

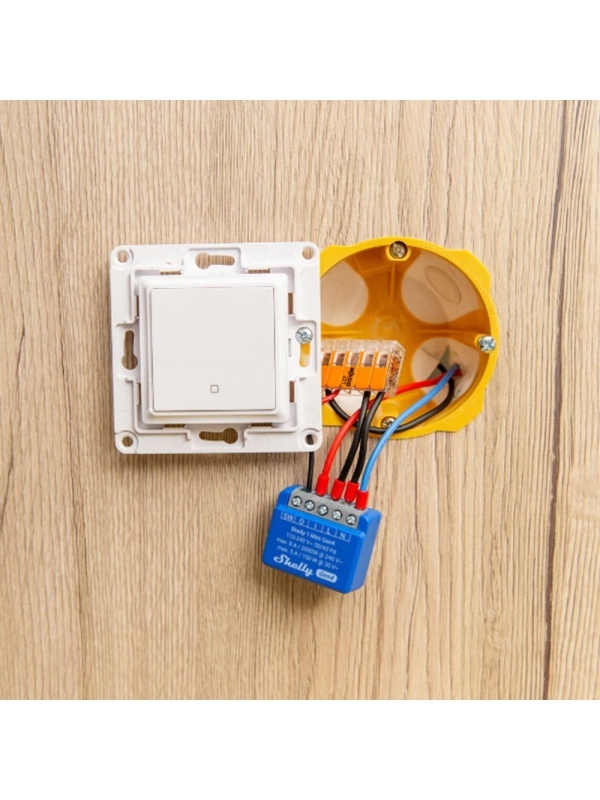

- Mounted behind a conventional wall switch, it turns a room's lighting into a circuit controlled from the app, by voice command or automatically, without replacing the existing switch.
- Installed on the circuit of a recirculation pump or an electric water heater, it allows remote switching on/off and scheduling of operating hours to save energy.
- Integrated into a home automation system, it can automatically switch off sockets or lighting when the whole family leaves home, based on geolocation from the app.
- Used in an electrical panel to control outdoor lighting, it can be scheduled to switch on automatically at sunset and switch off in the morning.
