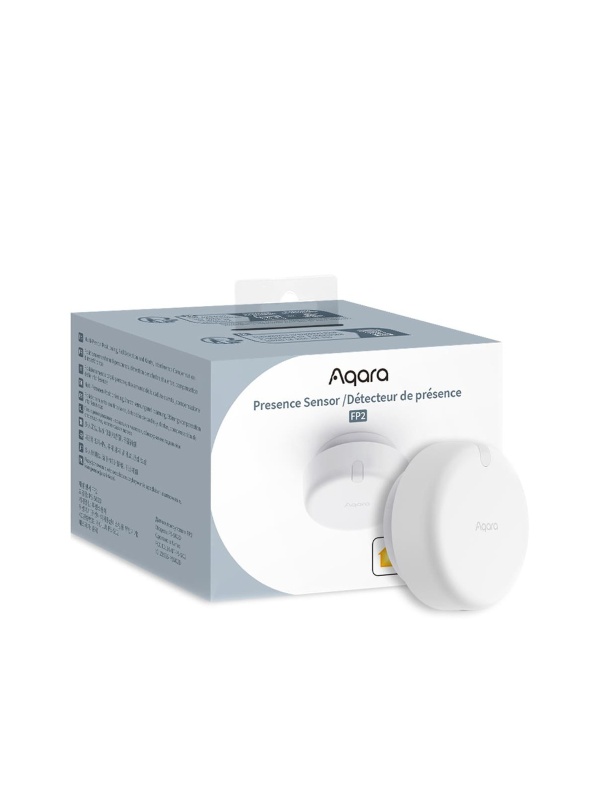

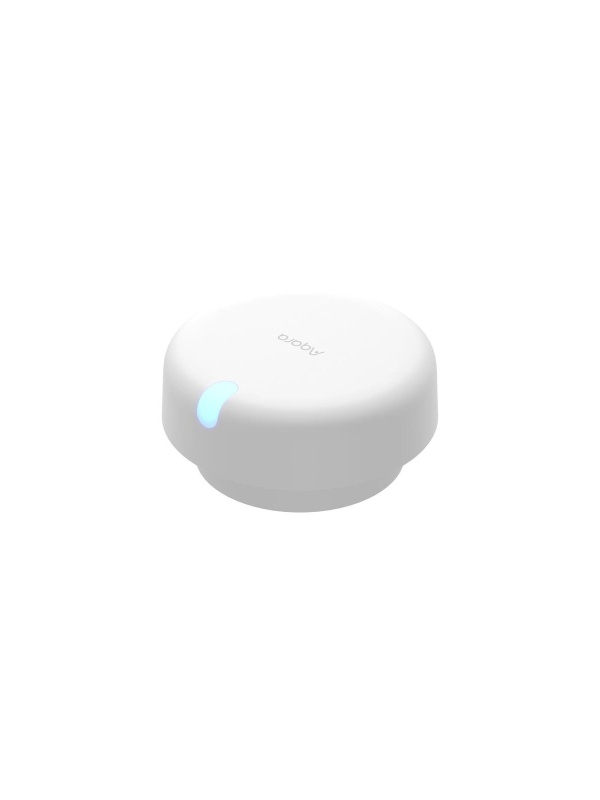

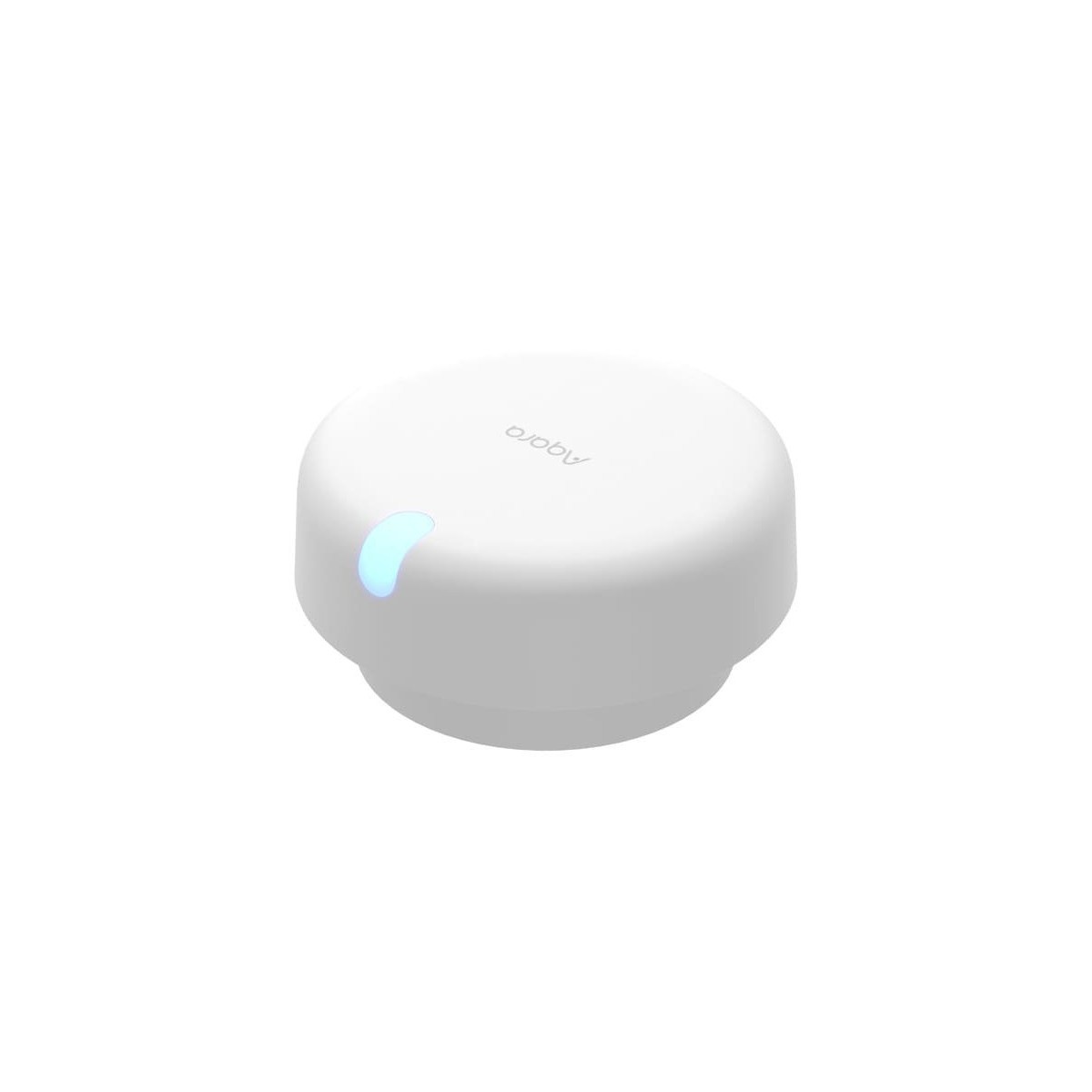

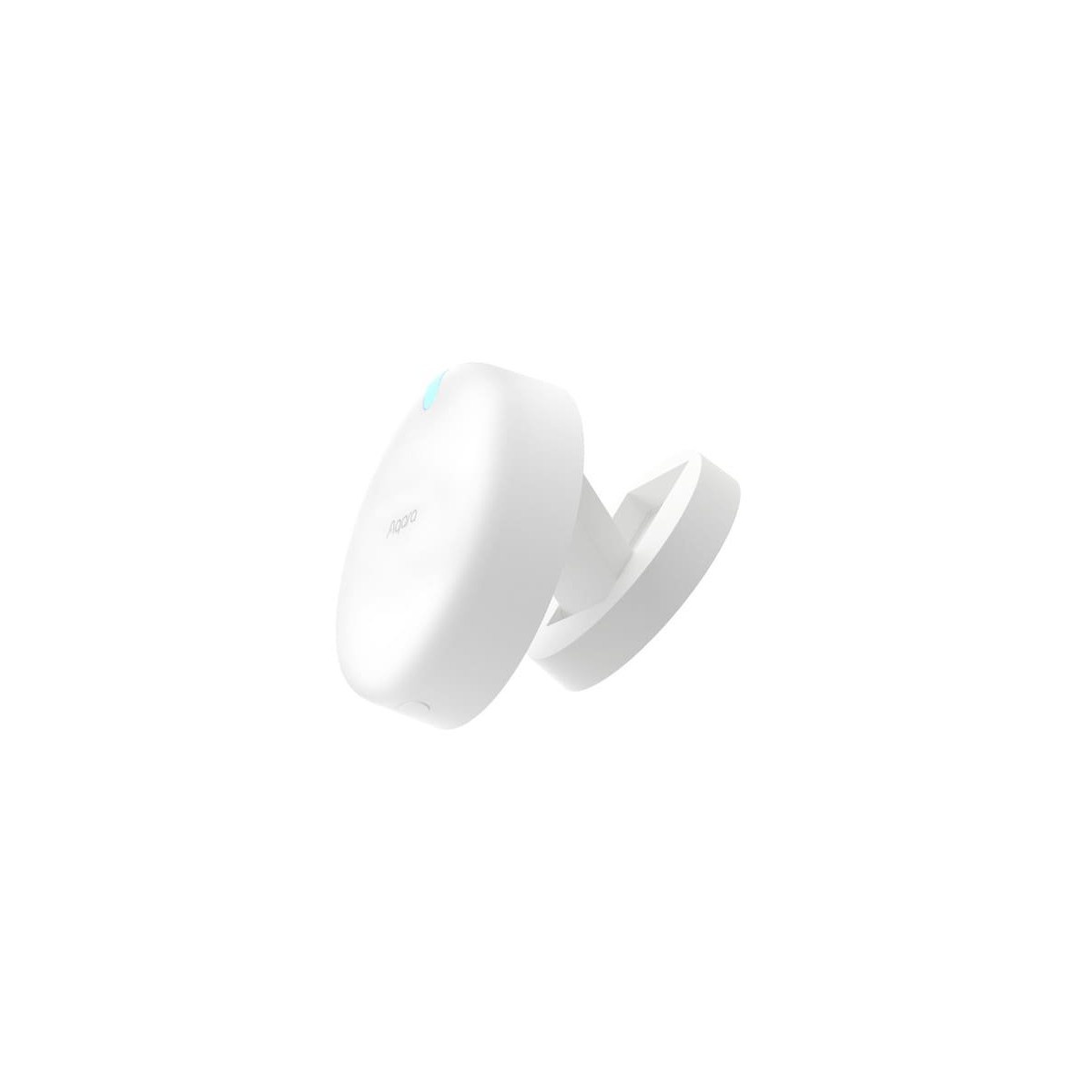

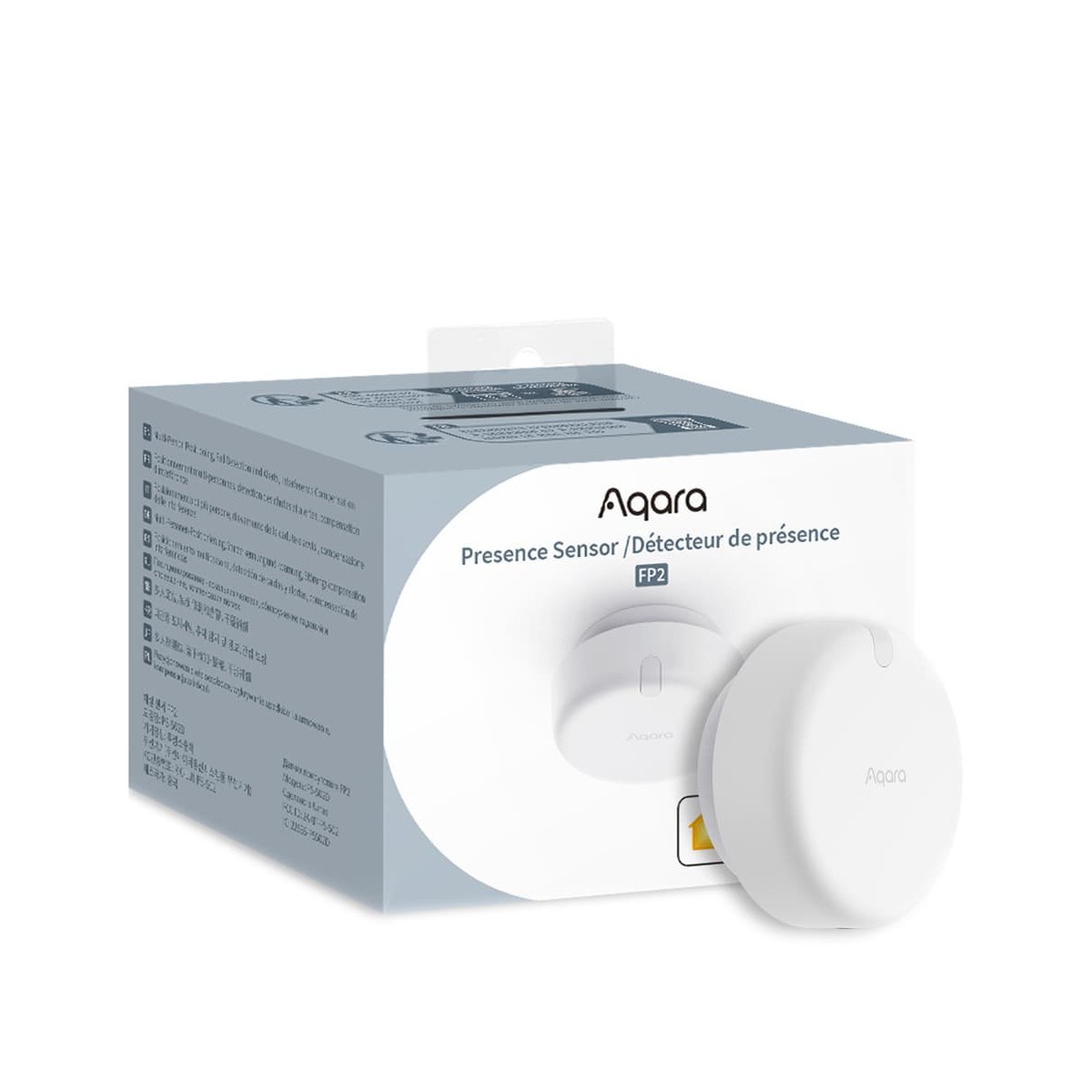

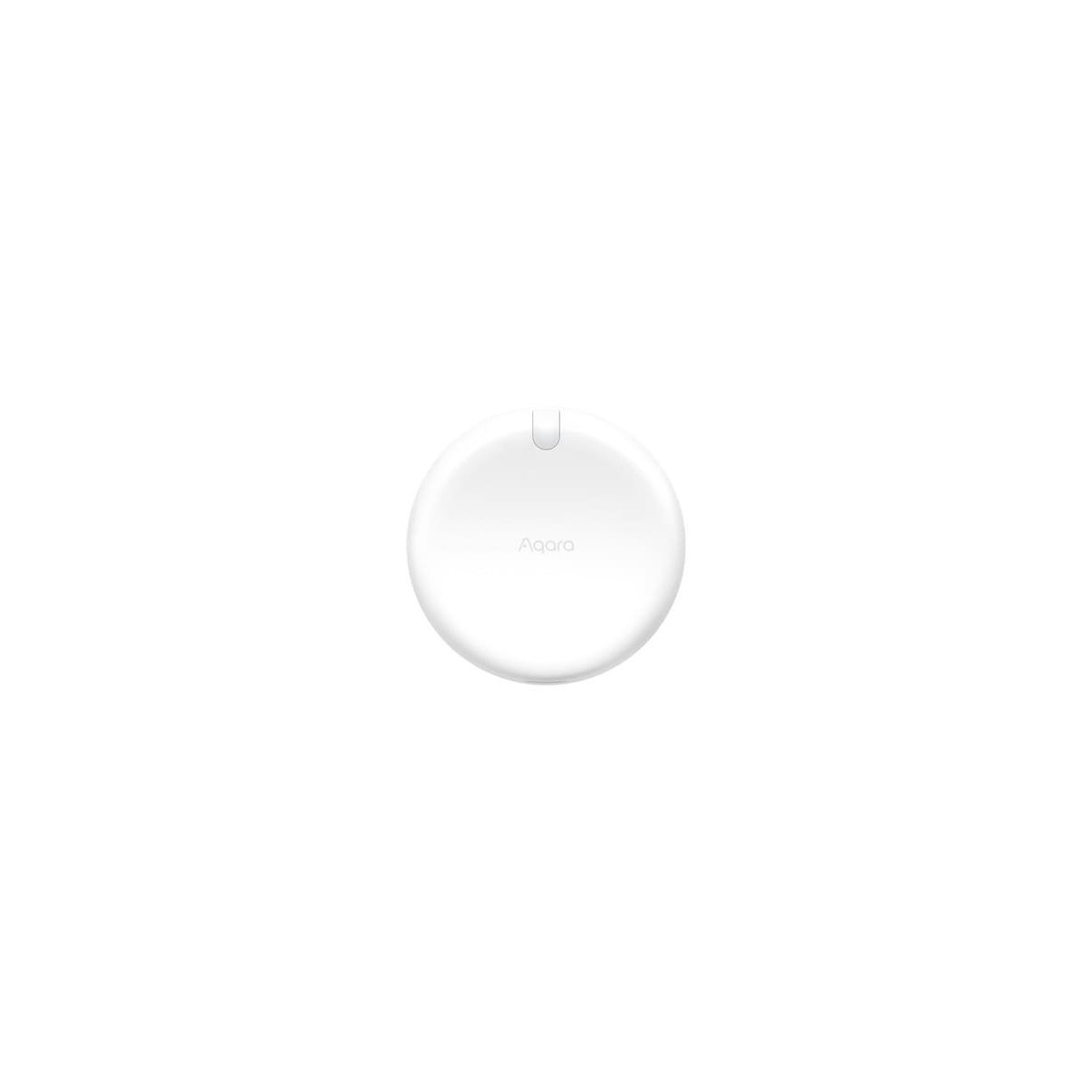

Presence sensor Aqara FP2

The Aqara Presence Sensor FP2 utilises advanced millimetre radar technology, capable of accurately detecting the presence of people, even in the case of very fine movements. This technology ensures stability, accuracy and continuity in device operation. The sensor enables zone positioning, making it possible to automate different conditions in spaces such as the bed, office or sofa. It can divide a room into up to 30 zones and detect up to 5 people simultaneously. It can also control other smart devices through ecosystems such as Apple Home, offering varied functionality. It also includes features such as fall detection and built-in light sensor, making it an ideal aid for personalised and efficient home automation.

🔍 Key Features:

📌 Zone Positioning

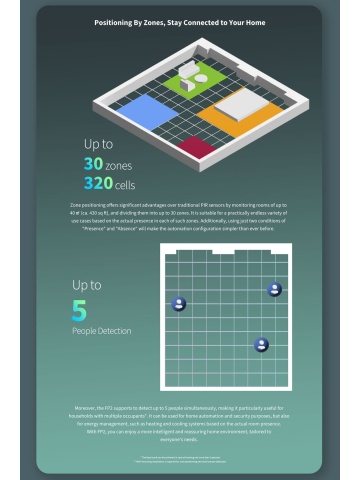

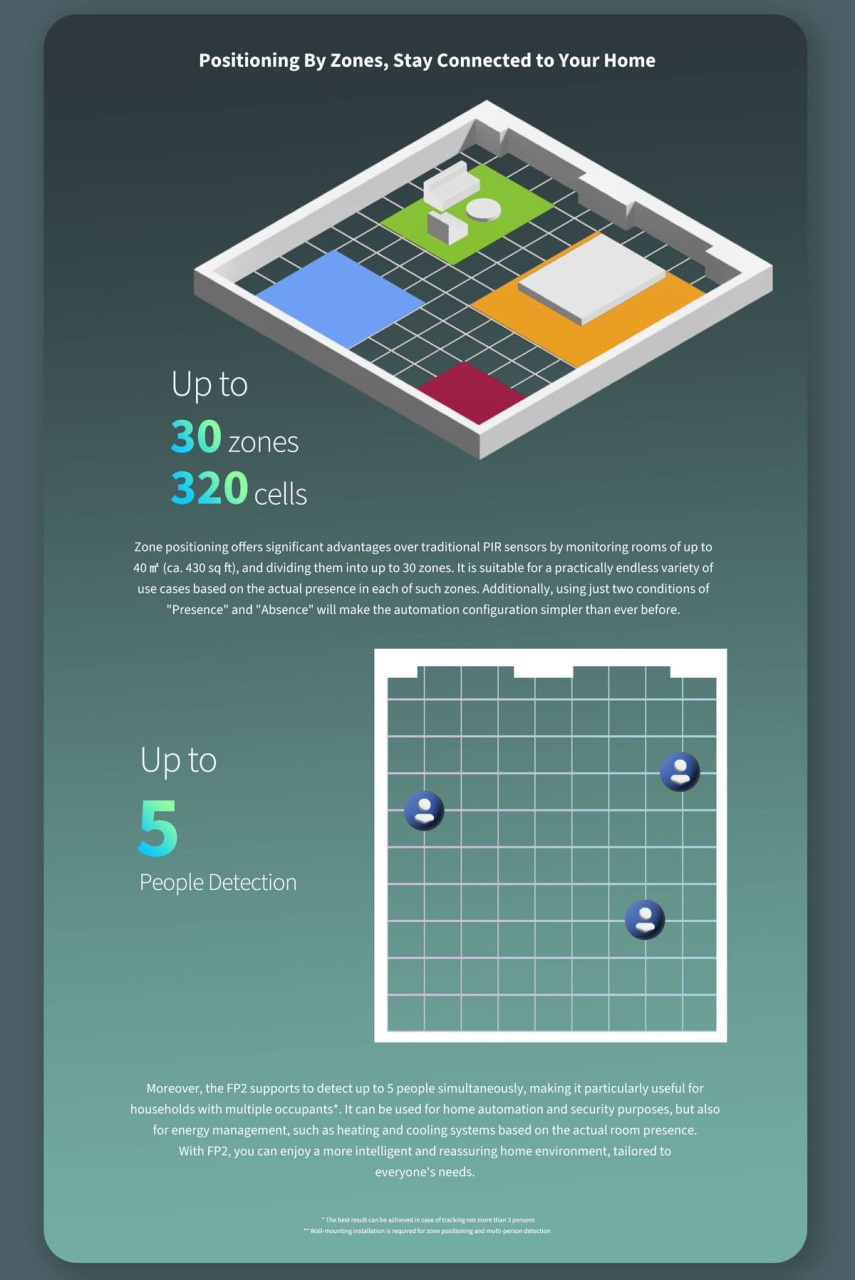

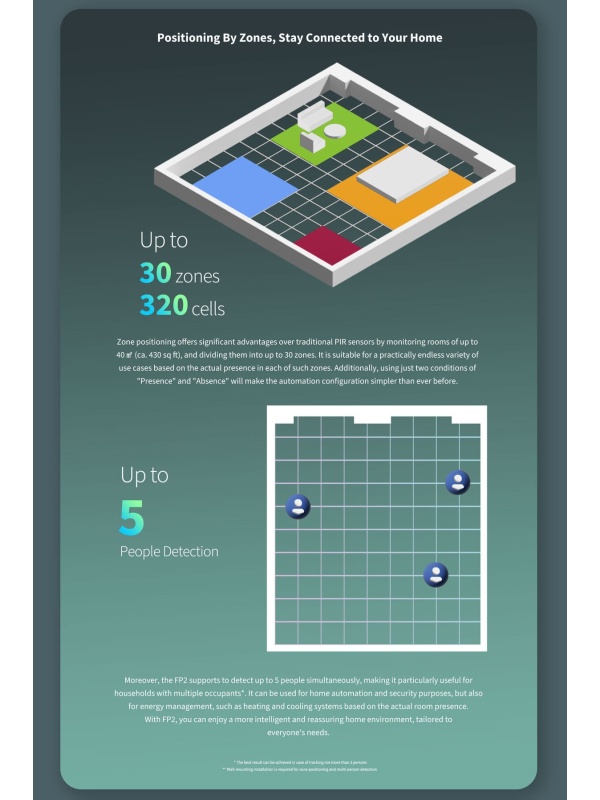

The sensor can cover an area of up to 40 m² and can be divided into up to 30 virtual zones. Each zone can have individual automations (e.g. bed, desk, sofa), the equivalent of using multiple traditional PIR sensors with a single FP2 device.

👥 Multi-person detection
It can detect up to 5 people simultaneously, reacting differently depending on the position of each person - no interference between users.

🎯 High accuracy and privacy
Detects presence without collecting actual images. Radar technology provides much more stable detection than PIR sensors, even when the person is standing still or sleeping.

🔗 Integration into smart ecosystems (HomeKit, Alexa, Google Home, etc.)
FP2 appears as multiple sensors in apps like HomeKit, Home Assistant, Alexa or Google. No hub required for integration, perfect for smart home enthusiasts.

🧍‍♂️ Fall detection
The sensor can detect a fall within a 2-metre radius with over 98% accuracy, providing quick notifications - no cameras or wristbands required. Ceiling mounting only.

💡 Integrated light sensor
Ideal for automation based on ambient light levels - switching lights on when it's dark, for example.

🔐 Local automation + Flexible installation
Works locally after setup - even if Wi-Fi goes down, automations remain active. Versatile installation and IPX5 protection - also suitable for bathrooms.

⚡ Hidden USB-C port
Allows you to replace the included cable with any USB-C cable for positioning flexibility.

⚙️ Technical specifications:

• Model: PS-S02D / PS-S02E

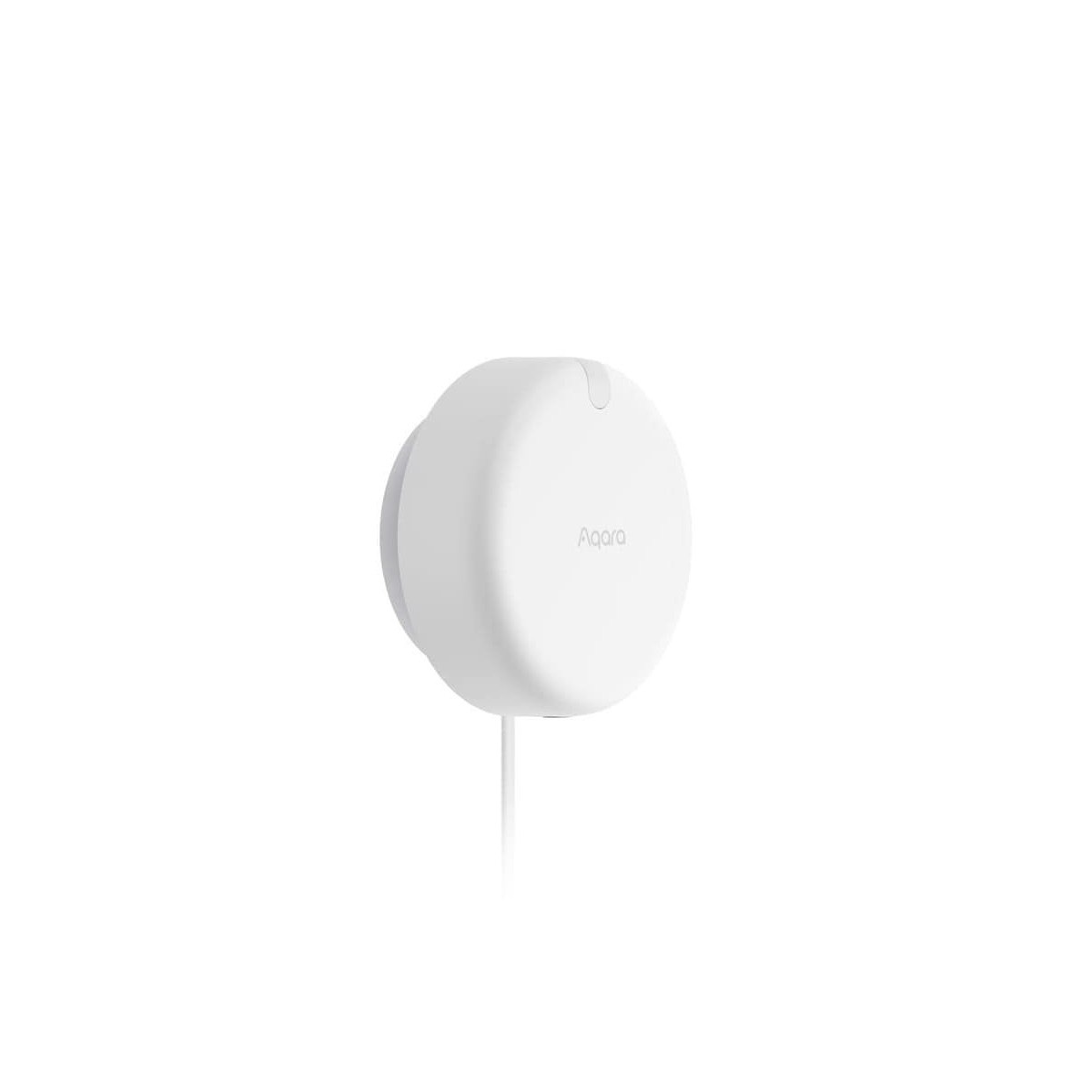

• Wall mounting detection range: up to 8m, 120° angle, up to 5 persons

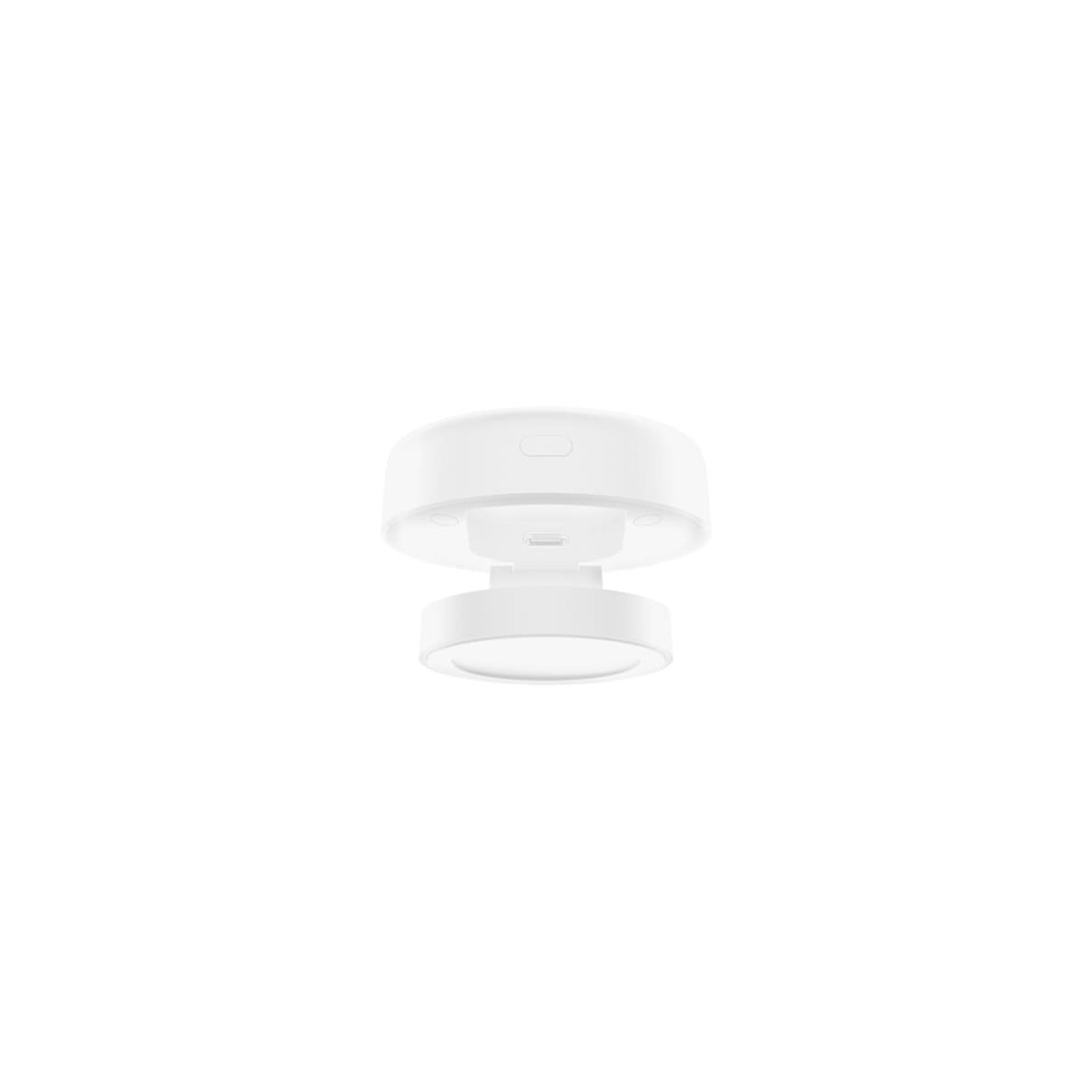

• Ceiling mount detection range: 2m radius circle (for fall detection)

• Power supply: 5V 1A (USB-C)

• Wireless protocols: Wi-Fi 2.4 GHz, Bluetooth 4.2

• Operating temperature: -10°C ~ +40°C

• Operating Humidity: 0 - 95% RH, non-condensing

• Protection rating: IPX5

📲 Examples of automation scenarios:

1. Instant Off Mode
If no presence is detected in any of the rooms, then switch off the lights, air conditioning and activate the alarm.
(→ FP2 + Hub + Smart socket + Smart bulbs)

2. Automated 'Wake up' without disturbing
If a person enters the bathroom but presence is still detected in the bed area, do not open the curtains.
(→ FP2 + Hub + Curtain Driver)

3. Adaptive ambient lighting
If presence is detected at the desk, lights the LEDs only in that area.
(→ FP2 + Hub + LED Strip/Smart Strip/Smart Screens)

4. Smart security activation
If presence is detected in the living room, activates the G3 camera for monitoring.
(→ FP2 + Hub G3 camera)

💡 Useful case studies:

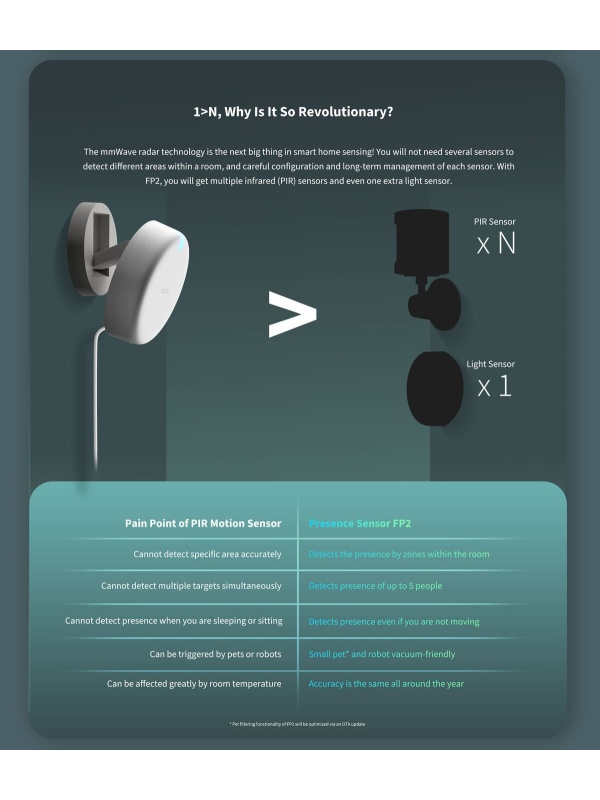

• Space redefinition - replaces dozens of PIR sensors in a space with a single FP2.

• Silent reading - detects subtle movements (breathing, heartbeat) without having to move.

• Natural interaction - no need to speak to a voice assistant to activate the lights, they automatically switch on when you enter the room.

• Fall detection for seniors - FP2 detects falls and sends in-app notifications without wristbands or cameras.

Aqara Presence Sensor FP2 redefines the way you understand presence in your home. With ultra-precise detection, local automation and extensive integration, it's the ideal sensor for an intuitive, efficient and discreet smart home.
