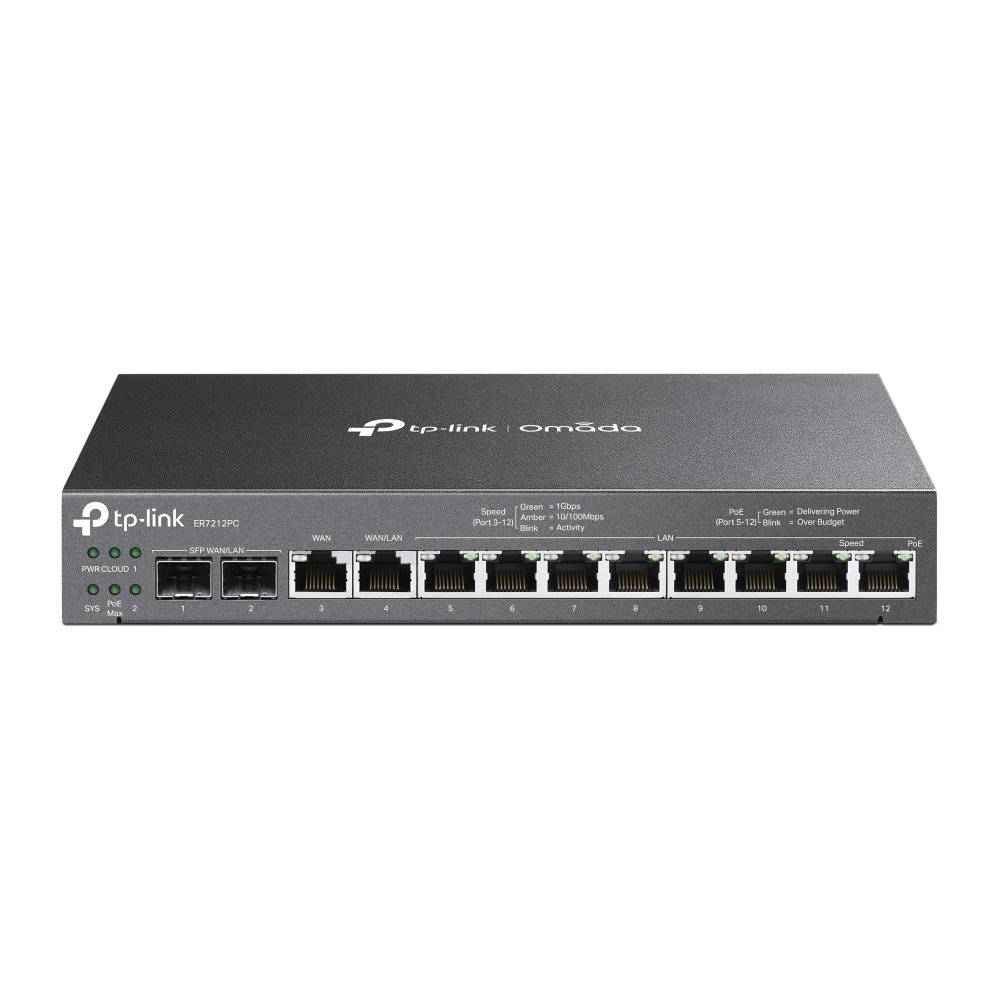

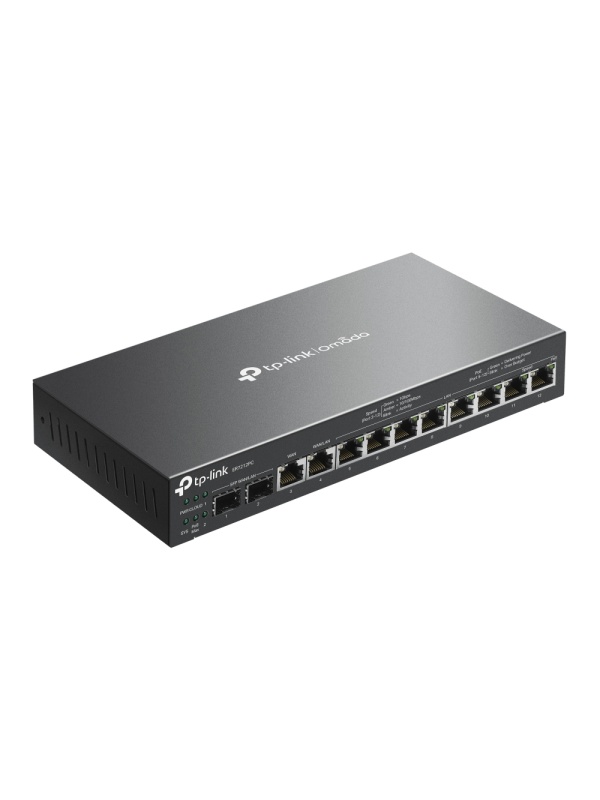

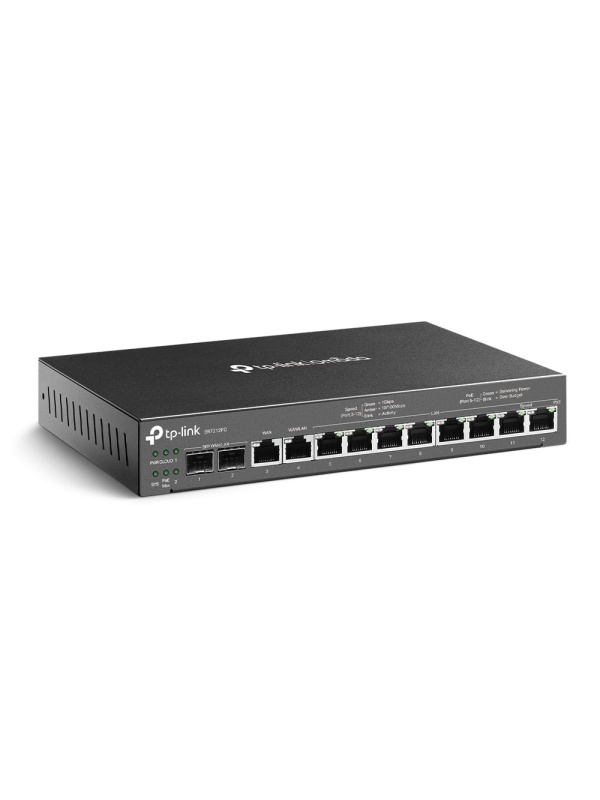

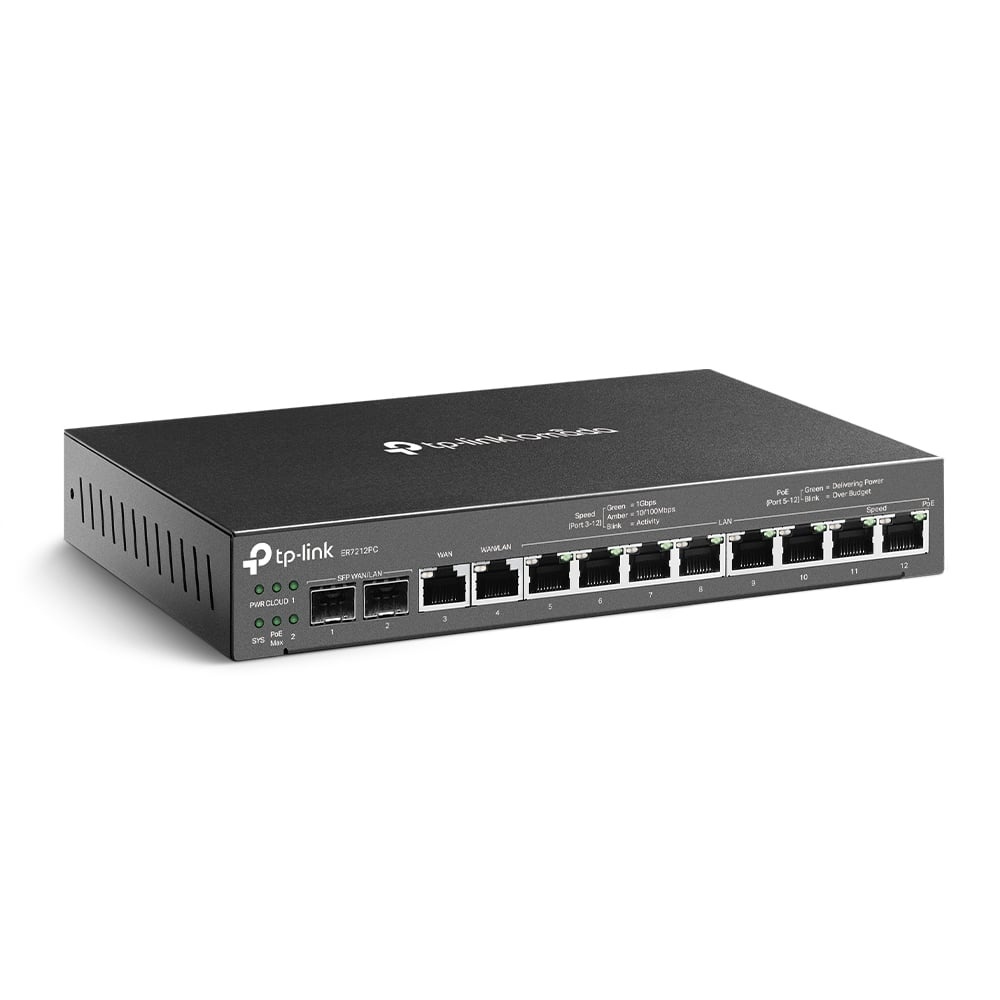

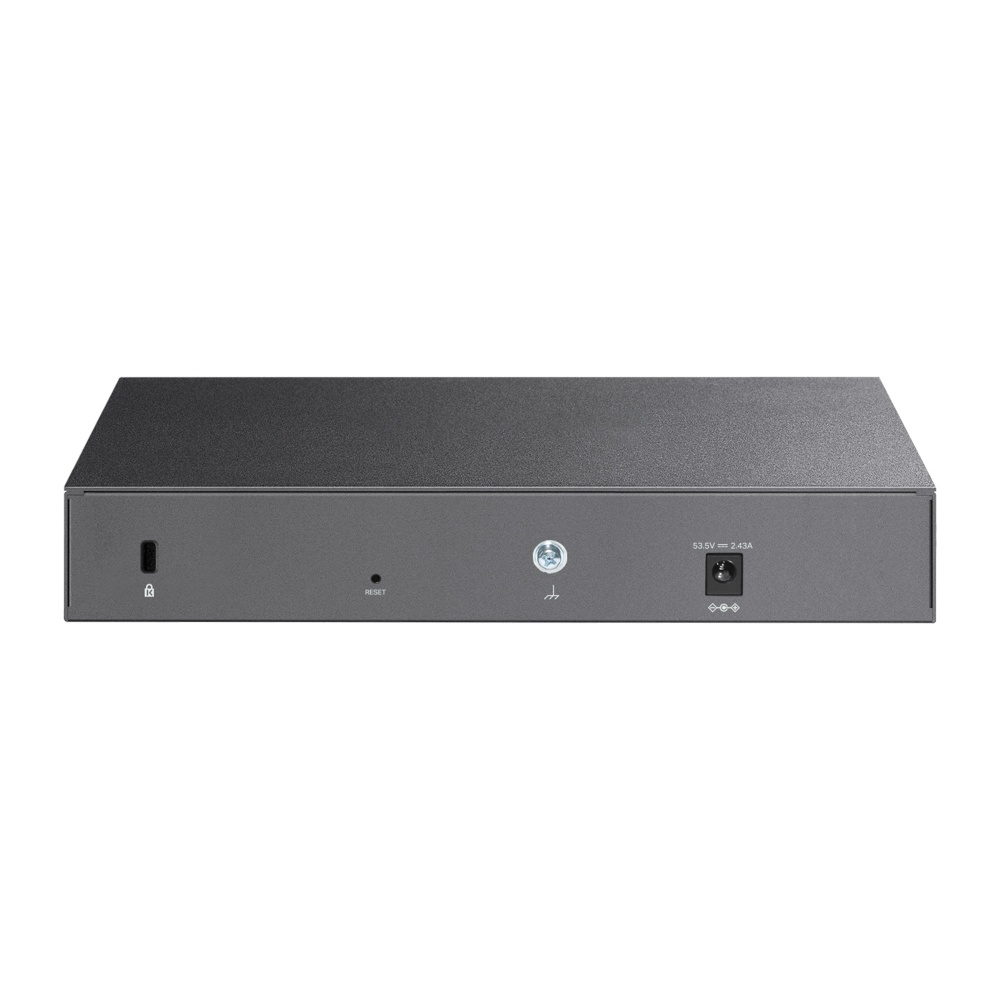

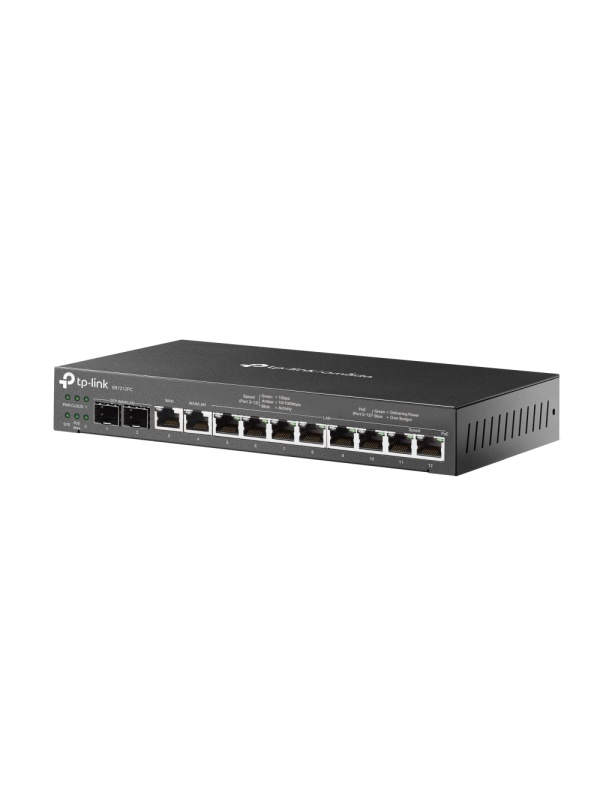

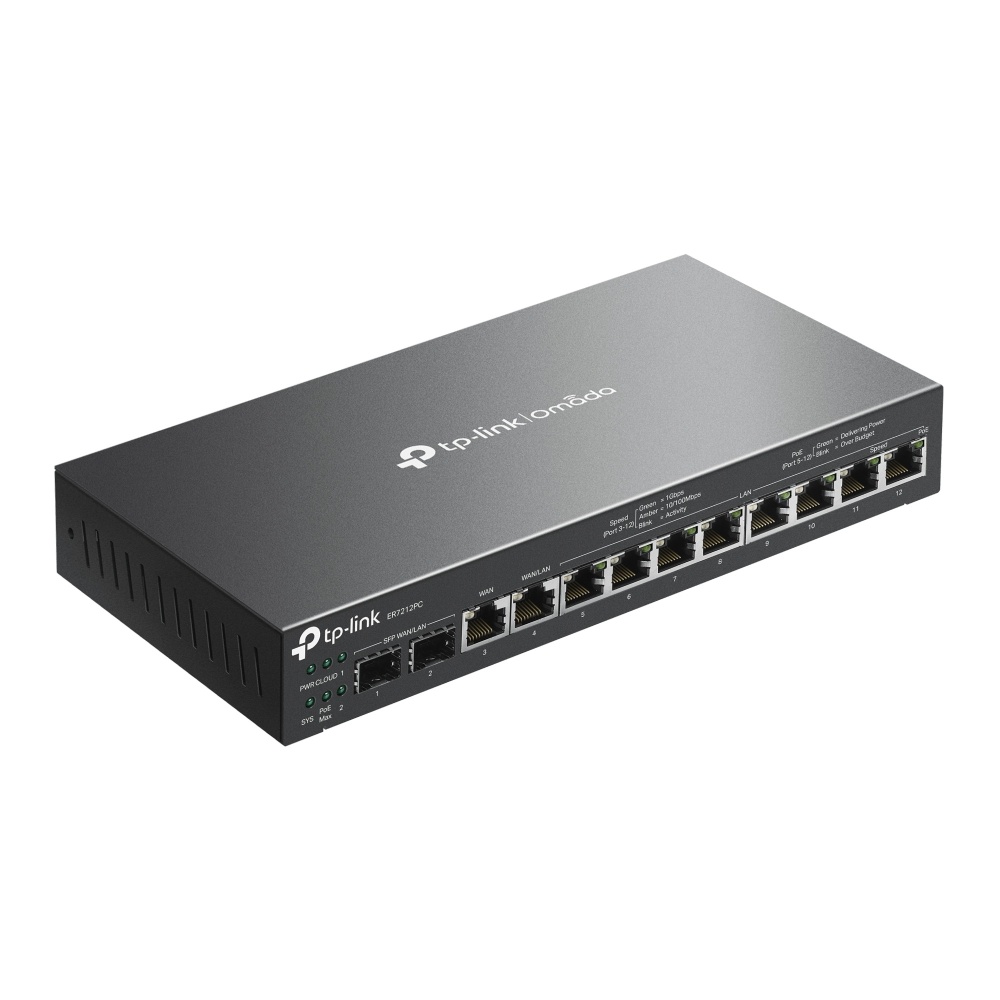

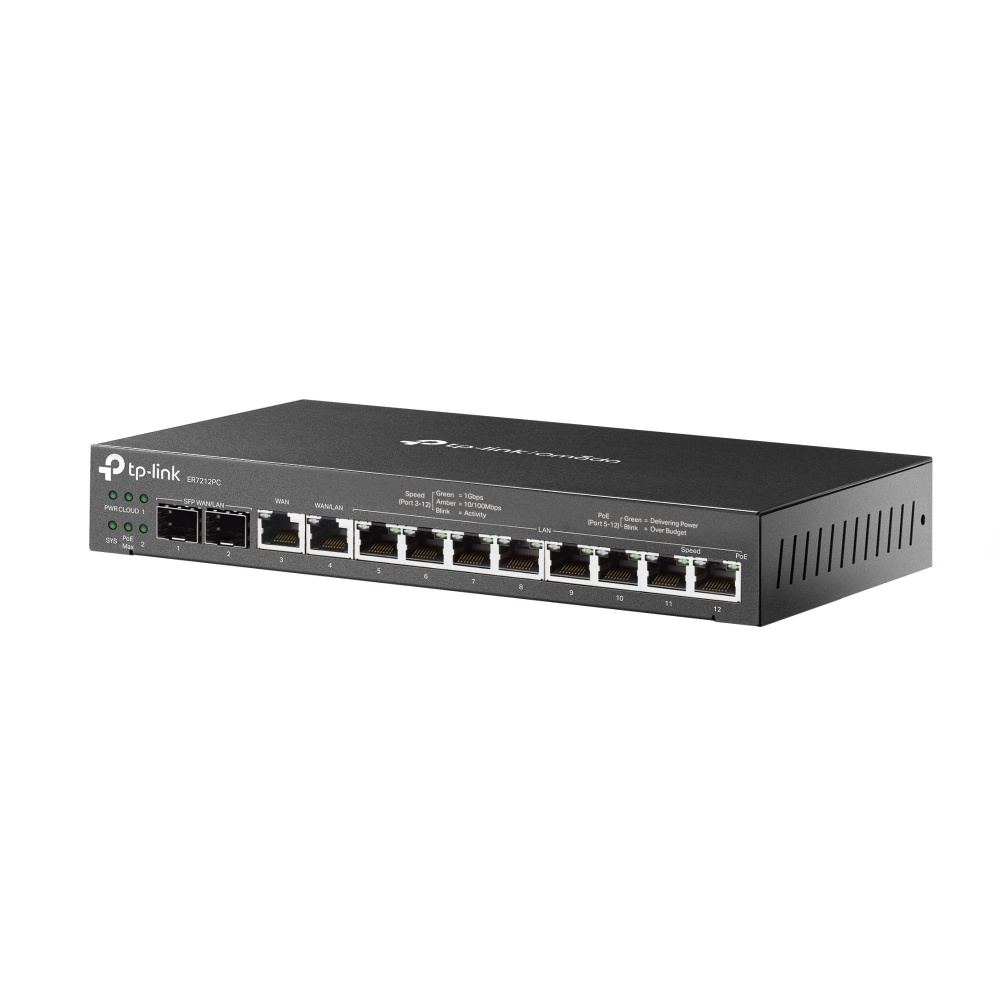

TP-Link ER7212PC - Omada 3-in-1 Router: Gateway, Controller and PoE+ Switch
TP-Link ER7212PC is the first Omada 3-in-1 device to combine VPN gateway, Omada hardware controller and PoE+ switch functions in a single enclosure, with a 110W PoE budget. It is equipped with a 1.2GHz dual-core processor and 1GB of DDR3 memory, delivering solid performance for small and medium networks.
Key features:
- Gateway + Omada Controller + PoE+ Switch in a single device
- 8 Gigabit LAN ports with PoE+ 802.3af/at, 110W budget
- 2x SFP WAN/LAN ports, 1x RJ45 WAN, 1x RJ45 WAN/LAN
- Integrated hardware controller for up to 22 Omada devices (gateway, switches, EAPs)
- VPN: OpenVPN, IPSec, PPTP, L2TP, L2TP over IPSec

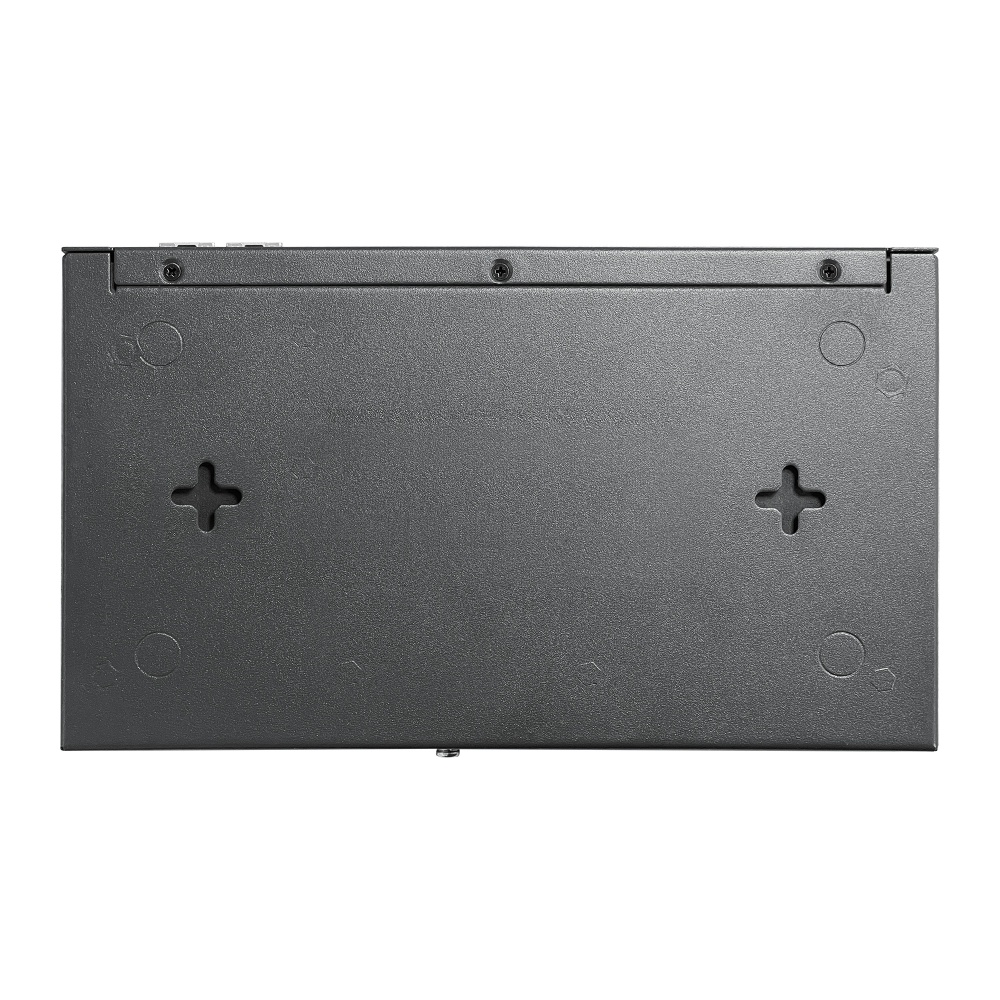

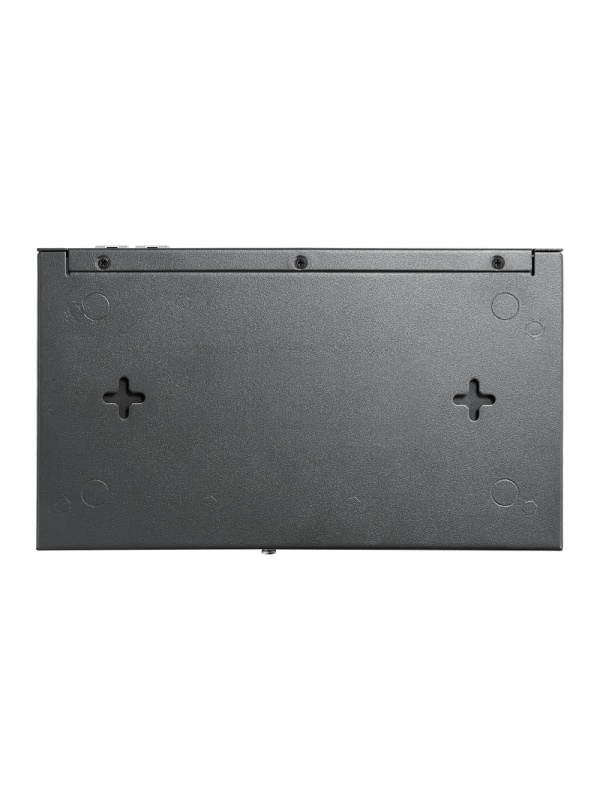

- Fanless enclosure, compact design for desktop or wall mounting
Practical use cases:
- A complete Omada network (gateway + switch + management) in a single unit, with no separate controller
- Small offices that need PoE power for cameras and access points without an additional switch
- Remote branches managed centrally via the integrated hardware controller
Technical specifications:
| Processor / Memory | Dual-core 1.2GHz, 1GB DDR3 |
| Ports | 2x SFP WAN/LAN, 1x RJ45 WAN, 1x RJ45 WAN/LAN, 8x RJ45 LAN |
| PoE | 8 PoE+ ports 802.3af/at, 110W budget |
| VPN | OpenVPN, IPSec, PPTP, L2TP, L2TP over IPSec |
| Management | Integrated Omada hardware controller, up to 22 devices |
| Protection | 4kV lightning protection |
| Design | Fanless, desktop/wall mounting |
TP-Link ER7212PC simplifies the infrastructure for small Omada networks, combining gateway, controller and PoE+ switch in a single compact unit.
