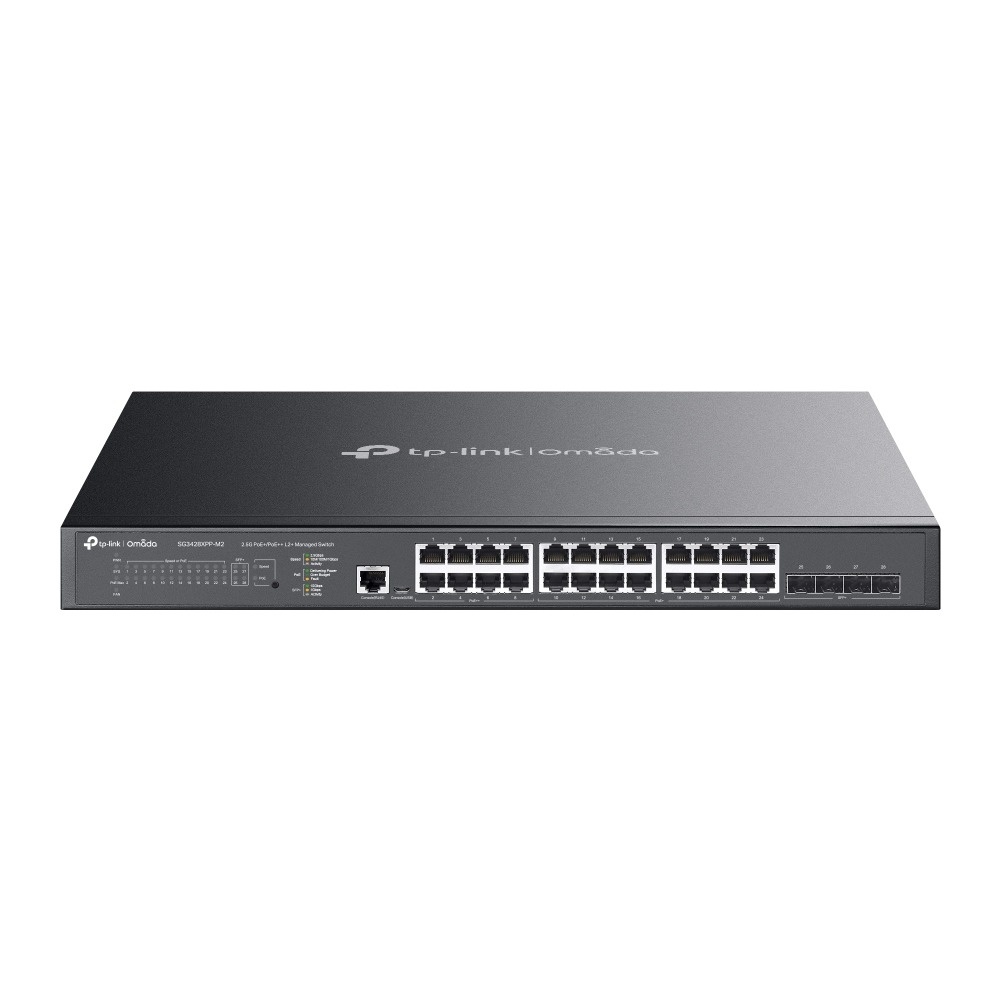

SG3428XPP-M2

PoE++ Multi-Gig Switch with L2+ Management - TP-Link Omada SG3428XPP-M2
⚡ S uperior performance in Wi-Fi 6/7 networks - with 24 Multi-Gig ports, 4 10G uplinks and robust PoE power supply

TheTP-Link SG3428XPP-M2 is an advanced PoE switch ideal for densely populated networks with modern Wi-Fi devices and IP cameras. With 24 2.5 Gbps ports capable of delivering up to 60 W each and 4 10 Gbps SFP+ 10 Gbps slots for high-speed uplink, it offers a complete solution for demanding infrastructures.

🔌 Multi-Gig + PoE++ connectivity

• 24× 2.5 Gbps RJ45 ports - 8 ports with PoE++ (up to 60 W/port) + 16 ports with PoE+ (30 W/port)(tp-link.com)

• 500 W total PoE budget - enough to power multiple Wi-Fi 7 APs, PTZ cameras, or smart lighting equipment(tp-link.com)

• 4× SFP+ 10 Gbps slots - high-speed optical uplink or physical stack

🧠 Advanced L2+ features

• Static Routing - internal traffic optimisation across multiple VLANs(tp-link.com)

• Robust network policies: VLAN, ACL, QoS, IGMP Snooping, OAM, DDM(tp-link.com)

• ERPS (Ethernet Ring Protection Switching) - fast recovery in redundant ring configurations

☁️ Centralised administration

• Full control via Omada Cloud-based Controller or Omada App(tp-link.com)

• Standalone support via Web UI, CLI, SNMP and RMON

🛡️ Security and reliability

• Advanced protection: ACL, 802.1X authentication, DoS Defend(tp-link.com, amazon.com)

• Redundant connectivity and communications with ERPS and 10G stacking

🧩 Design and Mounting

• Rugged metal enclosure, 1U rack - dimensions 440×330×44 mm (tp-link.com)

• Multiple air vents for efficient component cooling

✅ Key facts

🎯 TP-Link Omada Omada SG3428XPP-M2 - the switch defined for high-performance networks, where multi-gig speed, PoE++ power. centralised management and redundancy are absolutely necessary. The complete solution for modern enterprise ecosystems.
