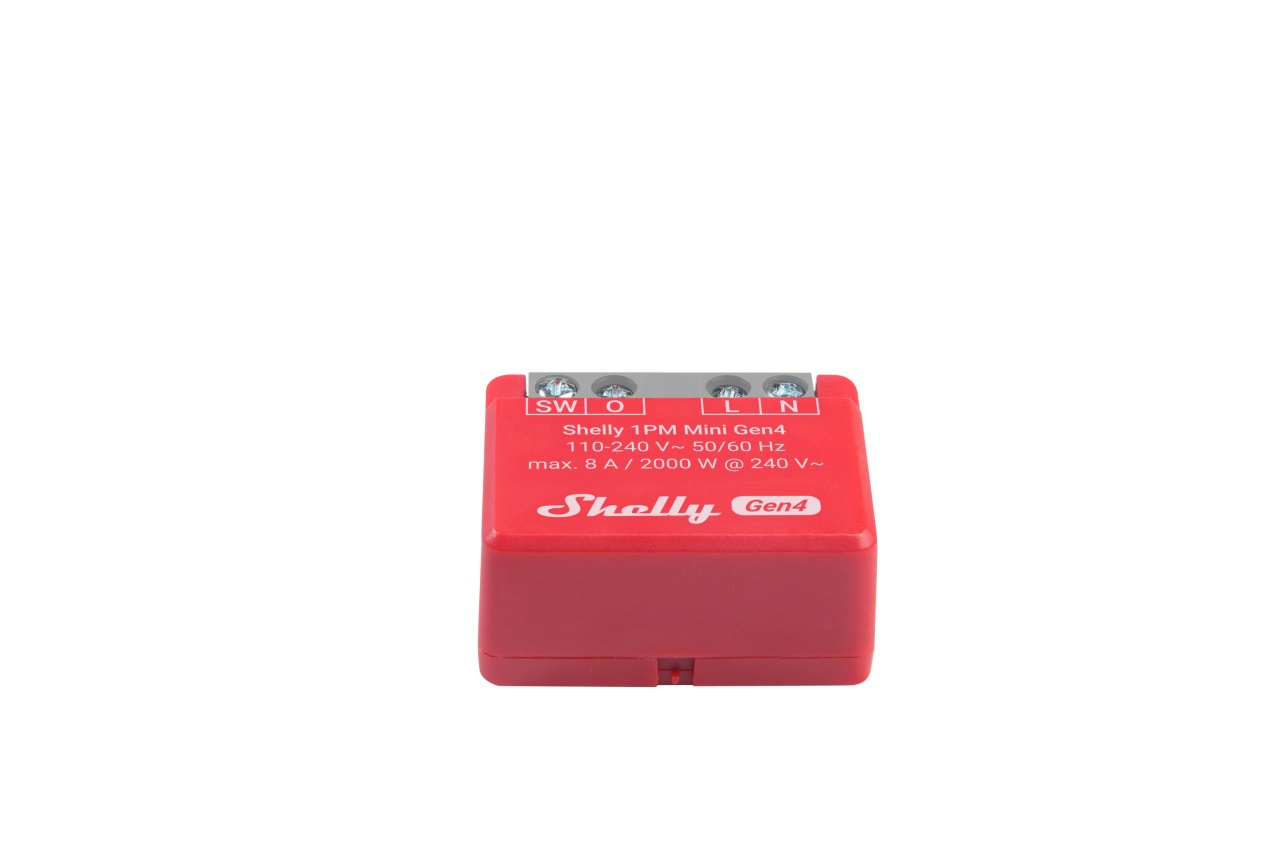

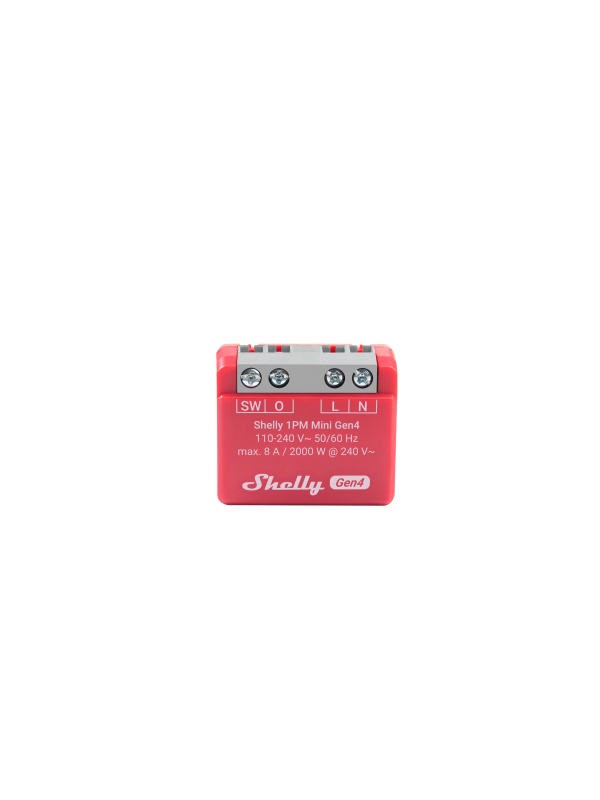

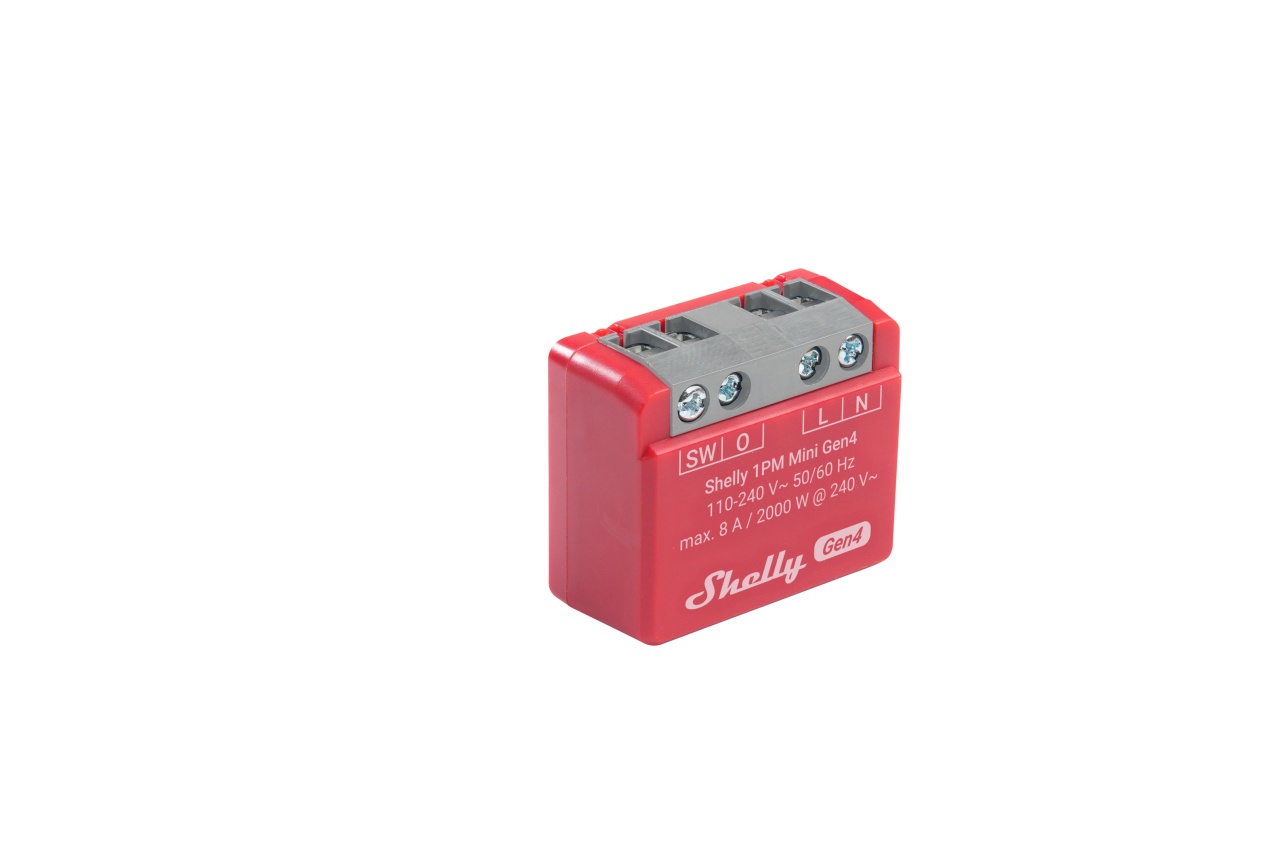

Shelly 1PM Mini GEN4 smart relay, 1 channel, 8A, multiprotocol (WiFi, bluetooth, matter, zigbee), Home Assistant compatible

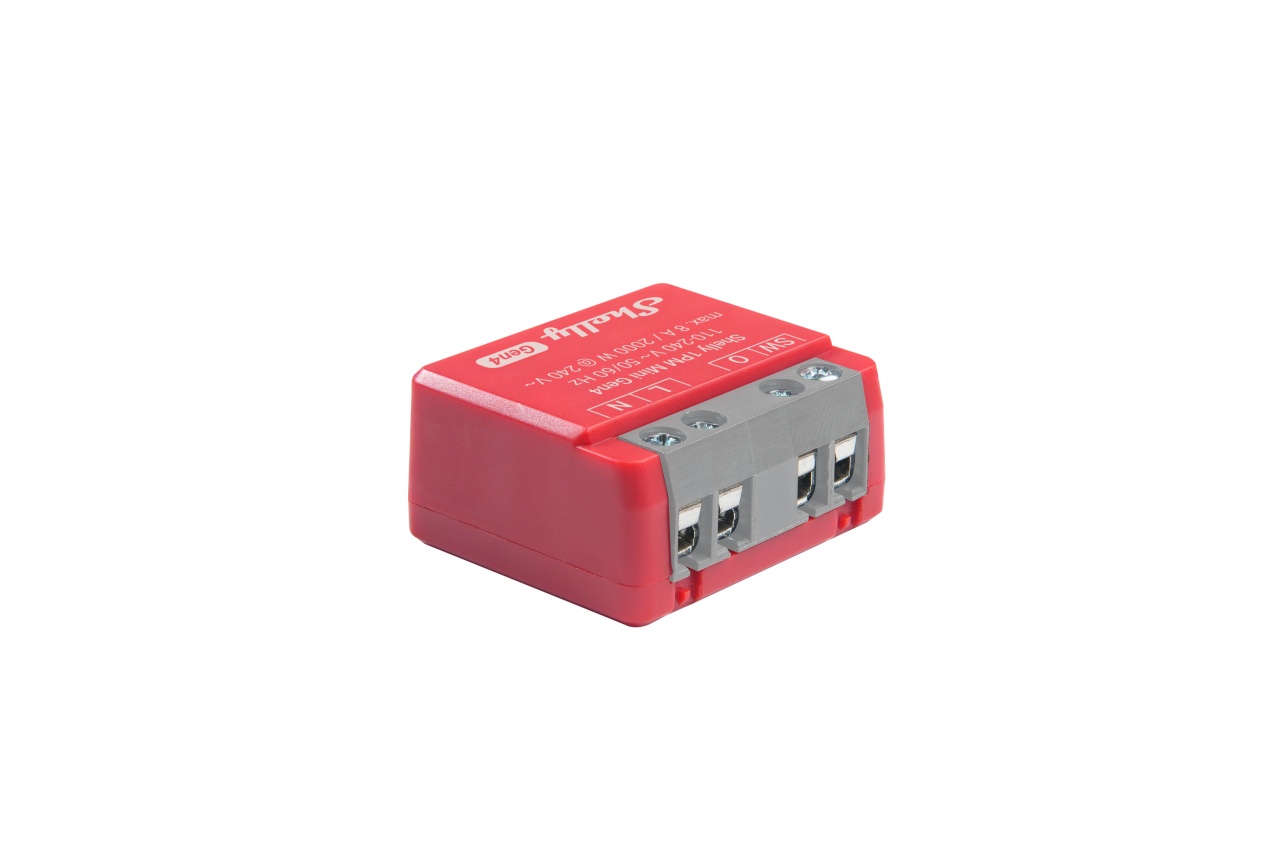

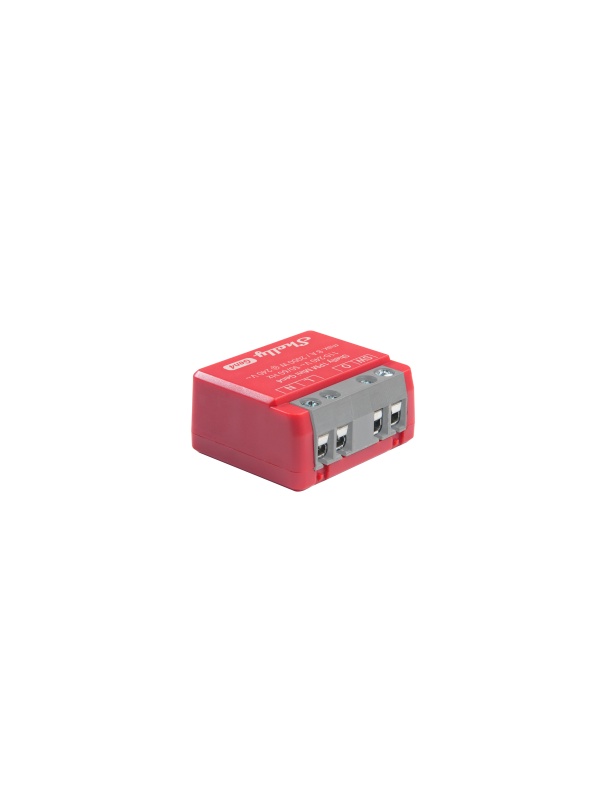

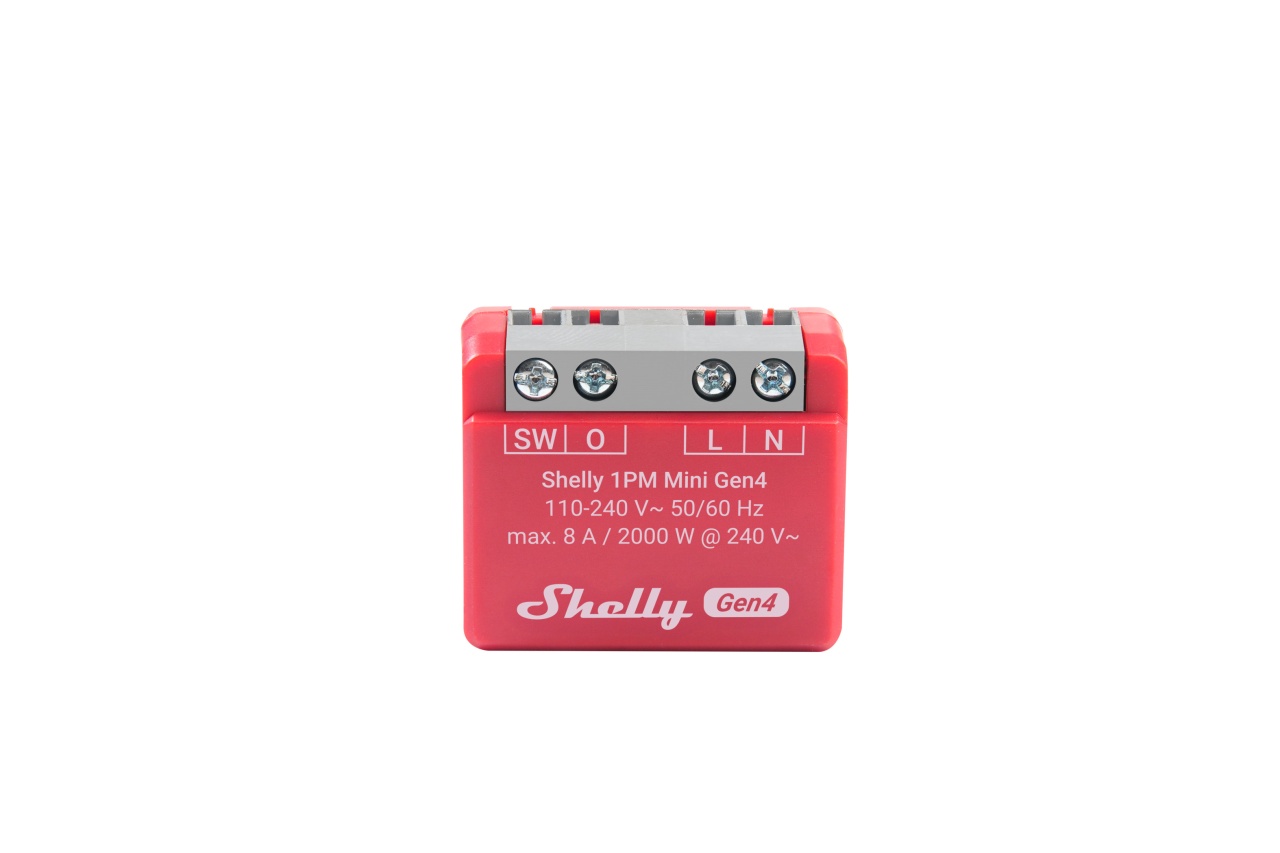

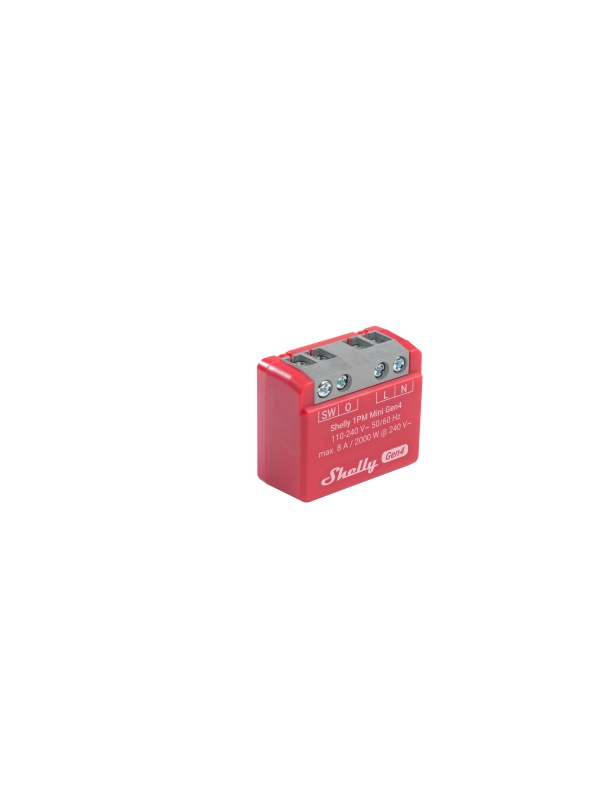

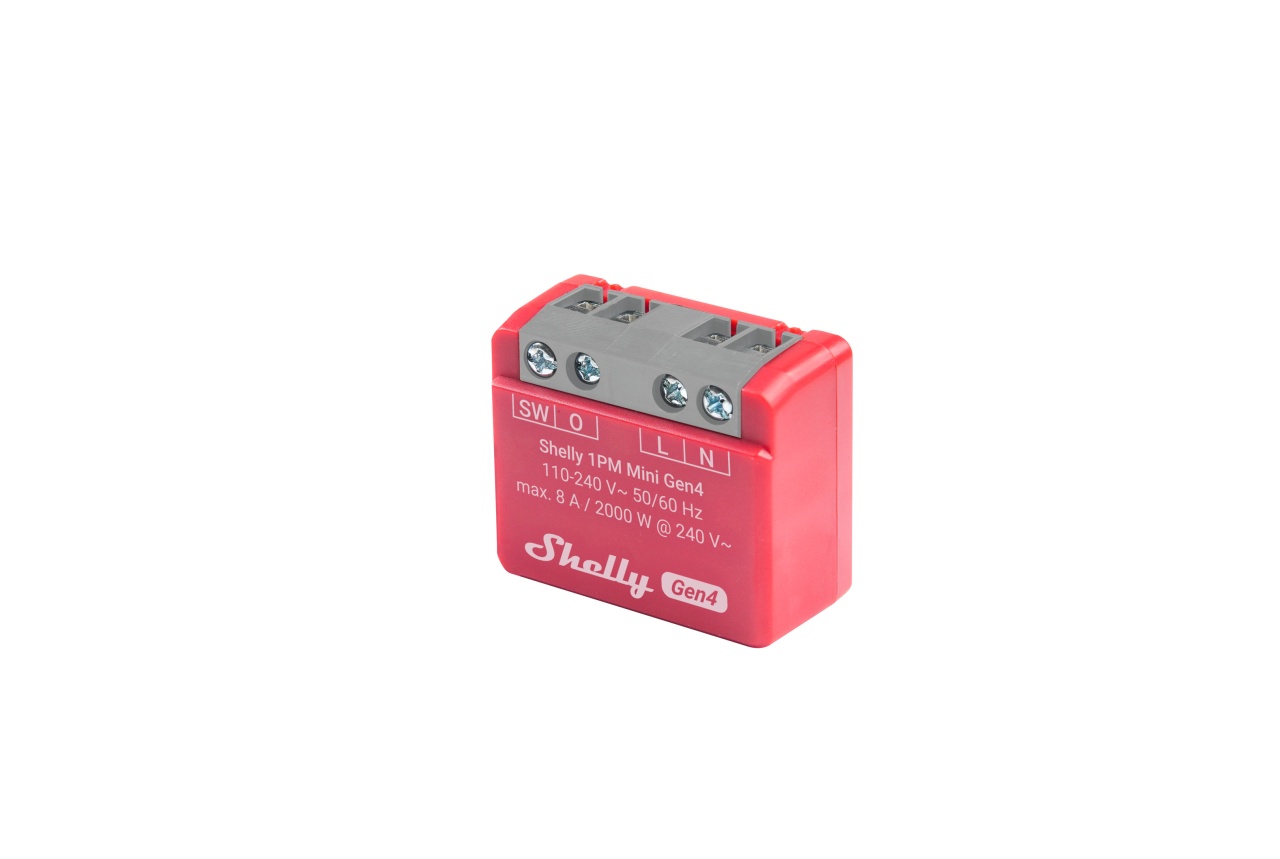

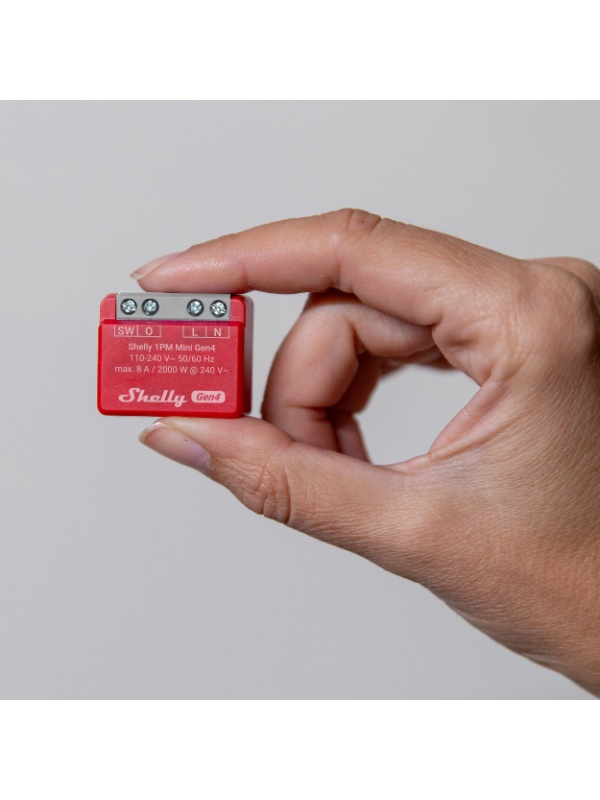

🔌 Shelly 1PM Mini Gen4 - Compact smart relay with power metering

The Shelly 1PM Mini Gen4 is a single-channel smart relay with power metering function in an ultra-compact format. With a 35% smaller footprint than the Plus Series, it fits perfectly in tight sockets or confined spaces. Ideal for sockets, switches or even integrated directly into appliances.

✅ Multi-protocol connectivity - Wi-Fi, Bluetooth, Zigbee and Matter

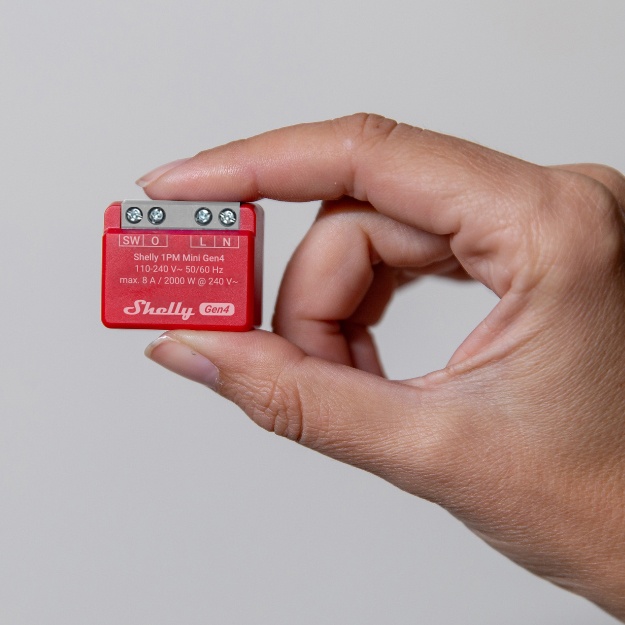

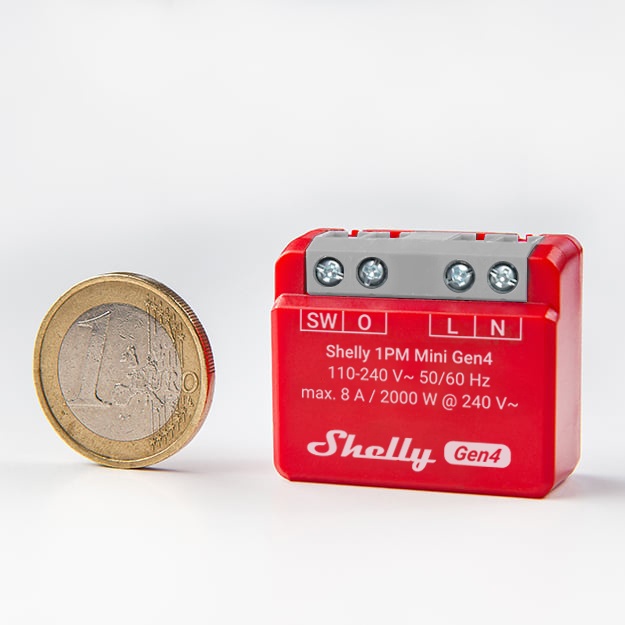

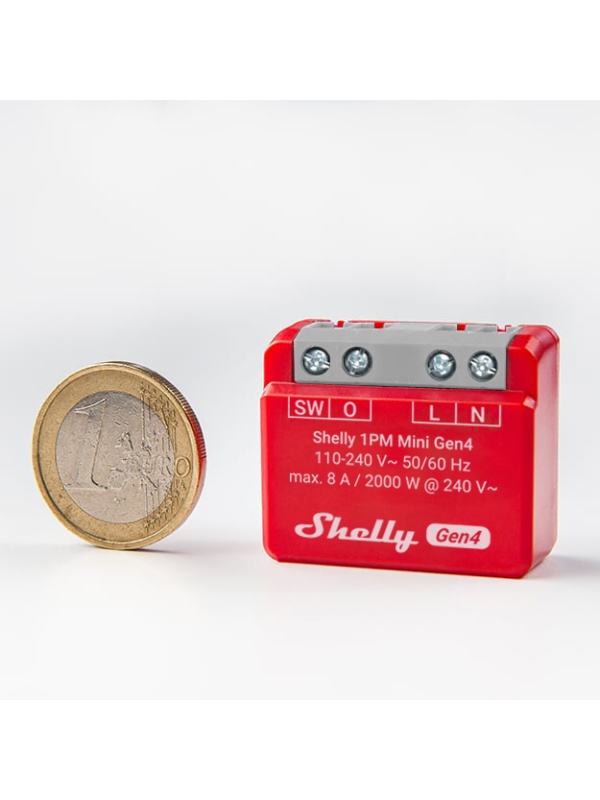

📏 Ultra-compact design - ideal for narrow or cluttered boxes
𦨟 Power metering - real-time power and energy monitoring
📶 Bluetooth included - quick add from the Shelly Cloud app
🕒 S mart scheduling - on schedule or sunrise/sunset
📲 Custom scenarios - create automations with other Shelly devices
🔐 Advanced security - MQTT, TLS, HTTPS, Webhooks, etc.
🧠 E xtensive compatibility - Alexa, Google Home, Android, iOS
🧩 Local & cloud control - via the Shelly Smart Control app

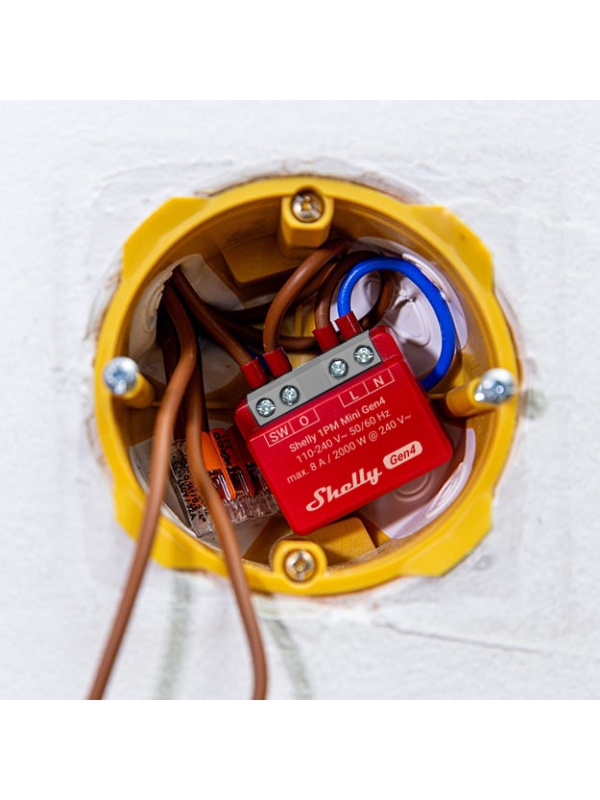

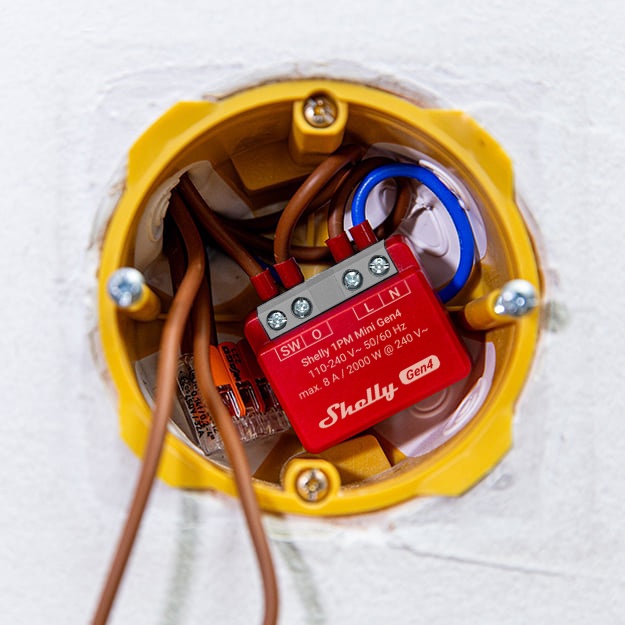

📦 Ideal for installation in:

• Narrow cans (ex: Danish format)

• directly into electrical appliances

• cluttered junction boxes

⚙️ Technical specifications

• Dimensions: 29 x 34 x 16 mm

• Weight: 18 g

• Mounting: in wall socket

• Housing material: Plastic (red)

• Operating temperature: -20°C to 40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

• Power supply: 110-240 V AC / 24-30 V DC

• Power consumption: <1.2 W

🔌 Electrical characteristics

• Relay: NO contact, 1-pole, µ contact

• Maximum switching voltage: 240 V AC

• Maximum switching current: 8 A (AC)

• Maximum switching power: 2000 W

• Power consumption measurement: ✔️

• Protections: overvoltage, overcurrent, overpower, temperature sensor

📡 Connectivity

• Wi-Fi: 802.11 b/g/n (2.4 GHz), up to 50 m outdoor / 30 m indoor

• Bluetooth 4.2: up to 30 m outdoor / 10 m indoor

• Zigbee: IEEE 802.15.4

• Wi-Fi RF power: < 20 dBm

• Bluetooth RF power: < 4 dBm

💾 Processor & features

• CPU: ESP32-C3

• Flash memory: 4 MB

• mjS Scripting: ✔️

• MQTT, UDP, Webhooks: ✔️

• Schedules: up to 20

• URL actions: up to 20 with 5 URLs per action

💡 Shelly 1PM Mini Gen4 - Small in size, big in functionality!
