Shelly 2PM GEN3 smart relay, 2 channels, consumption monitoring, WiFi, Bluetooth, 2x10A

Shelly 2PM Gen3 - Wi-Fi smart relay, 2 channels, 16 A total current (18 A peak)

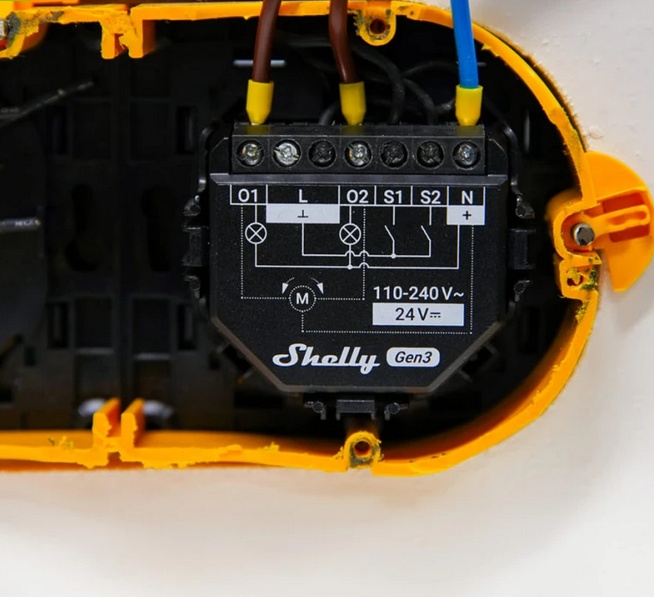

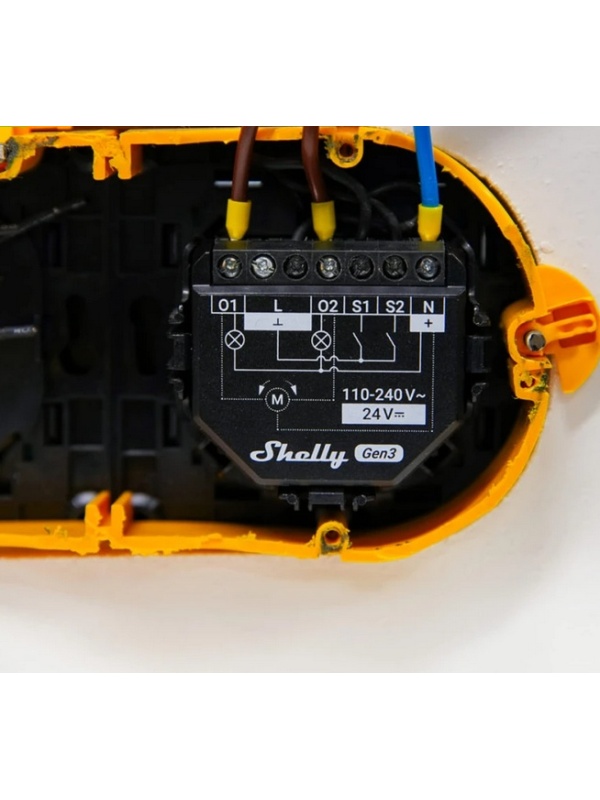

TheShelly 2PM Gen3 is a smart relay with 2-channel control, consumption metering and blind control function. It remotely controls and monitors two different electrical circuits or bi-directional motors for roller shutters, blinds, gates, etc. It is ideal for retrofitting standard electrical sockets, outlets or switches - even in tight spaces.

🔧 Main features

• 2 channels on the same phase

• Individual consumption metering on each channel

• Roller/blind control - for roller blinds, curtains, awnings, gates, sliding doors and other bi-directional motors

• Slat angle control - for Venetian blinds, you can adjust the angle to control daylight

• New ESP-Shelly-C38F processor with memory expanded to 8 MB

• Tougher terminals

• Virtual component for integrating other devices

• Wi-Fi extender and Bluetooth gateway

• No HUB required! Control via Shelly Smart Control app, smart home protocols and voice assistants

• KNXnet/IP compatible

🧠 Smart features

• 🌐 Wi-Fi connection - without external hub

• 📲 Bluetooth - quick setup or BLE gateway

• ⚡ Consumption measurement - per channel, real time

• ☀️ Blade angle control - to optimise room light

• ⏰ Custom programmes - by time or sunrise/sunset

• 🎬 Automatic scenes - with other Shelly devices

💡 Usage examples

✅ Automatic curtains/blinds in the bedroom - automatic opening in the morning for a natural wake up with light

✅ Control two lamps with one device - each channel with its own energy meter

✅ Energy management - monitor devices and optimise consumption

✅ Weather smart blinds - close the blinds at midday to cool the house and open them in the morning for natural daylight

📐 Technical specifications

• Dimensions: 37 × 42 × 16 mm

• Weight: 30 g

• Housing Material: Plastic (black)

• Mounting: In dock or wall bracket

⚡ Electric:

• Power supply: 110-240 V~, 24 VDC ±10%

• Power consumption: < 1.4 W

• Max. switching voltage: 240 V~ / 30 VDC

• Max. current: 16 A (240 V~) / 10 A (30 VDC)

• Protections: overtemperature, overvoltage, overcurrent, overconsumption

• Internal temperature sensor, voltmeter and ammeter

Connectivity:

• Wi-Fi: 802.11 b/g/n

• Wi-Fi range: up to 50 m outdoor / 30 m indoor

• Bluetooth: v4.2

• BLE range: up to 30 m outdoor / 10 m indoor

🧠 Other features:

• CPU: ESP-Shelly-C38F

• Memory: 8 MB

• Programmes: up to 20

• Webhooks: 20 actions, each with up to 5 URLs

• Scripting, MQTT, encryption, virtual component support
