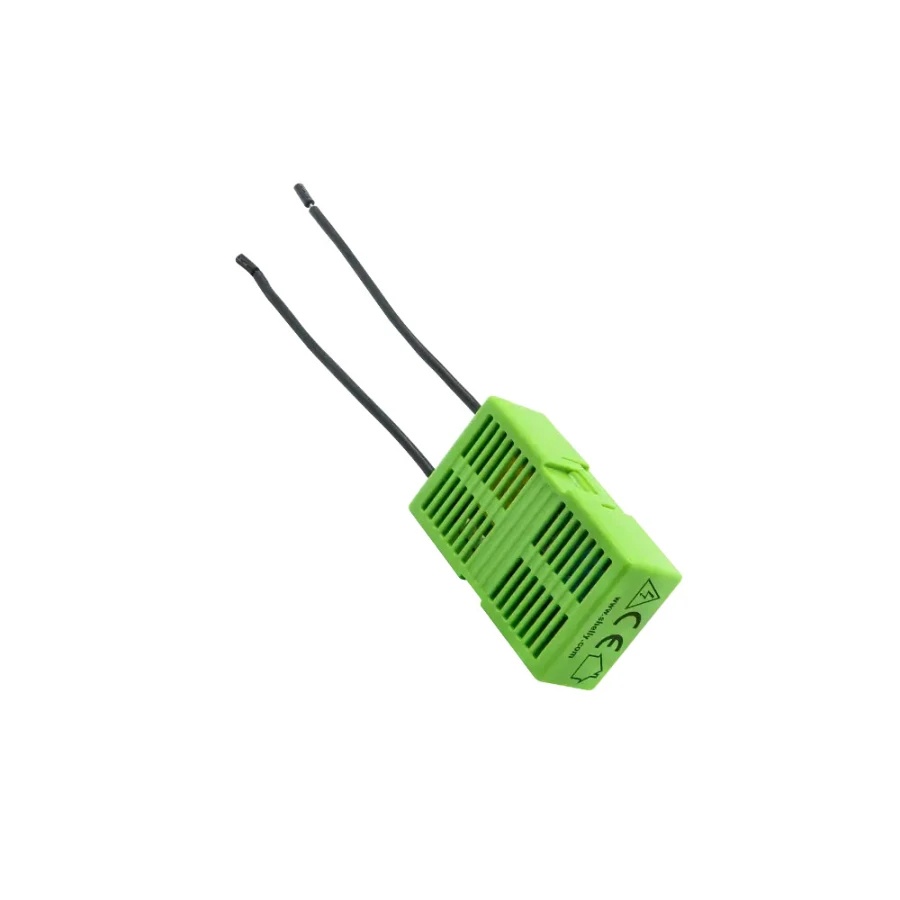

Shelly Bypass for Dimmer Gen3 - LED Lighting Accessory, Zero Clear Installation, Compatible with Shelly Dimmer Gen3

TheShelly Bypass for Dimmer Gen3 is an essential accessory for the proper operation of Shelly smart dimmers installed in null wire-free circuits. It is designed to ensure stability of electrical current when using low-consumption lighting sources (LED or energy-saving fluorescent bulbs), eliminating undesirable phenomena such as flickering or residual glare when the bulbs are switched off.

Key Selling Points

• Eliminates LED Flicker: Solves the problem of current instability at low intensities or in standby mode, ensuring a smooth and constant light variation.

• Wireless Installation: Enables the use of Shelly Dimmers (Gen3 or earlier versions) in doses where only Phase is available, making it the saviour solution for buildings with old electrical installations.

• Low Power Support: Mandatory where the connected lighting load is less than 10W, providing the minimum load required for the dimmer electronics to remain powered and connected to Wi-Fi.

• Bulb Protection: Prevents premature wear of LED drivers caused by current leakage in smart circuits, extending the life of the luminaires.

• Compact Design: Small size allows the device to be hidden directly inside the ceiling fixture or in the branch canister next to the luminaire.

• Certified Safety: Constructed of durable materials, the Shelly Bypass is a safe passive device that does not consume significant active power and does not heat up during normal use.

Examples of Use

1. Living Room Chandelier Upgrade: If you've installed a Shelly Dimmer Gen3 and notice that your 5W LED bulbs flicker slightly when switched off, mount the Bypass in parallel with the bulb to stabilise the circuit.

2. No Null to Breaker Systems: Ideal for apartments where only the phase wire reaches the breaker. Bypass allows the smart relay to "steal" enough current to stay online without turning on the bulb.

3. Dimmable LED Strips: Provides complete dimming of LED strips that tend to remain slightly lit (Glow effect) due to the high sensitivity of the LED chip.

Technical Specifications

• Model: Shelly Bypass (Generation 3 Compatible)

• Function: Load stabiliser for intelligent dimmers

• Compatibility: Shelly Dimmer Gen3, Shelly Dimmer 2, Shelly 1L

• Operating voltage: 110 - 240V AC

• Dimensions: 39 x 14.5 x 11 mm

• Mounting: In parallel with the load (bulb), not in series.

Package Contents: 1 x Shelly Bypass.(Note: This product is a passive accessory and requires a Shelly Dimmer to operate).

Why choose Shelly Bypass for Dimmer Gen3?

It's the piece that makes the difference between a working smart home and one that glitches. Whether you're planning a no-wire installation or using state-of-the-art LED bulbs with ultra-low power consumption, Shelly Bypass is your guarantee that your lighting system will run flawlessly, quietly and without visual artefacts.
