Shelly Pro 2PM Smart Relay - 2 channels with energy meter, WiFi, LAN, DIN rail, app control, compatible with Amazon Alexa, Google Assistant and Home Assistant

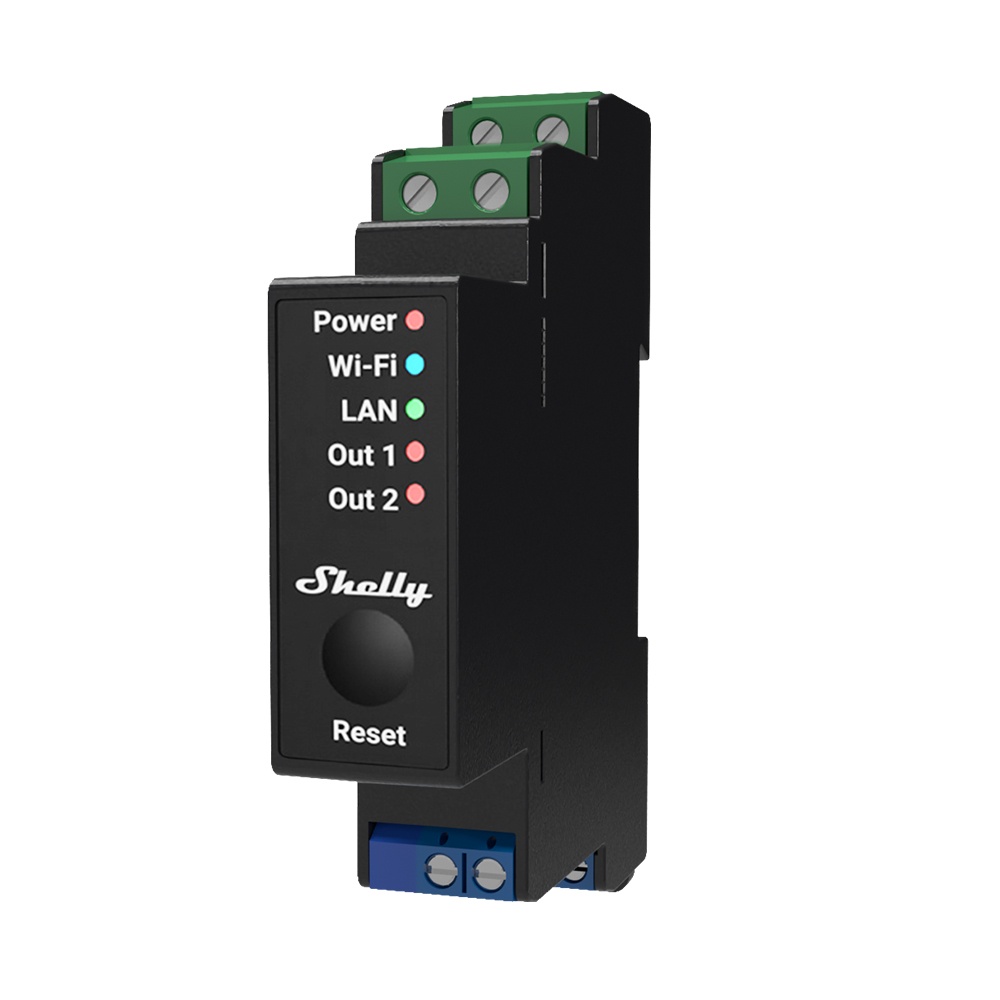

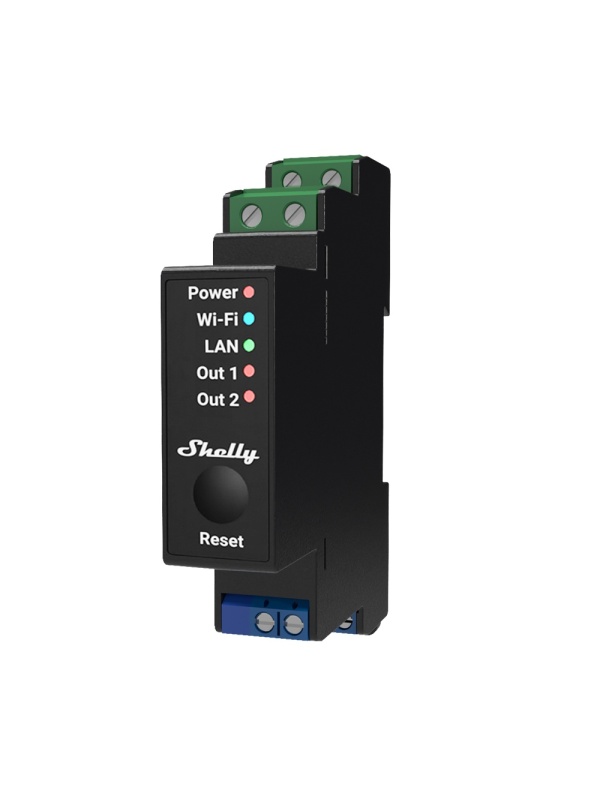

⚙️ Shelly Pro 2PM - 2-channel smart relay with energy meter, Wi-Fi, LAN and DIN rail mounting

Dual control, precise metering and advanced automation - all in one compact professional device

Shelly Pro 2PM is the ideal choice for automating electrical circuits up to 25A in homes, offices or commercial premises. It offers two independent outputs, consumption metering on each channel, support for roll mode and full connectivity: LAN, Wi-Fi and Bluetooth.

Main features

🌐 LAN + Wi-Fi + Bluetooth
Reliable connection and quick installation without hub via Shelly Smart Control app or integration into local networks via LAN.

🔌 2 channels - up to 25A total
Controls two circuits separately (up to 16A per channel), perfect for lighting, appliances, automatic gates, pumps etc.

📊 Individual energy metering
Monitors real-time voltage, current and consumption on each channel - ideal for energy efficiency and optimisation.

🏡 Roll-up mode - Control blinds, curtains, gates
Enables roll mode for the automation of motorised covering systems.

🧠 Local scripting for complex automation
Create advanced scenarios (with triggers such as weather, power consumed, sunrise/sunset etc.) with full mjS support.

🛡️ Professional security and reliability
Fireproof enclosure, overload protection, over-temperature and TLS encryption with customised certificates.

📱 Extensive compatibility
Works with Alexa, Google Assistant, Home Assistant, MQTT, REST API and other smart home platforms.

💡 Use cases

🏠 Lighting and appliance automation
Control two electrical circuits separately, monitoring individual consumption for each.

🔁 Roller or curtain control
'Cover' mode allows full control of bi-directional motors for blinds, gates or curtains.

📊 Monitor and minimise energy consumption
Accurate data helps you identify high consumption areas and optimise running costs.

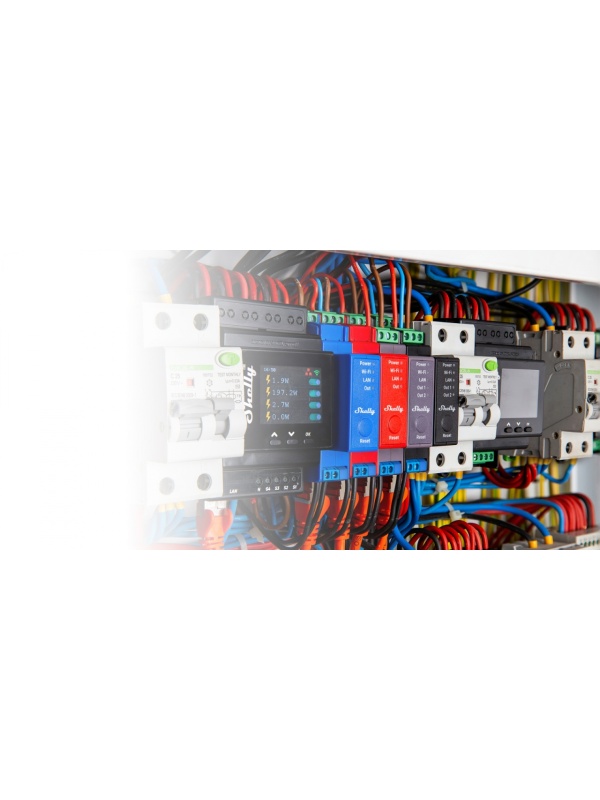

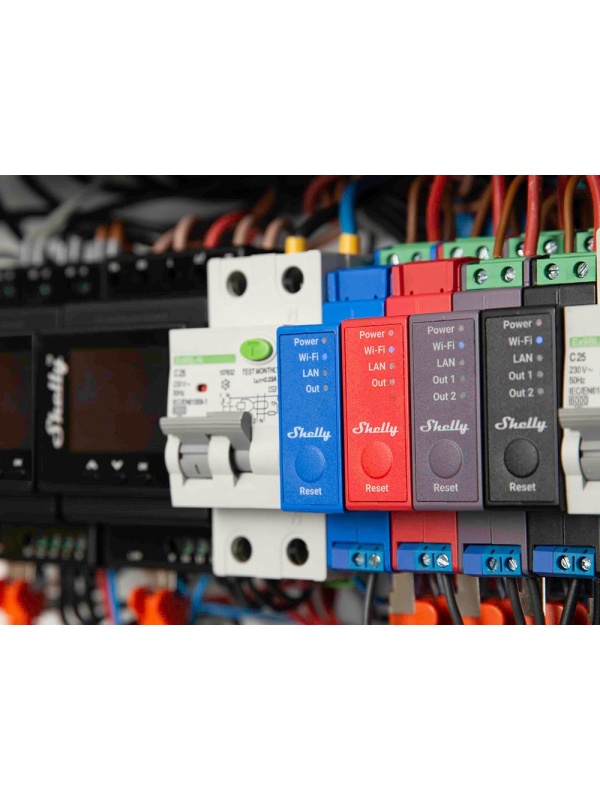

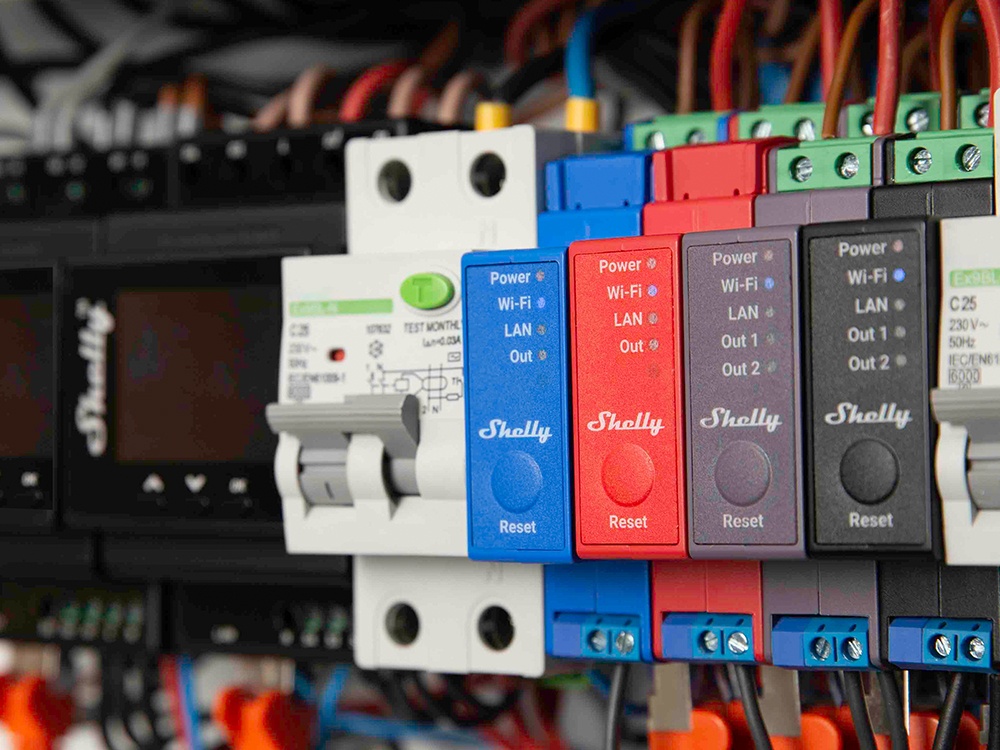

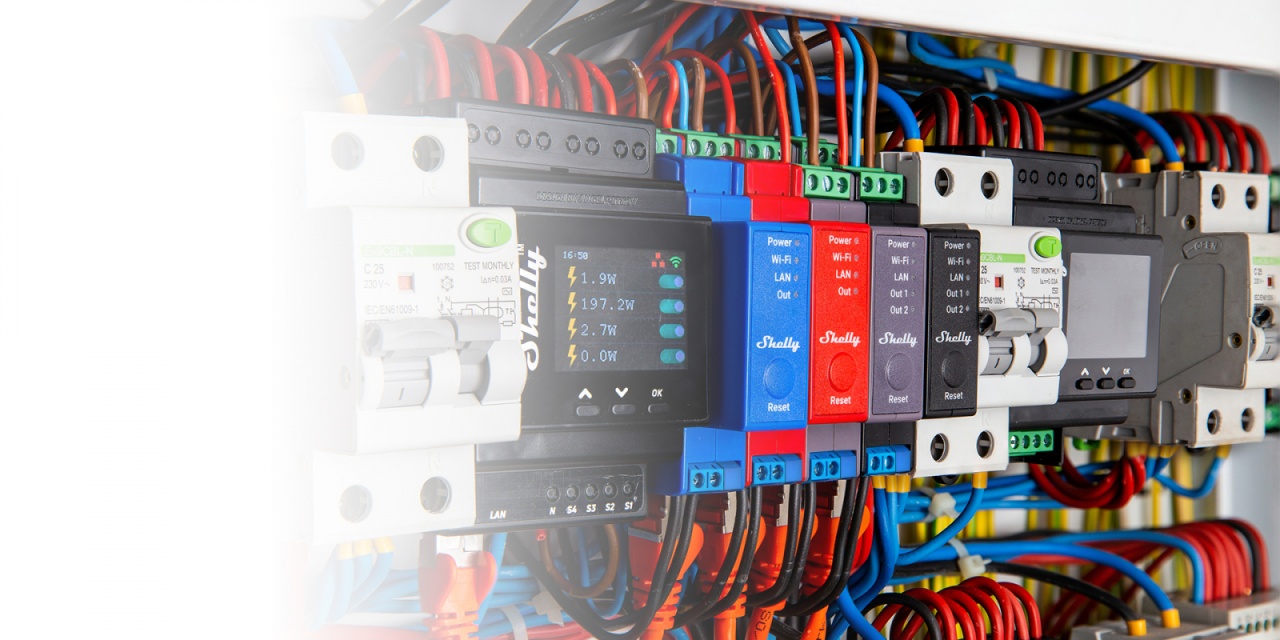

📦 Installation in DIN-rail electrical panels
Professional design ideal for residential or industrial applications - integrates discreetly into switchboards.

Technical specifications

• Channels: 2 independent channels

• Total capacity: up to 25A (16A per channel)

• Energy measurement: Yes - current, voltage, active power

• Roll mode: Yes

• Power supply: 110-240V AC ±10%, 50/60Hz

• Connectivity: LAN, Wi-Fi 802.11 b/g/n, Bluetooth

• Compatibility: Alexa, Google Assistant, Home Assistant, MQTT, REST API

• Smart functions: Sunrise/Sunset, weekly programme, scripting, webhooks

• Security: TLS, WSS, MQTT, V-0 enclosure, overload/overtemperature protection

• Operating temperature: 0°C ~ +40°C

• Power consumption: < 4W

• Dimensions: 18.5 x 89.5 x 68.5 mm

• Wi-Fi range: up to 30 m indoor / 50 m outdoor (depending on construction)

🎯 The Shelly Pro 2PM gives you total control over your home or facility - from lighting and automation, to metering and energy efficiency - in a rugged, secure and highly flexible package.
