Shelly Pro Dimmer 0-10V PM, WiFi, Bluetooth

Description

💡 Shelly Pro Dimmer 0-10V PM - Professional lighting control with dimming and consumption monitoring function

The smart solution for lighting and automation systems with 0/1-10V drivers

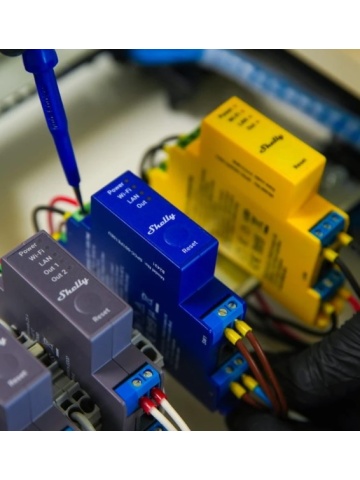

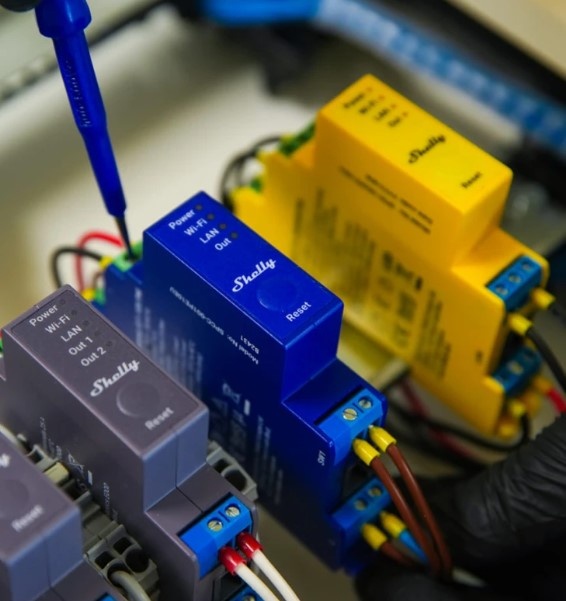

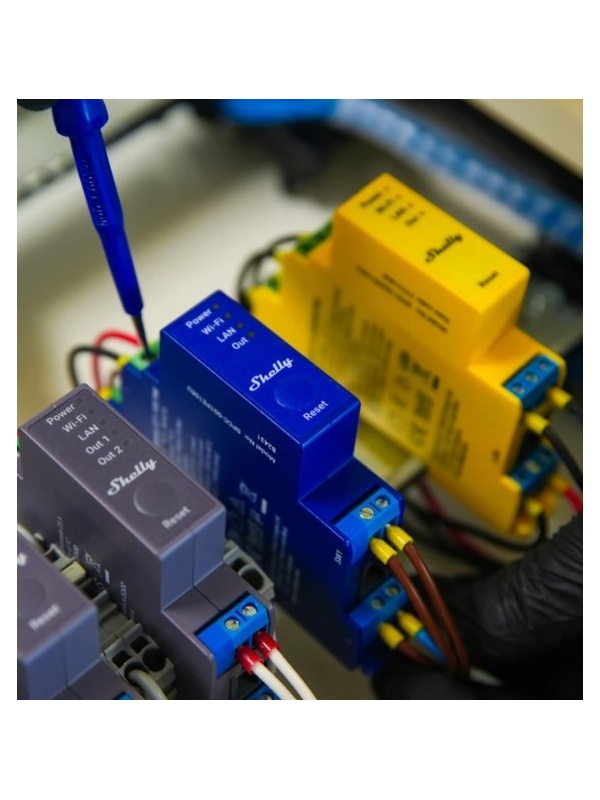

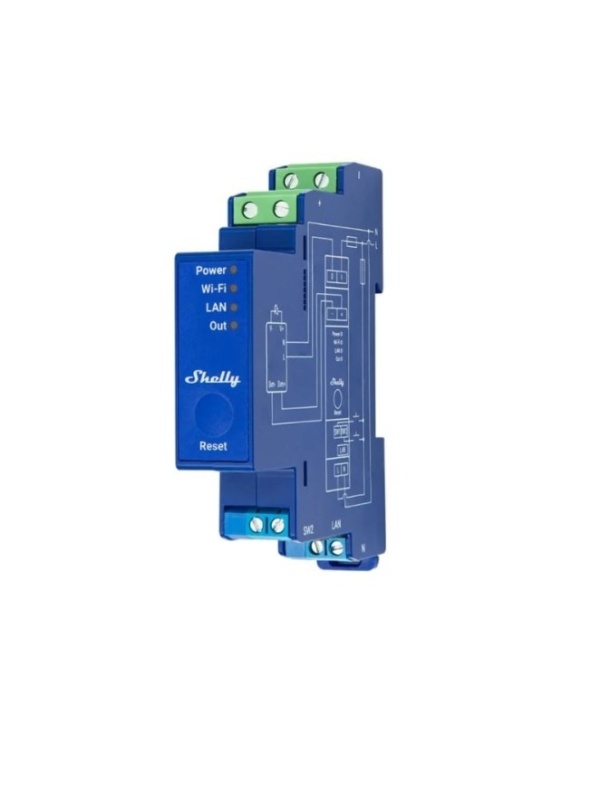

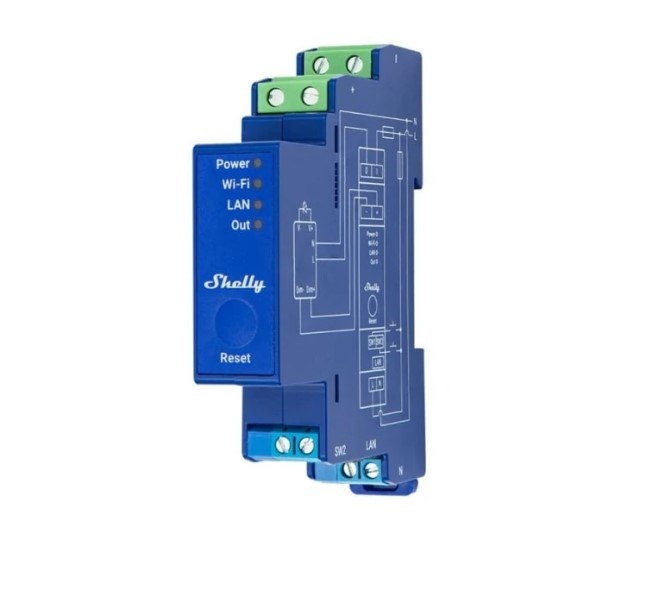

The Shelly Pro Dimmer 0-10V PM is a professional, DIN rail mountable intelligent dimmer designed to precisely control and dim lighting via 0-10V or 1-10V signal. It is ideal for modern buildings, commercial facilities and industrial systems, also offering consumption monitoring function for increased energy efficiency.

✅ Main features

🌐 F ull connectivity - LAN, Wi-Fi and Bluetooth
Local or remote control without hub. Quick set-up via Bluetooth, reliable connection via LAN or Wi-Fi.

💡 Extensive compatibility with 0-10V and 1-10V drivers
Perfect for lights, fans, valves or motors - precise intensity or speed control.

📊 C omprehensive consumption monitoring
Displays detailed values for voltage (V), current (A), power (W), active/reactive power, power factor and more.

🔄 F lexible control with existing switches
Works with conventional switches (single or double) - no need to change the installation.

🌃 Night mode & timers
Automatically adjusts light to a preset level at night or set on/off timers.

🔐 High security and built-in protections
Over-voltage, over-current, over-power and temperature protection. Supports TLS 1.2, webhooks, MQTT and advanced scripting.

🔌 Works as a Wi-Fi Range Extender and BLE Gateway
Extend your smart grid coverage and connect BLE sensors into your Shelly system.

🏡 Use cases

💡 Modernise your lighting while keeping your current switches
Transform your classic system into a smart one without major modifications - your switch gets smart!

🌙 Personalised lighting day and night
Automatically dim down after 10pm for savings and convenience. Night mode ideal for bathrooms or hallways.

🏢 Advanced control in commercial or industrial spaces
Use advanced features to precisely manage lighting or motors in halls, showrooms or offices.

📐 Technical specifications

• Channels: 1 (0-10V / 1-10V control)

• Supply voltage: 110-240V AC

• Max. switching current: 16A

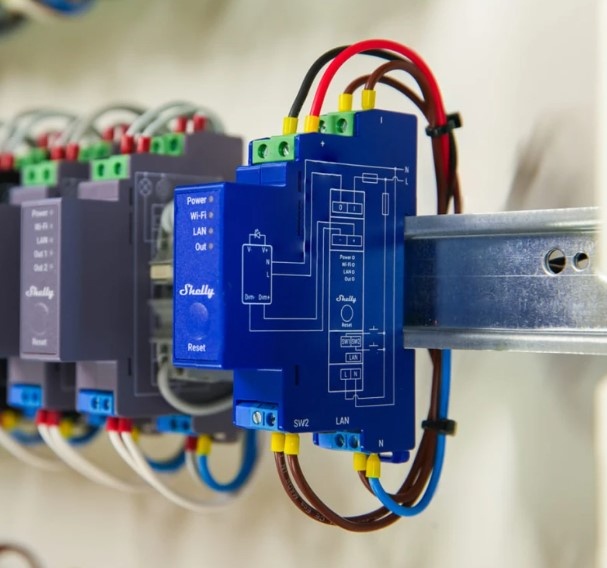

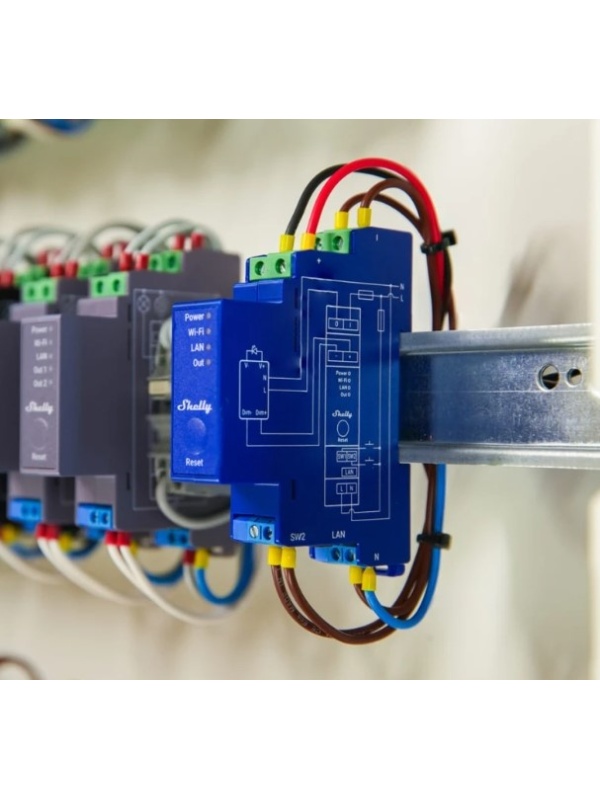

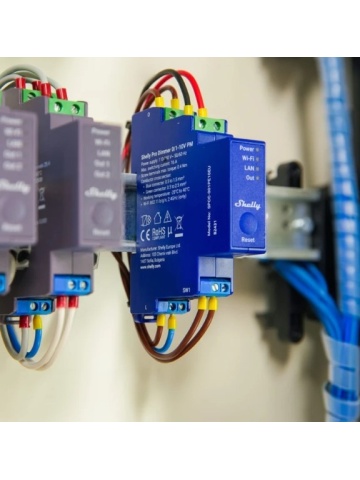

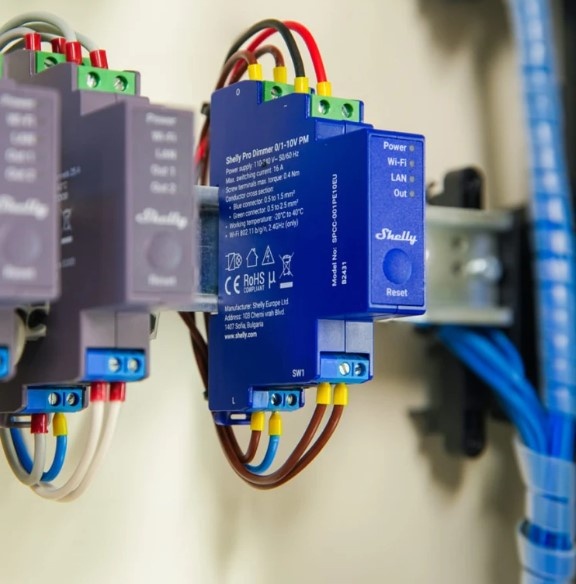

• Mounting: DIN rail

• Consumption measurement: Yes (active/apparent power, energy, voltage, current, power factor)

• Operating temperature: -20°C ~ +40°C

• Power consumption: < 3W

• Wi-Fi: 802.11 b/g/n, 2.4 GHz

• Bluetooth: v4.2

• KNXnet/IP protocol: Yes

• Scripting support (mJs): Yes

• Webhooks & smart scenes: Yes

• Compatibility: Alexa, Google Assistant, Home Assistant, MQTT, REST API etc.

• Dimensions: 94x19x69 mm

• Weight: 70g

🔧 The Shelly Pro Dimmer 0-10V PM is the ideal choice for any professional project that requires fine, reliable and precise control of lighting or motors via voltage signal. Whether it's new build or modernisation, it gives you intelligent automation without compromise.
