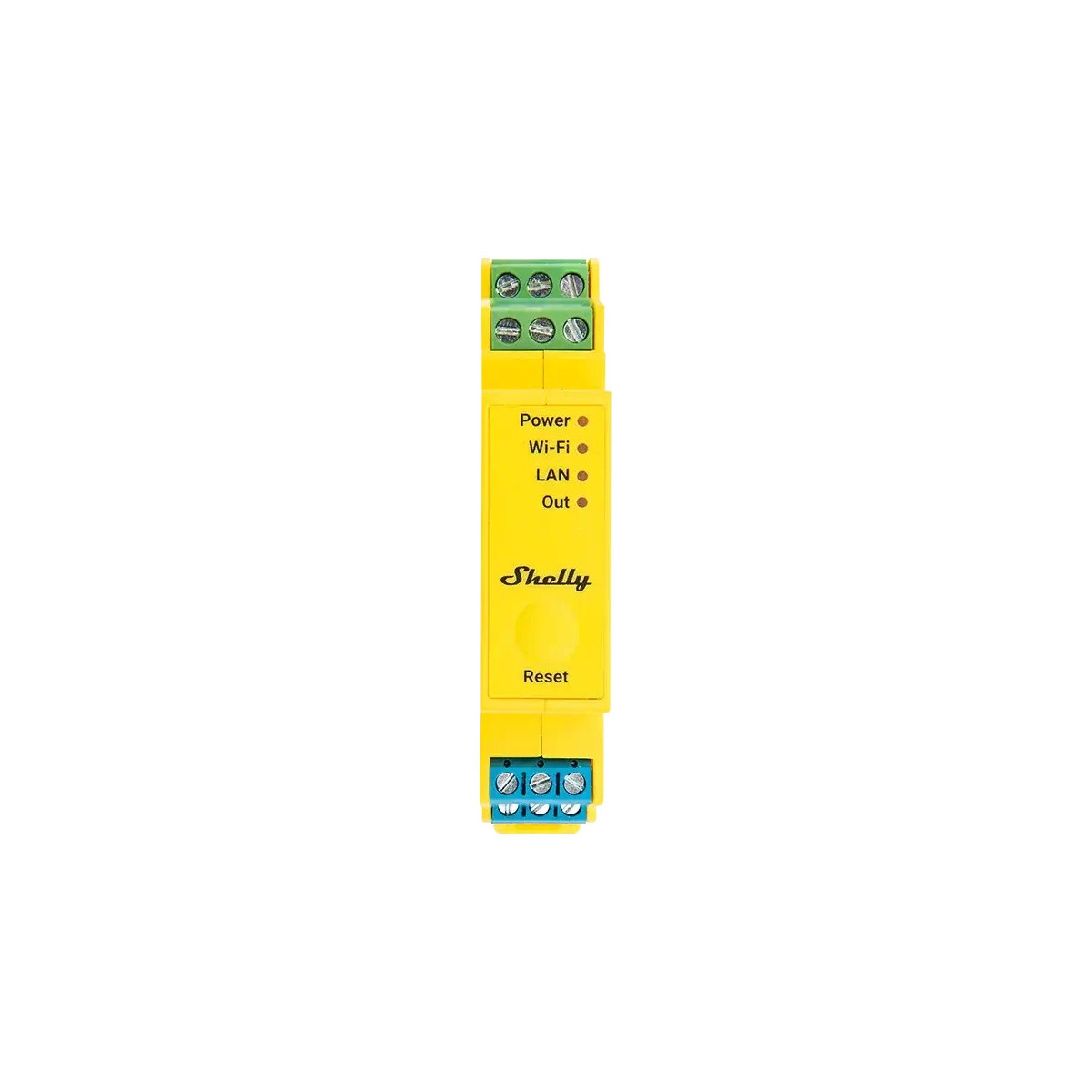

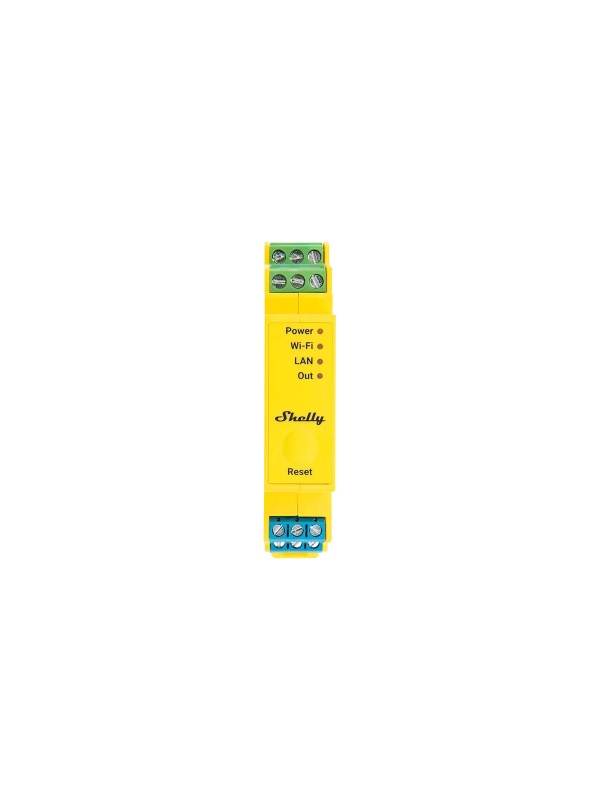

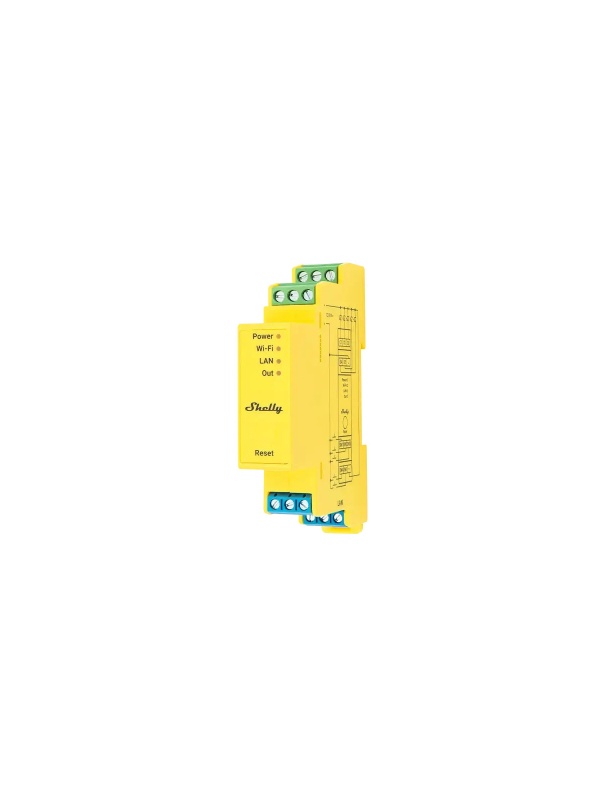

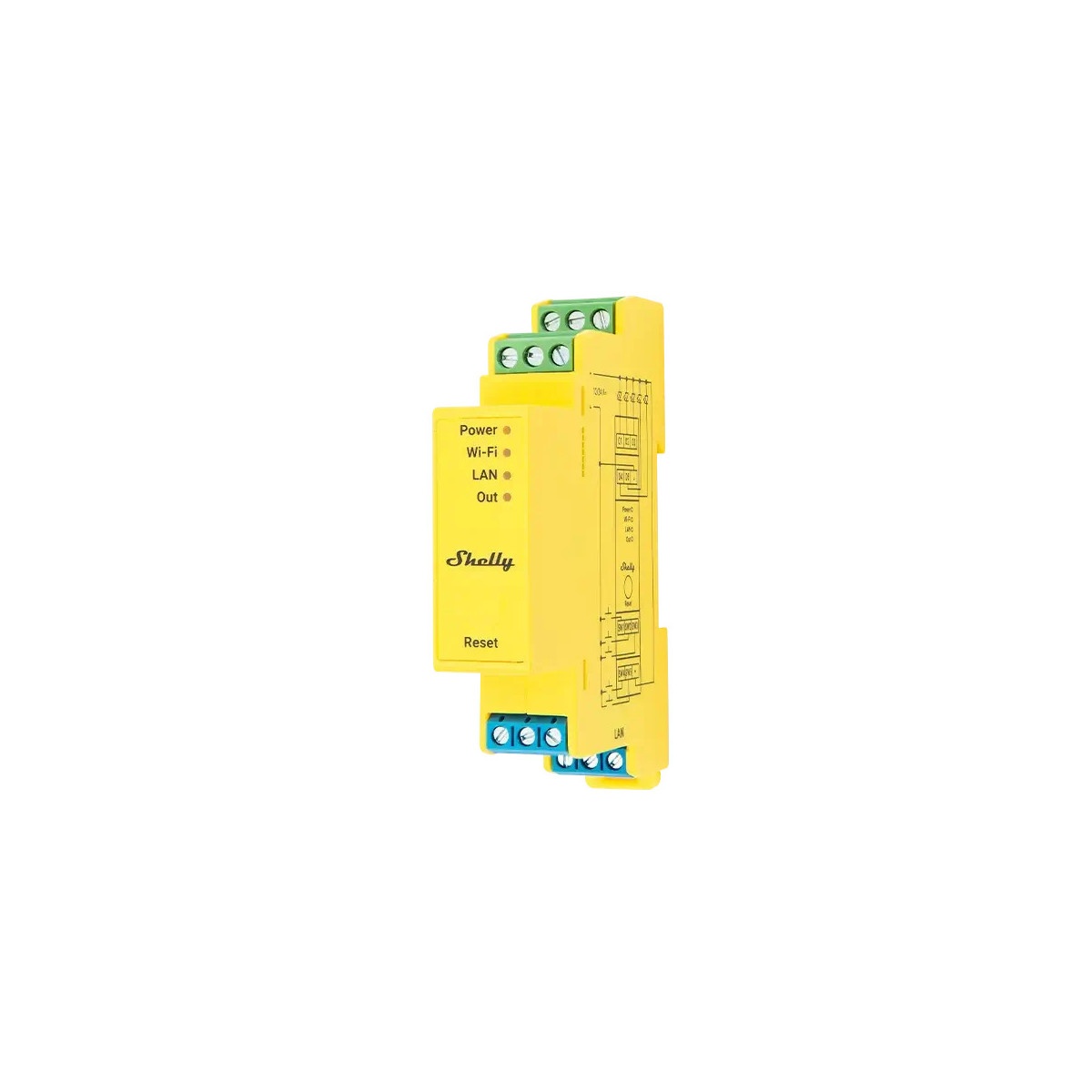

Shelly Pro RGBWW PM
Description
Shelly Pro RGBWW PM is a 5-channel DIN rail-mounted smart lighting controller, dedicated to managing LED strips and tunable colour temperature (CCT) lighting systems. The device supports four operating profiles: RGB and CCT, CCT x2, RGB and Lights x2, as well as Lights x5, in which each of the 5 outputs can be controlled independently.
Equipped with power measurement, Shelly Pro RGBWW PM allows real-time monitoring of voltage, current and energy consumption for each connected lighting installation. Combined Ethernet, Wi-Fi and Bluetooth connectivity offers maximum integration flexibility, and the Wi-Fi range extender and Bluetooth gateway function extends network coverage to other devices in the Shelly ecosystem.
The device is designed for mounting in the electrical panel and has advanced protection against overvoltage, overcurrent, overheating and overload, making it suitable for homes as well as commercial or industrial spaces.
It is useful for decorative lighting in the living room, creating bedroom lighting scenarios with the Night Mode function, controlling LED strips on the terrace or in the garden, ambient lighting for restaurants and cafés, and for shop windows and retail spaces where independent control of several lighting zones is needed.
Practical use cases
- Connected to RGB and CCT LED strips (RGB and CCT profile), it allows adjustment of colour and colour temperature for decorative lighting in the living room.
- In the Lights x5 profile, it independently controls five lighting zones, for example in display cases or retail spaces.
- Used for the LED strips on the terrace or in the garden, with schedules and consumption monitoring for each lighting installation.
- In the bedroom, the Night Mode function allows dimmed lighting scenes at night.
Technical specifications
| Dimensions | 94 x 19 x 69 mm |
| Weight | 61 g |
| Mounting | DIN rail |
| Power supply | 12-24 VDC |
| Power consumption | <1.5 W |
| Maximum output current | 16 A total, 6 A per channel |
| Maximum switching voltage | 24 VDC |
| CCT range | 2700K - 6500K (configurable 1000K-10000K) |
| Connectivity | Ethernet, Wi-Fi 802.11 b/g/n, Bluetooth 4.2 |
| Memory | 8 MB |
| Warranty | 5 years |
Shelly Pro RGBWW PM is the professional solution for advanced control of RGBWW and CCT lighting, offering precise consumption monitoring and full integration into the Shelly ecosystem, with no additional hub required.
