Shelly Qubino Qubino Wave 1PM Mini intelligent relay, with consumption metering, 1 channel, 8A, Z-Wave

🔌 Shelly Qubino Wave 1 Mini - Smart Z-Wave™ relay, 1 channel 8A, dry contact, ultra-compact

Are you looking for a Z-Wave relay that fits in the smallest wall sockets? The Shelly Qubino Wave 1 Mini is the answer. It's the world's smallest Z-Wave switch, but packed with smart features. Smart remote control for locks, gates, garage doors, irrigation systems or other loads up to 8A - all from a tiny but powerful relay.

⚙️ Key Features:

🔹 1 channel - 8A at 240V AC / 5A at 30V DC - for low and medium power equipment
🔹 Dry contacts - ideal for controlling many types of load voltages

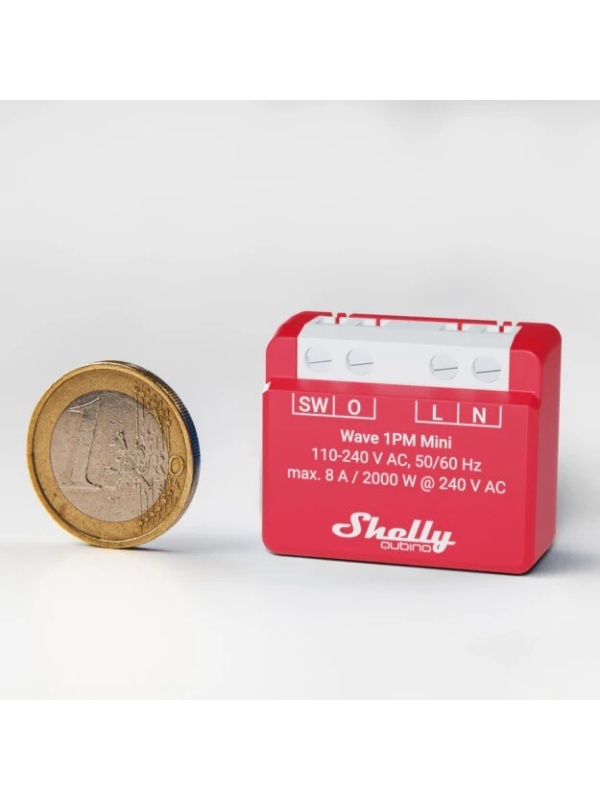

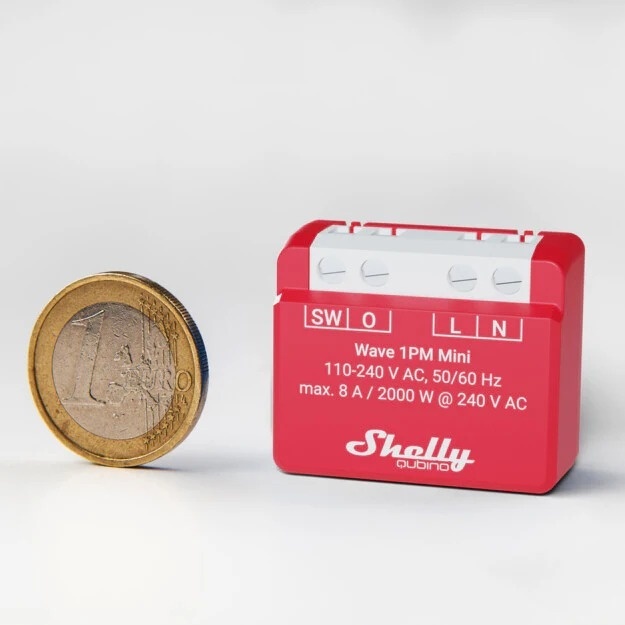

📏 35% smaller than the Shelly Qubino Wave 1 - fits easily into the smallest boxes
🔋 Extremely low power consumption - < 0.3 W
📶 Z-Wave™ 800 Series - next generation technology
🔐 S2 Authenticated security - advanced encryption
🧠 Automatic setup with SmartStart
📲 O TA firmware update - no cables, no hassle
🔁 Integrated Z-Wave™ Repeater - expand your smart network
🧩 Compatible with over 4,000 Z-Wave certified devices and gateways

The repeater does not work without a compatible Z-Wave gateway.

🏡 Usage examples:

• 🏠 Automates locks, garage doors, electric gates or irrigation systems

• 🔄 Controls remote devices through pre-defined scenarios

• 🔧 Ideal for small spaces - switchboards or built-in appliances

• 💡 Perfect for retrofitting classic systems in an invisible way

📐 Technical specifications:

• Power supply: 110-240 V AC, 50/60 Hz

• Power consumption: < 0.3 W

• Max. switching voltage AC: 240 V

• Max. switching current AC: 8 A

• Power max. AC: 2000 W

• Max. switching voltage DC: 30 V

• Max. switching current DC: 5 A

• Overheat protection: Yes

• Wireless distance: up to 40 m indoors

• Z-Wave Repeater: Yes

• Z-Wave frequency: 868.4 MHz

• RF Power: < 25 mW

• Dimensions: 29 × 35 × 16 mm

• Weight: 19 g

• Mounting: In wall socket

• Operating temperature: -20°C - +40°C

• Humidity: 30% - 70% RH

• Housing material: Plastic

• Colour: Blue

🎯 The Shelly Qubino Wave 1 Mini is the ideal solution for discreet and efficient automation in your smart home - all in a pocket-sized format!
