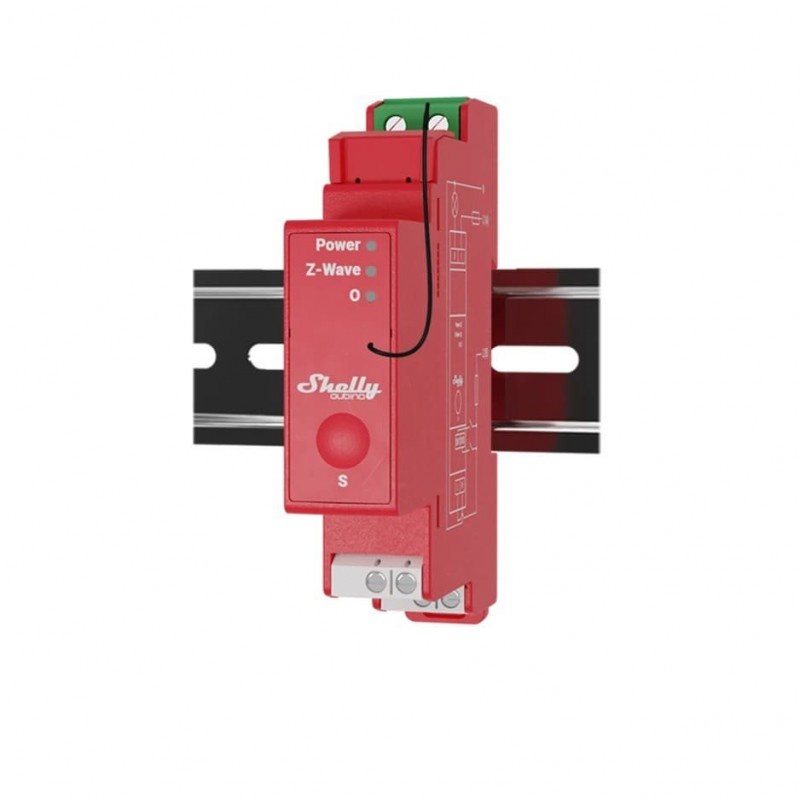

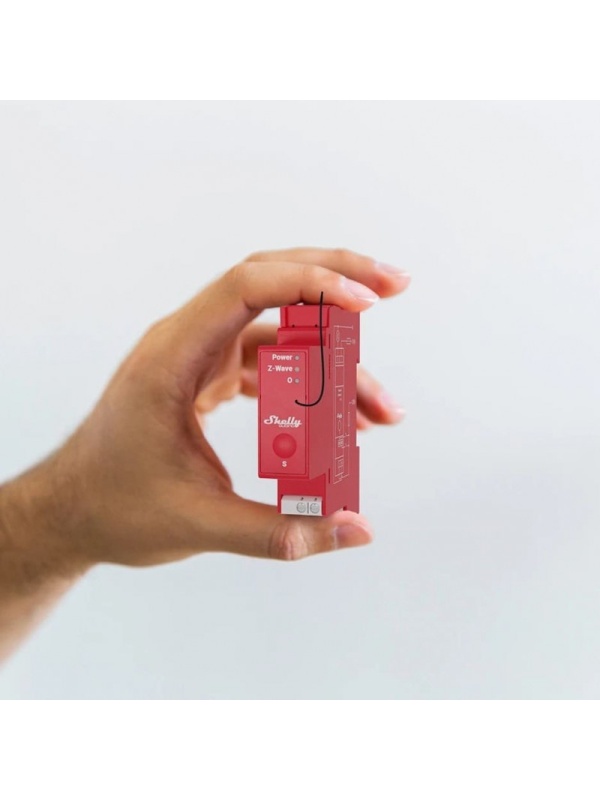

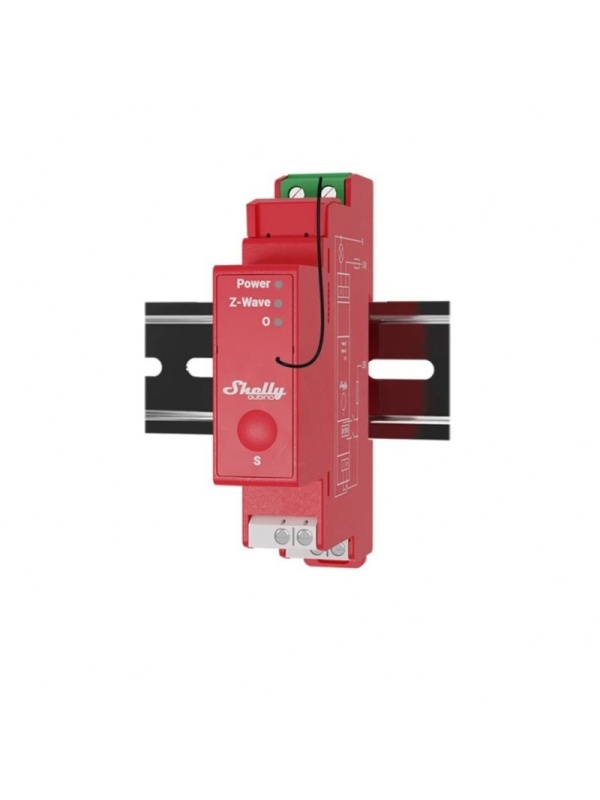

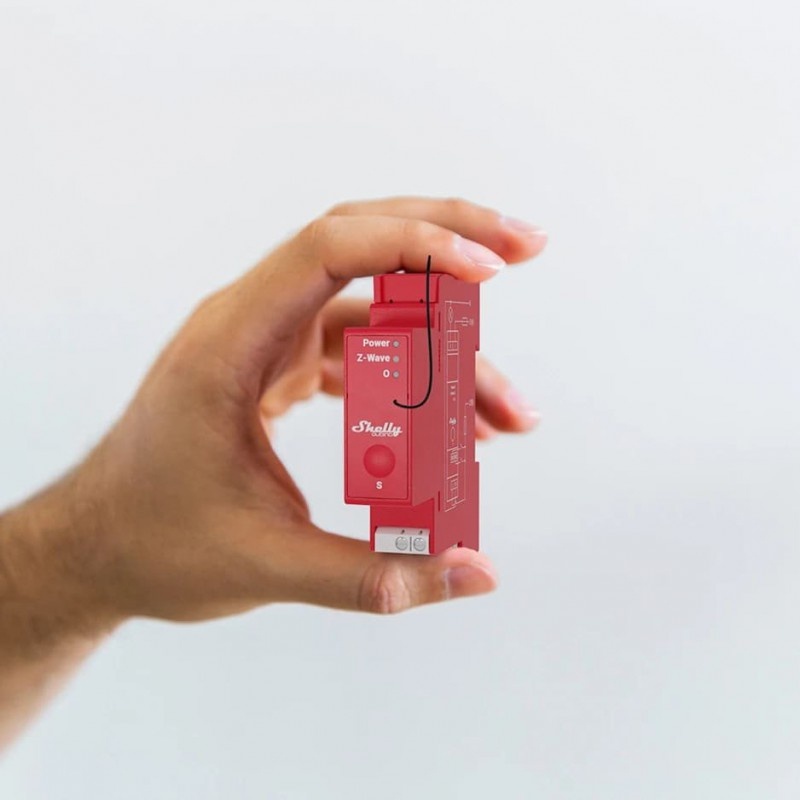

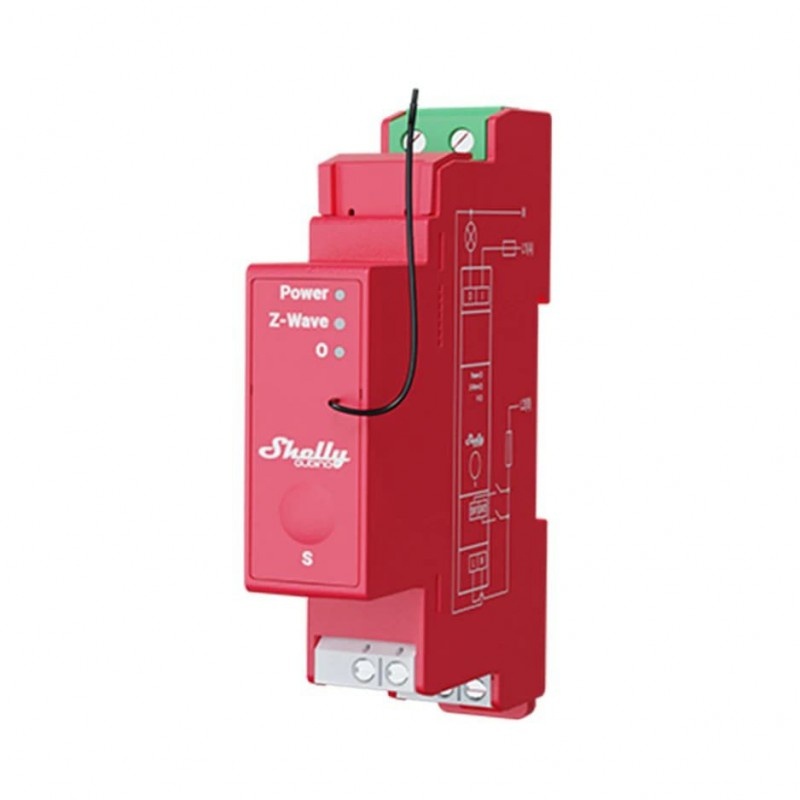

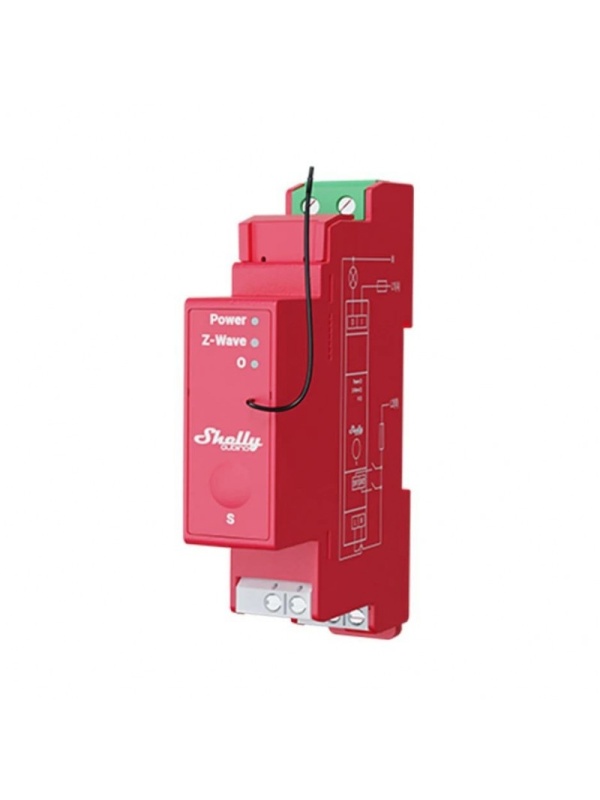

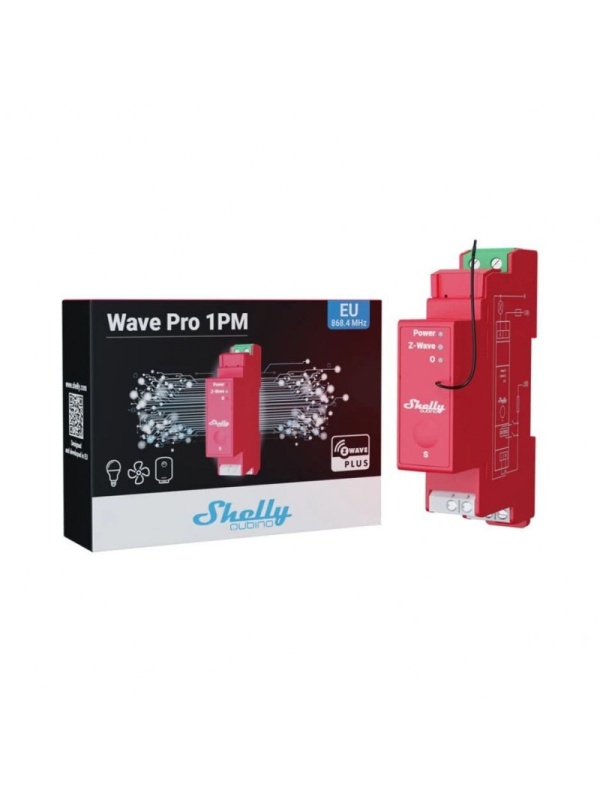

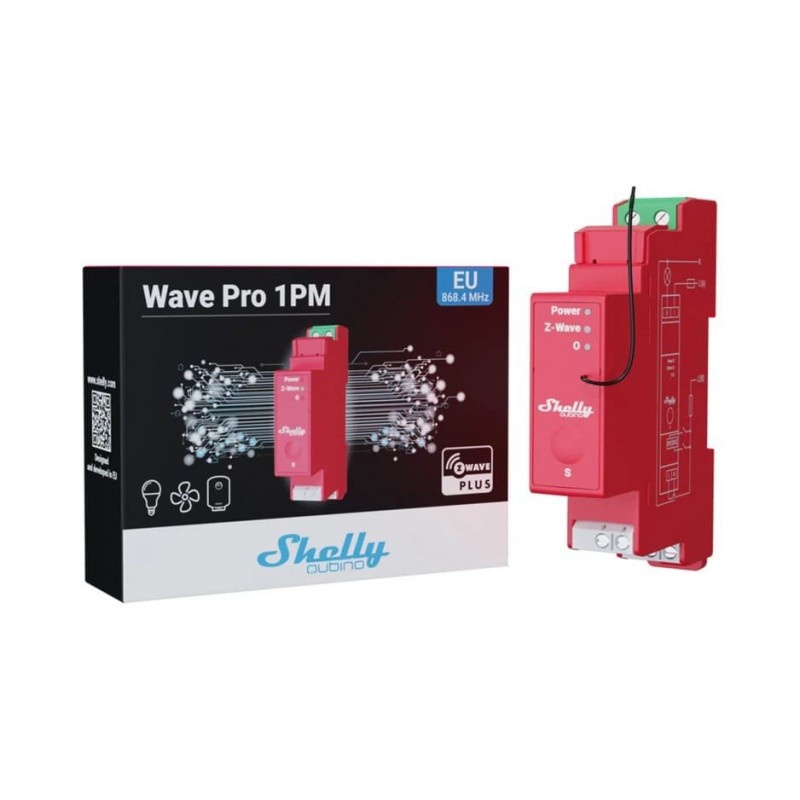

Shelly Qubino Qubino Wave Pro 1PM, 16A, 1 channel, 1 channel, Z-Wave, consumption measurement

Description

⚙️ Shelly Qubino Wave Pro 1PM - Professional Z-Wave® relay, 1 channel, 16 A, with consumption monitoring

Automate, control and monitor - Shelly Wave Pro 1PM is an intelligent DIN rail relay ideal for residential or commercial buildings, with 1 channel, 16A, 1 channel and accurate consumption metering. It operates via Z-Wave® 800, offers advanced security and is perfect for modern switchboards.

✅ Key benefits:

🔌 1 channel / 16 A - Ideal control for lights, sockets or office equipment
📊 Energy consumption monitoring (W) - View real-time consumption and optimise your energy budget
⚡ Dry contact output - Low and high voltage compatible
📦 DIN rail mounting - Professional installation, suitable for switchboards
📶 Z-Wave 800 (S800) - Secure, stable connectivity, compatible with over 4000 Z-Wave® devices
🔐 Security 2 Authenticated - Maximum level of encryption for secure smart networking
🧠 Smart Scenarios and Actions - Schedule, sunrise/sunset or network event-based automations
🔁 Z-Wave® repeater function - Extend the reach of your local smart network
🌡️ Integrated thermal protection - Automatic shutdown in case of overheating
🌍 Low own consumption: < 0.3 W

🧠 Smart apps:

💡 Light control - Automate lighting by zone, floor or programme
🔌 Soc ket management - Automatically switch off power during off-hours
🏢 Automation of common spaces - Garages, hallways, warehouses, without energy waste
🖥️ Office Equipment Control - Prevents unnecessary consumption on weekends or after hours

⚙️ Technical specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Maximum output: 16 A

• Switching voltage: up to 240 V AC

• Own consumption: < 0.3 W

• Energy metering: Yes

• Overheat protection: Yes

• Protocol: Z-Wave® S800

• Radio frequency: 868.4 MHz

• Emitted power: < 25 mW

• Operating range: up to 40 m indoors (depending on local conditions)

• Z-Wave® repeater function: Yes

• Mounting: DIN rail

• Dimensions: 94 x 19 x 69 mm

• Weight: 60 g

• Connectics:

  • Green: 0.5 - 2.5 mm²

  • White: 0,5 - 1,5 mm²

  • Cut-out length: 6 - 7 mm (green) / 5 - 6 mm (white)

• Housing material: Plastic

• Colour: Blue

• Operating Temperature: -20°C ~ +40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 The Shelly Qubino Wave Pro 1PM is the ideal choice for advanced control and metering in Z-Wave® networks. Compatible with all Z-Wave® certified hubs (including Home Assistant, Fibaro, SmartThings, etc.).

📦 Note: Z-Wave® Gateway not included. It is required for network integration.
