Shelly Qubino Qubino Wave Pro Shutter, Z-Wave roller shutter control module

🪟 Shelly Qubino Wave Pro Shutter - Z-Wave® module for intelligent control of roller blinds, awnings and blinds

Fully automate the shading of your home or office - Shelly Wave Pro Shutter is a professional DIN-rail mounted module for the precise control of motorised roller blinds, awnings, screens and screens. It offers advanced automation functions, slat position and angle control, plus energy consumption monitoring.

✅ Key benefits:

🪟 Intelligent blind control - Precise positioning and slat angle adjustment directly from the app.
🔌 Supports bi-directional AC motors - Ideal for motorised roller blinds, curtains, awnings or screens
📊 Power monitoring (W) - Real-time measured power consumption per channel

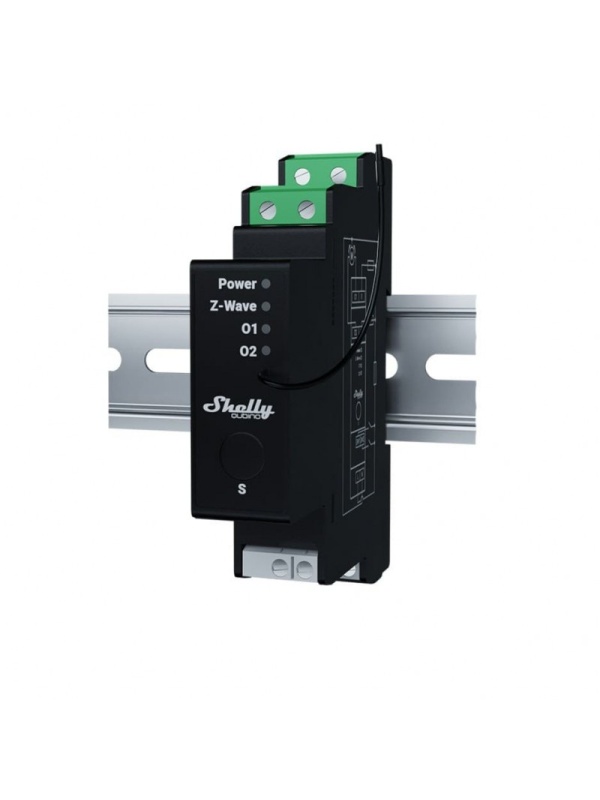

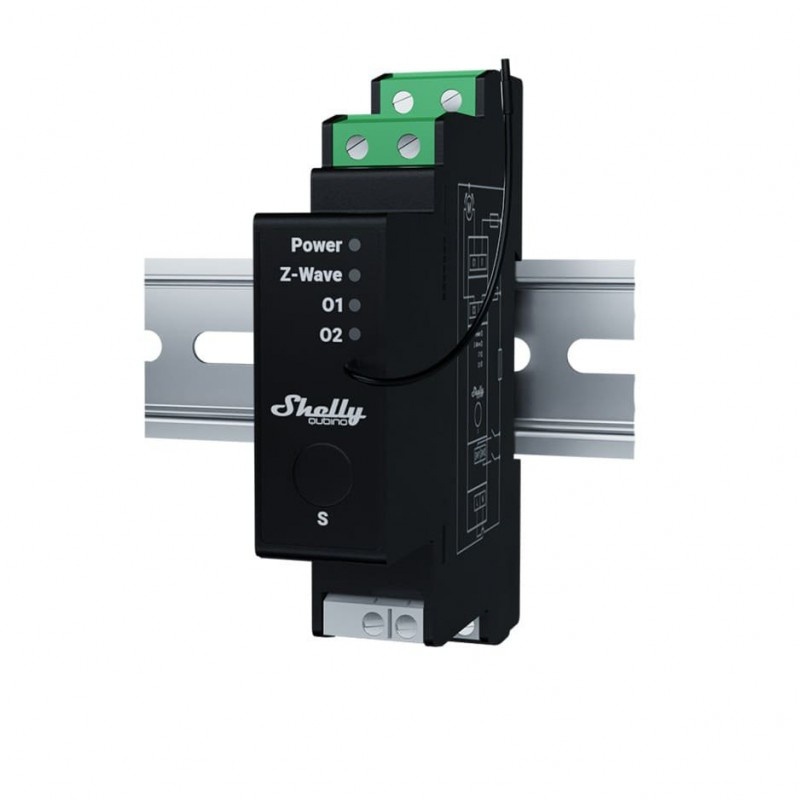

📦 DIN Rail Mountable - Professional installation in electrical panel
📶 Z-Wave 800 (S800) technology - Compatible with over 4000 Z-Wave® devices
🔐 S2 Authenticated Security - Encrypted communication for secure smart networks
🧠 Scenarios, scenes and local associations - Smart automations based on time, weather or routine
🌡️ Comprehensive protection - Against overheating, overload and surges
🔁 Integrated Z-Wave® repeater - Extend the range and reliability of your smart network
🌍 Low self-consumption: < 0.3 W

🧠 Automation possible:

☀️ Sunrise and sunset following blinds - Perfect synchronisation with natural daylight
🏢 E fficient office programme - Roller blinds automatically raise and lower according to working hours
🎯 Manual and app control - Including fine adjustment of slat angle
🏖️ Holiday Scenarios - Simulate presence through automatic blind and light movements
🌬️ Wind responsive awnings - Direct pairing with Z-Wave® weather sensors, no hub required

⚙️ Technical specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Max. current per channel: 16 A

• Max. switching voltage: 240 V AC

• Power consumption monitoring (W): Yes

• Built-in protections: Overload, overvoltage, overheating

• Own consumption: < 0.3 W

• Processor: Z-Wave® S800

• Radio Frequency: 868.4 MHz

• Emitted power: < 25 mW

• Operating distance: up to 40 m (indoors)

• Z-Wave® repeater function: Yes

• Mounting: DIN rail

• Dimensions: 94 x 19 x 69 mm

• Weight: 75 g

• Connectics:

  • Green: 0.5 - 2.5 mm²

  • White: 0,5 - 1,5 mm²

  • Cut-out length: 6 - 7 mm (green) / 5 - 6 mm (white)

• Housing: Plastic, black colour

• Operating temperature: -20°C to +40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 Shelly Qubino Qubino Wave Pro Shutter is the professional solution for complete control of shading systems with seamless integration into Z-Wave® ecosystems. Compatible with Home Assistant, Fibaro, SmartThings and any other Z-Wave® certified hub.

📦 Note: Requires a Z-Wave® gateway for full setup and operation.
