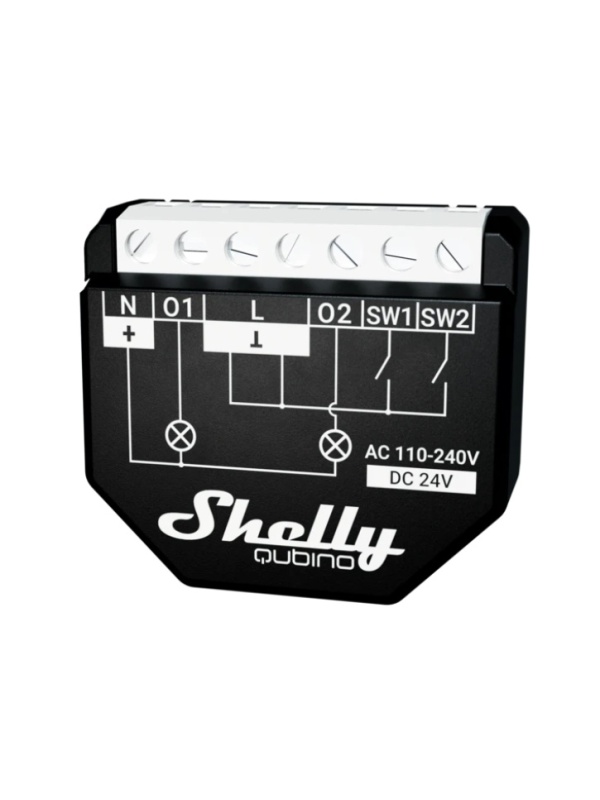

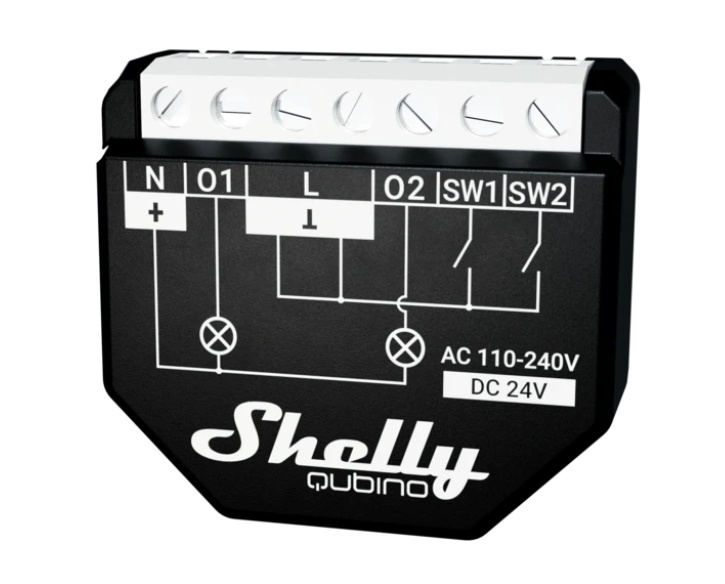

🔌 Shelly Qubino Wave 2PM - Smart Z-Wave™ Relay, 2 channels, 16 A, with power meter
Dual control and smart metering for an energy efficient home

The Shelly Qubino Wave 2PM is an advanced Z-Wave™ relay with 2 independent control channels, each capable of handling up to 16 A. Ideal for home or office automation, it allows you to control and monitor the power consumption of various appliances while offering a high level of security and efficiency.

⚙️ Main features:

🔢 2 independent channels - controls two different circuits or appliances from the same module
⚡ Integrated power metering - measures power consumption separately for each channel
🔋 Minimal own consumption - only 0.3 W
Z-Wave™ 800 Series - enhanced performance, coverage and speed
🔐 S2 Authenticated security - advanced encryption for total protection
⚡ SmartStart - simplified installation and automatic recognition
📲 Firmware OTA - software updates without cables or complicated intervention
🌐 Broad compatibility - works with over 4,000 Z-Wave™ devices and certified gateways

🏠 Ideal applications:

• Automation of two lighting zones with monitored power consumption

• Control fans, boilers, heaters or other separate equipment

• Consumption monitoring for two separate appliances in the kitchen, bathroom or garage

• Integration into smart home scenarios with automatic triggers based on consumption

• Optimise energy efficiency in commercial or residential premises

📐 Technical specifications:

• Control channels: 2

• Maximum current per channel: 16 A

• Metering: individual per channel

• Power consumption: 0.3 W

• Z-Wave™ frequency: 868.4 MHz (CEPT)

• Technology: Z-Wave™ 800 Series

• Security: S2 Authenticated

• Update: firmware Over-the-Air (OTA)

• Mounting: compatible with standard sockets and switches

• Compatibility: Z-Wave™ gateways and 4,000+ device ecosystem

• Required: Z-Wave™ smart hub (not included)

💡 With the Shelly Qubino Wave 2PM, you get complete control and double the energy efficiency - all in one compact, powerful and secure module.
