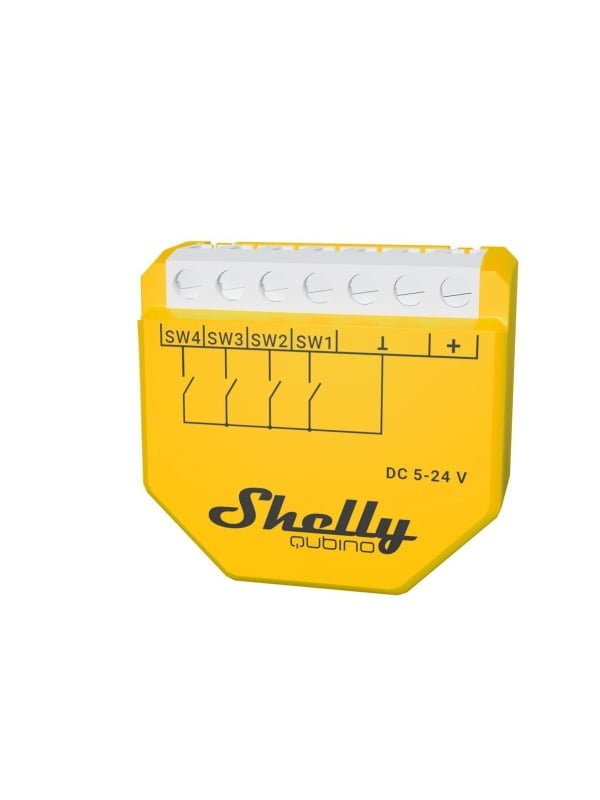

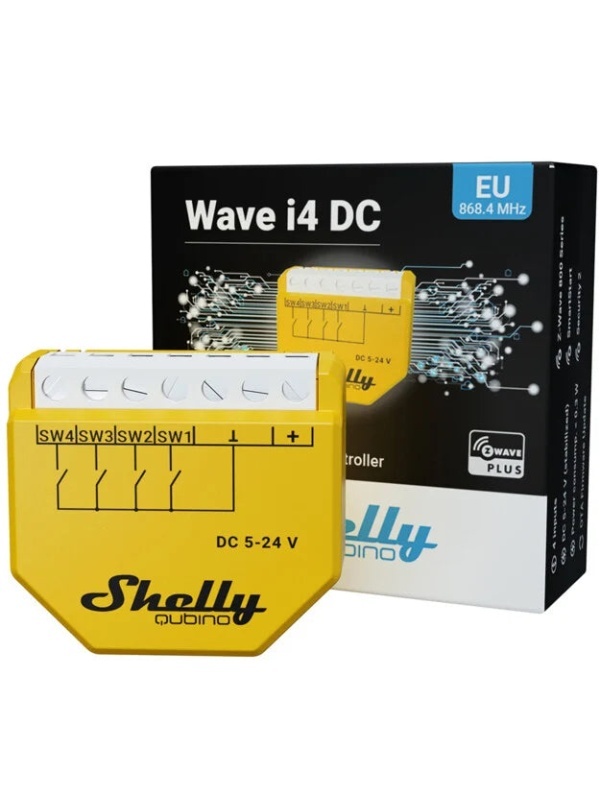

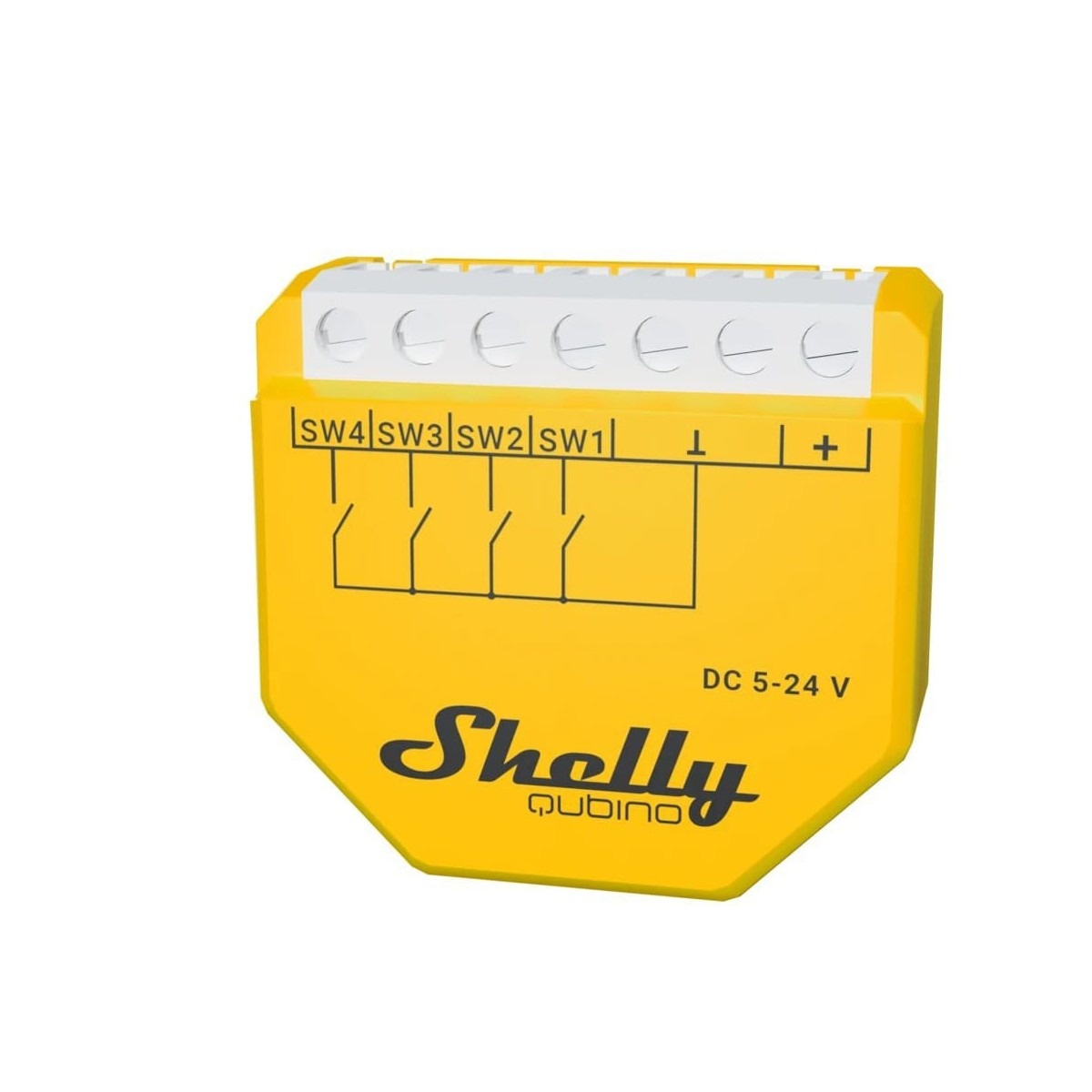

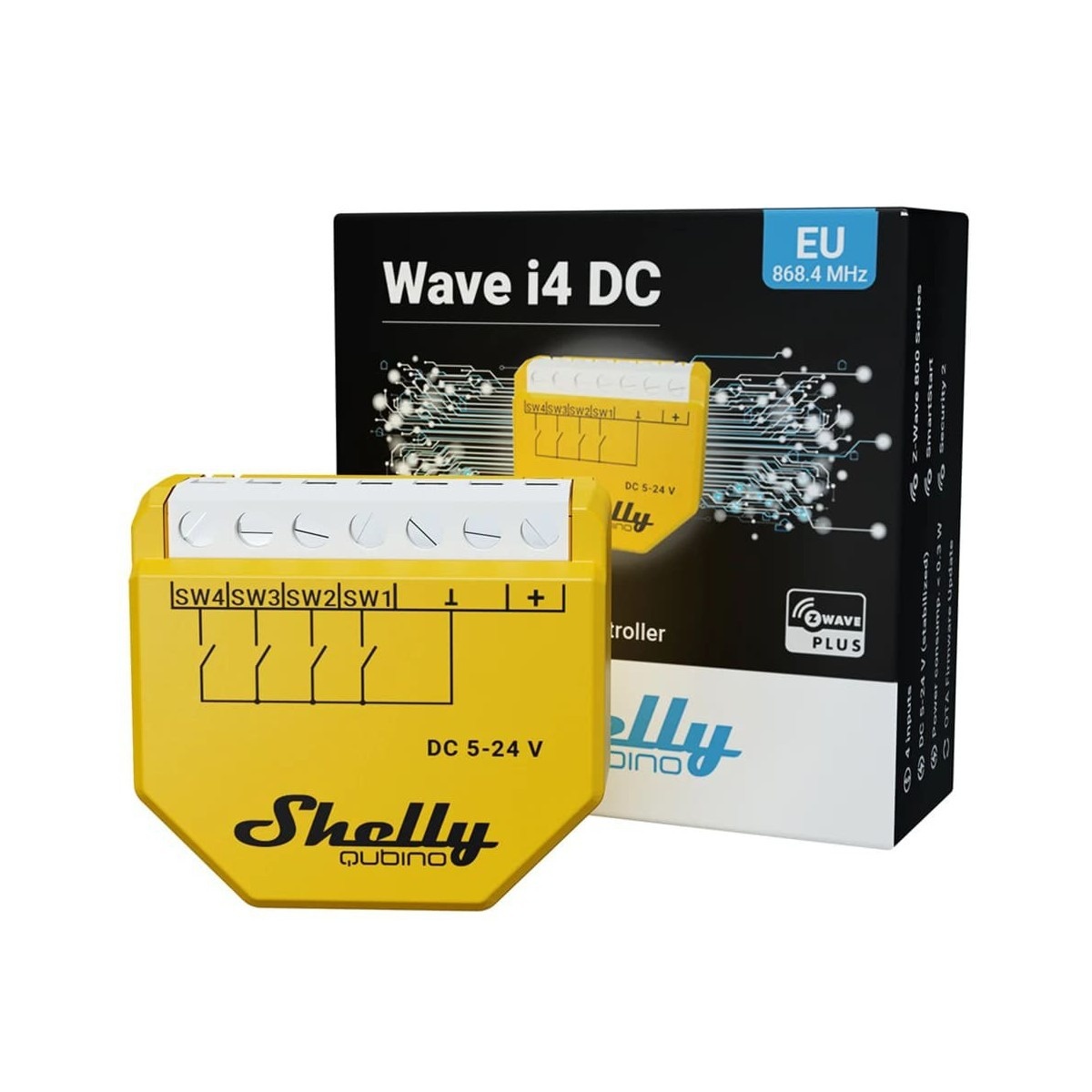

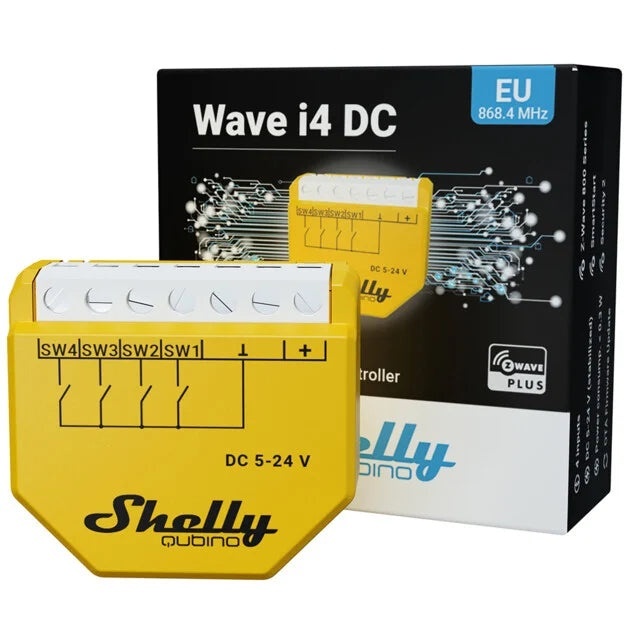

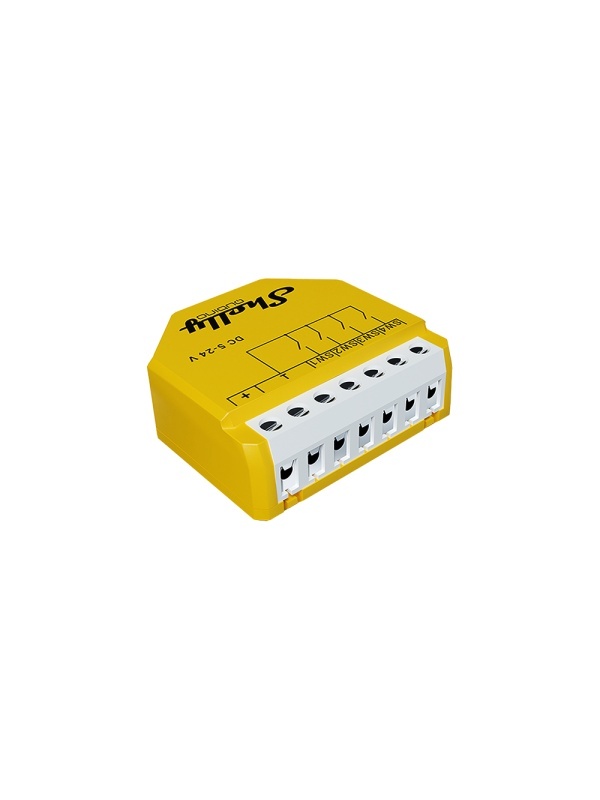

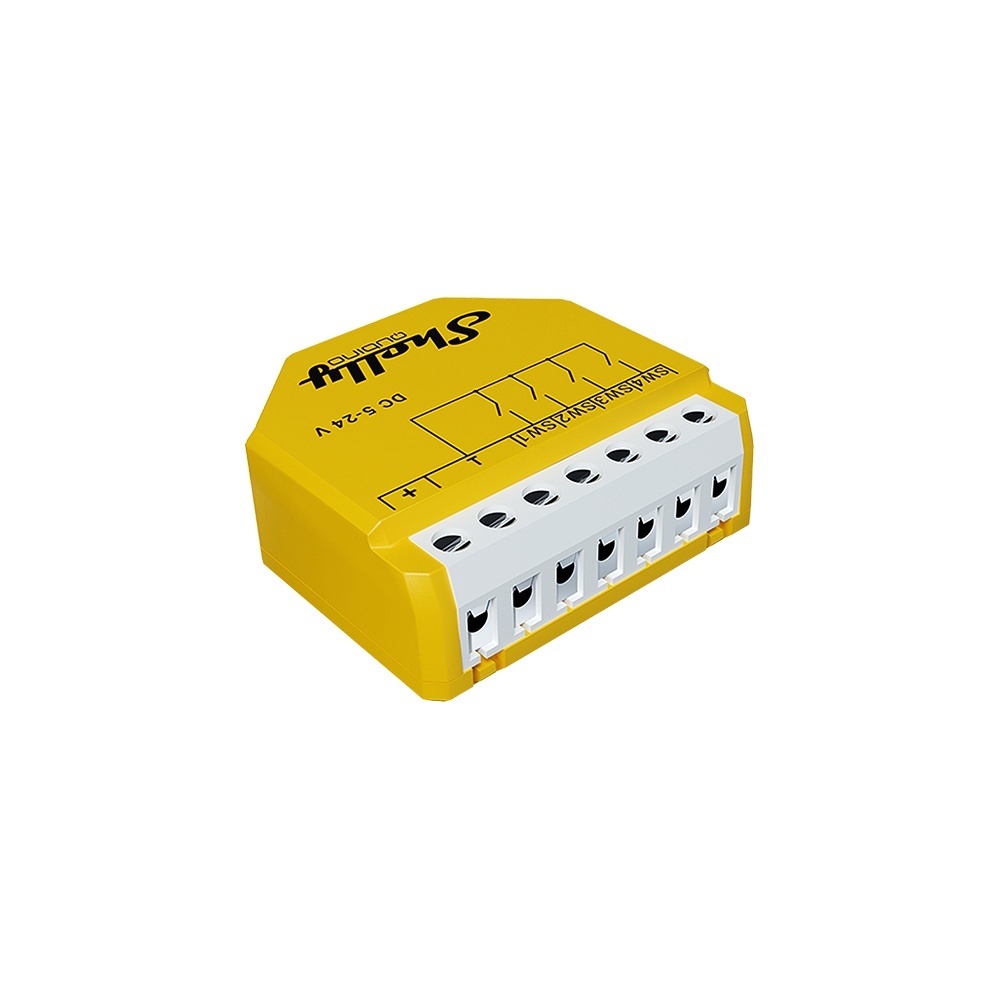

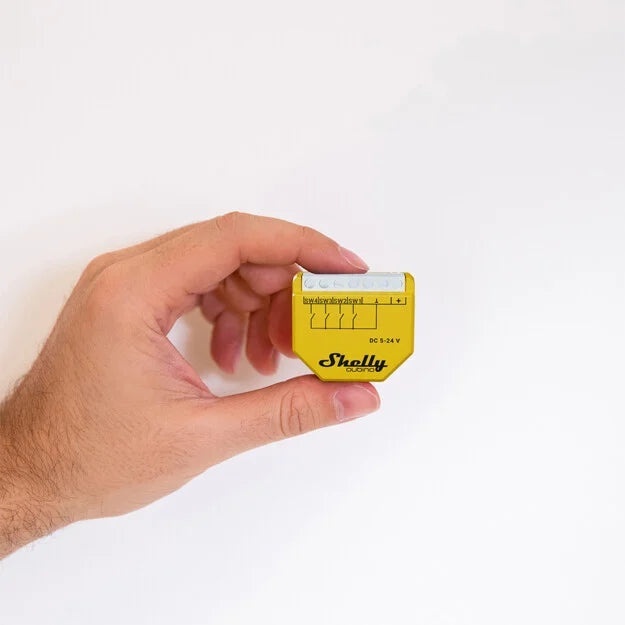

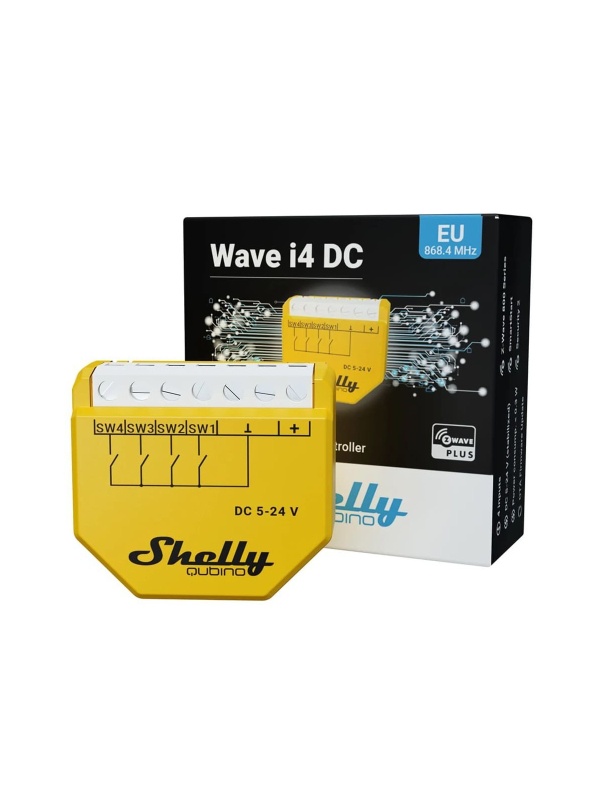

Shelly Qubino Wave i4 DC - Z-Wave scene activation module

🧠 Shelly Qubino Wave i4 DC - Z-Wave™ Scene Activation Module, 4 digital inputs, 5-24V DC, compatible with any Z-Wave™ controller

Control your smart home with one button, no smartphone, no stress. The Shelly Qubino Qubino Wave i4 DC is a compact, 4 digital input module specifically designed for direct 5V to 24V DC power supply - ideal for switchboards or light industrial applications. Activate complex scenes and trigger multiple actions on your Z-Wave™ network with up to 12 different multi-click commands.

🔌 Key Features:

🎛️ 4 independent digital inputs - connect classic switches or momentary buttons
🖲️ Multi-click - up to 12 different actions depending on the type of press
⚡ DC power supply: 5-24V - compatible with low voltage sources
Z-Wave™ 800 Series - high performance and extended coverage
🛡️ S2 Authenticated Security - advanced encryption for maximum protection
⚙️ SmartStart - easy integration into your network
🔋 Very low power consumption - < 0.3 W
📲 O TA firmware update - fast, wireless updates
🔁 Integrated Z-Wave™ Repeater - extend the Z-Wave network in your home
🧩 Compatible with over 4000 Z-Wave certified devices and gateways

The module contains no relay - it is a digital signal reader. Requires compatible Z-Wave gateway for full integration.

🏠 Usage examples:

• 🔘 Triggers 12 different scenes with a single multi-button switch

• 🪟 Control lights, blinds, doors or sockets depending on the number of presses

• 💤 Pre-defined scenarios - "Good night", "I'm leaving home", "Holiday", all at your fingertips

• 📡 No gateway? Still control up to 8 actions via direct local association

• 🧱 Perfect for installations in control panels or tight spaces

📐 Technical specifications:

• Digital inputs: 4

• Power supply: 5-24V DC

• Power consumption: < 0.3 W

• Z-Wave Frequency: 868.4 MHz (CEPT countries)

• RF Transmit Power: < 25 mW

• Z-Wave Repeater: Yes

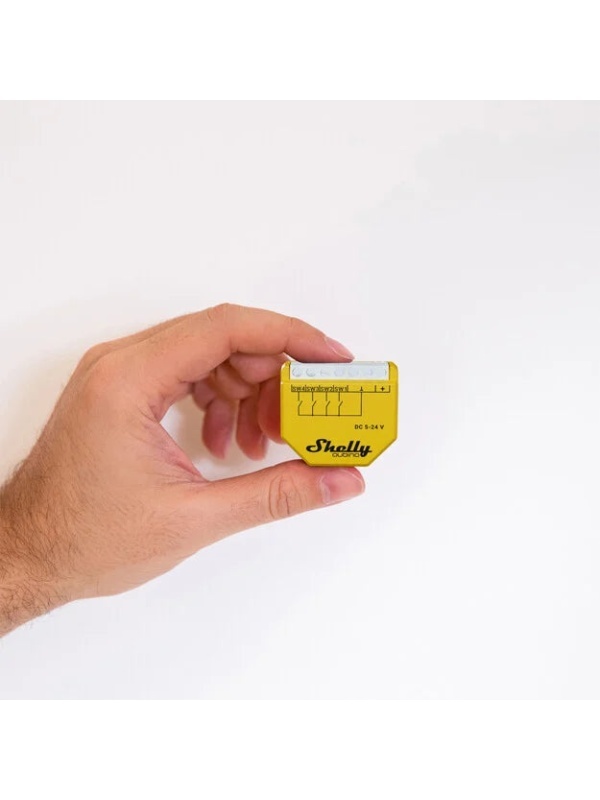

• Dimensions: 37 x 42 x 16 mm

• Mounting: In wall or electrical panel

• Weight: 17 g

• Operating temperature: -20°C to +40°C

• Housing material: Plastic (orange colour)

• Compatibility: All Z-Wave certified gateways and devices

🎯 The Shelly Qubino Wave i4 DC is the ideal solution for manually triggering smart scenes in environments where power is supplied from DC sources. Fast, reliable and easy to integrate into any Z-Wave system!
