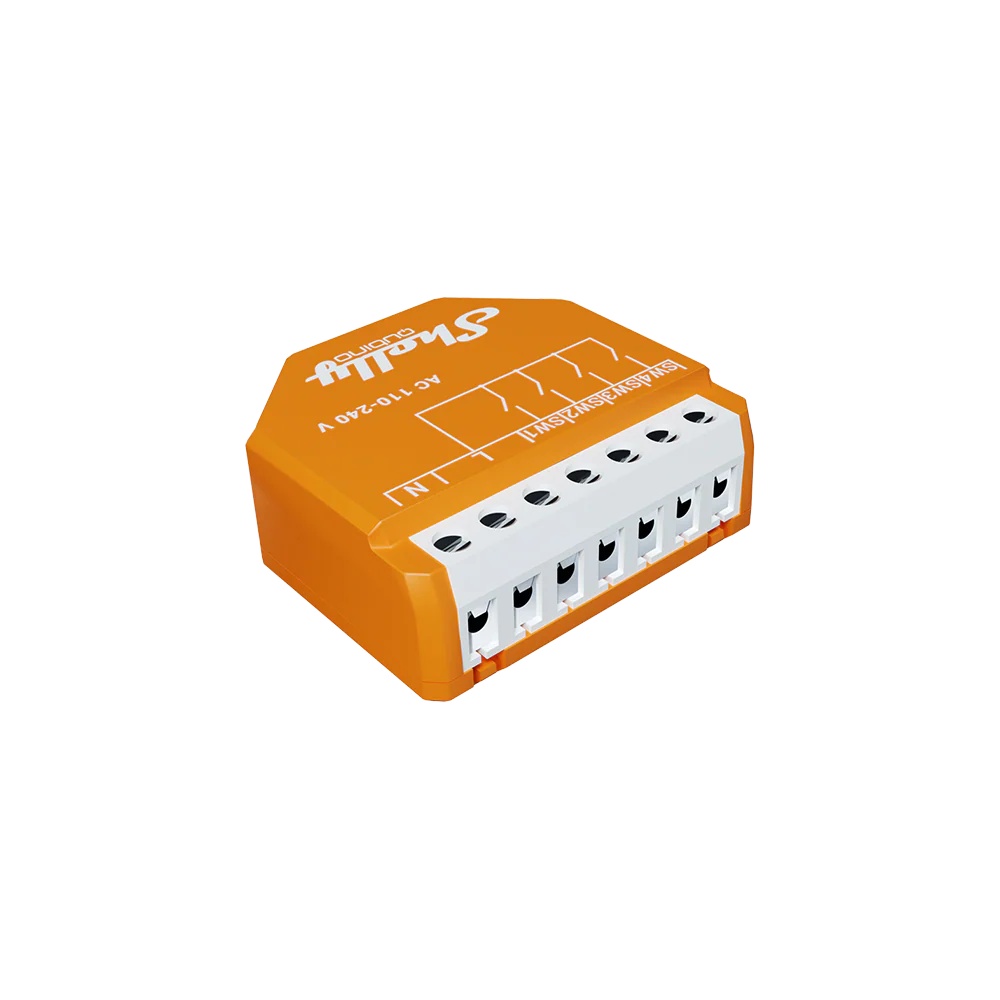

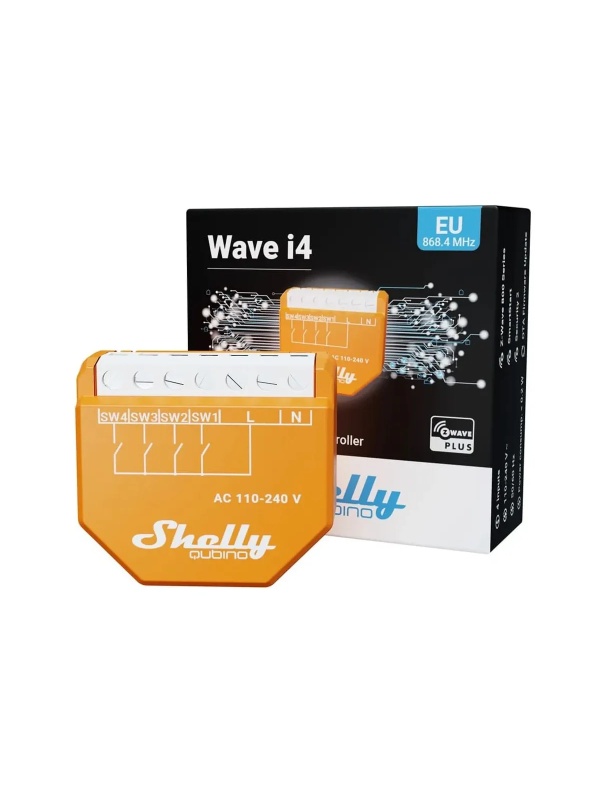

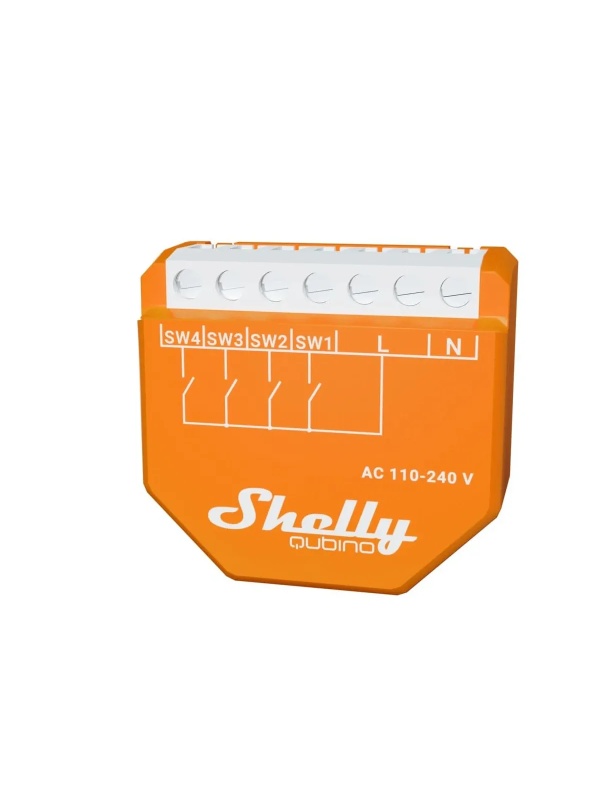

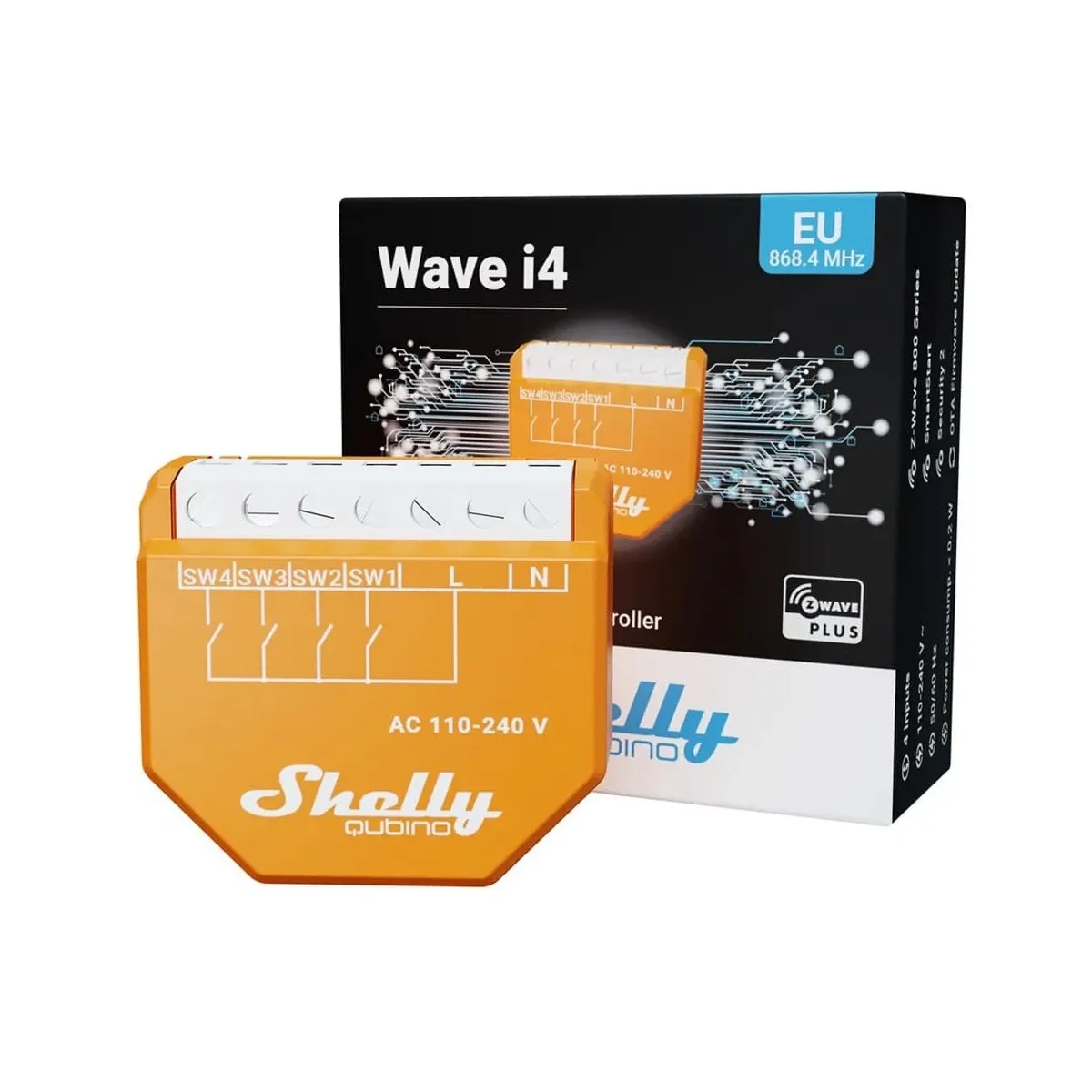

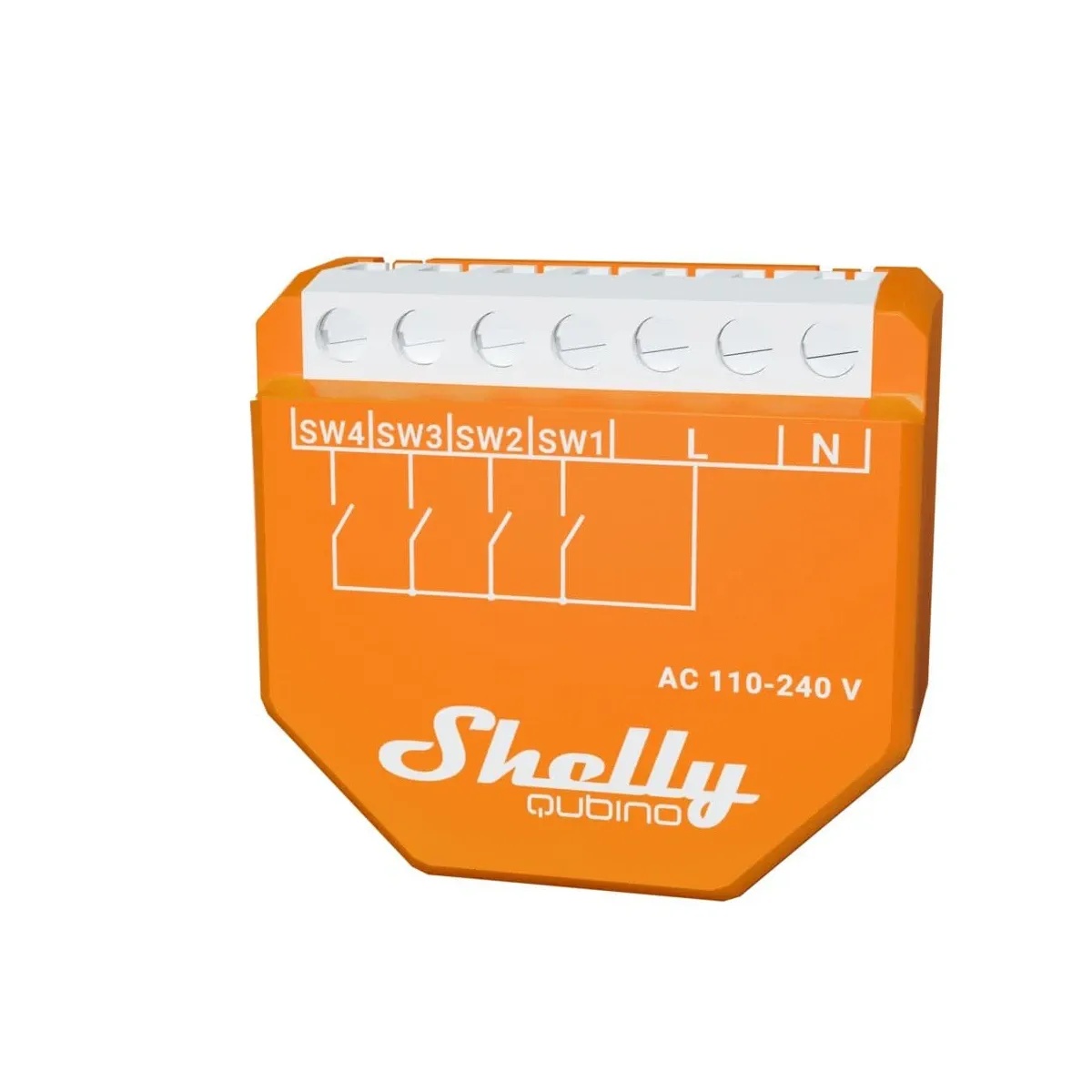

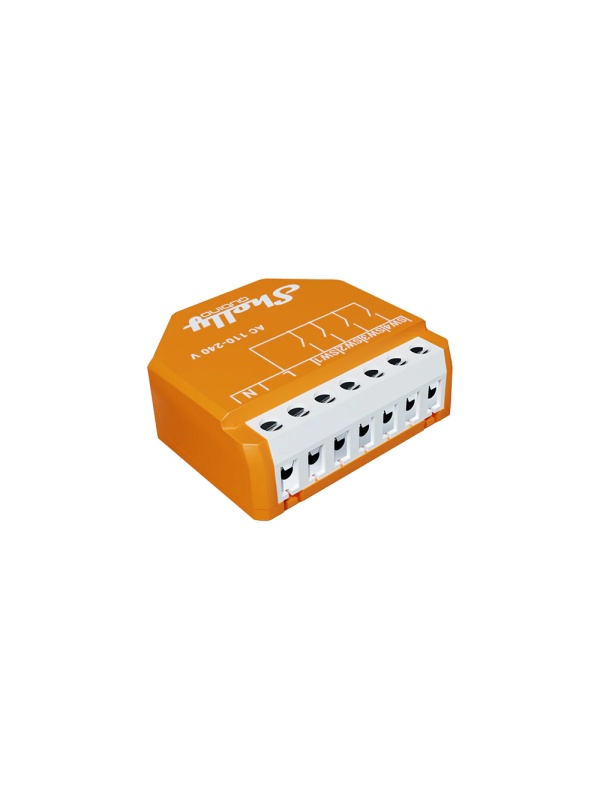

Shelly Qubino Wave i4 - Z-Wave scene activation module

🧠 Shelly Qubino Wave i4 - Z-Wave™ Scene Activation Module, 4 digital inputs, 230V, compatible with any Z-Wave™ controller

Transform any classic switch into a smart control centre for complex scenes and multiple actions without changing the look of your home. The Shelly Qubino Wave i4 is an ultra-compact module that lets you trigger Z-Wave scenes and control other devices with simple button presses.

🔌 Key Features:

🎛️ 4 independent digital inputs - allows connection to physical buttons to control other devices
🖲️ Multi-click - up to 12 different actions depending on the type of press
Z-Wave™ 800 Series - the next generation for optimised reliability, coverage and speed
🛡️ S2 Authenticated Security - advanced encryption to protect your smart network
⚙️ SmartStart - simplified automatic setup
🔋 Extremely low power consumption - < 0.2 W
📲 O TA Update - wireless firmware updates
🔁 Integrated Z-Wave™ Repeater - extend the range of your Z-Wave™ network
🧩 Compatible with over 4000 Z-Wave certified devices and gateways

Warning: no relay! It is an input reader module, intended only to trigger scenarios or actions on your Z-Wave™ network. Requires a compatible gateway for integration.

🏠 Usage examples:

• 👉 S witch on/off lights throughout the house with a single button, at the entrance or bedside

• 🔄 Control the position of blinds, doors or other motorised devices via scenes

• 🛌 'Sleep' scenario - switch off all lights, switch on alarms and set the thermostat

• 🏃 'I'm leaving home' scenario - switch off all sockets and close the rollers

• 🧲 No gateway? No problem! - Up to 8 actions can be launched via direct associations (2 per button)

🧰 Technical specifications:

• Number of digital inputs: 4

• Supply voltage: 110-240V AC, 50/60 Hz

• Power consumption: < 0.2 W

• Z-Wave™ Frequency: 868.4 MHz (CEPT countries)

• RF transmission power: < 25mW

• Z-Wave™ Repeater: Yes

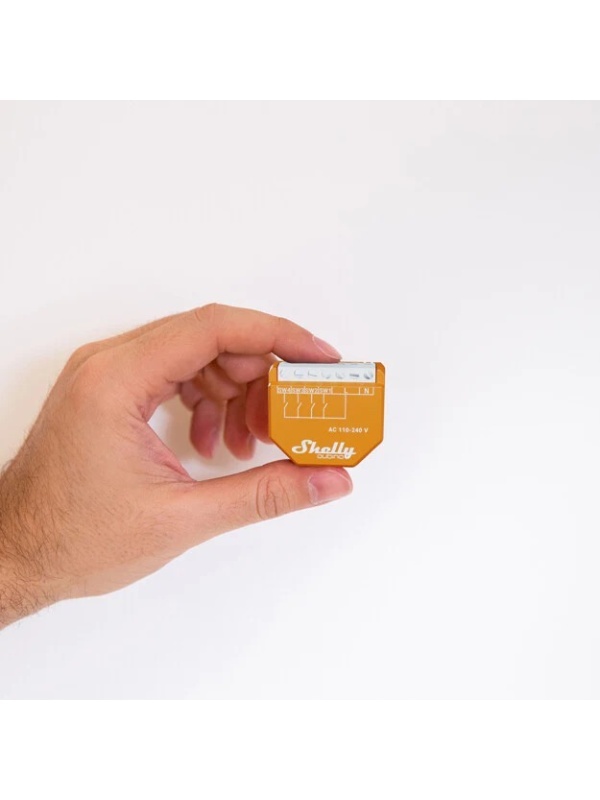

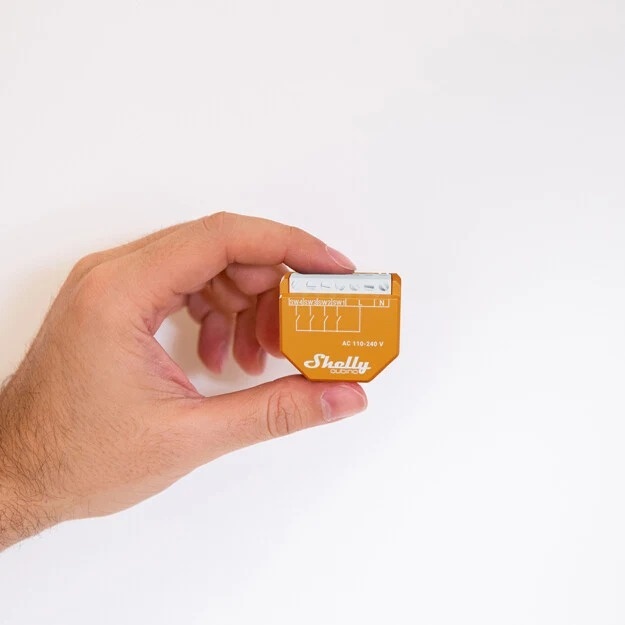

• Dimensions: 37 x 42 x 16 mm

• Mounting: In wall socket, behind a standard switch

• Weight: 17 g

• Temperature range: -20°C to +40°C

• Housing material: Plastic (colour: orange)

🎯 Ideal for manual control of your smart home, even without your phone handy. The Shelly Qubino Wave i4 adds complex automation in a compact, easy to mount and integrate into any Z-Wave™ system.
