Shelly Qubino Wave Pro 2, 16A, 2 channels, Z-Wave

Description

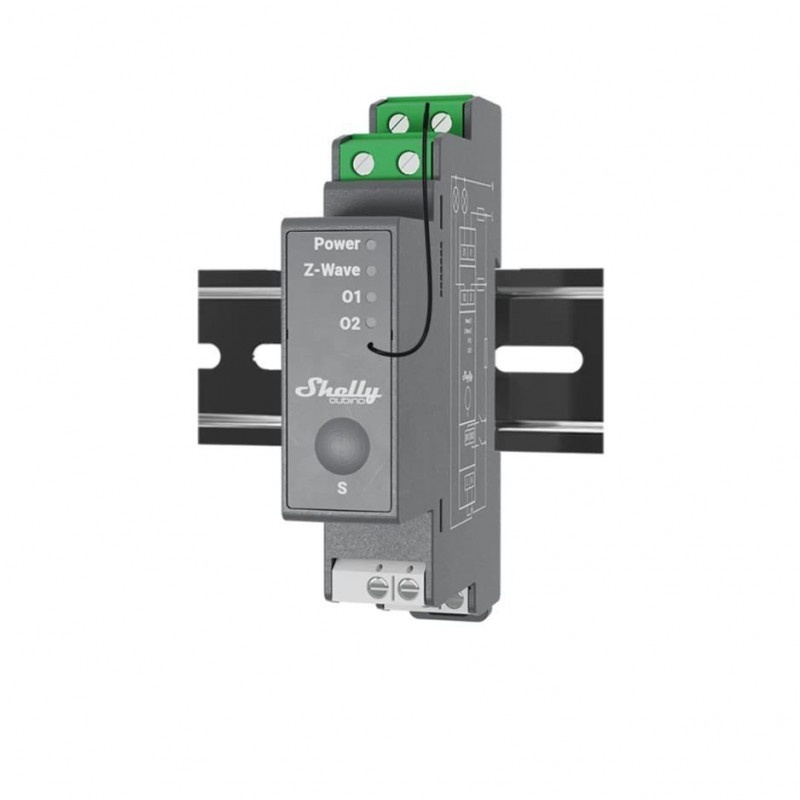

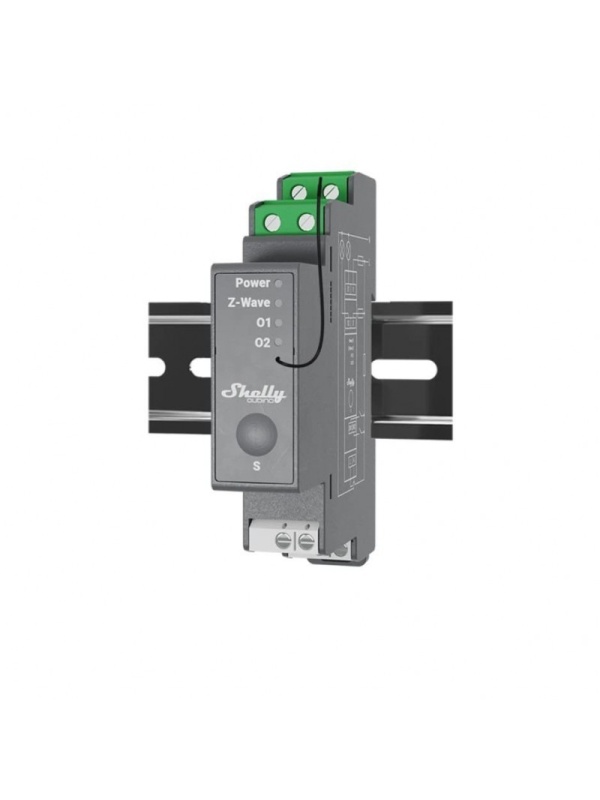

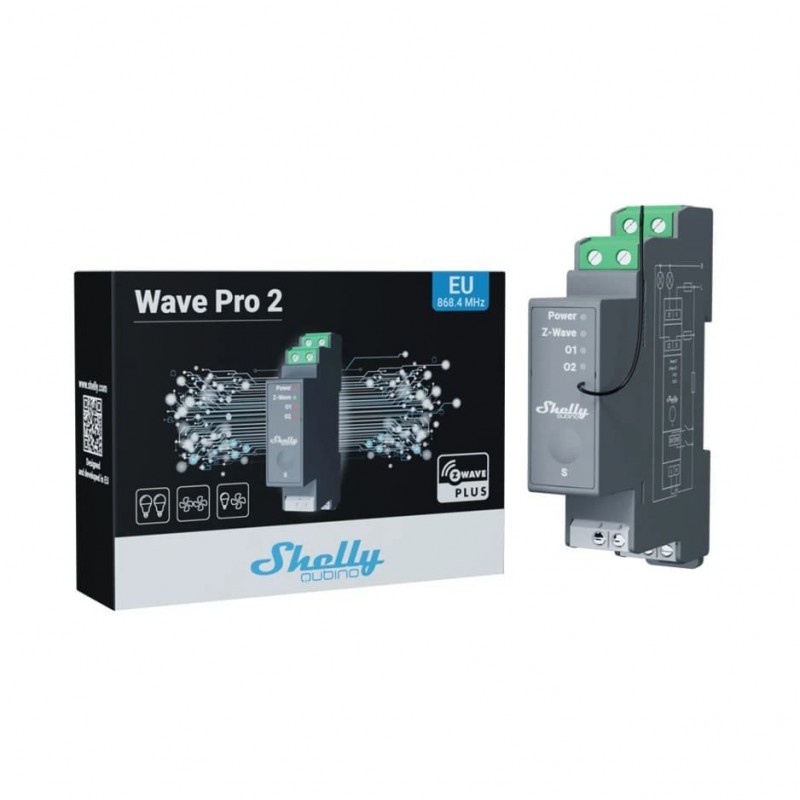

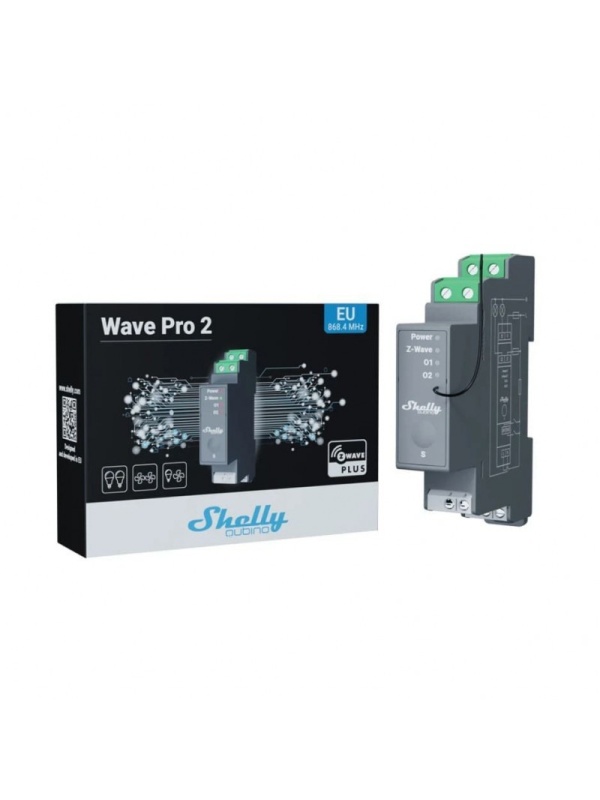

⚙️ Shelly Qubino Wave Pro 2 - Professional Z-Wave® Relay 2-channel, 16 A, DIN mount

Dual control, professional performance - The Shelly Qubino Wave Pro 2 is a DIN-rail-mountable Z-Wave® relay with 2 independent channels up to 16 A, ideal for automating lights, outlets or other electrical equipment in residential or commercial installations. Reliable, secure and ready for complex automation scenarios, it is compatible with all certified Z-Wave® hubs.

✅ Key benefits:

🔌 2 channels / 16 A - Controls two separate circuits with loads up to 16 A per channel
📦 DIN rail mountable - Perfect for professional switchboards
⚡ Dry contact outputs - Low and high voltage compatible for maximum flexibility
Z-Wave 800 (S800) - Stable, efficient, extended range communication
🔐 S2 Authenticated Security - Encrypted protection for secure control in your smart network
📲 SmartStart & OTA updates - Quick installation and simplified maintenance
🔁 Z-Wave® Repeater Function - Extends and stabilises your local Z-Wave network
🌡️ Integrated thermal protection - Automatic shutdown in case of overheating
🌍 Extremely low power consumption: < 0.3 W

🧠 Multiple automations:

💡 Zone lighting control - Automates separate circuits (e.g. floors, rooms, common areas)
🔌 O utlet automation - Switch off power according to programme or conditions
🏢 Use in smart buildings - Ideal for commercial, office or warehouse spaces

⚙️ Technical specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Total output: 2 x 16 A

• Switching voltage: up to 240 V AC

• Own consumption: < 0.3 W

• Power measurement (W): No

• Overheat protection: Yes

• Protocol: Z-Wave® (S800)

• RF Frequency: 868.4 MHz

• Emitted power: < 25 mW

• Operating range: up to 40 m indoors

• Z-Wave® repeater: Yes

• Mounting: DIN rail

• Dimensions: 94 x 38 x 69 mm

• Weight: ~75 g

• Connectivity:

  • Green: 0.5 - 2.5 mm²

  • White: 0.5 - 1.5 mm²

  • Cut-out length: 6 - 7 mm (green) / 5 - 6 mm (white)

• Housing material: Plastic

• Colour: Blue

• Operating Temperature: -20°C ~ +40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 The Shelly Qubino Wave Pro 2 is the perfect solution for dual automations in one device, with state-of-the-art Z-Wave® reliability and security.

📦 Note: Requires a compatible Z-Wave® gateway for network integration.
