Shelly Qubino Wave Pro 2PM, 16A, 2 channels, consumption monitoring, Z-Wave

Description

⚙️ Shelly Qubino Wave Pro 2PM - Professional Z-Wave® Relay, 2 channels, 16 A, with consumption monitoring and DIN mounting

Dual power, smart control and real-time monitoring - Shelly Wave Pro 2PM is an intelligent DIN rail relay with 2 independent channels, each up to 16 A, with power metering for each circuit. Ideal for automating electrical installations in residential and commercial buildings with full integration into Z-Wave® networks.

✅ Key benefits:

🔌 2 independent channels - 16 A each - Controls two circuits separately, from lights to powerful appliances
📊 Integrated energy monitoring - Measures real-time consumption for each channel
📦 Professional DIN rail mounting - Perfect for switchboards and distribution panels
⚡ Dry contact outputs - Compatible with a wide range of AC and DC loads
Z-Wave 800 (S800) - The next generation of smart home connectivity
🔐 S2 Authenticated Security - Encrypted protection for a secure Z-Wave® network
📲 Quick set-up with SmartStart - Instant network add and OTA firmware updates
🔁 Integrated Z-Wave® Repeater - Extends network range and stabilises communication
🌡️ Automatic thermal protection - Increased safety in case of overheating
🌍 Low power consumption: less than 0.3 W

🧠 Automation scenarios:

💡 S eparate lighting per zone or floor - Create different programmes for each channel
🔌 Outlet control and metering - See exactly how much each appliance consumes
🏢 Commercial and office facilities - Automate equipment and optimise consumption according to schedule

⚙️ Technical specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Output: 2 x 16 A

• Switching voltage: max. 240 V AC

• Own consumption: < 0.3 W

• Power monitoring (W): Yes, per channel

• Overheat protection: Yes

• Protocol: Z-Wave® S800

• RF Frequency: 868.4 MHz

• Emitted power: < 25 mW

• Operating range: up to 40 m indoors (depending on conditions)

• Z-Wave® repeater: Yes

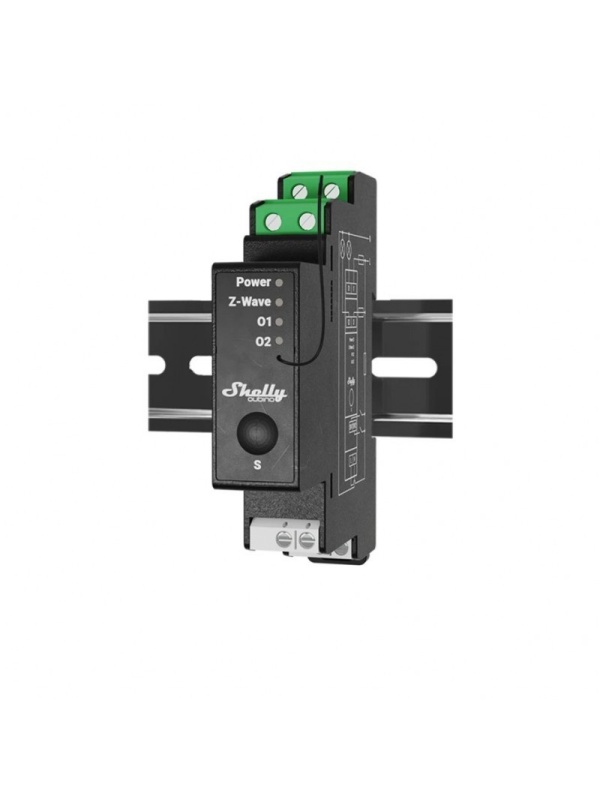

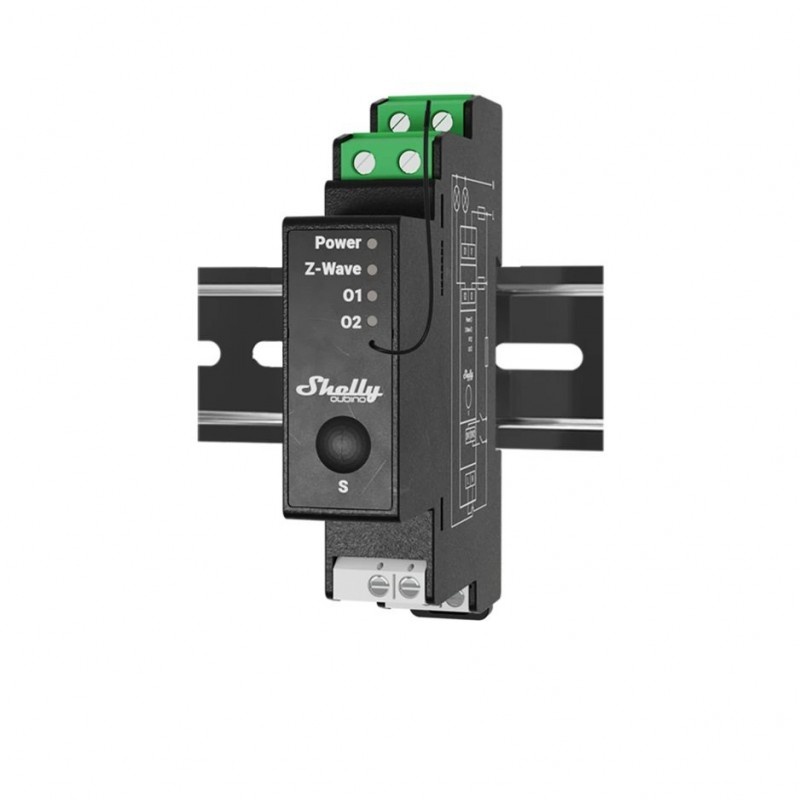

• Mounting: DIN rail

• Dimensions: 94 x 38 x 69 mm

• Weight: ~75 g

• Connects:

  • Green: 0.5 - 2.5 mm²

  • White: 0,5 - 1,5 mm²

  • Cut-out length: 6 - 7 mm (green) / 5 - 6 mm (white)

• Housing material: Plastic

• Colour: Blue

• Operating Temperature: -20°C ~ +40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 The Shelly Qubino Wave Pro 2PM offers complete control and smart real-time monitoring - all in a professional format, compatible with all certified Z-Wave® hubs including Home Assistant, Fibaro, SmartThings and more.

📦 Note: Requires a Z-Wave® gateway for setup and network integration.
