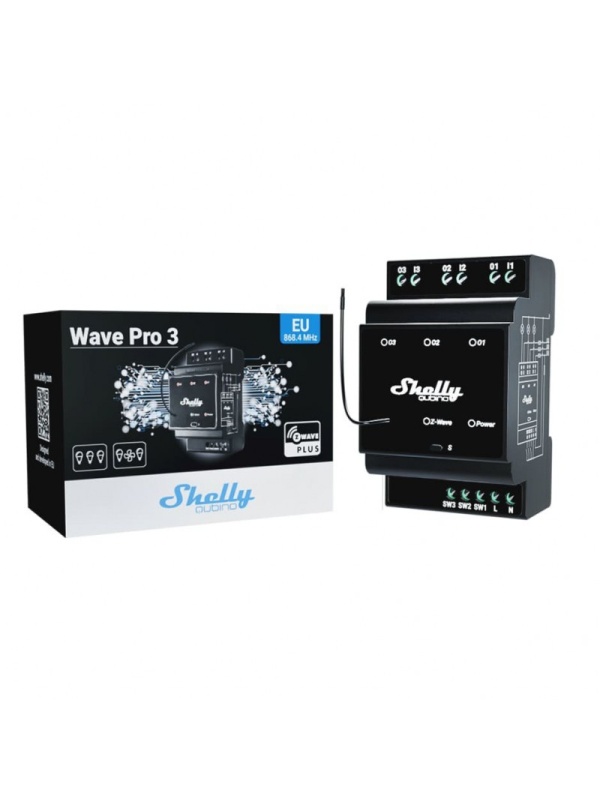

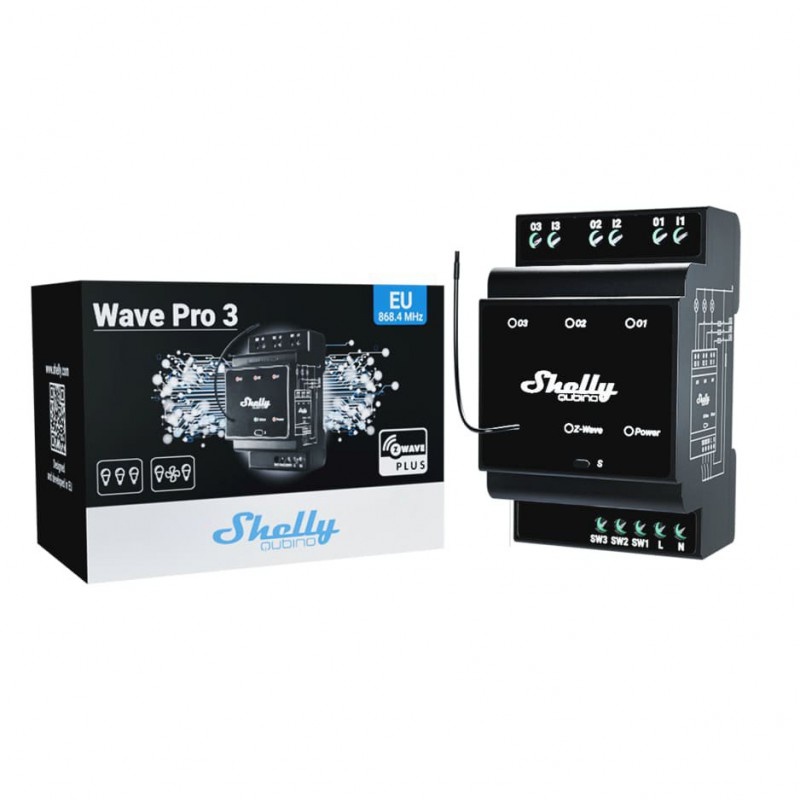

Shelly Qubino Wave Pro 3 intelligent relay, 16A, 3 channels, dry contacts, Z-Wave

⚙️ Shelly Qubino Wave Pro 3 - Professional Z-Wave® Relay, 3 channels, 48 A total, dry contacts, DIN mounting

Complete control for advanced installations - Shelly Wave Pro 3 is an intelligent Z-Wave® relay with 3 independent 16 A channels for automating electrical circuits in residential or commercial buildings. Equipped with dry contacts, it offers total flexibility in controlling different types of loads and is ideal for lighting, outlets or HVAC applications.

✅ Key benefits:

🔌 3 independent channels / 48 A total - Controls separate circuits, each up to 16 A
⚡ Dry (potential-free) contacts - Compatible with AC and DC loads, low or high voltage
📦 DIN rail mountable - Installs easily into professional electrical panels
📶 Z-Wave 800 (S800) - Next generation of standardised connectivity
🔐 Security 2 Authenticated - Encrypted security for Z-Wave® networks
📲 S martStart Quick Setup - Instant, effortless addition to your network
🔁 Z-Wave® Repeater Function - Extends signal range and stability
🌡️ Overheat Protection - Flame retardant material and high operational safety
🌍 Low self-consumption: < 0.3 W

🧠 Usage scenarios:

💡 S mart lighting control - Automate lights in offices, commercial spaces or homes with scheduled on/off
🌡️ HVAC and valve automation - Integrate solenoid valve control for heating/cooling systems
🔌 Efficient energy management - Schedules non-essential electrical appliances to switch off during off hours

⚙️ Technical Specifications:

• Power supply: 110 - 240 V AC, 50/60 Hz

• Total output: 3 x 16 A (48 A max.)

• Switching voltage AC: max. 240 V

• DC switching voltage: max. 30 V

• Own consumption: < 0.3 W

• Energy monitoring: No

• Overheat protection: Yes

• Z-Wave® repeater: Yes

• Processor: Z-Wave® S800

• Radio Frequency: 868.4 MHz

• RF emitted power: < 25 mW

• Operating range: up to 40 m (indoors, depending on local conditions)

• Mounting: DIN rail

• Dimensions: 96 x 53 x 59 mm

• Weight: 150 g

• Connectics:

  • Green: 0.5 - 2.5 mm²

  • Cut-out length: 6 - 7 mm

• Housing: Fire-retardant plastic

• Colour: Black

• Operating temperature: -20°C ~ +40°C

• Humidity: 30% - 70% RH

• Maximum altitude: 2000 m

🔗 The Shelly Qubino Wave Pro 3 is the ideal solution for complex automation projects, offering triple control, dry contact and full integration with any certified Z-Wave® system - from Home Assistant to Fibaro, Aeotec and more.

📦 Note: Z-Wave® Gateway is required and is purchased separately.
